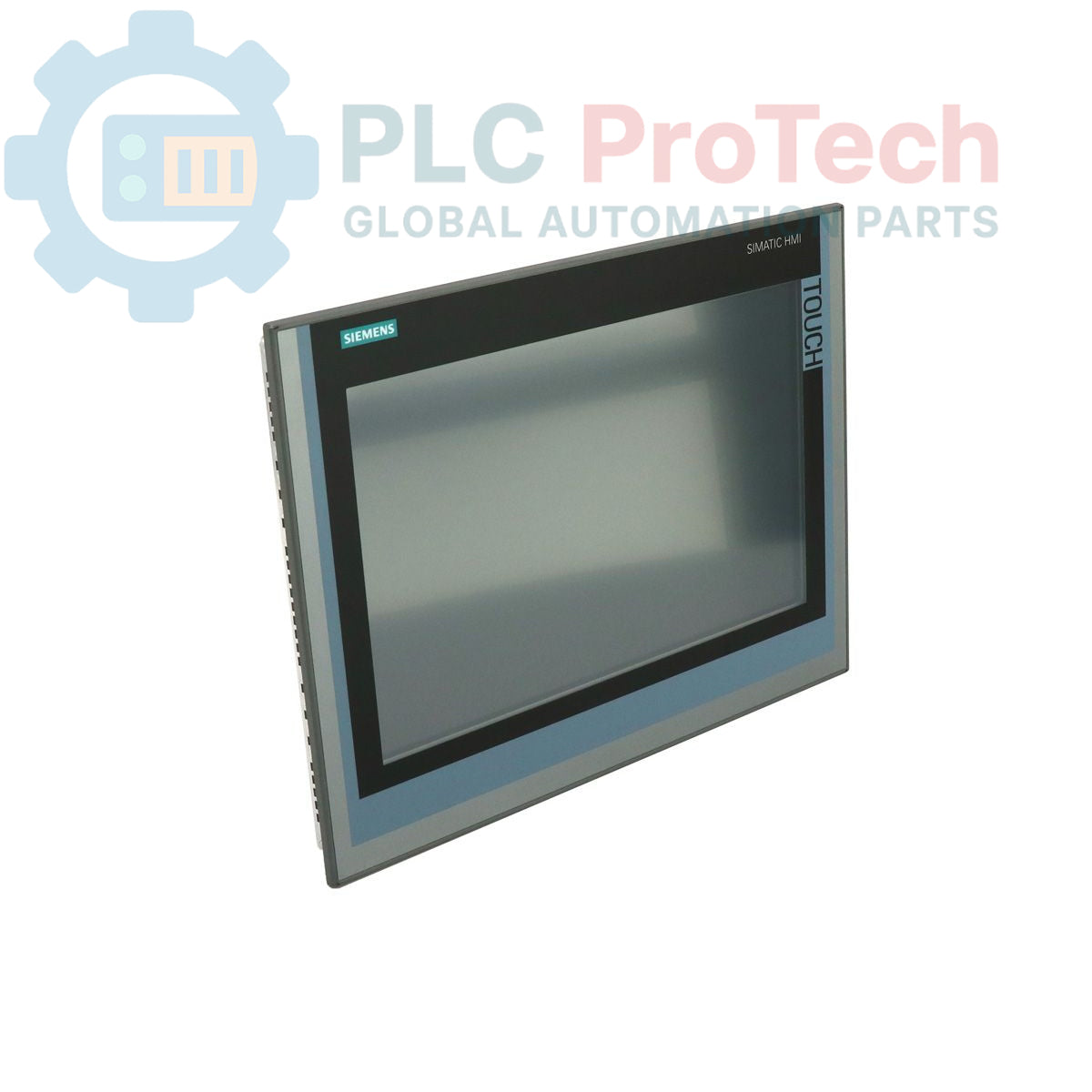

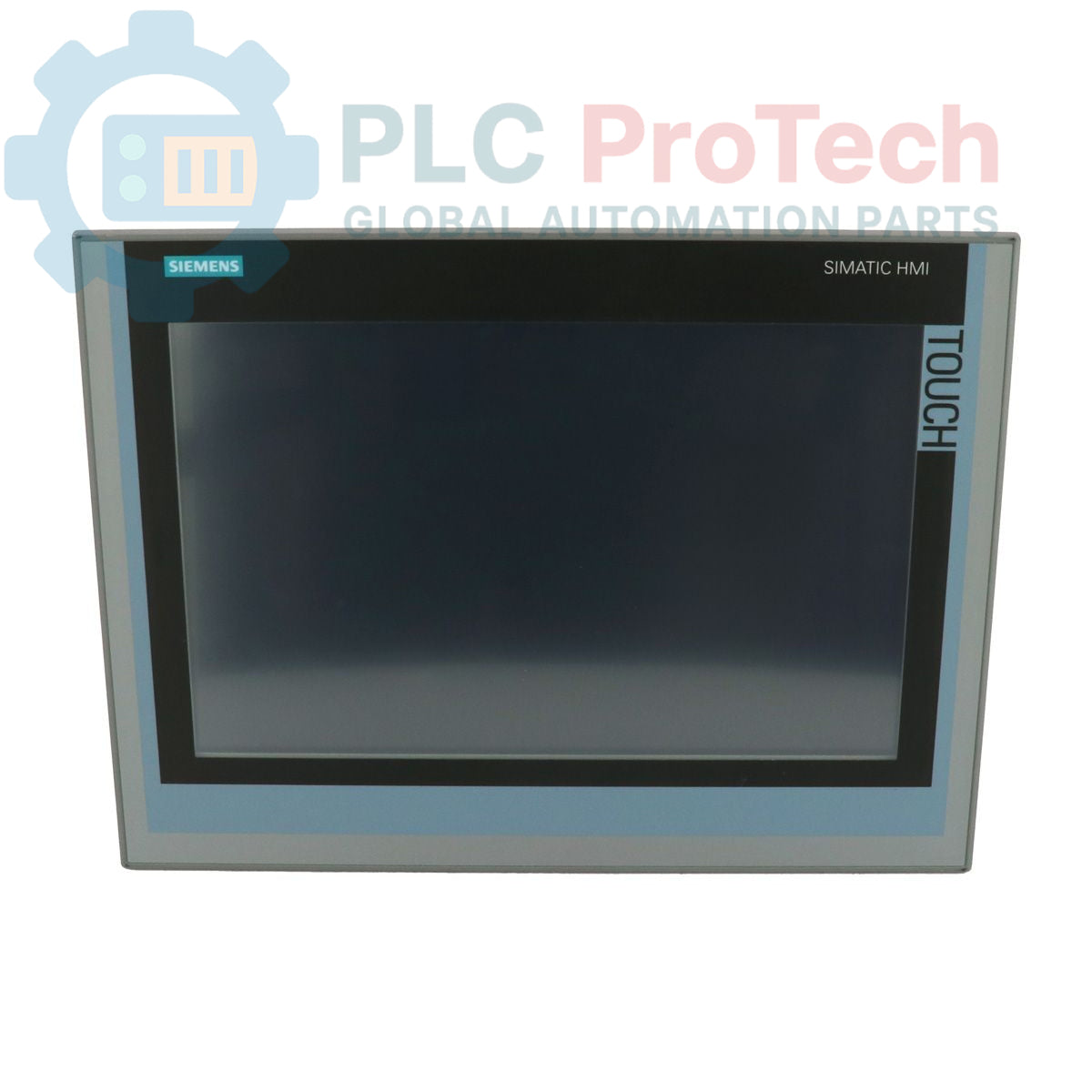

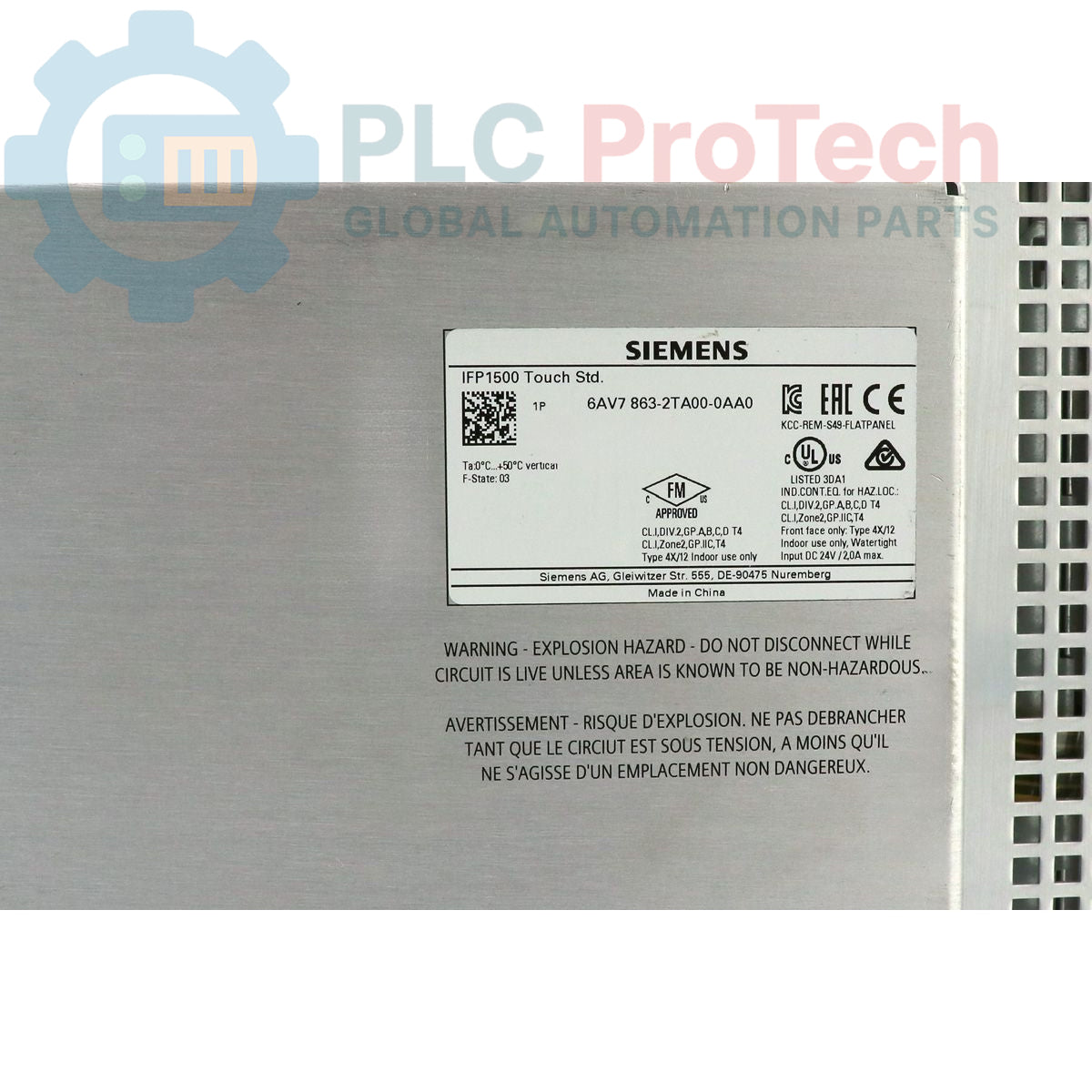

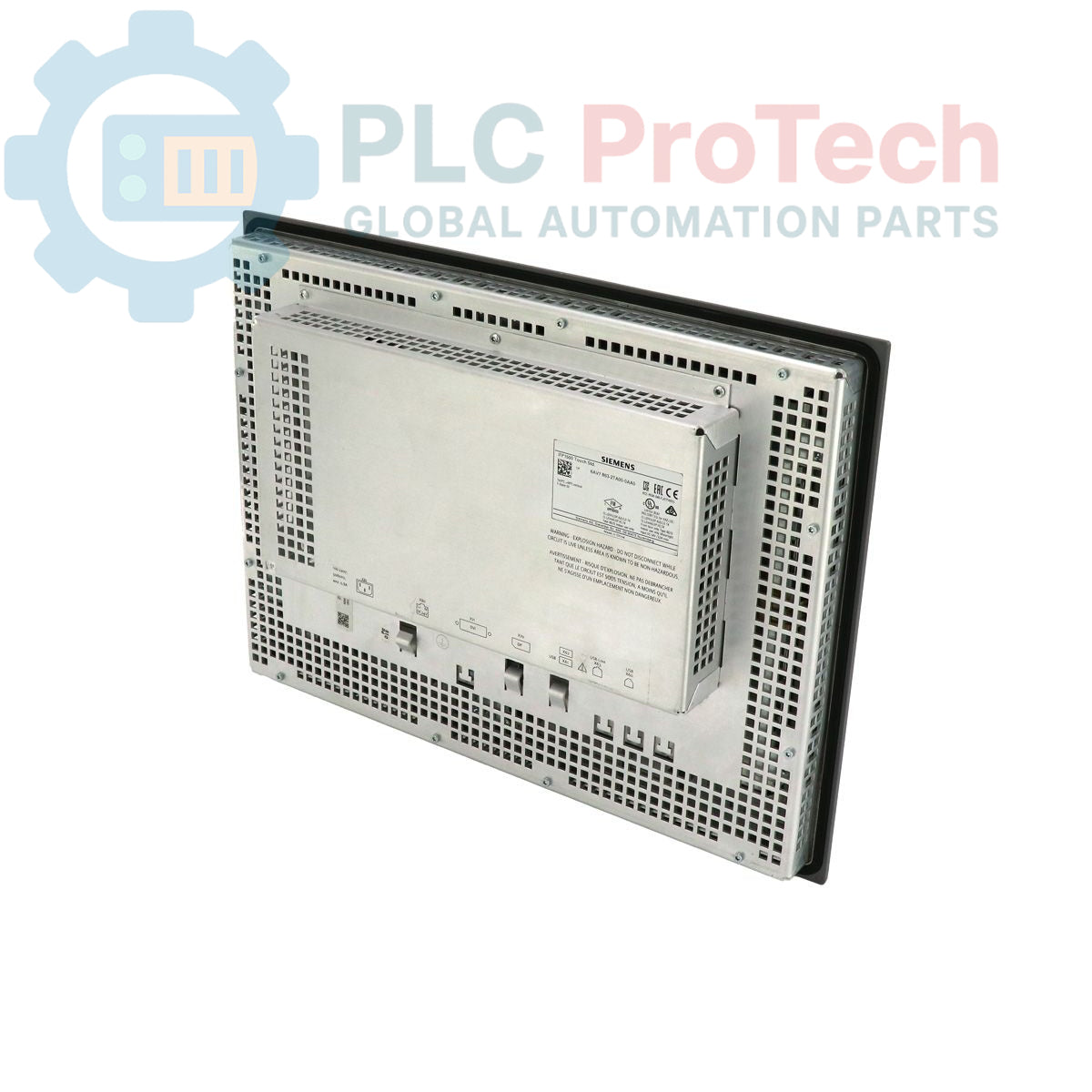

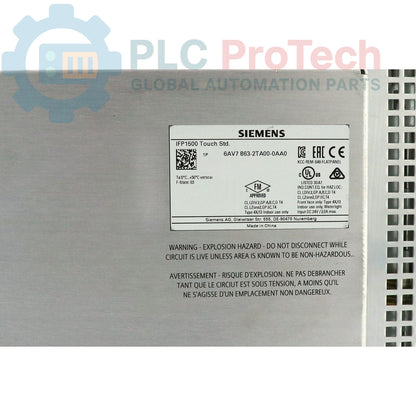

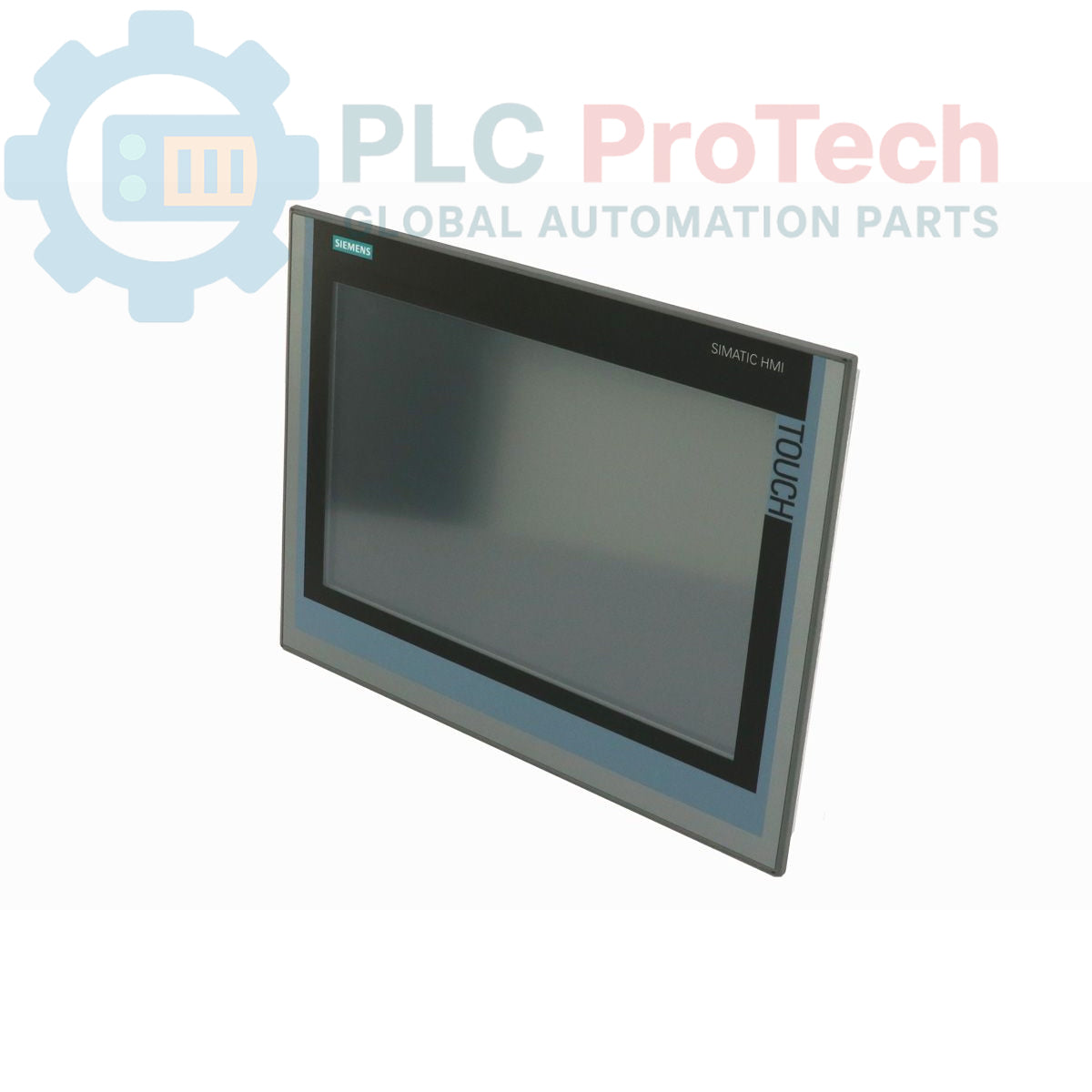

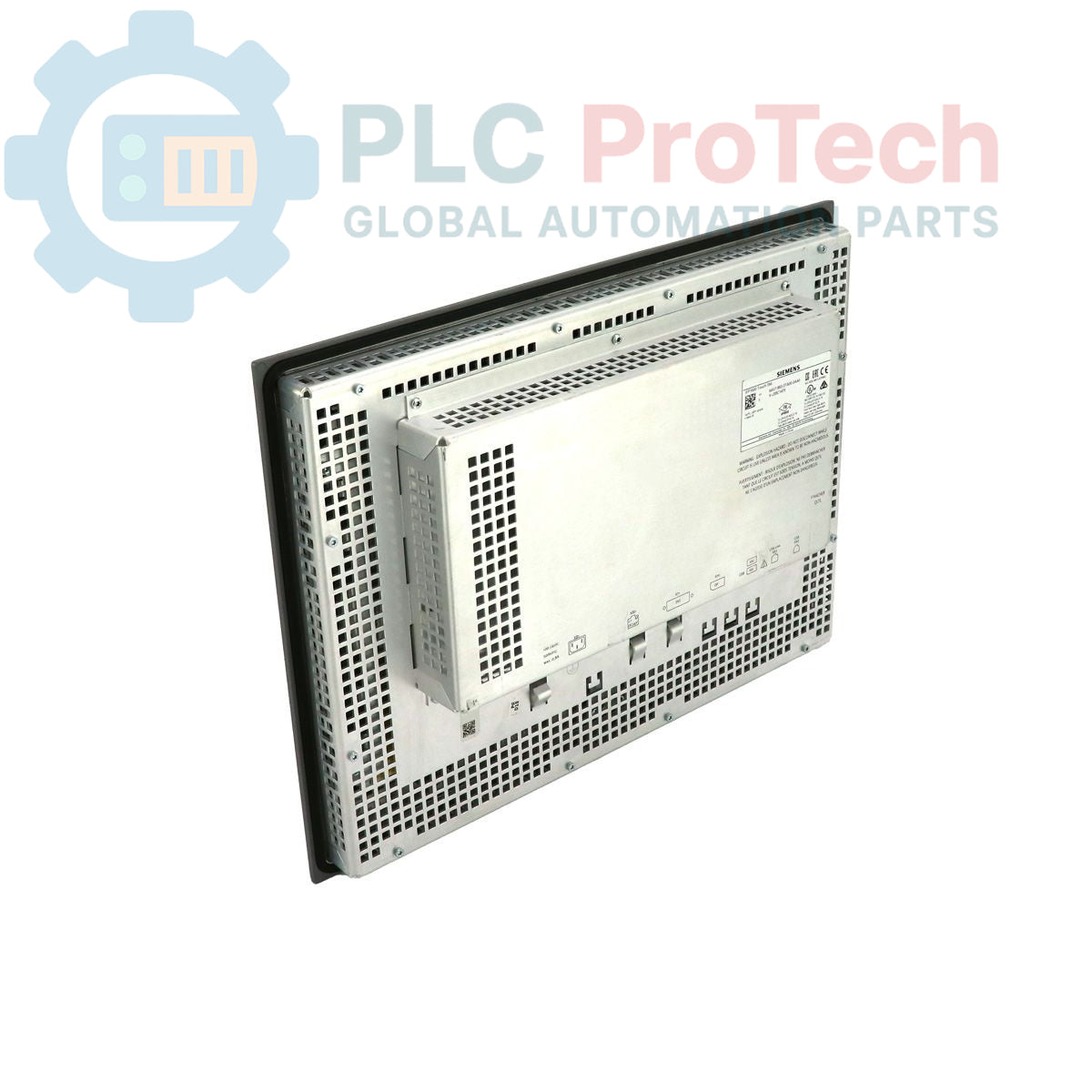

Siemens 6AV7863-2TA00-0AA0 SIMATIC IFP1500 Industrial Flat Panel

Hanya 5 item tersisa di stok

Produsen: Siemens
Nomor Produk: 6AV7863-2TA00-0AA0
Negara asal:Jerman
Jenis Produk: Industrial Flat Panel
Kode batang: 85371091
Pembayaran: T/T, Western Union
Berat: 4700g
Dimensi: 44.0 x 18.5 x 15.7 cm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Lihat detail lengkap

Description

The Siemens 6AV7863-2TA00-0AA0 is a SIMATIC IFP1500 series 15-inch industrial flat panel display designed for reliable process visualization and control in demanding production environments. This unit features a widescreen 16:10 aspect ratio with a native resolution of 1280 x 800 pixels, providing clear and detailed graphics for HMI applications. It incorporates touch functionality for intuitive operator interaction and operates on a standard 24 V DC power supply. Connectivity is handled through versatile DisplayPort and DVI interfaces, ensuring compatibility with a wide range of industrial PCs and controllers. The package includes a 1.8-meter DVI/USB cable for immediate integration.

Features

15-inch widescreen touch display
1280 x 800 pixel native resolution
Dual video inputs: DisplayPort and DVI
Standard 24 V DC power input
Supports standard installation distances up to 5 meters
Includes a 1.8 m DVI/USB combination cable

Applications

Human Machine Interface (HMI) for machine control
SCADA system visualization terminals
Process monitoring in manufacturing and assembly lines
Data display for industrial automation systems

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC IFP
Model Number	6AV7863-2TA00-0AA0
Product Type	Industrial Flat Panel
Screen Size	15 inch
Aspect Ratio	16:10
Resolution	1280 x 800 pixels
Input Type	Touch
Supply Voltage	24 V DC
Video Interfaces	DisplayPort, DVI
Included Accessories	1.8 m DVI/USB cable
Product Lifecycle Status	Phase-Out
Shipping Weight	4.70 kg
Package Dimensions	44.00 cm x 18.50 cm x 15.70 cm
Commodity Code	85371091
ECCN	N
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: Risk of electric shock. Installation must be performed by qualified personnel only. Disconnect and lock out all power sources before accessing the control cabinet or making any connections. Failure to comply can result in severe injury or death.

1 Ensure all power to the control cabinet is de-energized and locked out according to safety procedures. Verify the absence of voltage before proceeding.
2 Prepare the panel cutout according to the manufacturer's mechanical drawings. Ensure the mounting surface is clean, flat, and free of debris.
3 Insert the flat panel into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4 Connect the 24 V DC power supply to the designated terminals, strictly observing correct polarity (+/-). Use appropriately sized conductors for the load.
5 Connect the video source using either the DisplayPort or DVI input. Connect the USB portion of the included cable to enable touch functionality.
6 Connect the functional earth (FE) terminal to the cabinet's ground reference point to ensure proper noise immunity and safety.

Key Features:

#Industrial Flat Panel #SIMATIC IFP

What is the screen resolution of this flat panel?

The Siemens 6AV7863-2TA00-0AA0 features a native screen resolution of 1280 x 800 pixels with a 16:10 aspect ratio.

What power supply voltage is required for operation?

This industrial display operates on a standard 24 V DC power supply.

What video input connections are available on this model?

The unit is equipped with both DisplayPort and DVI interfaces for flexible video connectivity.

Is this a touch screen display?

Yes, the 6AV7863-2TA00-0AA0 includes integrated touch functionality for operator control.

Are any cables included with the purchase?

Yes, the package includes a 1.8-meter DVI/USB combination cable for connecting video and touch functions.
