Siemens 6ES7870-1AB01-0YA0 Perangkat Lunak SIMATIC S7 MODBUS Slave V3.1

Description

The 6ES7870-1AB01-0YA0 is a SIMATIC S7 MODBUS Slave (V3.1) software package, engineered to enable communication between Siemens S7 automation systems and external devices using the Modbus protocol. This single-license software solution is designed to transform the communication processors into Modbus slaves, facilitating seamless data exchange in industrial networks.

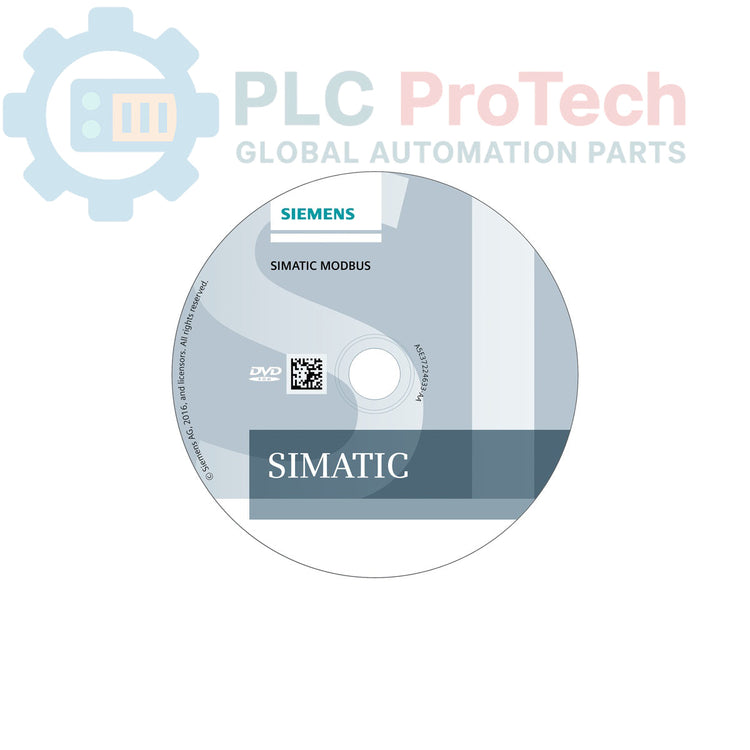

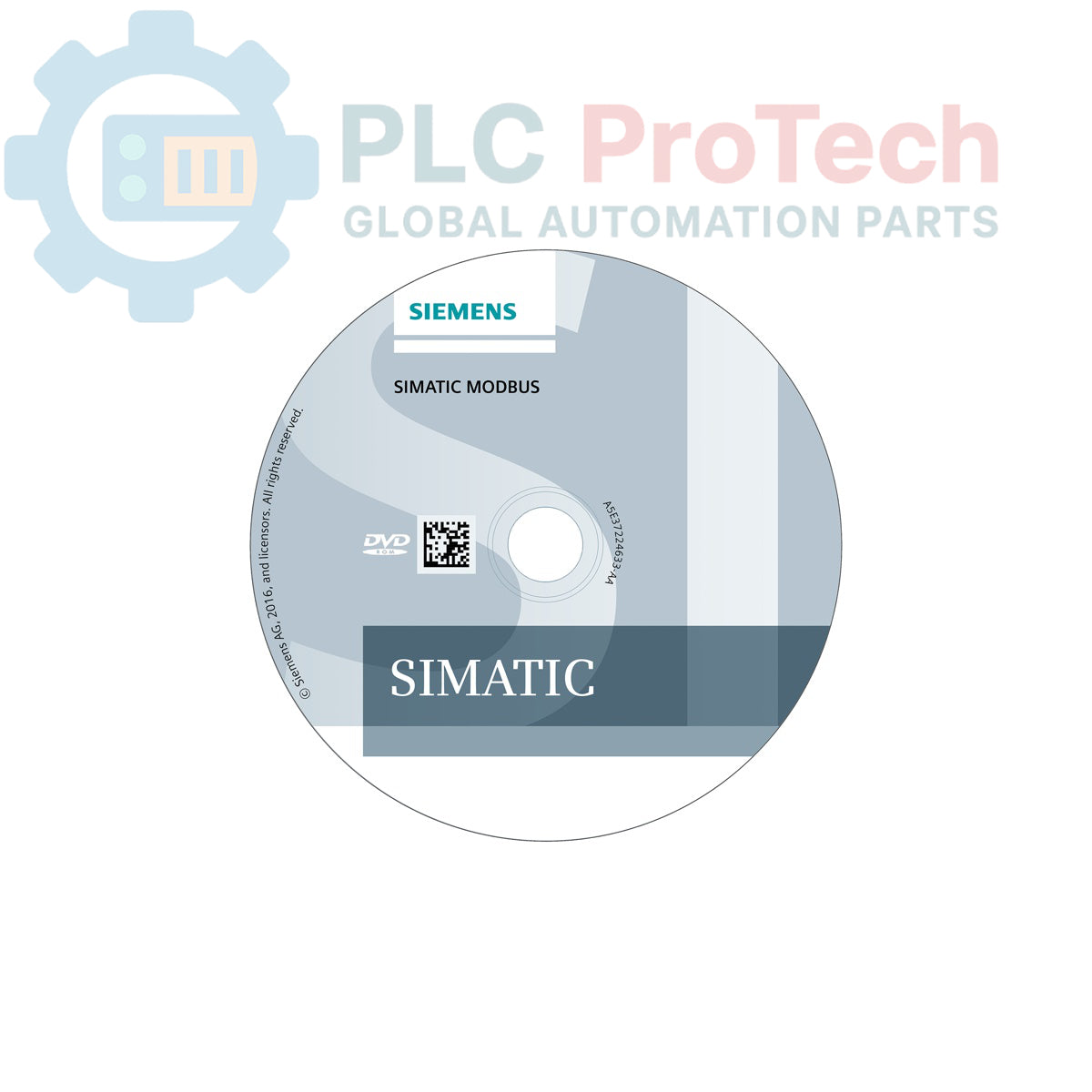

The package includes the runtime software and documentation on CD, along with a hardware (HW) dongle for license verification. It supports three languages (German, English, and French) and is executable within the STEP 7 environment (version V4.02 or higher). The software is specifically optimized for use with the CP 341 and CP 441-2 communication processors.

Features

• SIMATIC S7 MODBUS Slave (V3.1) functionality
• Single license package for 1 installation
• Includes software, documentation (CD), and required HW dongle
• Multi-language support: DE, EN, FR
• Compatible with STEP 7 V4.02 or higher
• Hardware compatibility: CP 341 and CP 441-2 communication modules

Applications

• Integration of S7 controllers into third-party automation networks
• Modbus RTU slave communication for data monitoring and control
• Legacy system communication upgrades
• Industrial process data exchange between diverse controller platforms

Technical Specifications

Installation Guidelines

• System Requirements: Ensure the workstation or programming device is running STEP 7 version V4.02 or higher prior to installation.
• Hardware Setup: Install the appropriate communication processor (CP 341 or CP 441-2) in the S7 rack before loading the software.
• License Management: The provided HW dongle must be connected to the system for the software to function correctly; do not remove the dongle during runtime.
• Configuration: Use the STEP 7 configuration tools to parameterize the communication processor to match the Modbus slave settings required by the host system.
• Verification: After installation, verify the communication link via the diagnostic buffers in the STEP 7 project to ensure correct frame processing.
