Product Overview and Infrastructure Foundation

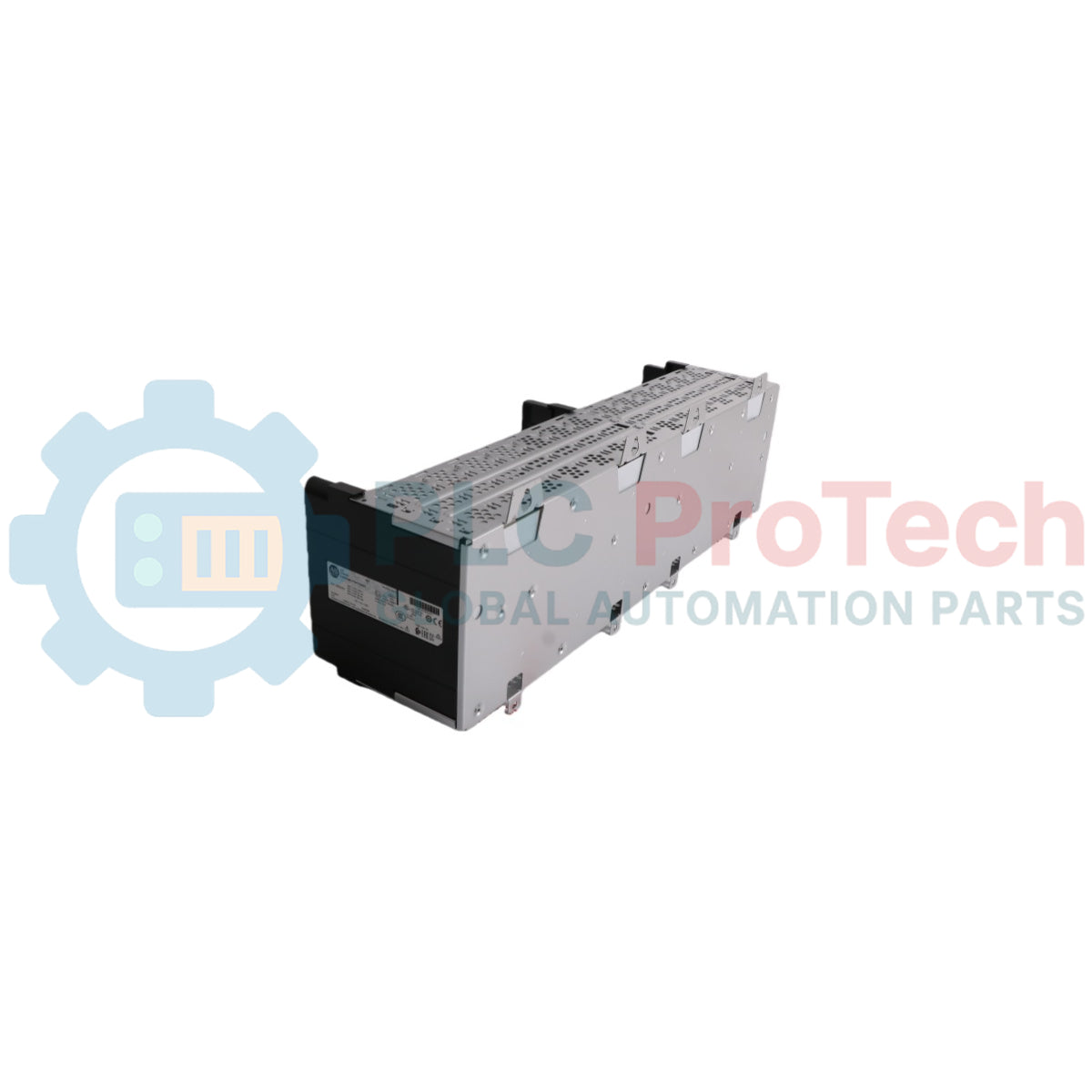

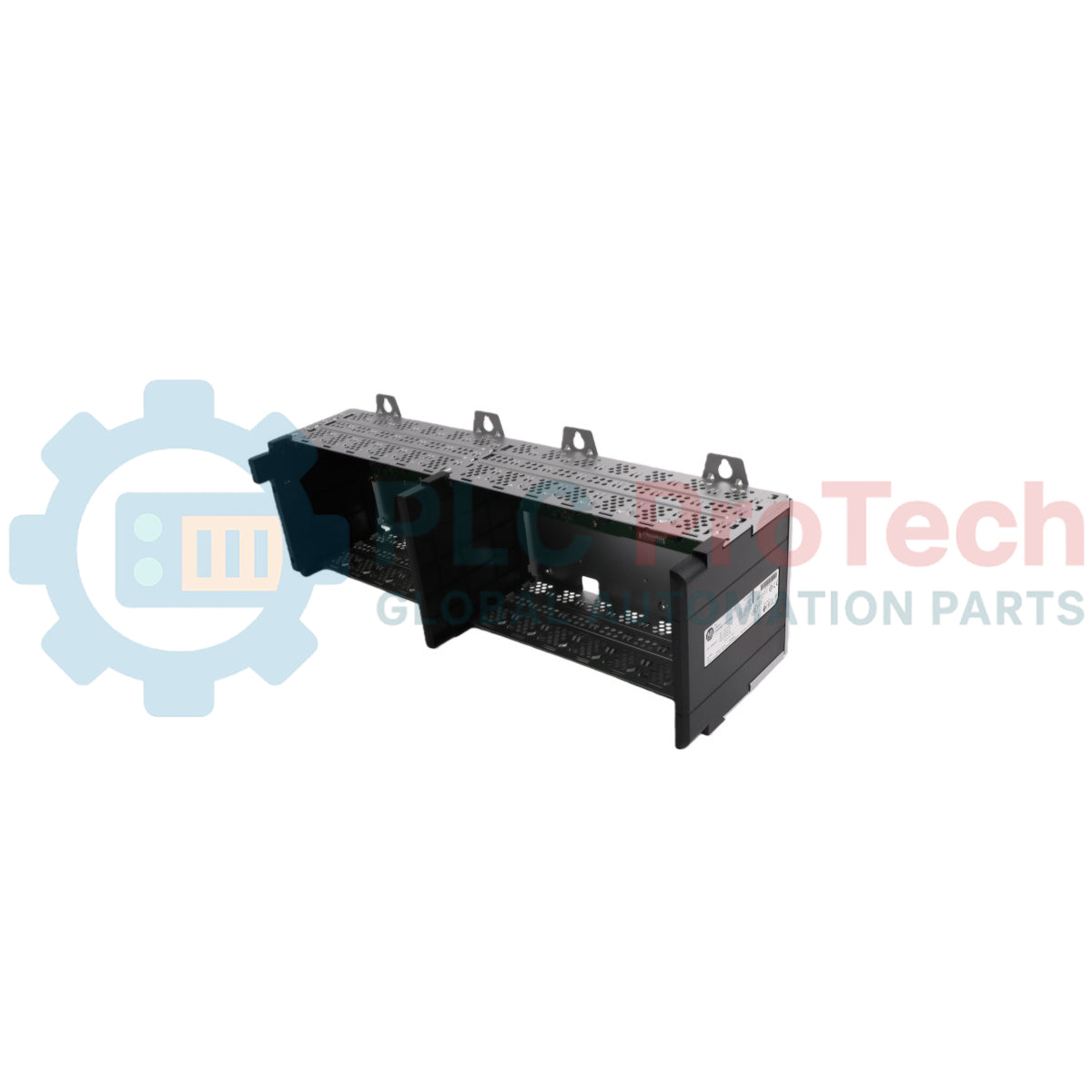

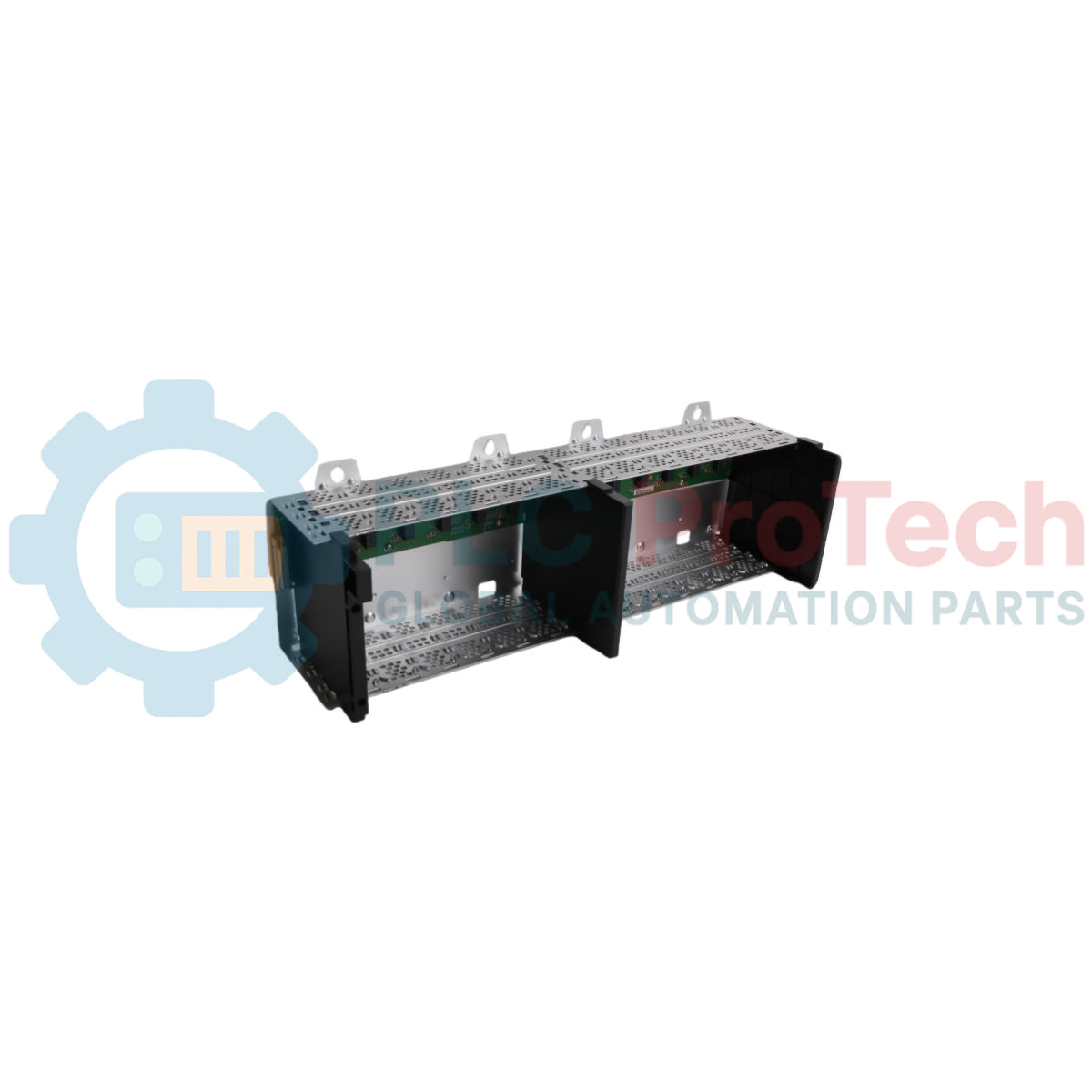

The 1756-A13 (1756A13) is a rugged, industrial-grade chassis designed to provide the physical and electrical backbone for the ControlLogix system. Featuring 13 slots for modular integration, this chassis houses the system's processors, I/O modules, and communication bridges, facilitating high-speed data exchange via the integrated ControlLogix Backplane. The 1756-A13 is engineered for large-scale automation environments—such as automotive assembly plants and complex process control facilities—where high-density I/O and multiple communication paths are required in a single rack. Its modular design allows for flexible system configuration, ensuring that power and data are distributed reliably across all installed components.

Hardware Architecture and Backplane Dynamics

The 1756-A13 operates as a passive backplane, meaning the logic and intelligence reside in the modules, while the chassis provides the high-speed communication path (bus) and power distribution.

• Slot Density: 13 universal slots that can accommodate any mix of ControlLogix controllers, I/O, or network modules.

• High-Speed Bus: The backplane provides a deterministic data path, allowing for producer/consumer data models that optimize network bandwidth.

• Power Supply Compatibility: Designed to mount standard 1756 power supplies (e.g., 1756-PA72, 1756-PB72) on the left side, which then distribute regulated voltage to all 13 slots.

• Rugged Construction: Built to withstand industrial vibrations and thermal expansion, ensuring constant electrical contact even in harsh operating conditions.

Technical Specifications

Integrated Technical FAQ

Can I install multiple processors in a single 1756-A13 chassis?

Yes. One of the core strengths of the ControlLogix architecture is multi-processing. You can install multiple CPUs in a single 1756-A13 to handle different tasks (e.g., one for safety, one for motion, one for standard logic) while sharing the same I/O and communication modules.

Is it necessary to use "Slot Fillers" for empty slots?

While not strictly required for electrical operation, using 1756-N2 slot fillers is highly recommended. They protect the backplane connectors from dust and debris and help maintain proper airflow for cooling the active modules.

How does the chassis handle grounding?

The 1756-A13 features dedicated grounding studs. It is critical to bond the chassis to the sub-panel using a high-surface-area ground strap to prevent noise on the backplane, which can lead to intermittent communication faults.

Engineering & Installation Protocols

• Chassis Mounting: The 1756-A13 must be mounted horizontally. Mounting it vertically can obstruct the natural convection cooling of the modules, leading to localized hotspots and premature hardware failure.

• Power Supply Torque: When mounting the power supply to the left side of the chassis, ensure the mounting screws are tightened to 1.13 Nm (10 lb-in). A loose power supply can cause arcing across the backplane power pins.

• Module Alignment: When inserting modules into the 13 slots, use the top and bottom guides. Never force a module; if it does not slide in smoothly, check for bent pins on the backplane or the module connector.

Engineering Advantages

The 1756-A13 offers unmatched scalability for centralized control. By providing 13 slots, it allows for a highly consolidated control architecture, reducing the need for multiple remote I/O drops and simplifying the network topology. The backplane’s ability to support "Removal and Insertion Under Power" (RIUP) means that if an I/O module fails in slot 4, it can be replaced while the processor in slot 0 continues to run the rest of the machine, significantly reducing total downtime.
