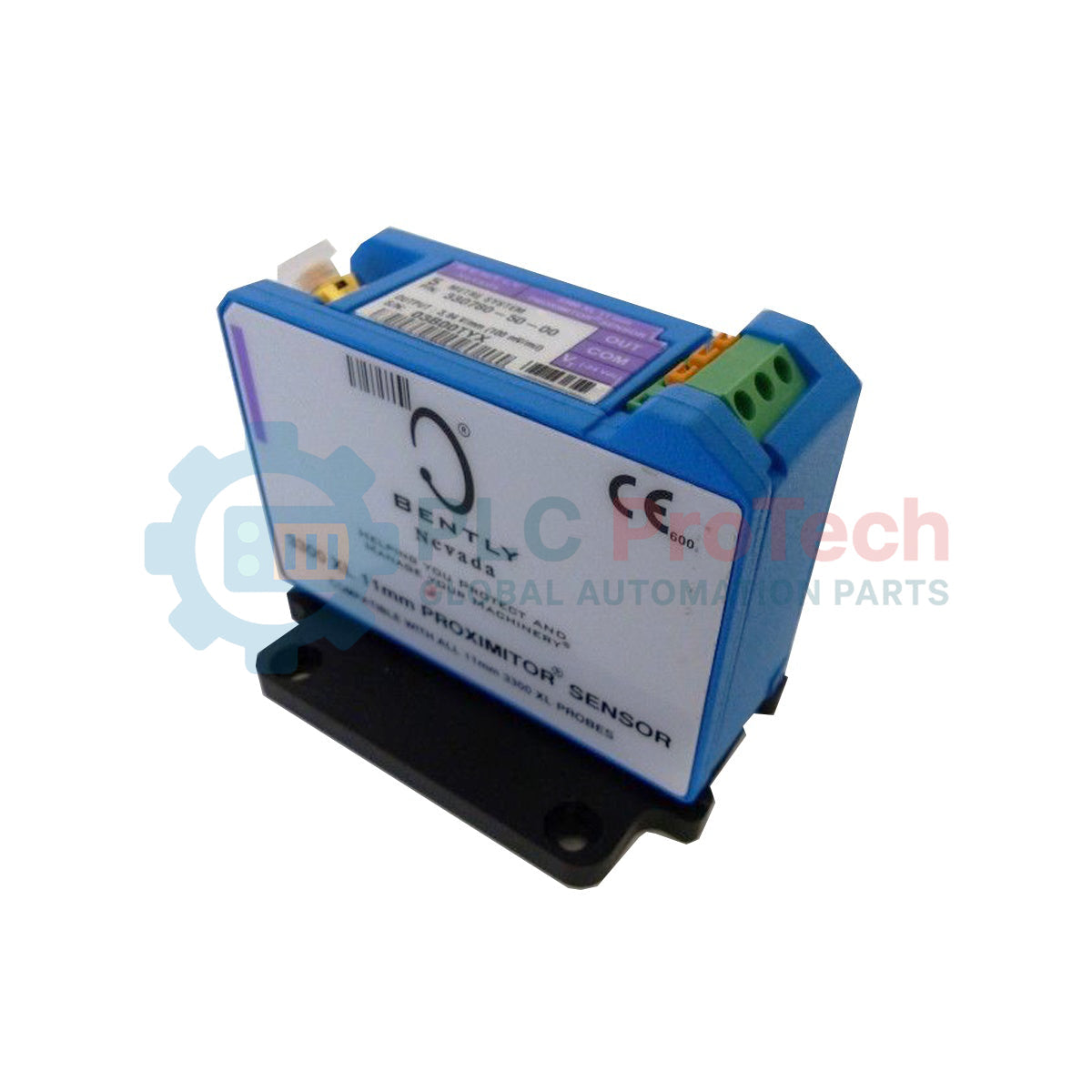

The Bently Nevada 330780-50-00 plays a vital role within the 3300 XL 11 mm Proximity Transducer System, transforming non-contacting gap variation measurements into a 3.94 V/mm (100 mV/mil) electrical output signal. It serves primary measurement functions for dynamic vibration and static displacement on industrial machinery featuring fluid film bearings. The design supports full component-level interchangeability across compatible 3300 XL probes and extension cables, eliminating requirements for individual matching or labor-intensive bench recalibration.
This specific unit features a 5.0-meter (16.4 feet) system length designed for standard panel mounting configurations. Configured with option code 00, it excludes regional safety agency approvals. Housed in a rugged A380 aluminum enclosure, the sensor interfaces seamlessly with modern monitoring platforms and distributed control systems (DCS) to track machinery shaft behavior and long-term mechanical wear.
| Option Code | Description |
|---|---|
| 330780 | 3300 XL 11 mm Proximitor Sensor |
| -50 | Total Length and Mounting Option: 5.0 meter (16.4 feet) system length, panel mount |
| -00 | Agency Approval Option: Not required |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL 11 mm Proximitor Sensor |
| Incremental Scale Factor (ISF) | 3.94 V/mm (100 mV/mil) +/-10% |
| Output Resistance | 50 ohm |
| Power Requirements | -17.5 Vdc to -26 Vdc without barriers; -23 Vdc to -26 Vdc with barriers |
| Maximum Consumption | 12 mA |
| Enclosure Material | A380 aluminum |
| System Length | 5.0 meter (16.4 feet) |
| Mounting Hardware | Panel mount |
| Operating Temperature | -52 degC to +100 degC |
| Storage Temperature | -52 degC to +105 degC |
| Relative Humidity | 100% condensing, non-submersible when connectors are protected |
| Frequency Response | 0 to 8 kHz: +0, -3 dB typical |
| Dimensions (H x W x D) | 6.35 cm x 6.12 cm x 8.13 cm |
| Weight | 3.0 kg |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330780-50-00
Country of origin:United States
Product Type: Proximitor Sensor
Payment: T/T, Western Union
Weight: 3000g
Dimensions: 6.35 cm x 6.12 cm x 8.13 cm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
