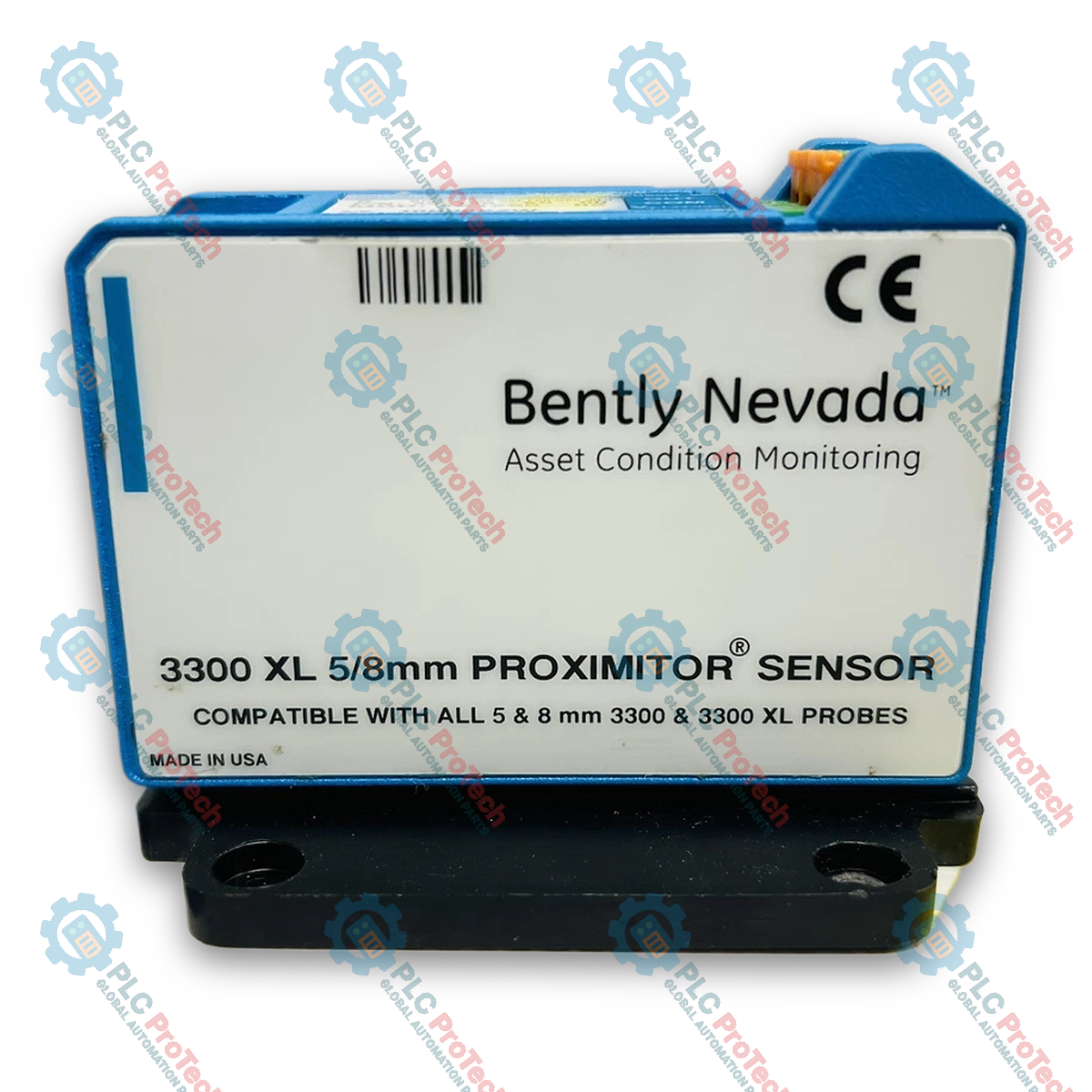

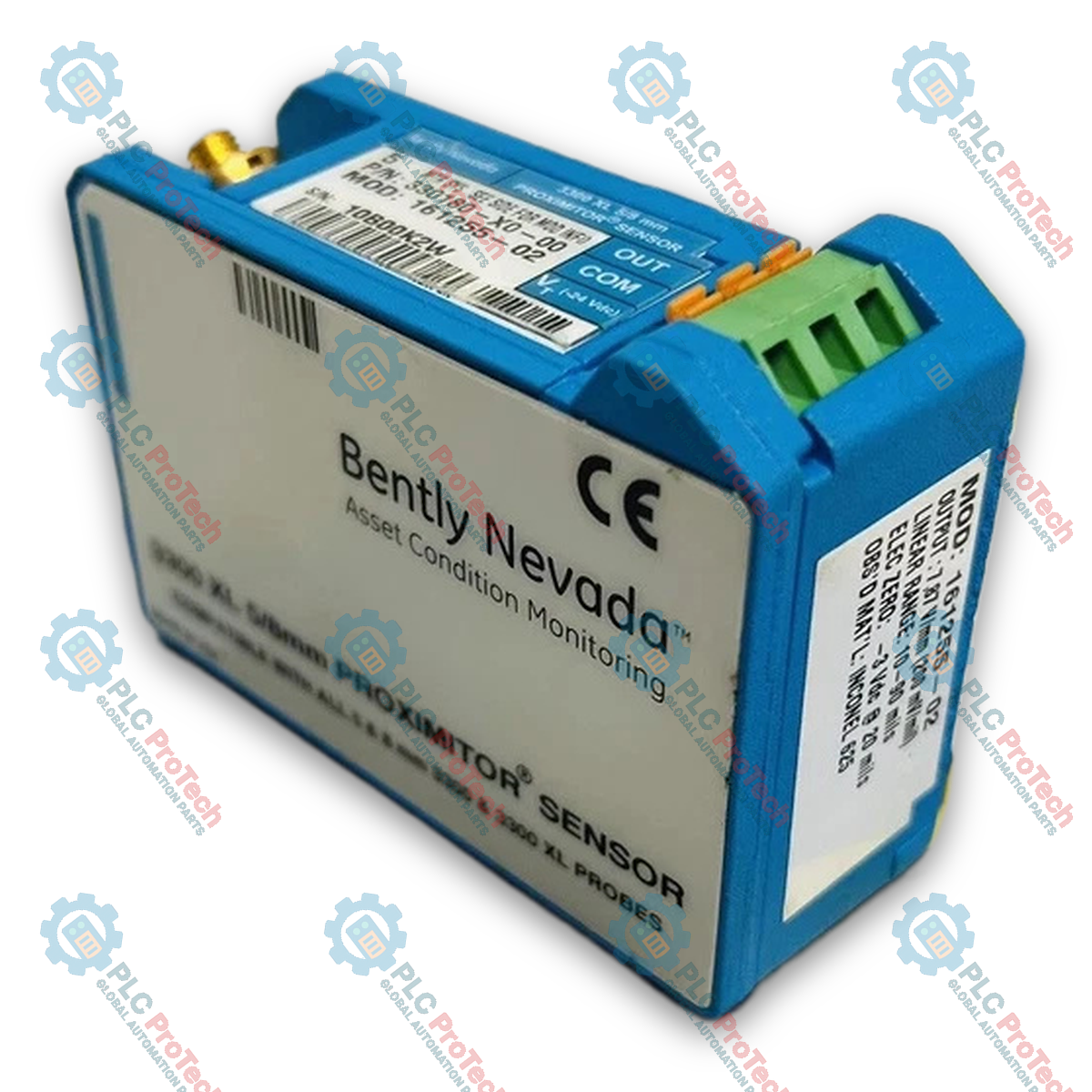

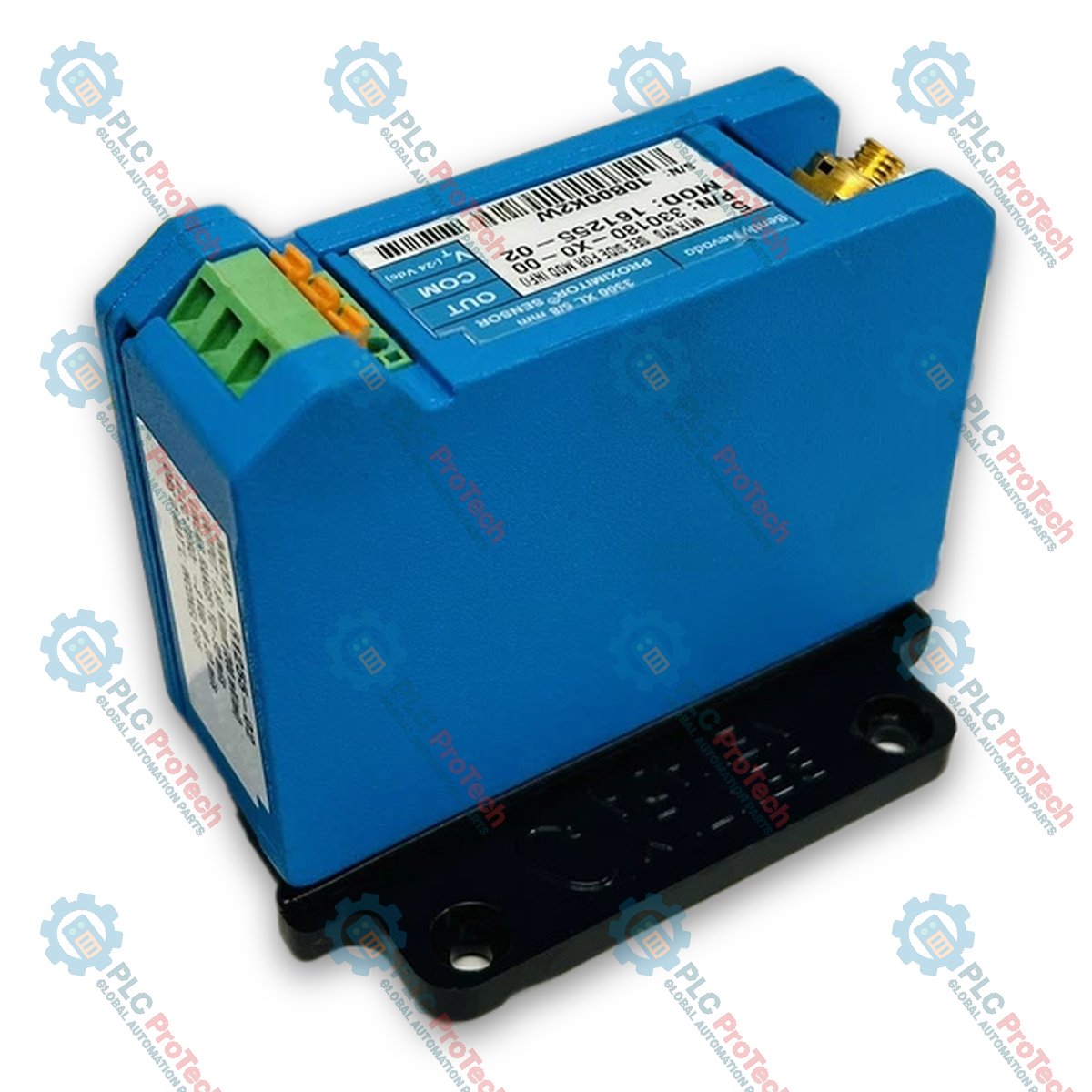

The Bently Nevada 330180-X0-00 is a 3300 XL 5/8 mm Proximitor Sensor configured as MOD 161255-02 for a 5-metre proximity transducer system.
The sensor is compatible with 5 mm and 8 mm Bently Nevada 3300 and 3300 XL proximity probes. It converts the probe signal into a voltage proportional to the distance between the probe tip and the observed conductive target.

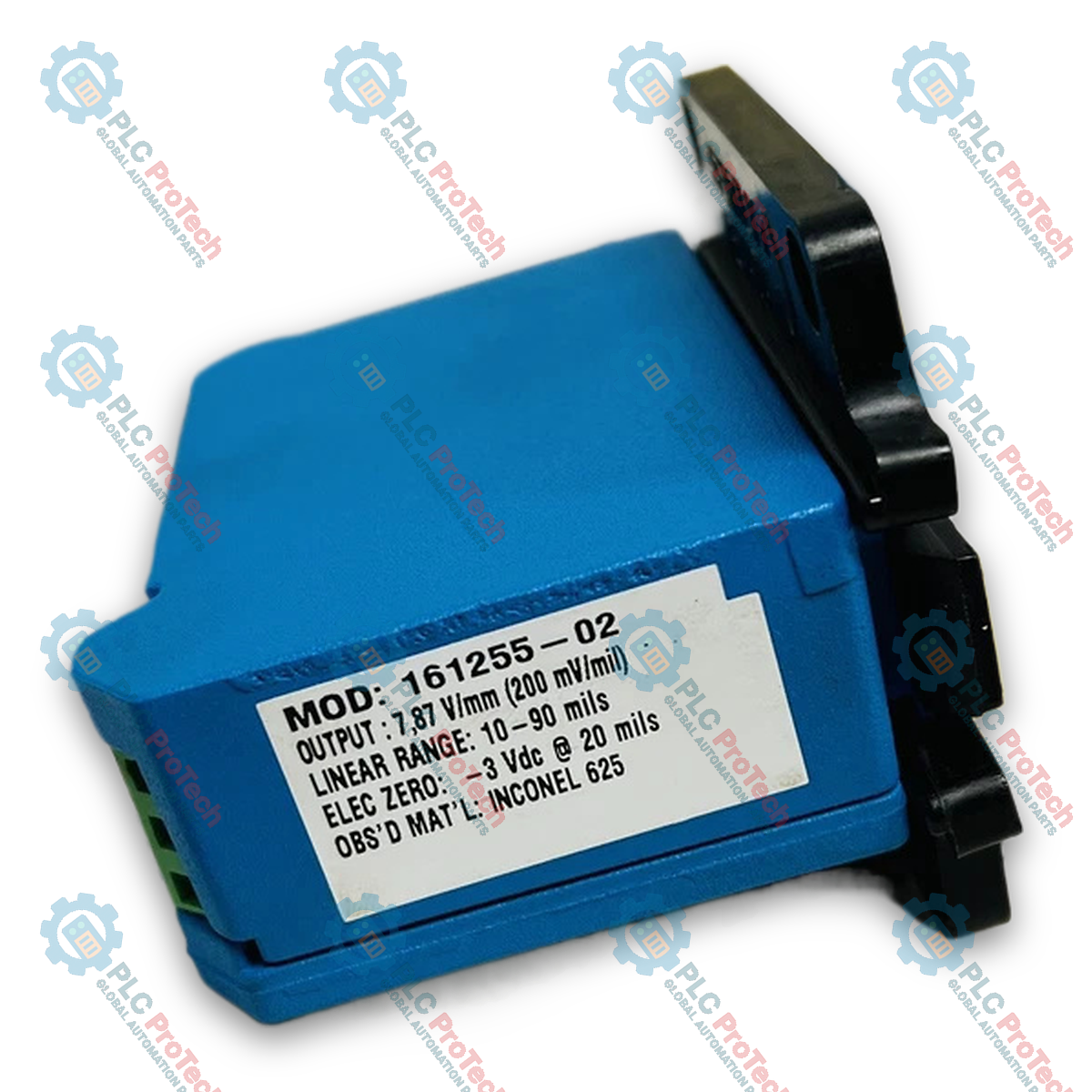

The MOD 161255-02 configuration is marked with an output scale factor of 7.87 V/mm (200 mV/mil) and a linear range of -10 to -90 mils. The specified electrical zero is -3 Vdc at 20 mils.

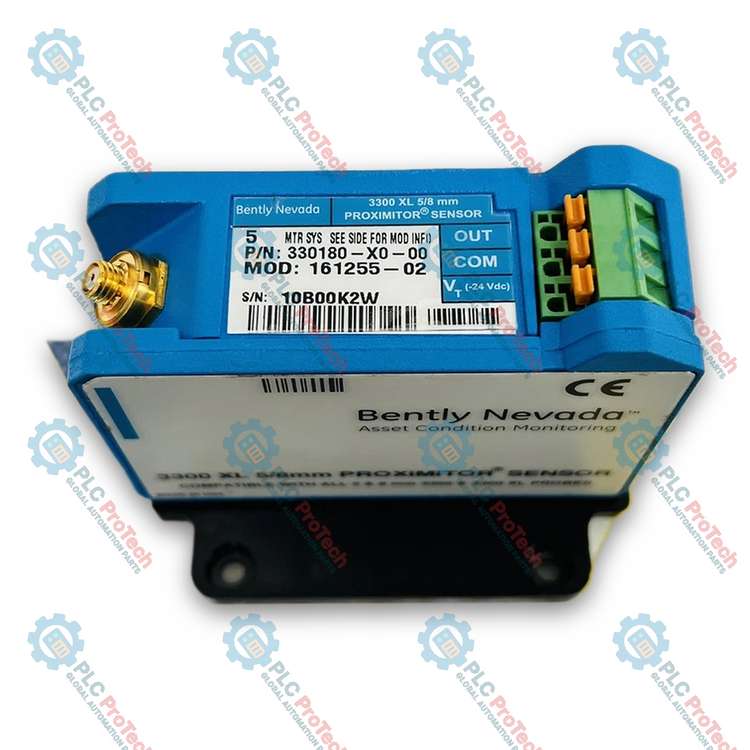

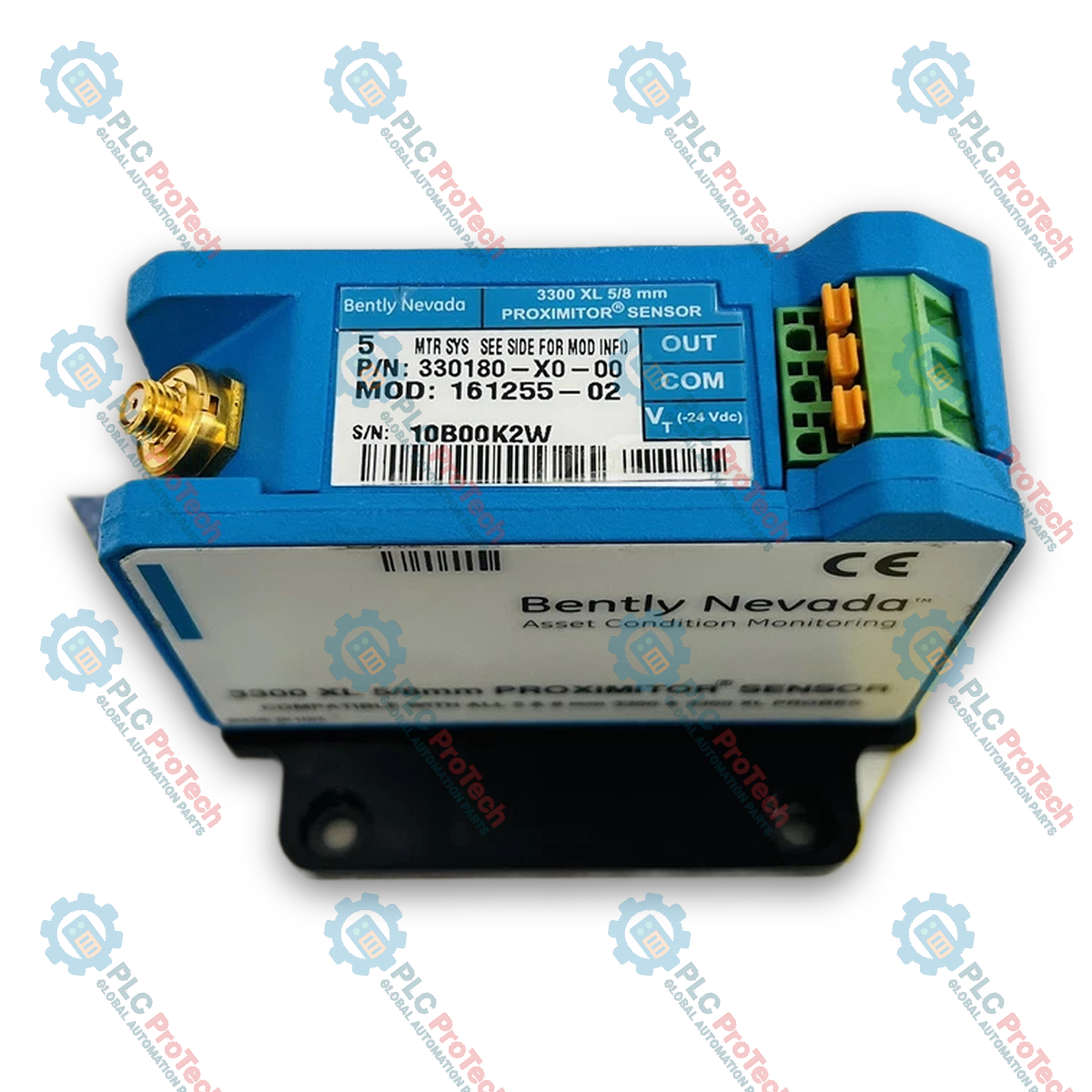

The module provides OUT, COM, and VT terminals, with the supply terminal identified as -24 Vdc. The observed target material for this MOD configuration is specified as Inconel 625.
3300 XL 5/8 mm Proximitor Sensor
Part number 330180-X0-00
MOD configuration 161255-02
Designed for a 5-metre proximity transducer system
Compatible with 5 mm and 8 mm 3300 probes
Compatible with 5 mm and 8 mm 3300 XL probes
Output scale factor of 7.87 V/mm (200 mV/mil)
Linear range of -10 to -90 mils
Electrical zero of -3 Vdc at 20 mils
OUT, COM, and -24 Vdc supply terminals
MOD calibration identified for Inconel 625
Shaft radial vibration measurement
Shaft displacement monitoring
Shaft position measurement
Machinery protection systems
Rotating equipment condition monitoring
Replacement of an existing 330180-X0-00 with matching MOD configuration
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330180-X0-00 |
| MOD Number | 161255-02 |
| Product Type | Proximitor Sensor |
| Product Family | 3300 XL 5/8 mm |
| System Length | 5 m |
| Compatible Probe Families | 5 mm and 8 mm 3300 / 3300 XL |
| Parameter | Specification |
|---|---|
| Output Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | -10 to -90 mils |
| Electrical Zero | -3 Vdc at 20 mils |
| Supply Terminal | VT (-24 Vdc) |
| Signal Terminals | OUT, COM, VT |
| Parameter | Specification |
|---|---|
| Modification | 161255-02 |
| Observed Target Material | Inconel 625 |
| System Identification | 5 MTR SYS |
| Terminal | Function |
|---|---|
| OUT | Proximitor sensor output |
| COM | Common |
| VT | -24 Vdc supply |
Verify both 330180-X0-00 and MOD 161255-02 before replacement.
Confirm the installed proximity system uses the required 5-metre system length.
Match the probe family and system configuration before connecting the sensor.
Preserve existing OUT, COM, and VT wiring identification during replacement.
Confirm the -24 Vdc supply before energizing the module.
Verify probe gap and output voltage after installation.
Confirm the measured response against the existing machinery monitoring configuration.
Do not select a replacement only by the base part number 330180-X0-00.
Match MOD 161255-02 where the existing installation uses this calibration.
Confirm system length, probe type, scale factor, and target material before substitution.
