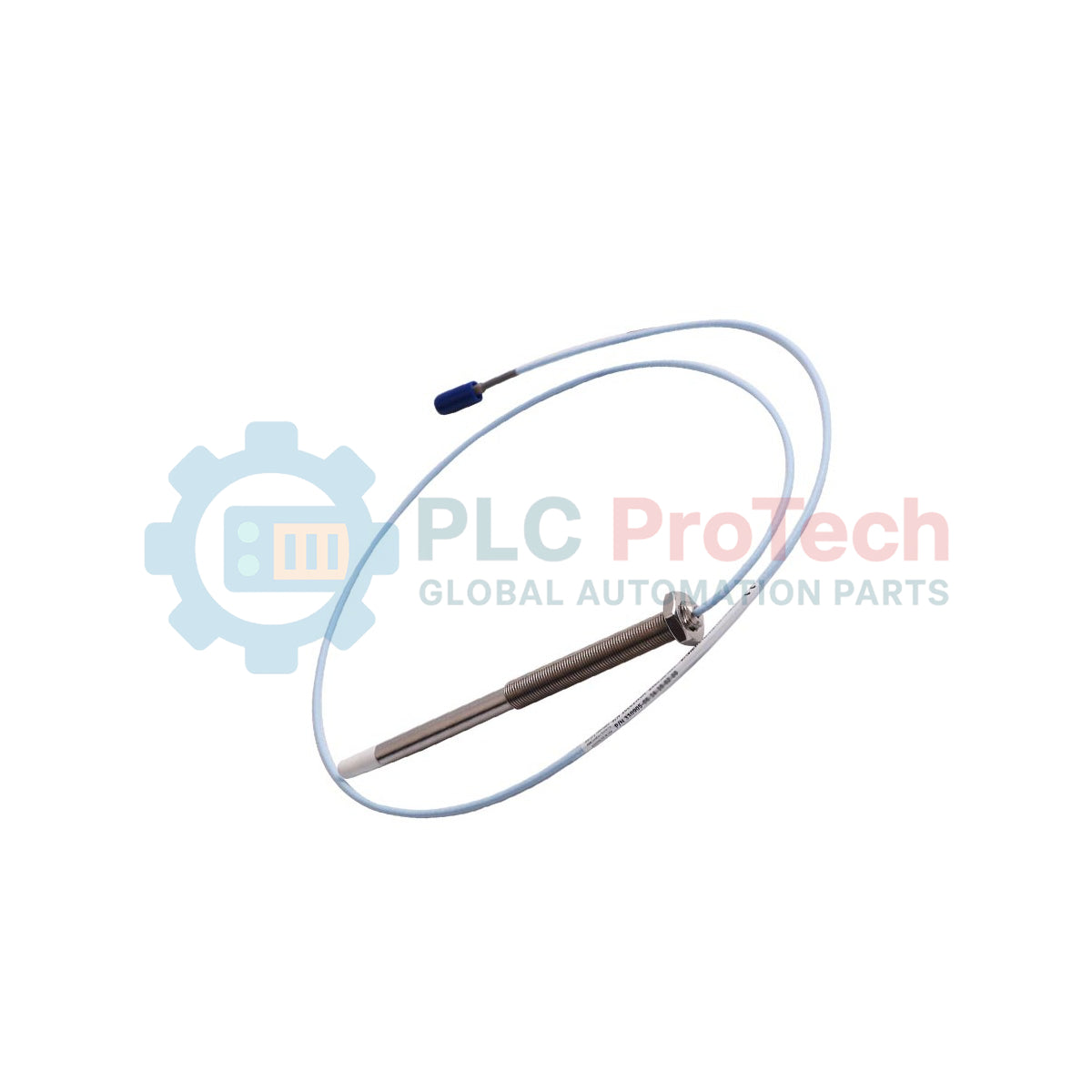

Optimized for high-precision machinery vibration monitoring in confined environments, the Bently Nevada 330905-00-12-10-12-00 is an unarmored proximity probe engineered specifically for applications with tight mechanical clearances. Serving as a core sensor component of the 3300 XL NSv Proximity Transducer System, this unit features a metric M10 x 1 thread configuration with a 12 mm case length. It is supplied with a 1.0-meter integrated FluidLoc cable terminating in a miniature coaxial ClickLoc connector. Designed to replace or integrate into systems measuring radial vibration, axial position, or speed, this narrow-system probe excels where standard-sized transducers face severe physical mounting limitations.
| Option Code | Specification Type | Configured Value |
|---|---|---|
| A: 00 | Unthreaded Length | 0 mm |
| B: 12 | Overall Case Length | 12 mm |
| C: 10 | Total Cable Length | 1.0 meter (39 in) |
| D: 12 | Connector & Cable Type | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E: 00 | Agency Approval | Not Required / Standard |
| Manufacturer | Bently Nevada |
| Model / Series | 3300 XL NSv (Narrow System) Proximity Transducer |
| Part Number | 330905-00-12-10-12-00 |
| Thread Profile | M10 x 1 (brass body) |
| Armor Option | Without Armor |
| Operating Temperature Range | -34 degC to +177 degC |
| Fluid Leakage Resistance | FluidLoc sealed internal cable (up to 6.89 bar / 100 psi structural resistance) |
| Linear Range (Nominal) | 1.5 mm (60 mils) when paired with matching NSv Proximitor Sensor |
| Shipping Weight (Calculated) | 1.0 kg |
| Packaging Dimensions (Calculated) | 220 mm x 180 mm x 45 mm |
Alternative Models & Compatibility: The 3300 XL NSv series is electrically distinct from the standard 3300 XL 8mm series. Attempting to match this probe with a standard 8mm Proximitor sensor will yield incorrect voltage output curves, resulting in severe calibration offsets. Ensure you only couple this probe with a dedicated 3300 XL NSv Proximitor Sensor (e.g., 330900 series).
Application Pitfalls & Engineering Notes: Because this probe lacks mechanical armor, the outer jacket of the FluidLoc cable is vulnerable to sharp bends, abrasion, and crushing if run through open trays. Always run unarmored cable inside flexible liquid-tight conduits when routing through highly abrasive machine frames or near mechanical components.
Commissioning & Wiring Tips: Utilize the official ClickLoc connector coupling tools to mate the connector ends. Hand-tightening or using standard pliers can damage the delicate gold-plated center pins or strip the miniature threads. Ensure a minimum target diameter of 3.1 times the probe tip size to prevent severe edge-of-target scaling errors.
CRITICAL SAFETY WARNING
Ensure the host machinery is fully de-energized, locked out, and tagged out (LOTO) prior to probe installation. Ensure the system pressure has been vented completely before threading the probe into a machine casing or bearing block to prevent uncontrolled process fluid discharge.
Inspect the machine casing mounting hole. Clean out any debris, old thread sealant, or metal filings from the M10 x 1 threads using a precision tap before inserting the probe.
Carefully thread the probe body into the casing by hand to avoid cross-threading. Once threaded, use a calibrated torque wrench on the hex flats and torque strictly within OEM tolerances to prevent tip deformation.
Use a digital voltmeter connected to the Proximitor output during installation to visually monitor the voltage gap. Stop tightening and lock the jam nuts once the target bias voltage (typically -9 Vdc for central linear range) is achieved.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330905-00-12-10-12-00
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 320g
Dimensions: 220 mm x 180 mm x 45 mm
Shipping port: Xiamen
Warranty: 12 months
