Bently Nevada

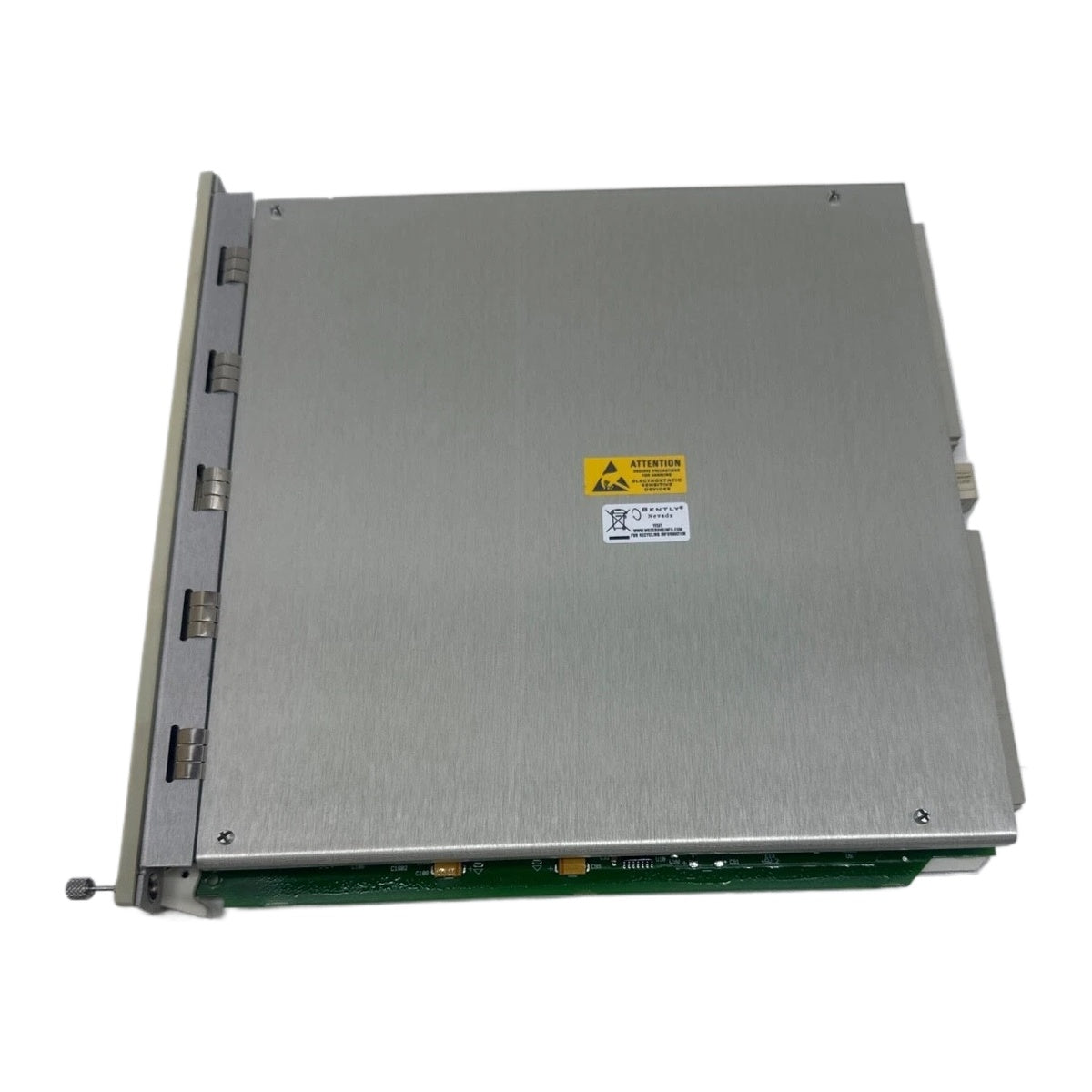

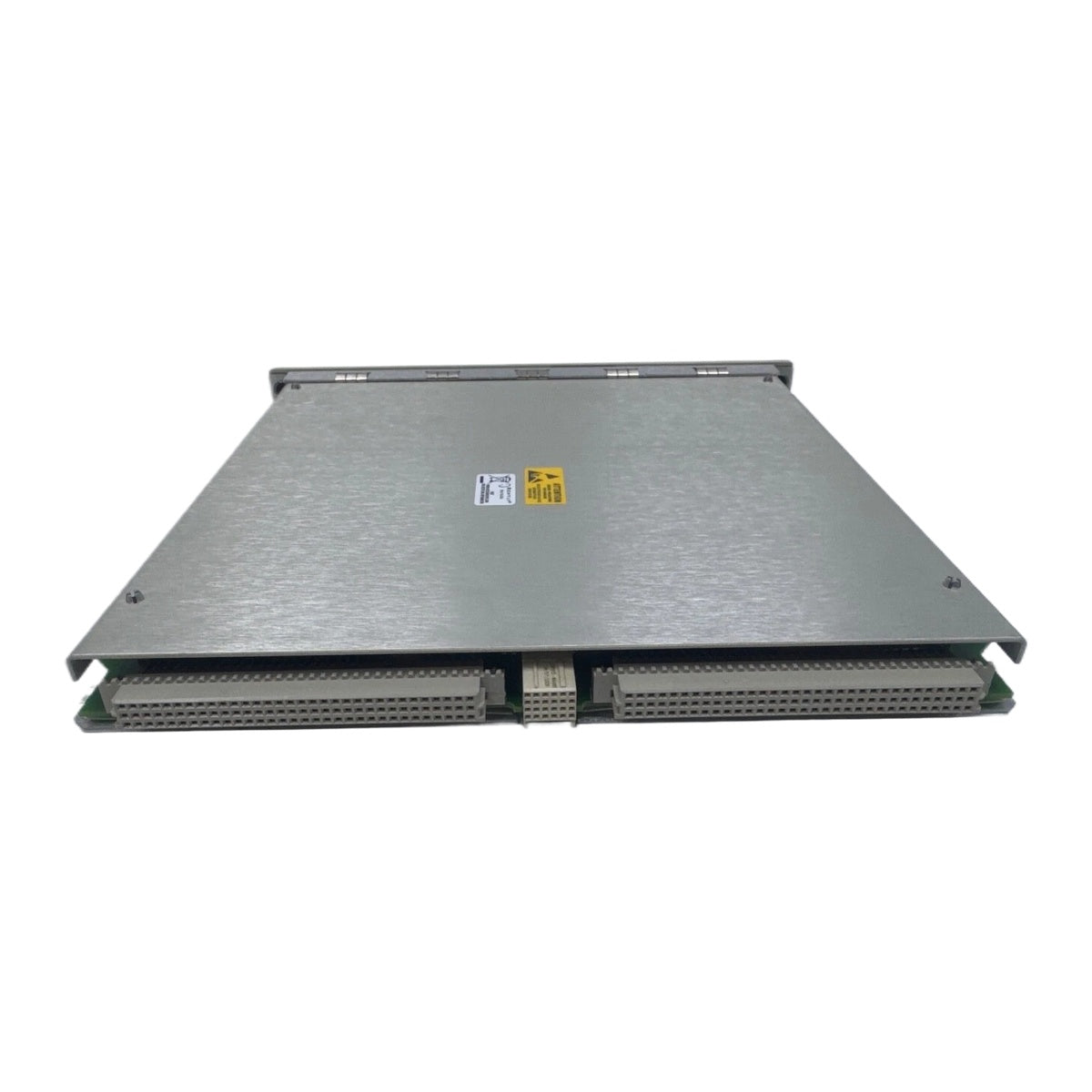

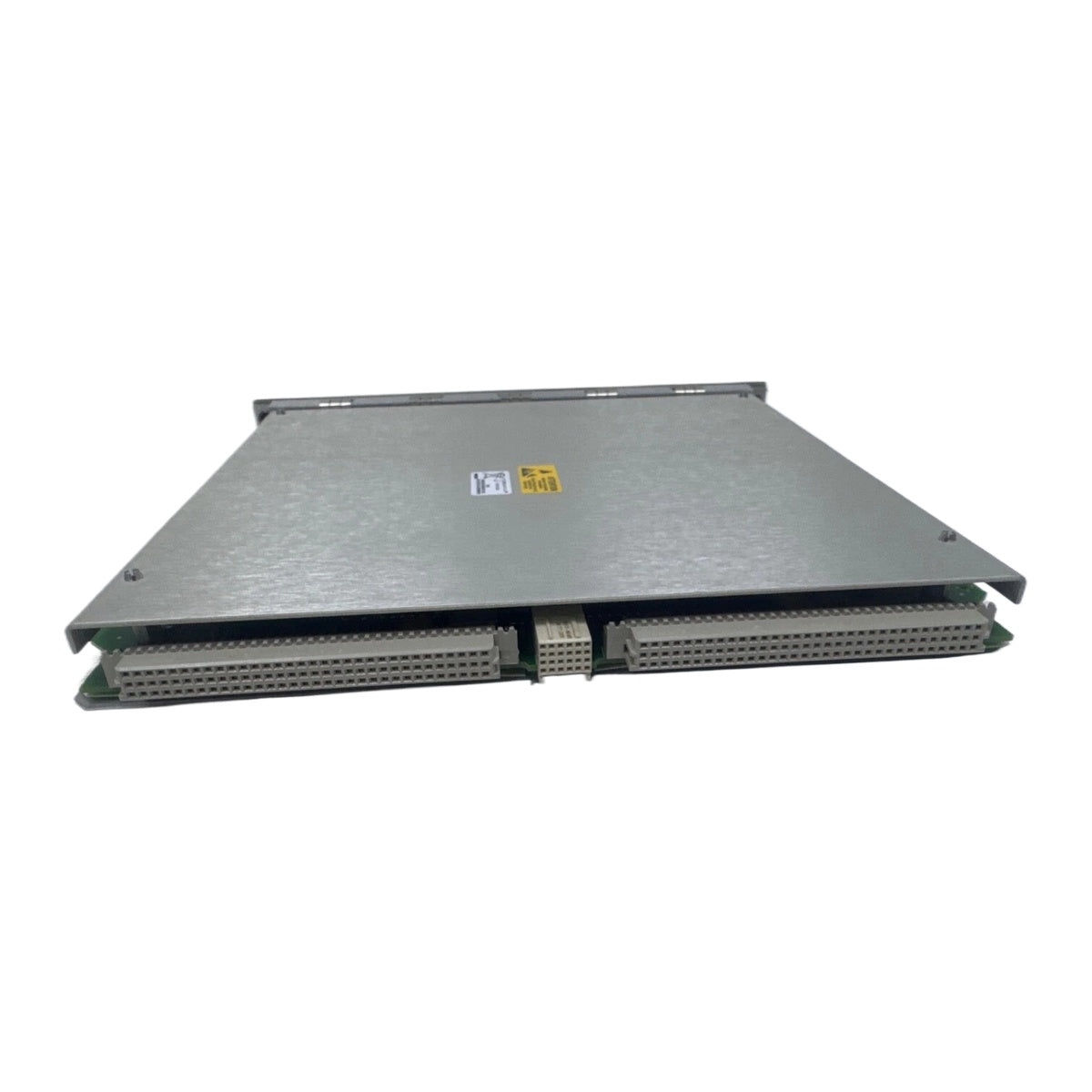

3500/91-01-01-01 161204-01+61216-01 EGD Communication Gateway Module

SKU 3500/91-01-01-01

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 3500/91-01-01-01
  • Origin United States
  • Product Type: EGD Communication Gateway Module
  • Payment: T/T, Western Union
  • Weight: 1.18 kg
  • Dimensions: 340.9 mm x 241.3 mm x 24.4 mm (D x H x W)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3500/91 Communication Modules EGD Communication Gateway Module

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

3500/91-01-01-01 161204-01+61216-01 EGD Communication Gateway Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Bently Nevada 3500/91-01-01-01 161204-01+161216-01 is an Ethernet Global Data (EGD) communication gateway module that provides comprehensive communication capabilities for 3500 rack-monitored values and status. It offers an Ethernet network path with response times suitable for controller applications and integrates seamlessly with EGD protocol-compatible controllers. The assembly consists of the 3500/91 EGD Gateway Main Module (161204-01) and the Ethernet 10BASE-T/100BASE-TX I/O Module (161216-01).

Features

  • Transmits rack, module, channel, and data value statuses, as well as float data values and setpoints.
  • Supports group control functions including Group Reset, Group Trip Multiply, Group Alarm Inhibit, and Group Special Alarm Inhibit.
  • Equipped with front panel status LEDs including OK LED and TX/RX LED.
  • Integrates via RJ-45 jack for Ethernet 10BASE-T/100BASE-TX twisted pair connectivity.

Applications

  • Integration of 3500 rack monitoring data into EGD protocol-compatible controllers.
  • Real-time machinery condition monitoring and plant control systems.

Ordering Information

Option / Part Description
3500/91-AA-BB-CC

3500/91 EGD Communication Gateway


A: Main Module Type 01 EGD Communication Gateway Module
B: I/O Module Type 01 Ethernet 10BASE-T/100BASE-TX I/O Module
C: Agency Approval Option 01 CSA/NRTL/C
161204-01 3500/91 EGD Gateway Module
161216-01 Ethernet 10BASE-T/100BASE-TX I/O Module
161232 3500/91 User Guide

Technical Specifications

Parameter Specification
Manufacturer Bently Nevada / Baker Hughes
Protocols EGD (Version 2.01), Ethernet UDP/IP
Ethernet Standard IEEE 802.3 CSMA/CD; 10BASE-T and 100BASE-TX (IEEE 802.3 and IEEE 802.3u)
Power Consumption 7.4 watts typical
Operating Temperature -30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Humidity 95%, noncondensing
Main Module Dimensions (H x W x D) 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
Main Module Weight 0.79 kg (1.75 lbs)
I/O Module Dimensions (H x W x D) 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
I/O Module Weight 0.39 kg (0.85 lbs)
Main Module Rack Space 1 full-height front slot
I/O Module Rack Space 1 full-height rear slot

Installation Guidelines

  • Software & Hardware Requirements: Requires Version 3.70 or higher of 3500 Rack Configuration Software and a 3500/22M TDI module to communicate with monitor modules.
  • Firmware Requirements: Requires Version 1.20 or higher of TDI (3500/22M) firmware. For consumed exchange support, Version 2.21 or higher of 4-Channel firmware is required.
  • Rack Limitation: Only 1 EGD module is allowed per 3500 rack.
  • Slot Mounting: Mount the main module into 1 full-height front slot and the corresponding I/O module into the matching full-height rear slot.

Compliance and Certifications

  • FCC: Complies with part 15 of the FCC Rules.
  • EMC: European Community Directive 2014/30/EU; Standards: EN 61000-6-2, EN 61000-6-4.
  • Electrical Safety: European Community Directive 2014/35/EU; Standard: EN 61010-1.
  • RoHS: European Community Directive 2011/65/EU.
  • Maritime: DNV GL rules for classification; ABS Rules for Condition of Classification (Steel Vessels Rules, Offshore Units and Structures).
  • cNRTLus Hazardous Area: Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc; Class I, Zone 2: AEx/Ex ec nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, and D; T4 @ Ta = -20 degC to +65 degC (-4 degF to +149 degF) when installed per drawing 149243 or 149244.
  • ATEX/IECEx: II 3 G, Ex nA nC ic IIC T4 Gc, Ex ec nC ic IIC T4 Gc, T4 @ Ta = -20 degC to +65 degC (-4 degF to +149 degF) when installed per drawing 149243 or 149244.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the function of the communication module?
The module provides Ethernet network communication of 3500 rack-monitored values and status to EGD protocol-compatible controllers.
How many EGD modules can be installed in a single rack?
Only 1 EGD module is allowed per 3500 rack.
What configuration software is required for operation?
Operation requires Version 3.70 or higher of the 3500 Rack Configuration Software.
