Product Overview

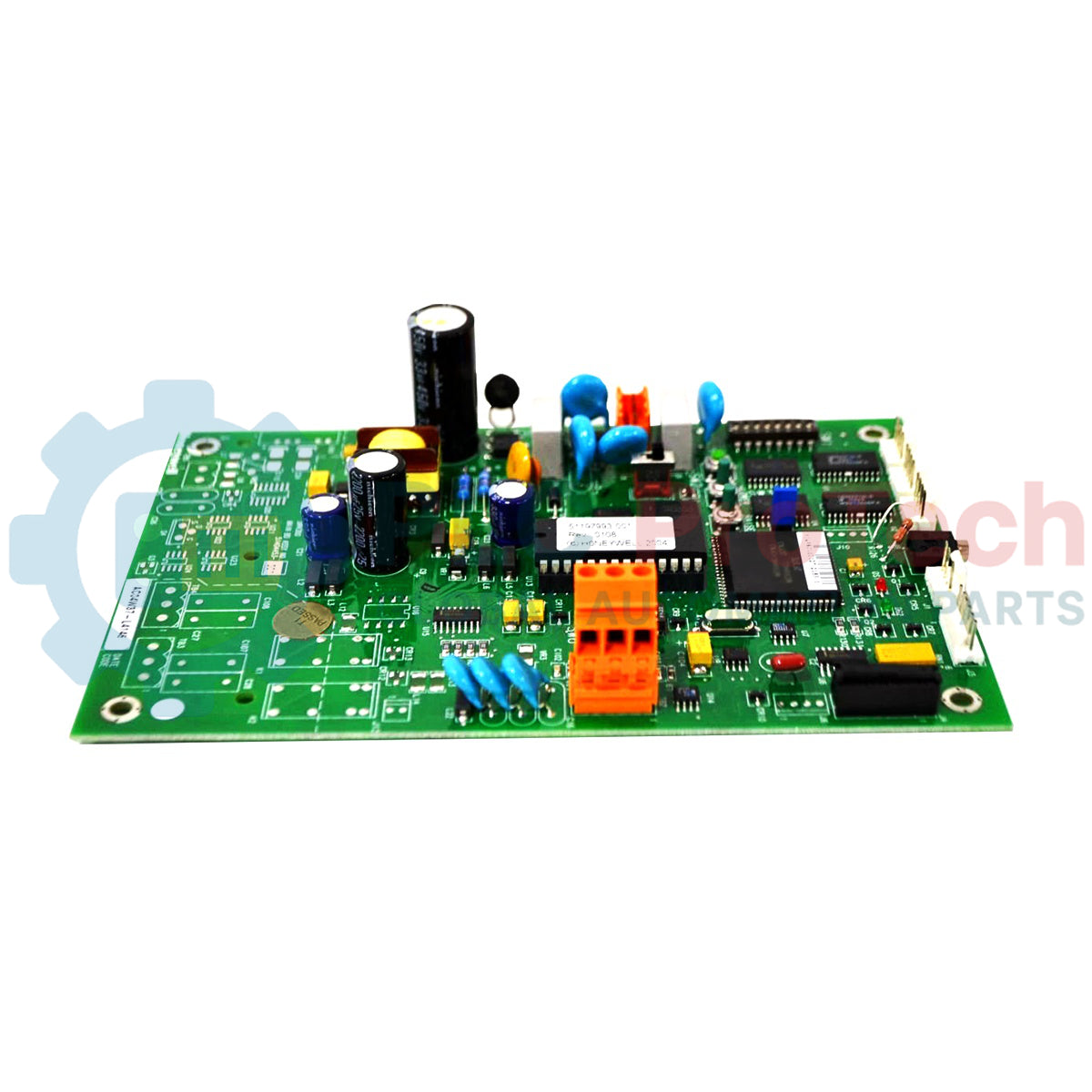

The 51404453-501 is a high-precision Printed Circuit Assembly (PCA) designed specifically for Honeywell Industrial Recorder systems. As a "Record Only" specialized component, this assembly serves as the data-processing heart for analog and digital recording instruments. It is engineered to capture, process, and manage critical process variables in real-time, ensuring that historical data remains accurate and compliant with industrial documentation standards. Built for long-term stability, the 51404453-501 is a vital spare part for maintaining the operational integrity of Honeywell’s classic recording hardware.

Functional Engineering & Data Management

This assembly is optimized for "Record Only" configurations, focusing on the high-fidelity translation of field signals into recorded data formats. The 51404453-501 features advanced circuitry designed to minimize signal noise and thermal drift, which is essential for accuracy in industries such as pharmaceuticals, heat treating, and food processing. By managing the synchronization between input signals and the recording mechanism (whether paper-based or digital internal storage), this PCA ensures that process "snapshots" are captured with millisecond precision.

Technical Specifications

Technical FAQs

What does "Record Only" mean for this specific PCA?

The "Record Only" designation means this assembly is specialized for modules that do not require control outputs (like 4-20mA control loops). It is streamlined for high-speed data acquisition and logging, making it a more cost-effective and focused solution for monitoring stations that prioritize data history over active machine control.

Is the 51404453-501 compatible with all Honeywell recorder series?

This PCA is part of a specific range of Honeywell circular or strip chart recorder families. To ensure total compatibility, engineers should verify the existing board's part number and the firmware revision of the recorder mainframe before installation.

How should this assembly be handled during installation?

As a high-sensitivity Printed Circuit Assembly, the 51404453-501 contains CMOS components that are vulnerable to Electrostatic Discharge (ESD). Always use a grounded wrist strap and an anti-static mat when removing the board from its protective packaging or installing it into the recorder chassis.

Field Engineering & Installation Guide

• ESD Protocol: Before handling the 51404453-501, ensure the recorder power is completely disconnected. Use an ESD-safe environment to prevent latent damage to the microprocessors and memory chips on the board.

• Calibration Verification: After replacing the PCA, a standard calibration check of the recorder is recommended. This ensures that the new circuitry is perfectly aligned with the existing sensor inputs (Thermocouples, RTDs, or Linear Volts).

• Firmware Sync: Ensure that any jumpers or dip switches on the new 51404453-501 are set to match the configuration of the original board to maintain consistent communication with the display and input modules.

Engineering Advantages

The 51404453-501 offers an essential lifecycle extension for proven Honeywell recording systems. Its robust design allows for continuous 24/7 operation in industrial environments where environmental monitoring and regulatory compliance (such as FDA or AMS2750) are mandatory. For B2B procurement, sourcing this original Honeywell Printed Circuit Assembly ensures that the recorder maintains its original accuracy specifications and safety certifications, avoiding the risks associated with third-party repairs or unauthorized components.
