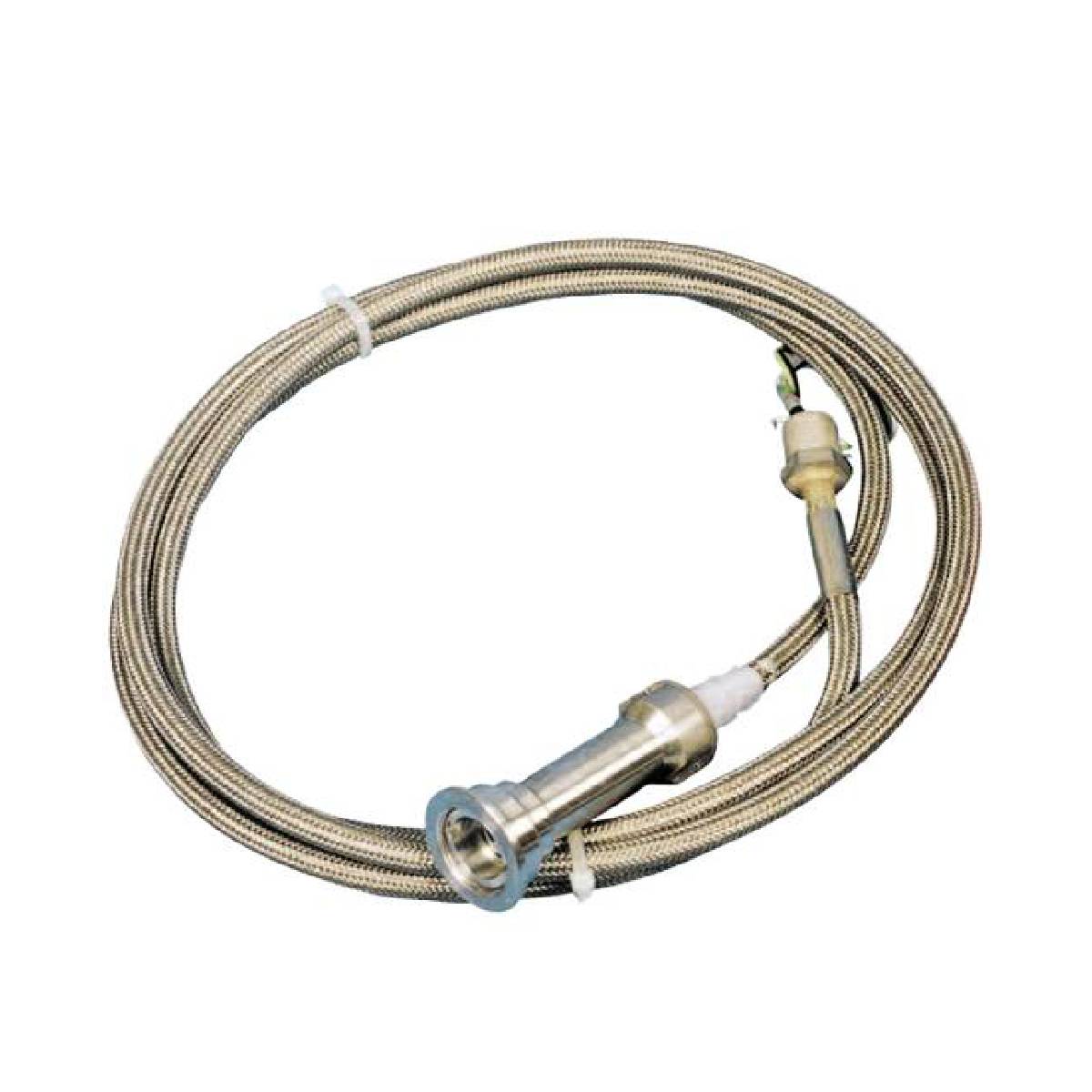

Honeywell LG1093AC01 Gas Turbine LG Flame Detector

Honeywell

Honeywell LG1093AC01 Gas Turbine LG Flame Detector

SKU LG1093AC01

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Honeywell
  • Product No.: LG1093AC01
  • Origin United States
  • Product Type: Flame Detector
  • Payment: T/T, Western Union
  • Weight: 0.91 kg
  • Dimensions: 15 x 15 x 10 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Flame Detectors

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Honeywell LG1093AC01 Gas Turbine LG Flame Detector

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Honeywell LG1093AC01 is a ultraviolet (UV) radiation flame detector engineered for gas turbine flame monitoring systems. The unit senses the UV radiation emitted by a hydrocarbon flame and transmits a high-speed signal to indicate a flame or no-flame condition. Utilizing a Geiger Mueller-type phototube sensor, the detector is solar blind and tolerant to black body radiation. It is widely applied across General Electric and GE licensee gas turbines for power generation and compressor operations, delivering high sensitivity with typical response times of 0.1 seconds for flame presence.

Features

  • Geiger Mueller-type sensor phototube detecting UV radiation in the 180 to 260 nm spectral range
  • Solar blind design tolerant to black body radiation
  • High sensitivity with typical 0.1-second Flame Present Response Time and 0.2-second maximum Flame Loss Response Time
  • Two-year shelf life and 10,000-hour MTBF
  • Long-distance sensor-to-amplifier signal transmission capability up to 330 m (1000 ft)
  • Sealed viewing window rated for pressures up to 428 mbar (6.3 psi)
  • Integrated 9 ft (2.7 m) 2-conductor armored cable

Applications

  • General Electric (and GE licensee) heavy-duty gas turbines
  • Power generation gas turbine flame monitoring
  • Industrial compressor gas turbine installations

Technical Specifications

Parameter Specification
Manufacturer Honeywell
Product No. LG1093AC01
Product Type LG Flame Detector
Sensor Type Geiger Mueller-type phototube
Spectral Range 180 to 260 nm
Operating Temperature Range -40 to 176 degC
Cable Length 9 ft (2.7 m)
Cable Type 2-conductor armored cable
Flange Dimensions 1.73 in. O.D. by 0.14 in. wide flange
Viewing Window Pressure Rating 428 mbar (6.3 psi)
Supply Voltage Required No
Flame Present Response Time 0.1 sec typical
Flame Loss Response Time 0.2 sec max
MTBF 10,000 h
Max Operating Distance Up to 330 m (1000 ft) from sensor to amplifier
Hardware Output Compatibility EG1033 series amplifier modules only
Weight 0.91 kg

Installation Guidelines

  • Amplifier Compatibility: Hardware outputs are designed exclusively for connection to Honeywell EG1033 series amplifier modules (EG1033AA, EG1033AB, EG1033AC).
  • Wiring and Distance: Ensure proper routing of the attached 2-conductor armored cable. Sensor-to-amplifier runs can extend up to 330 m (1000 ft).
  • Pressure Rating: Verify that process conditions at the viewing interface do not exceed the window rating of 428 mbar (6.3 psi).
  • Hazardous Area Mounting: Observe all local codes and area classification constraints when mounting in classified explosive environments.
  • Low-NOx Exception Note: Standard LG1093 series detectors may not function as expected on GE/NP DLE (Dry Low NOx) gas turbines; these applications require specialized pre-selected variants.

Compliance and Certifications

  • CE / ATEX: EEx d IIA T3 or EEx d IIC T3, Zone 1 and 2 (Directive 94/9/EC, EMC 89/336/EEC, LVD 73/23/EEC)
  • Factory Mutual (FM): Class I, Div 1 and 2, Groups B, C, and D
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What spectral range does the flame sensor detect?
The sensor phototube detects ultraviolet radiation within the 180 to 260 nm spectrum.
Which amplifier modules are compatible with this detector?
The hardware outputs are compatible exclusively with Honeywell EG1033 series amplifier modules, such as EG1033AA, EG1033AB, and EG1033AC.
What is the typical response time for flame detection?
The detector provides a typical Flame Present Response Time of 0.1 seconds and a maximum Flame Loss Response Time of 0.2 seconds.
Can this detector be used on GE DLE gas turbines?
Standard LG1093 series flame detectors may not operate as expected on GE/NP DLE (Low-NOx) turbines, which require specialized pre-selected units.
