Product Overview

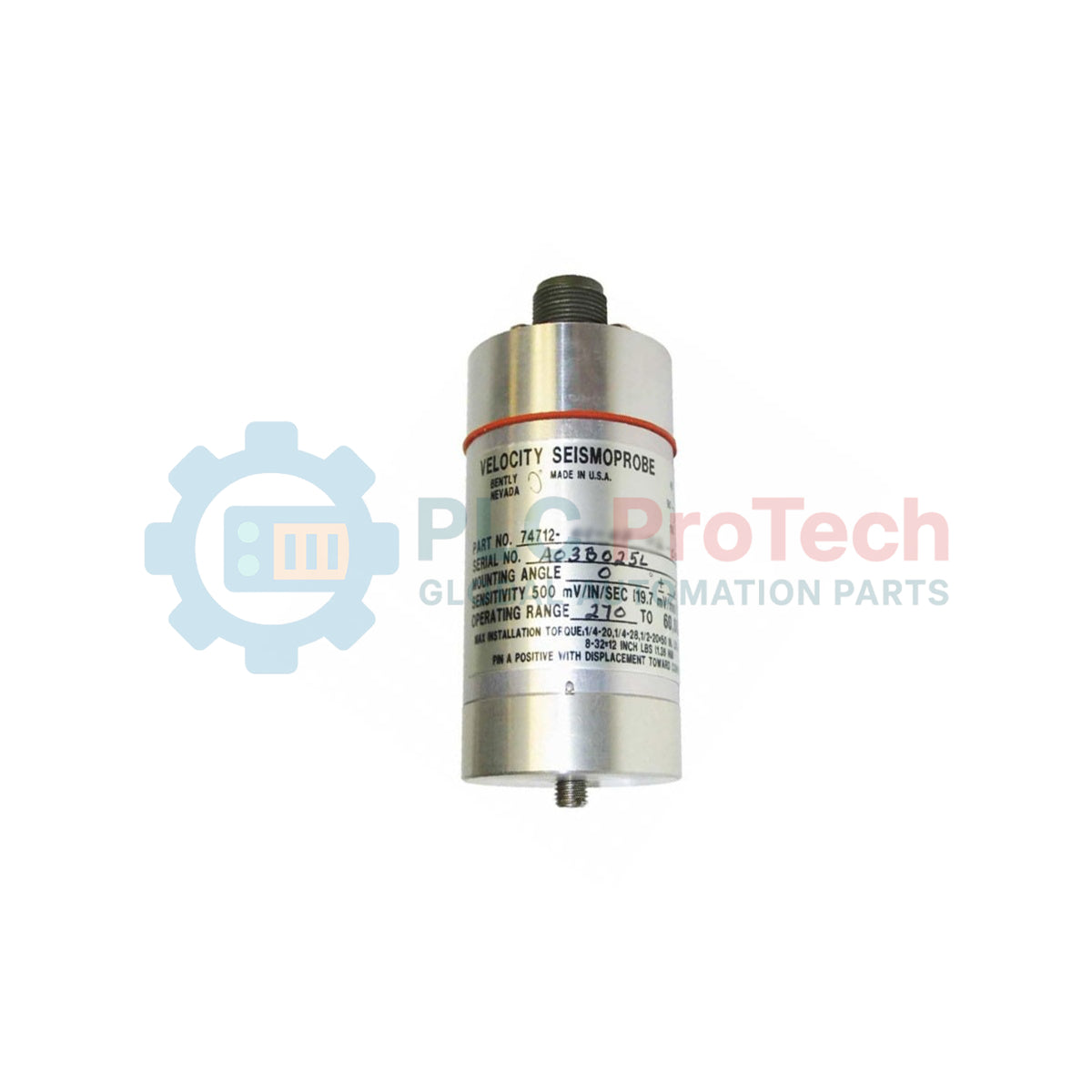

The 74712-06-05-04-00 is a heavy-duty, high-temperature seismic velocity transducer engineered by Bently Nevada for the most demanding industrial environments. Specifically designed to monitor vibration on gas turbines, steam turbines, and other rotating machinery where surface temperatures exceed the limits of standard sensors, this two-wire transducer provides a self-generated electrical signal proportional to vibration velocity. Its robust construction ensures reliable performance in the high-heat zones of power generation and petrochemical facilities, allowing for continuous monitoring of critical assets to prevent costly mechanical failure and extend the Mean Time Between Failures (MTBF).

Suffix Logic Breakdown

The specific hardware configuration for the 74712-06-05-04-00 is defined by the following industrial options:

• 74712: Base model for the High-Temperature Two-Wire Velocity Transducer.

• 06 (Mounting Angle/Freq Option): Optimized for a mounting angle of 0 plus or minus 100 degrees, with a minimum operating frequency of 10 Hz (600 cpm).

• 05 (Mounting Base Option): Supplied without a base; features a direct 1/2-in 20 UNF-3A integrated stud for rigid mechanical coupling.

• 04 (Connector Option): Configured with a side-mount connector interface, ideal for installations with limited vertical overhead clearance.

• 00 (Agency Approval Option): Standard non-certified version for general industrial use.

Technical Specifications

Technical FAQs

In what specific scenarios is a side-mount connector (Option 04) preferred?

The side-mount configuration is critical for turbine housings or bearing pedestals where the surrounding heat shielding or acoustic enclosures provide insufficient vertical space for a top-exit cable. It also assists in creating a natural "drip loop" to prevent moisture from following the cable into the connector.

Does this transducer require an external power supply?

No. As a velocity transducer based on moving-coil technology, the 74712-06-05-04-00 is self-generating. It converts mechanical vibration directly into a voltage signal, which simplifies field wiring and reduces the risk of electronic component failure in high-heat zones.

What is the significance of the 10 Hz minimum frequency?

This frequency rating ensures the sensor is tuned to capture the fundamental rotational speeds and primary harmonics of large-scale turbines (600 rpm and above). It is not recommended for very slow-speed machinery where frequencies drop below 10 Hz.

Engineering & Installation Guide

Thermal Isolation and Cable Selection

While the 74712-06-05-04-00 is rated for high temperatures, the longevity of the installation depends heavily on the cabling. Always use high-temperature TFE-insulated shielded cables. Ensure the side-mount connector is securely tightened and, if necessary, protected by a heat-reflective sleeve to prevent localized "hot spots" from degrading the connector seals.

Mechanical Integrity and Torque

The 1/2-in 20 UNF stud (Option 05) provides a massive, rigid connection point necessary for accurate seismic vibration transmission. Ensure the mounting surface is machined flat to a 0.001-inch total indicator reading. Apply appropriate torque to prevent the sensor from loosening under high-vibration conditions, as any "sensor rattle" will manifest as high-frequency noise in the vibration data.

Orientation Awareness

The "06" option is designed for near-horizontal mounting. Significant deviation from the specified mounting angle (outside the +/- 100-degree range) can cause the internal moving coil to contact the housing walls, resulting in "clipped" signals and inaccurate vibration readings. Always verify the machine surface angle before installation.
