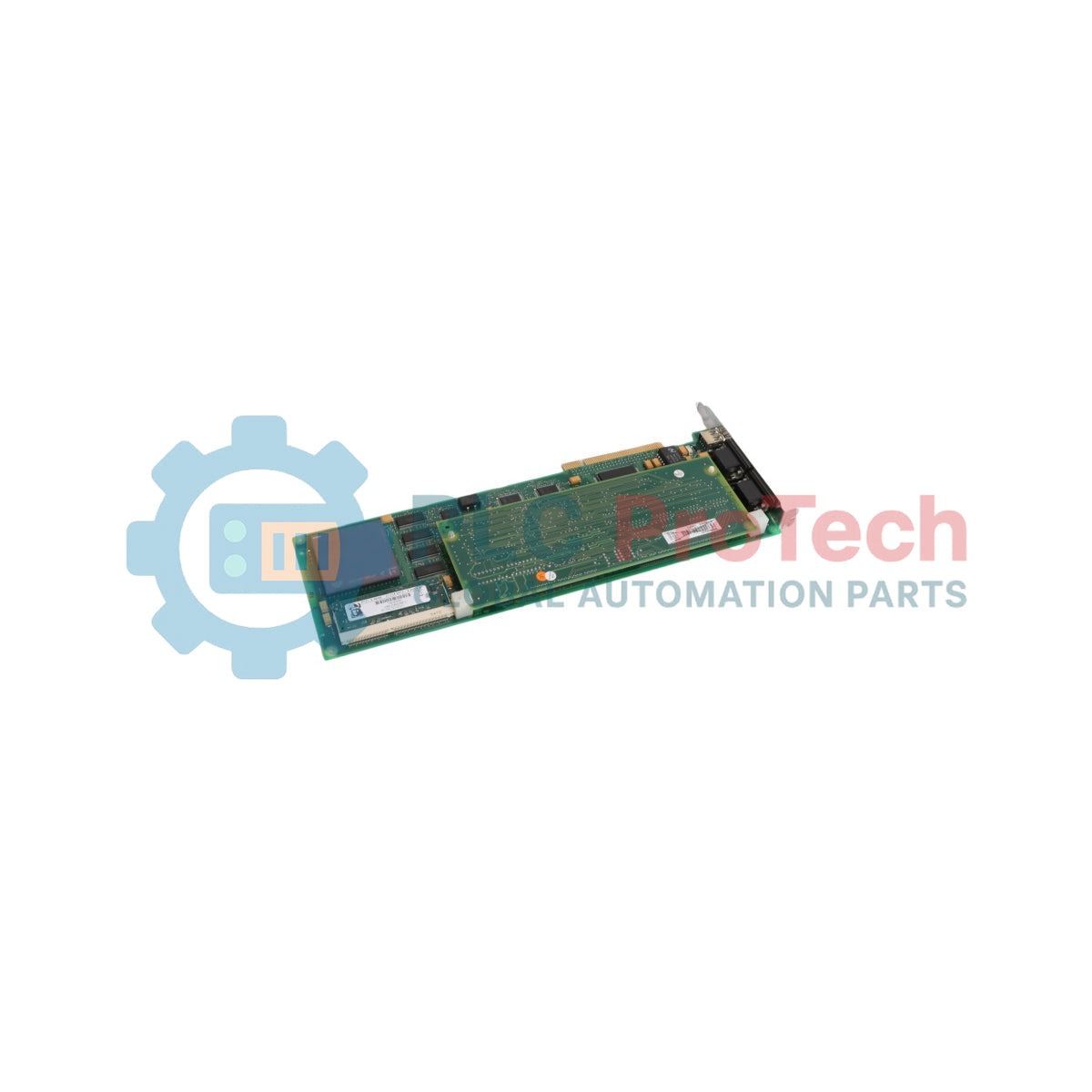

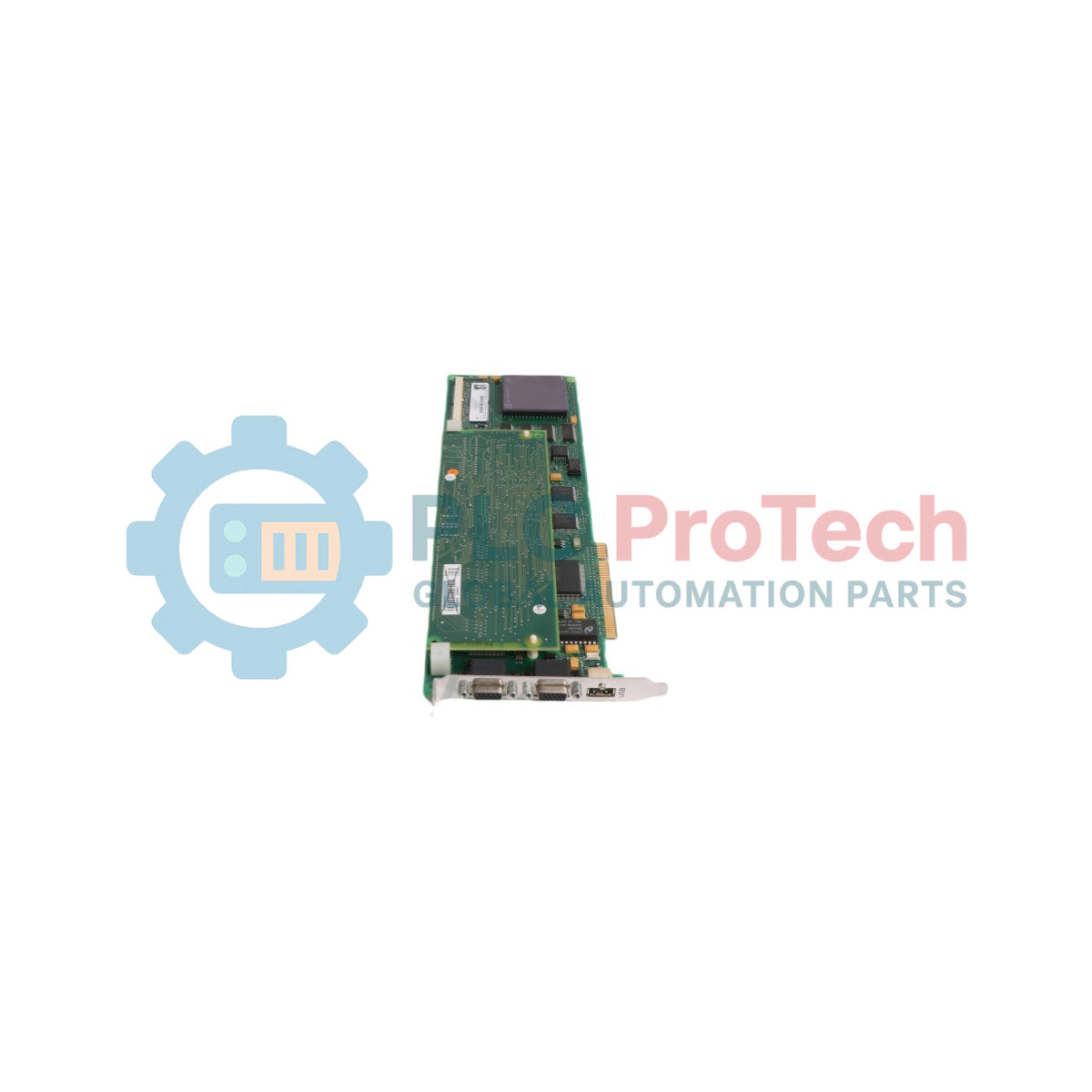

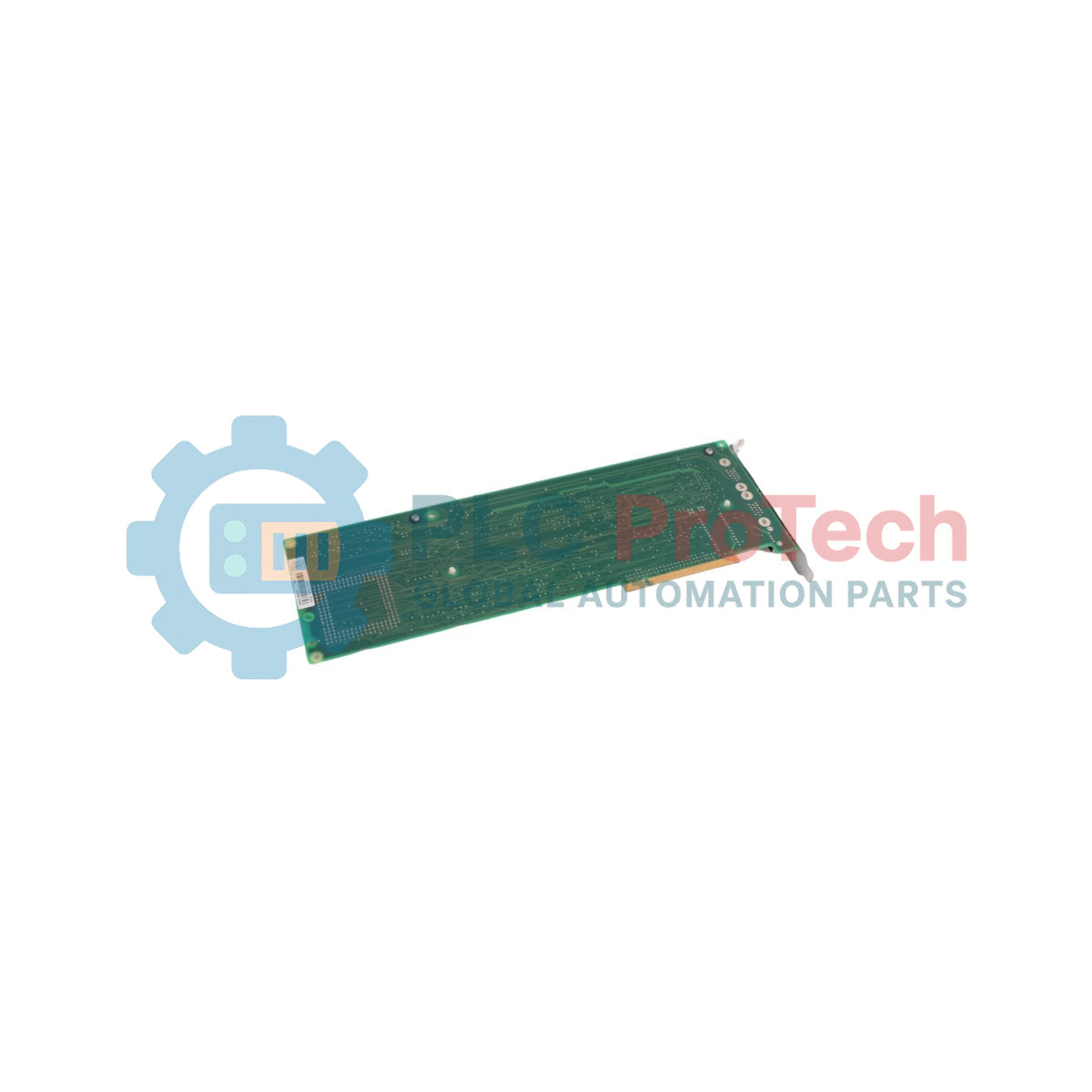

The 3BSE013063R1 is a high-performance PU515 Real-Time Accelerator (RTA) board manufactured by ABB for the Advant OCS control system architecture. This communication module is designed to interface Master systems via a standard 5V, 32-bit, 33MHz PCI bus, delivering the dedicated real-time processing capability required for demanding industrial automation applications. The PU515 board features dual-channel MB300 communication protocols and comes equipped with 16 megabytes of onboard memory to ensure reliable, high-speed data throughput without lagging host system resources. Operating as a core communication module, the 3BSE013063R1 ensures seamless link synchronization and real-time process monitoring within Advant Station 500 Series Engineering Stations and related MOD 300 control system environments.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BSE013063R1 |
| ABB Type Designation | PU515 |
| Product Family | Advant |
| Product Type | Communication Module |
| Bus Type | PCI bus (5V, 32-bit, 33MHz) |
| Memory Capacity | 16Mbyte |
| Communication Protocol | Dual Channel MB300 |
| Country of Origin | Sweden |
| Customs Tariff Number | 85389091 |
| Old Product ID Reference | 3BSE013063R0001 |
| Replacement Product ID | 3BSE032401R1 |
| Product Net Width | 30 mm |
| Product Net Height | 540 mm |
| Product Net Depth / Length | 150 mm |
| Product Net Weight | 0.4 kg |
| Gross Weight | 0.4 kg |
| Gross Volume | 2.43 dm³ |
Prior to handling the PU515 board, ensure that the host computer or engineering station is entirely powered down and disconnected from the main power source. Follow standard electrostatic discharge (ESD) protective measures by wearing a grounded wrist strap. Insert the board firmly into a compatible 5V 32-bit PCI slot along the motherboard until the edge connector is completely seated, then secure the mounting bracket screw.
Ensure that the metal mounting bracket of the 3BSE013063R1 board makes direct, unpainted contact with the industrial computer or workstation chassis frame. This path establishes a functional chassis ground essential for the onboard dual-channel MB300 transceiver shield circuits to suppress electromagnetic interference (EMI).
Route all external communication cables connected to the dual-channel MB300 ports away from high-voltage primary AC power lines and motor drive paths to limit inductive noise pickup and guarantee signal transmission integrity.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: PU515 3BSE013063R1
Country of origin:Sweden
Product Type: Communication Modules
Barcode: 85389091
Payment: T/T, Western Union
Weight: 400g
Dimensions: 32.5 cm x 12.6 cm x 1.7 cm
Shipping port: Xiamen
Warranty: 12 months
