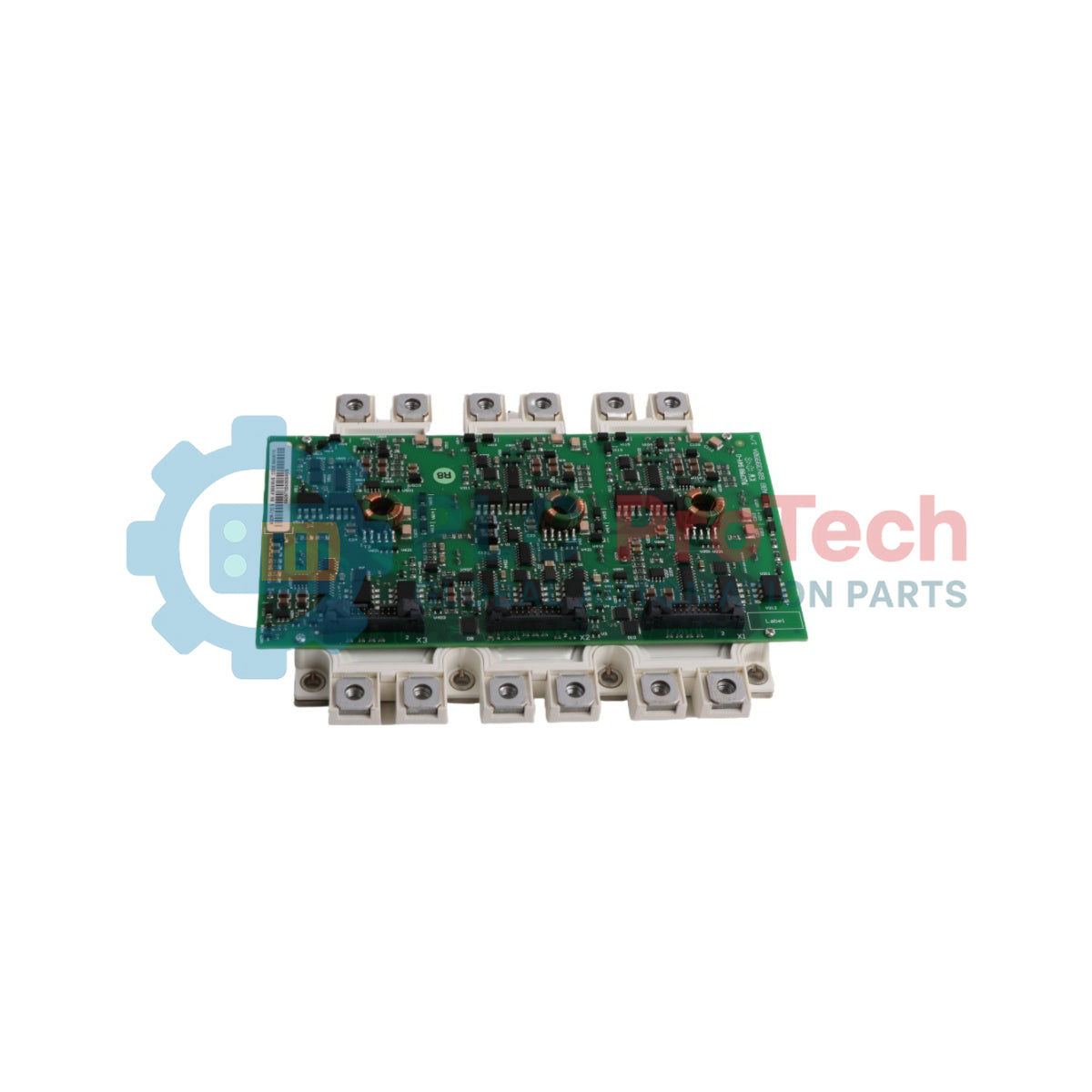

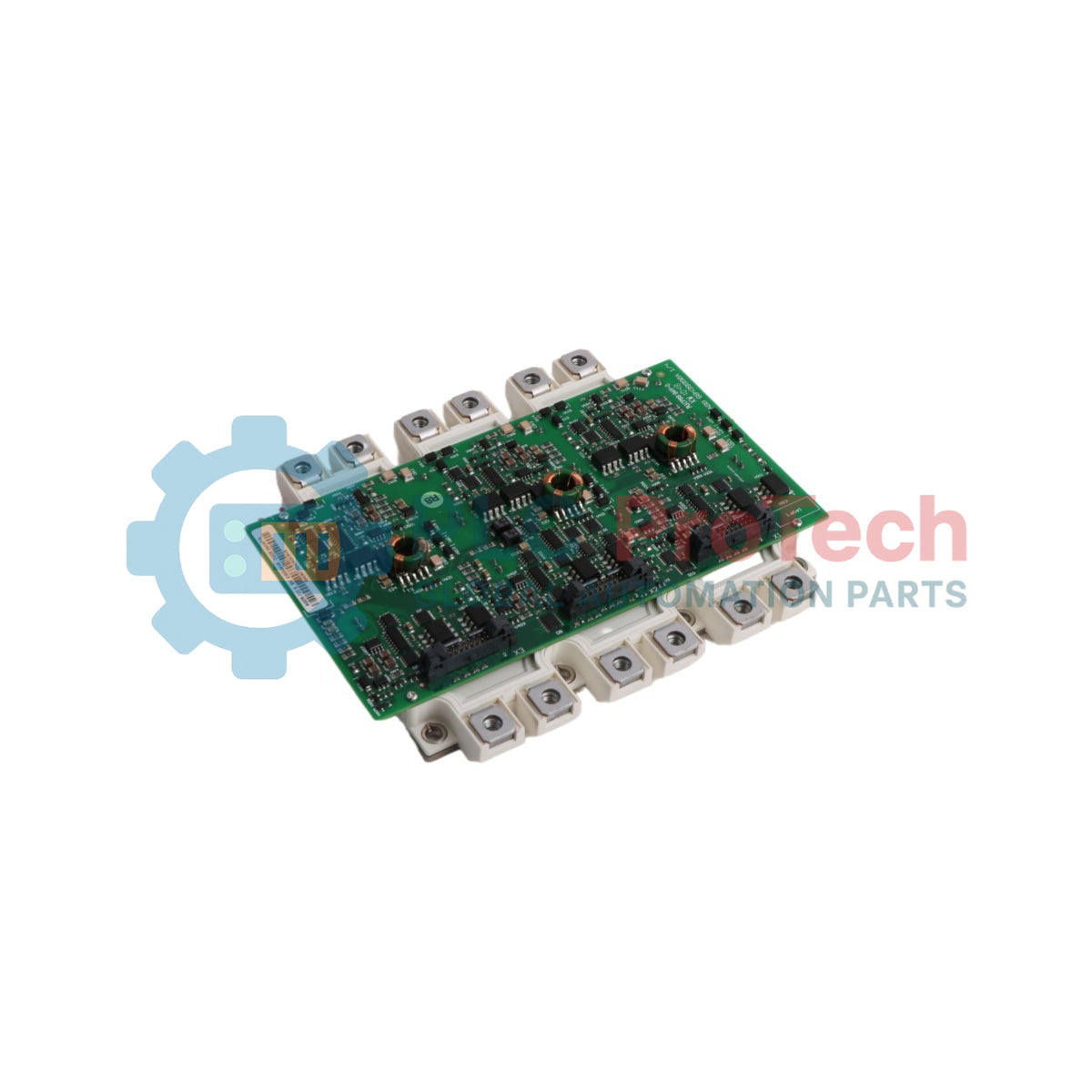

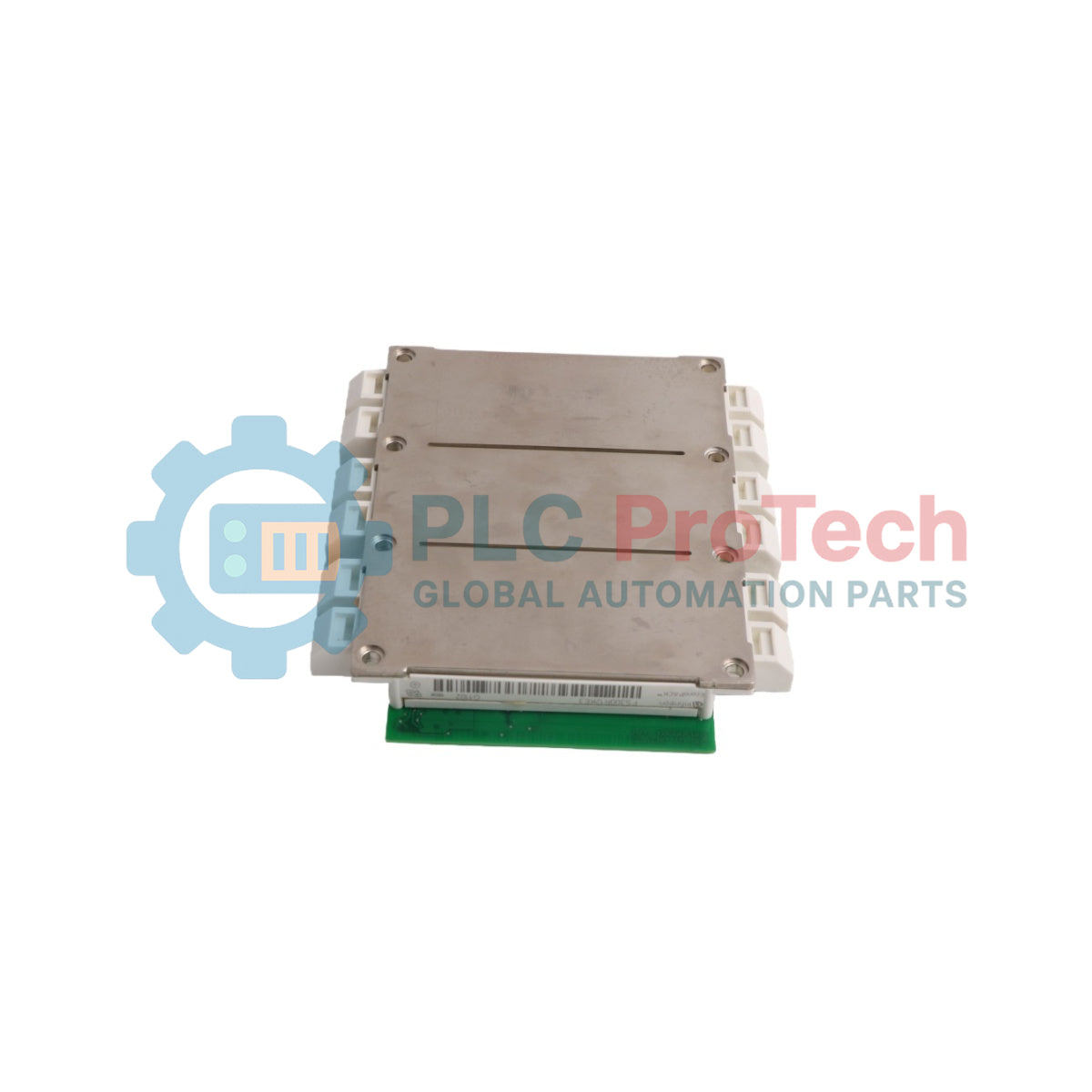

The ABB FS300R12KE3 / AGDR-72C (Product ID: 68569541) is a high-power IGBT module and gate driver assembly kit designed for industrial three-phase inverter systems and variable frequency drives.
This matched system combines the Infineon TRENCHSTOP™ FS300R12KE3 IGBT3 power module with the ABB AGDR-72C gate driver board, delivering stable switching performance in demanding industrial motor control applications.
The assembly is widely used in ABB ACS800 drive platforms, where it handles high-current switching, real-time protection, and precise motor modulation. The AGDR-72C driver board mounts directly onto the IGBT terminals, ensuring a low-inductance connection path that reduces switching noise and improves system reliability.
Matched IGBT module + gate driver board kit
FS300R12KE3 1200V TRENCHSTOP™ IGBT3
High-performance AGDR-72C gate driver board
Designed for ABB ACS800 industrial drive systems
Integrated desaturation short-circuit protection
High switching capability up to 20 kHz
Optimized low-inductance gate interface design
Suitable for high-power industrial inverter applications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | FS300R12KE3 / AGDR-72C |
| Product ID | 68569541 |
| Replacement Code | 3AUA0000109336 |
| Type | IGBT Module + Gate Driver Assembly |
| IGBT Technology | Infineon TRENCHSTOP™ IGBT3 |
| Voltage Rating | 1200 V |
| Collector Current | 300 A |
| Peak Current | 600 A (1 ms) |
| Power Dissipation | 1450 W |
| Switching Frequency | Up to 20 kHz |
| Gate-Emitter Voltage | ±20 V max |
| Insulation Voltage | 2500 V AC |
| Saturation Voltage | 1.70–2.15 V |
| Weight | 1.10 kg |
| Dimensions | 21 × 175 × 152 mm |
| Origin | Germany / Estonia |
| HS Code | 85359000 / 85389091 |
The FS300R12KE3 IGBT module performs high-power switching in inverter bridge circuits, while the AGDR-72C gate driver board ensures accurate gate signal control and fast fault response.
The driver provides real-time protection functions including:
Desaturation monitoring
Short-circuit detection
Soft turn-off control
Gate voltage supervision
These functions protect the power stage during abnormal load or motor fault conditions in high-power inverter systems.
Proper thermal design is critical for stable operation of the IGBT power module assembly.
Before installation:
Clean heatsink and baseplate using non-residue solvent
Apply uniform thermal interface material (TIM) layer
Ensure even pressure distribution during mounting
Recommended torque sequence:
Initial tightening: 2.0 Nm
Final torque: 3.0–6.0 Nm
This ensures stable heat transfer under continuous high-load operation.
When replacing the FS300R12KE3 / AGDR-72C assembly, it is recommended to replace associated control ribbon cables to ensure signal integrity.
Common configurations include:
R7i frame systems: Code 68869625
R8i dual-IGBT systems: Code 68870089
R8i triple-IGBT systems: Code 68692172
Using aged ribbon cables may increase the risk of gate signal distortion and communication faults in the inverter stack.
The AGDR-72C gate driver board contains sensitive control electronics including optical isolation and high-density logic circuits.
Handling requirements:
Use grounded ESD wrist protection
Discharge DC bus capacitors before installation
Avoid direct contact with PCB components
Verify control rail stability before activation
Incorrect handling may cause permanent damage to the gate driver circuitry.
The ABB FS300R12KE3 / AGDR-72C is used in:
ABB ACS800 industrial drive systems
High-power motor control systems
Industrial frequency converters
Wind power inverter systems
Heavy-duty automation drives
Industrial UPS power systems
Product ID: 68569541
Replacement Code: 3AUA0000109336
Type: FS300R12KE3 / AGDR-72C
Category: IGBT power module + gate driver kit
HS Code: 85359000 / 85389091
What is the difference between AGDR-72C and AGDR-62C?
They differ in layout, gate resistance design, and thermal/mechanical configuration. They are not universally interchangeable.
Does this kit include protection functions?
Yes. The AGDR-72C driver includes desaturation detection and fast fault shutdown mechanisms.
Can old ribbon cables be reused?
It is not recommended. Aging cables can introduce resistance drift and timing instability in gate signals.
