Description

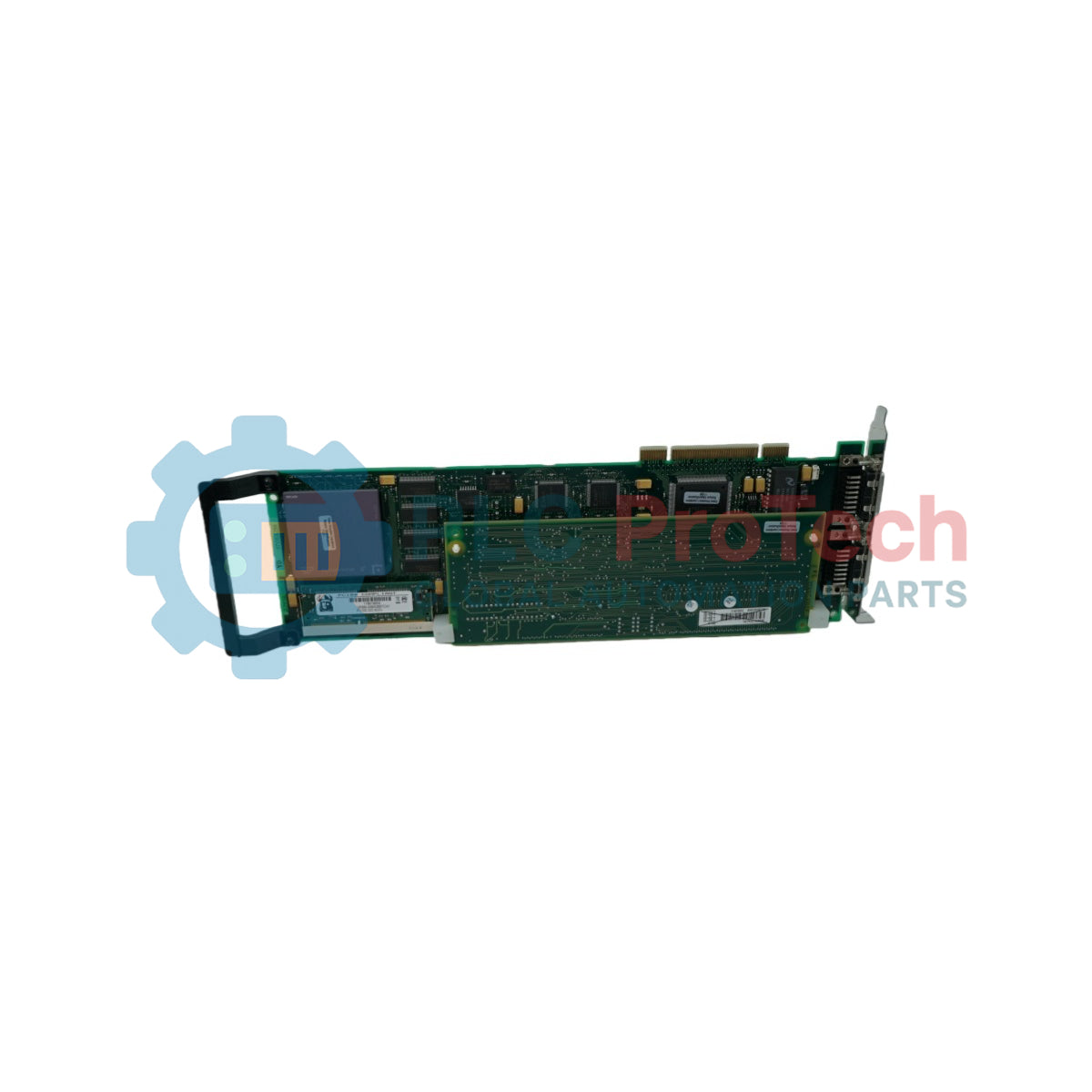

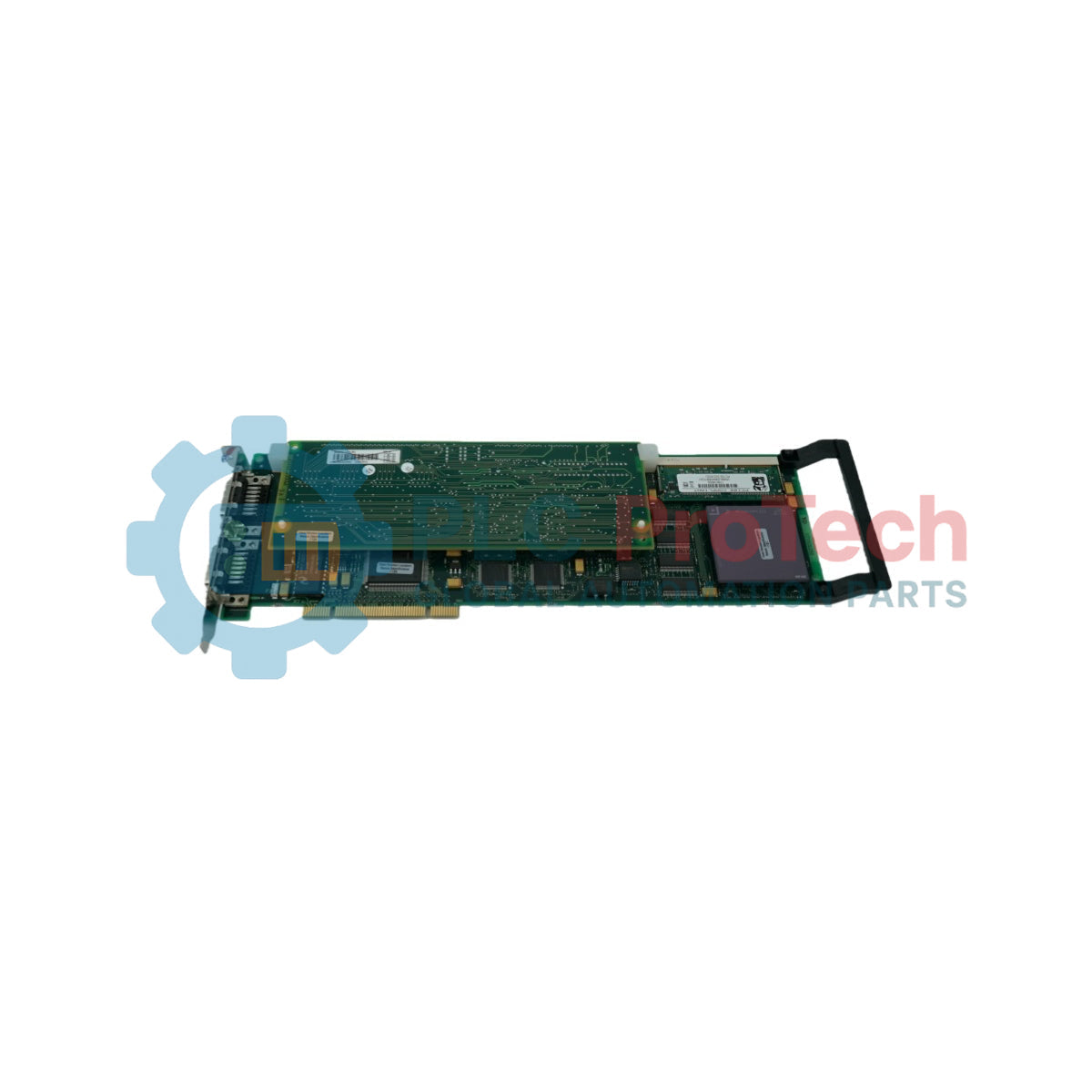

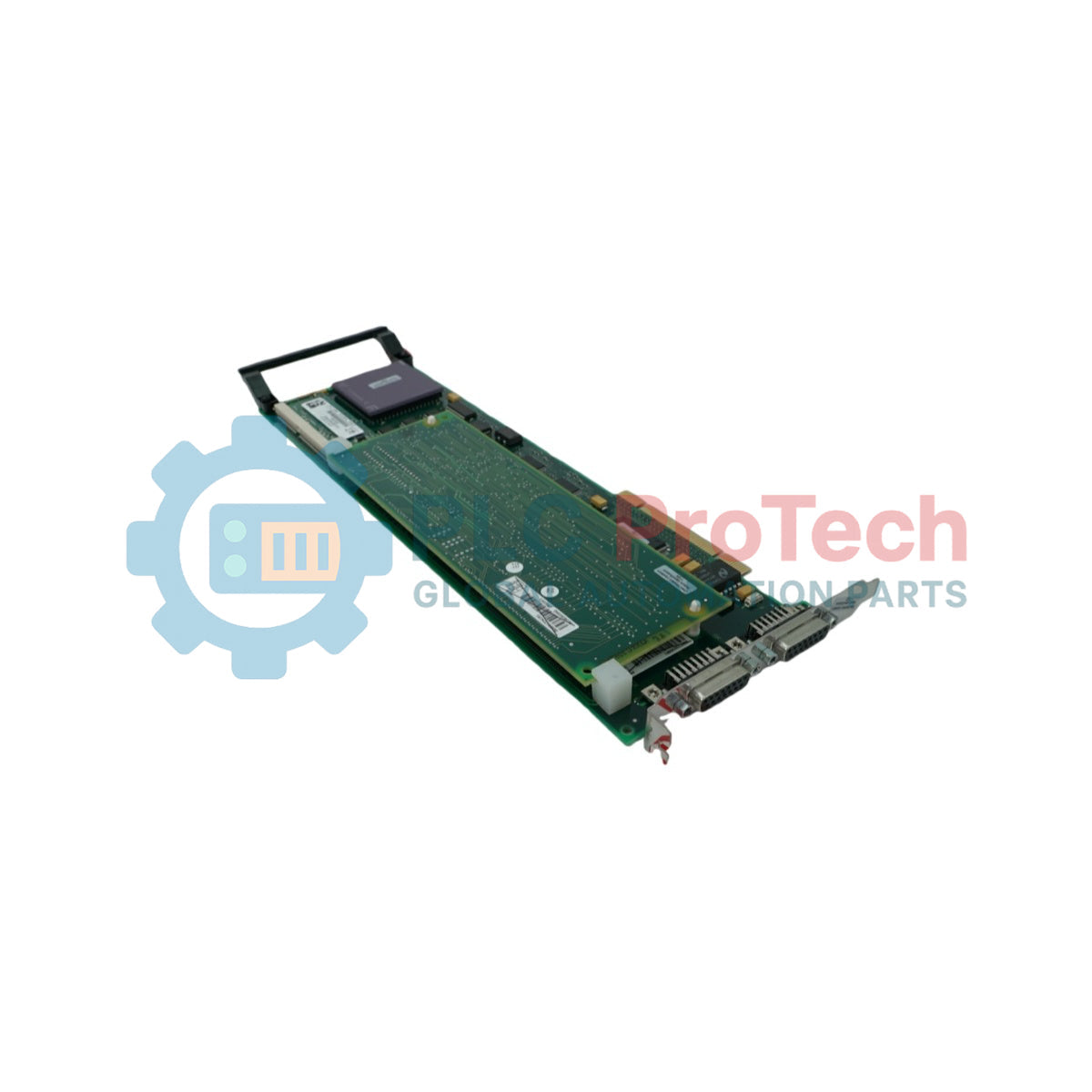

The ABB PU515A (Product ID: 3BSE032401R1) is a hardware-integrated Real-Time Accelerator (RTA) board designed to facilitate high-speed industrial network communication within the System 800xA control environment. This professional PCI interface card functions as a dedicated processing interface that links standard PC-based control architectures with Master and MOD eDCN automation systems. Featuring an onboard CS503V1 dual-channel MB300 communication subsystem and an independent 25 MHz processor, the PU515A 3BSE032401R1 unloads deterministic time-critical communication tasks from the host operating system. It handles data translation, dual-channel protocol execution, and physical bus routing over standard 15-pin connection interfaces to prevent process control disruptions in complex Advant OCS network configurations.

Features

• Built-in CS503V1 dual-channel MB300 communication module delivering high-throughput data transfer rates up to 10,000 kbit/s.
• Independent onboard 25 MHz processing core dedicated strictly to handling real-time network traffic acceleration.
• Equipped with 16 megabytes (MB) of local integrated RAM to optimize sequence buffers and network queues.
• Dual 15-pin female D-sub connectors providing independent interfaces for redundant network physical media routing.
• Highly versatile physical bus interface supporting standard 32-bit or 64-bit PCI slots as well as legacy PCI-X slots.
• Solid-state component selection utilizing zero internal batteries to reduce long-term preventative maintenance demands.

Applications

• Real-time network interfaces connecting System 800xA server platforms to legacy Advant Master controllers.
• High-speed industrial data acquisition and supervisory tracking loops via MB300 networks.
• Communication subsystem acceleration for server connectivity in MOD eDCN distribution environments.

Ordering Information

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Electrostatic Discharge (ESD) Protection: Handle the PCB assembly strictly at its physical edges and metal mounting brackets while using an approved ESD ground strap to avoid component damage.
• Slot Interface Selection: Insert the card directly into a matching 3.3V or 5V 32-bit/64-bit standard PCI slot, or a compatible 100/133MHz PCI-X slot. Note that the card interfaces at a 33MHz bus speed.
• Mechanical Mounting: Fasten the integrated faceplate retaining screw firmly onto the server or industrial PC chassis rail to secure appropriate ground pathing and prevent physical card shifting.
• Cable Strain Relief: Secure the connected 15-pin female D-sub network cables to prevent unneeded physical torque from altering the connection seating at the backplane interfaces.
