Product Overview

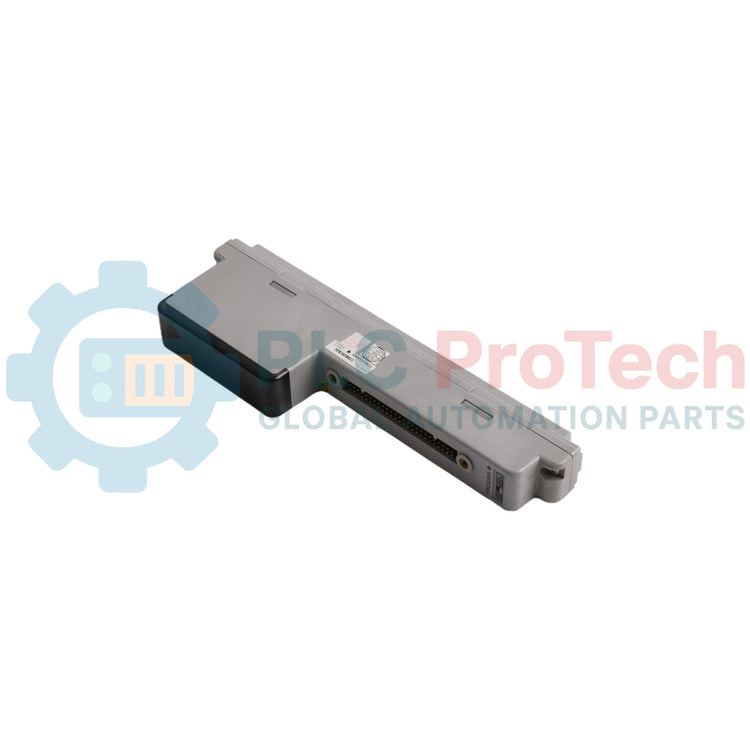

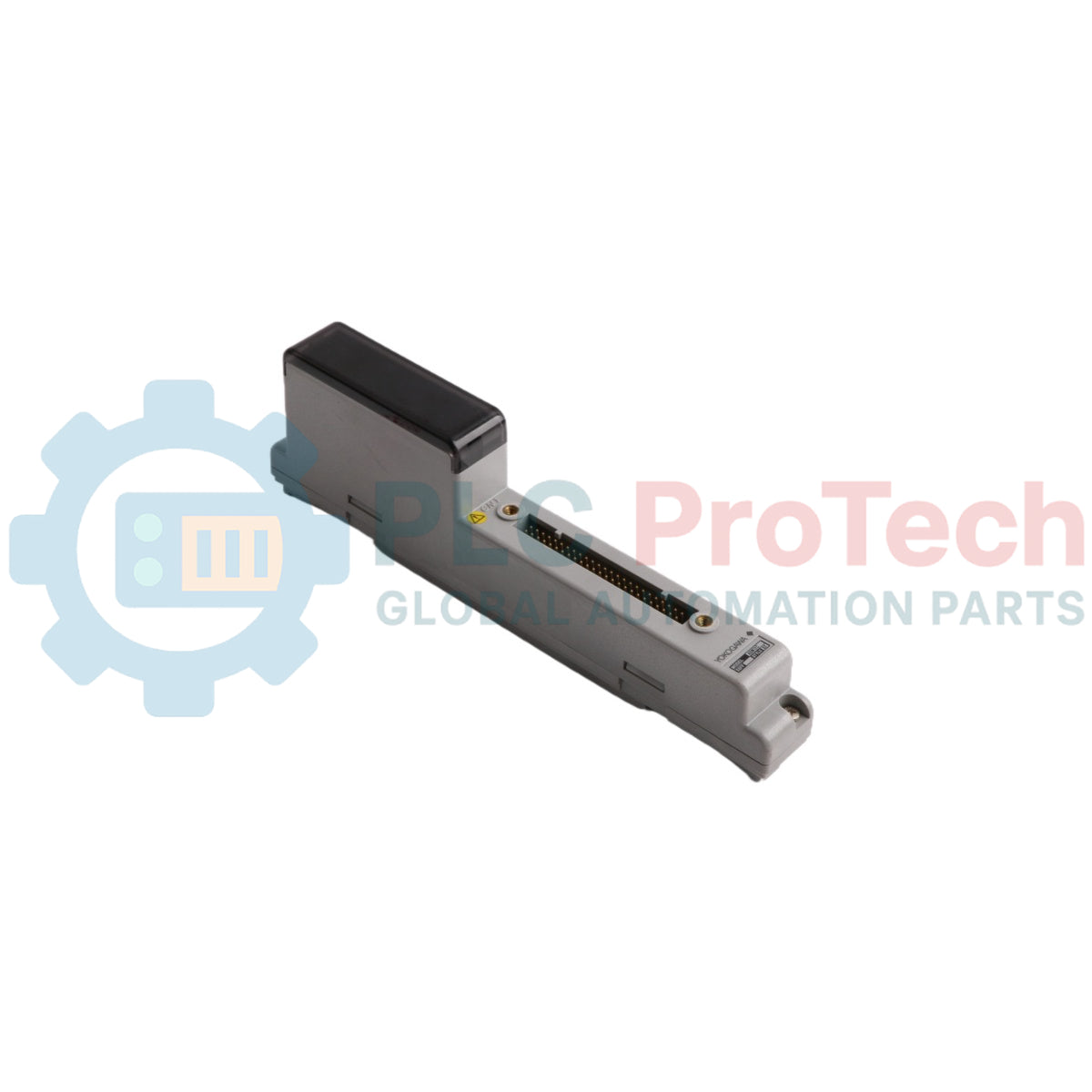

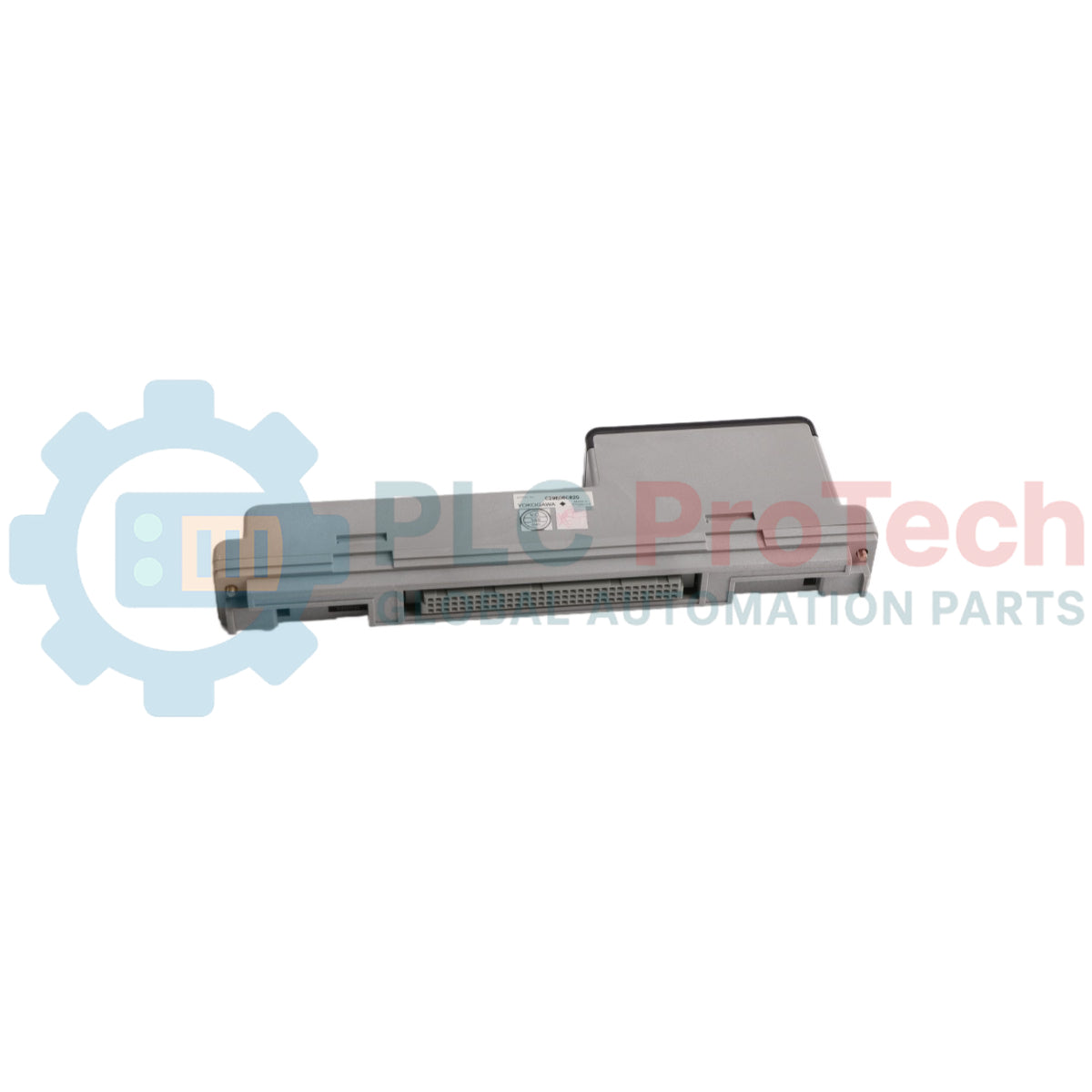

The Yokogawa ADM11C is a high-reliability, 16-channel digital input module engineered for the CENTUM VP Distributed Control System (DCS). Operating as a key field-monitoring interface, this module is widely used in refineries, power generation units, and heavy chemical plants to capture critical status changes from field contacts and push-buttons. It supports dual input signals, allowing seamless configuration for dry contact inputs or active voltage inputs. With integrated capabilities for detecting real-time ON/OFF states and counting rapid edge pulses from operator buttons, the module bridges the gap between mechanical field actions and DCS logic. This deterministic monitoring path prevents signal dropouts and incorrect process state assessments, keeping critical operations online and eliminating unnecessary plant shut-downs.

Hardware Architecture & Feature Configuration

Rather than basic discrete sensing, the ADM11C features a versatile signal-conditioning architecture optimized for high-integrity plant networks:

• Dual-Signal Input Processing: Each channel is configurable to receive dry contact inputs or voltage-based active inputs, ensuring wide compatibility with legacy mechanical switches and modern electronic sensors.

• Onboard Edge-Counting: The module features built-in edge-detection circuitry designed for push-button inputs. It registers pulses with a minimum width of 40 ms and a frequency of up to 10 Hz, eliminating the need for high-frequency scanning tasks in the main controller CPU.

• Robust Noise Filtering: Integrated hardware de-bouncing filters out high-frequency mechanical contact chatter, ensuring only true state changes are reported to the controller.

Hardware Specifications

Operational & Integration FAQs

• Q: What are the main electrical differences between contact mode and voltage mode on the ADM11C?

  A: In contact input mode, the module provides an internal wetting voltage to detect the closed or open status of dry mechanical contacts. In voltage input mode, the module acts as a receiver for external active DC voltage signals, registering an ON state when the loop voltage drops to plus/minus 1 V DC and an OFF state when the voltage is within 4.5 to 25 V DC.

• Q: Can this module capture extremely fast micro-switches or high-speed pulses?

  A: No. The ADM11C is optimized for standard status monitoring and operator push-buttons. It requires a minimum pulse width of 40 ms and cannot reliably register signal frequencies exceeding 10 Hz. For high-speed pulse applications (such as flow meter outputs or turbine speed pickups), a dedicated pulse input module must be used.

• Q: How does the push-button edge counting function work?

  A: When configured for push-button input, the module detects the transition edges of the contact. Instead of only transmitting a static state, it logs the pulse count at the module level. This is highly useful for measuring manual operator actions or sequence-of-events counts without overloading the FCS communication bus.

Field Engineering & Installation Guide

• Connector Wiring and Cable Termination: Ensure the multi-pin field connector is securely seated and locked onto the ADM11C front face. Use Yokogawa-approved pre-terminated terminal board cables to prevent miswiring, high contact resistance, or accidental short circuits between adjacent channels.

• Wetting Voltage and Loop Integrity: For dry contact inputs, verify that the mechanical contacts are rated to switch at least 5 V DC at 20 mA. Using contacts designed only for high-voltage power applications can lead to oxidation buildup on the switch surfaces, causing intermittent "open-circuit" failures because the low-power wetting voltage cannot break through the oxide layer.

• External Cabling and Shielding: Avoid routing the digital input signal lines in the same cable conduit or tray as heavy AC electrical motor wires or variable frequency drive (VFD) outputs. Induced electromagnetic spikes on digital input lines can lead to false edge-triggering or diagnostic "Not OK" faults on the module.
