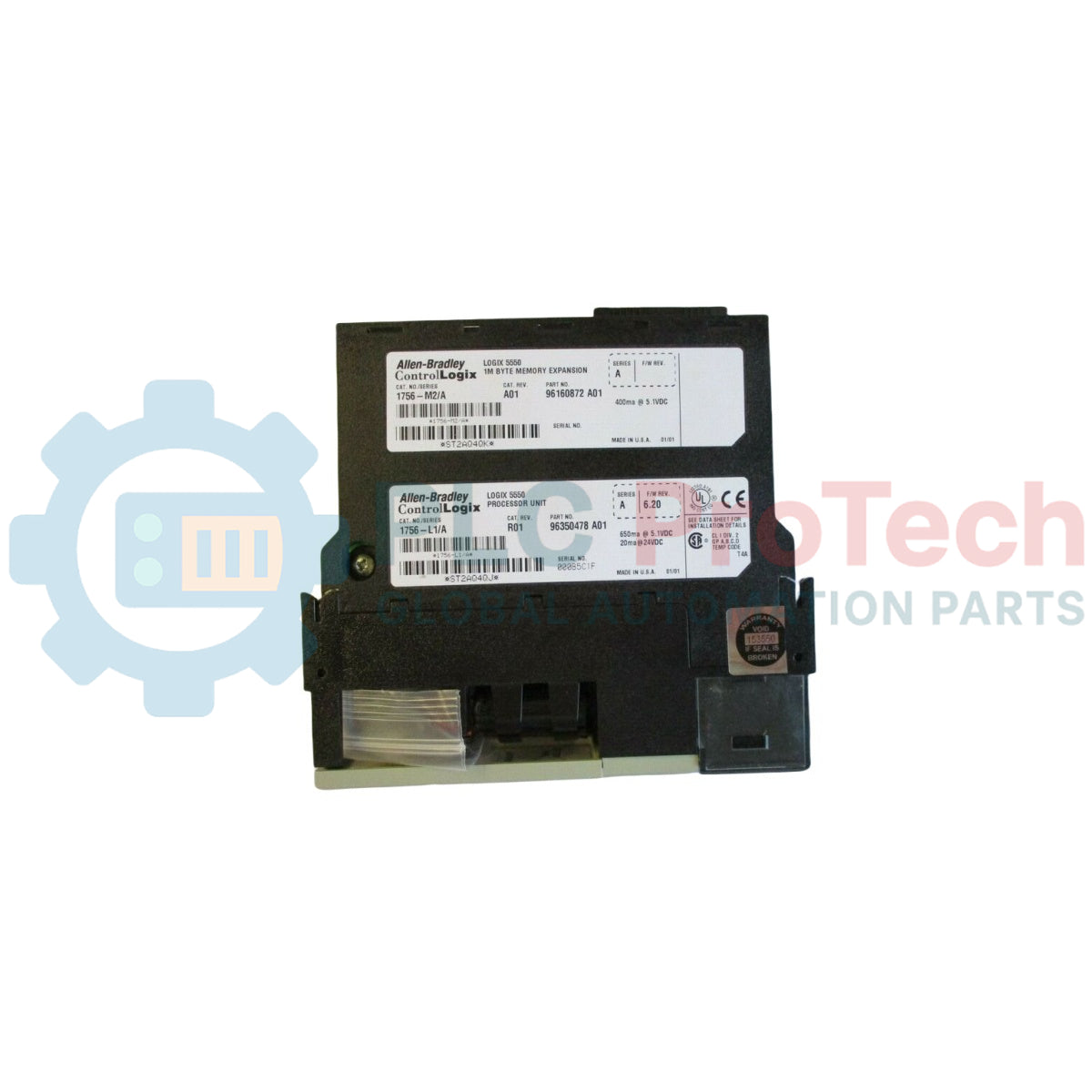

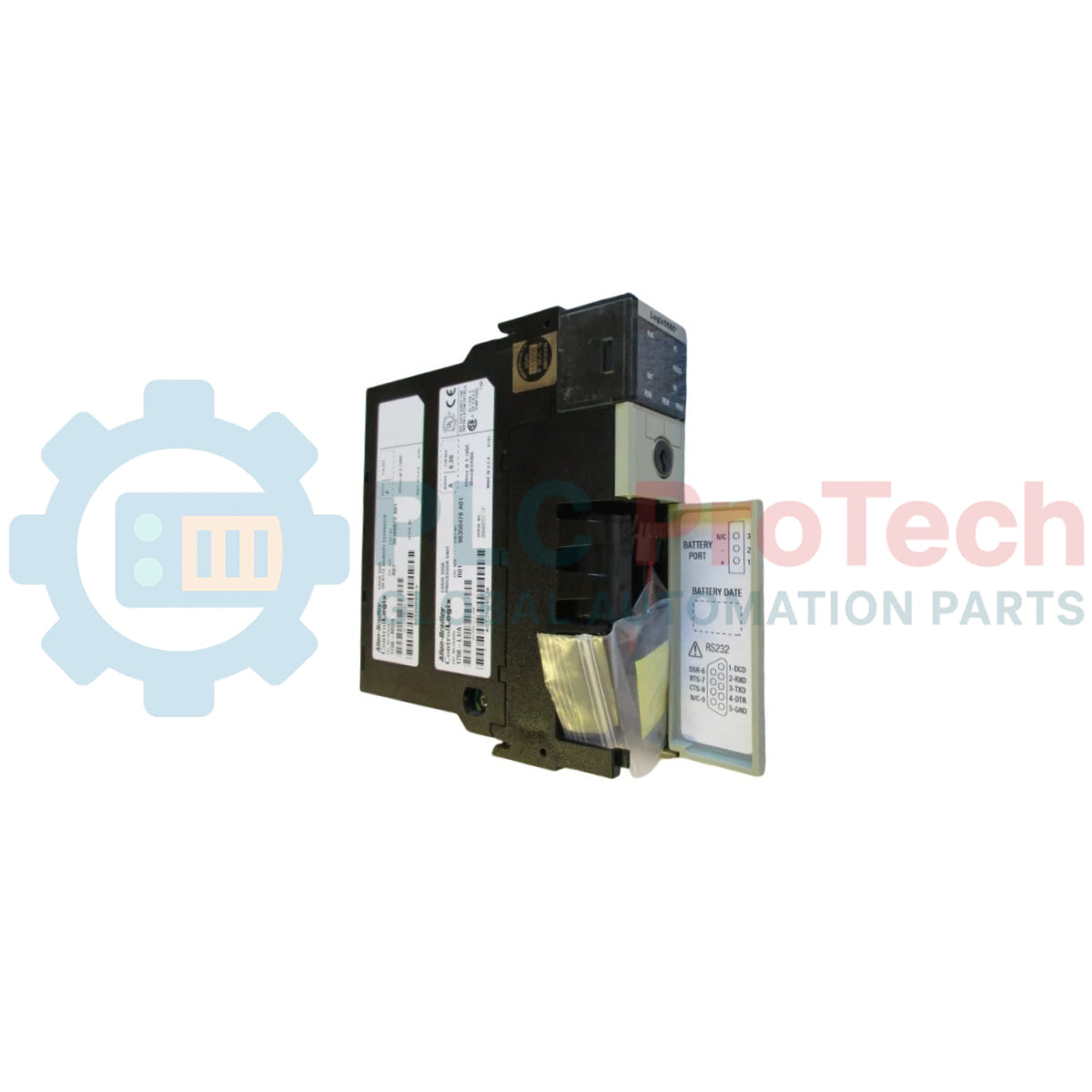

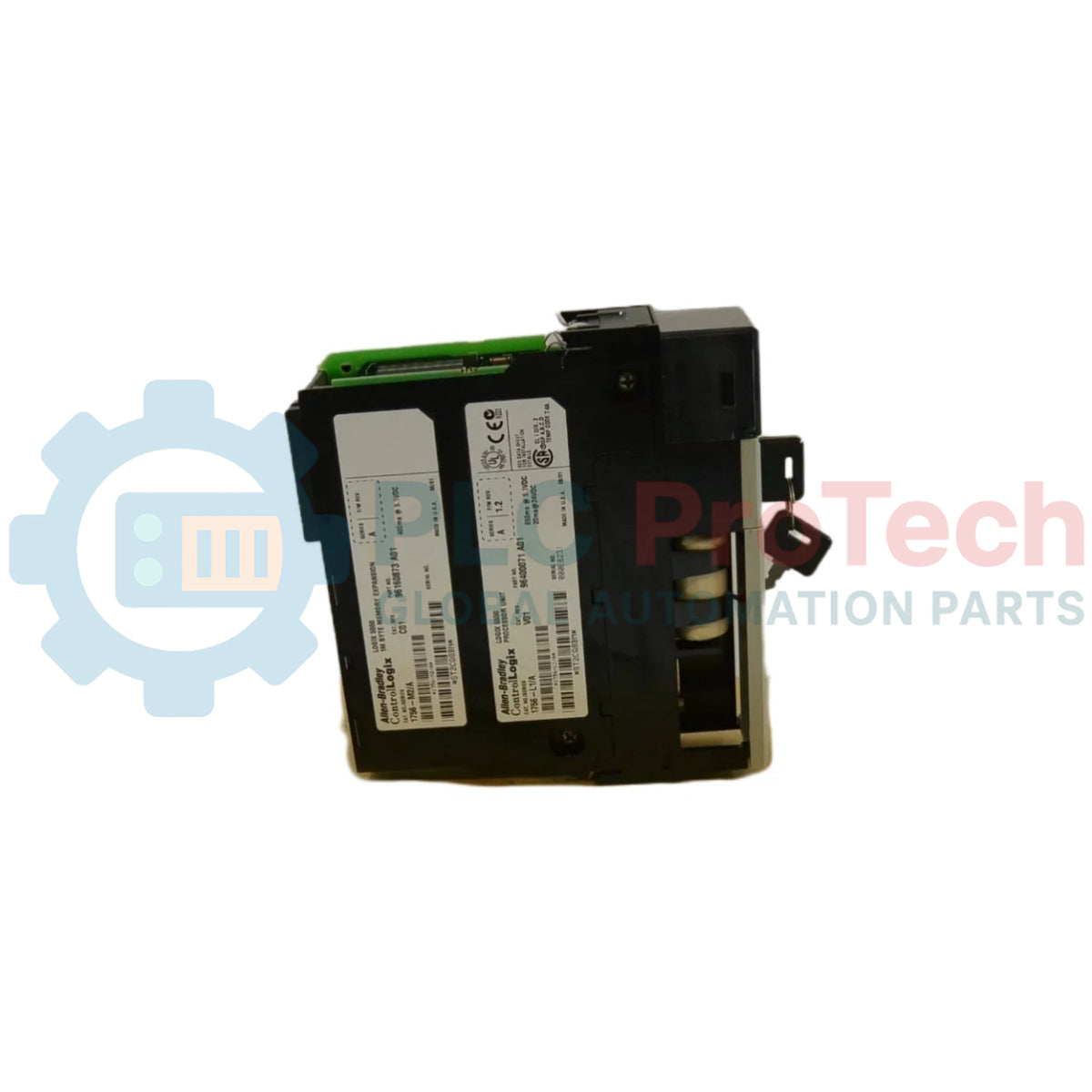

The Allen-Bradley 1756-L1M2 is a ControlLogix 5550 controller processor module. It provides 1 MB of user-available memory without nonvolatile memory. The module is designed to control local and remote I/O across DeviceNet, ControlNet, and Universal Remote I/O networks. Built with an open-style enclosure, it features Group 1, Class A emissions.
The 1756-L1M2 features an average power dissipation of 4.8 W and an average thermal dissipation of 16.4 BTU/hr. It operates with an average backplane current of 1.05 A at 5V DC and 0.02 A at 24V DC. The controller supports serial communications using 1756-CP3 or 1747-CP3 programming cables and relies on a 1756-BA1 0.59g lithium battery for memory backup.
| Parameter | Value |
|---|---|
| Manufacturer | Allen-Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-L1M2 |
| Module Type | Processor Module |
| User Available Memory | 1 MB |
| Expansion Memory | 1 MB |
| Enclosure Type | Open |
| Isolation Voltage | 30V Continuous (Tested to withstand 500V for 60 seconds) |
| Operating Temperature | 0 to 60 degC (32 to 140 Fahrenheit) |
| Storage Temperature | -40 to 85 degC (-40 to 185 Fahrenheit) |
| Relative Humidity | 5% to 95% noncondensing |
| Minimum Operating Current | 2 mA at 10V DC |
| Maximum Operating Current | 3.5 mA at 30V DC |
| Maximum Input Current (Off-State) | 1.5 mA |
| Peak Backplane Current (+5V DC) | 1.05 A |
| Peak Backplane Current (+24V DC) | 0.02 A |
| Average Power Dissipation | 4.8 W |
| Maximum Power Dissipation | 4.1 W at 60 degC |
| Average Thermal Dissipation | 16.4 BTU/hr |
| Vibration | 10 to 500 Hz, 2.0 G maximum peak acceleration |
| Operating Shock | 30 G peak for 11 ms |
| Storage Shock | 50 G peak for 11 ms |
| Conducted RF Immunity | 10Vrms with 1 kHz sine-wave 80%AM from 150 kHz to 80 MHz |
| ESD Immunity | 6 kV contact discharges, 8 kV air discharges |
| EFT/B Immunity | +/-2 kV at 5 kHz on communication ports, +/-4 kV at 2.5 kHz on power ports |
| Radiated RF Immunity | 10V/m with 200 Hz 50% Pulse 100%AM at 900 MHz; 10V/m with 1 kHz sine-wave 80%AM from 30 MHz to 1000 MHz |
| Programming Cable | 1756-CP3 or 1747-CP3 serial cable |
| Battery | 1756-BA1 (0.59g lithium) |
| Weight | 12.5 oz. (0.35 kg) |
| UPC | 10612598180988 |
