Description

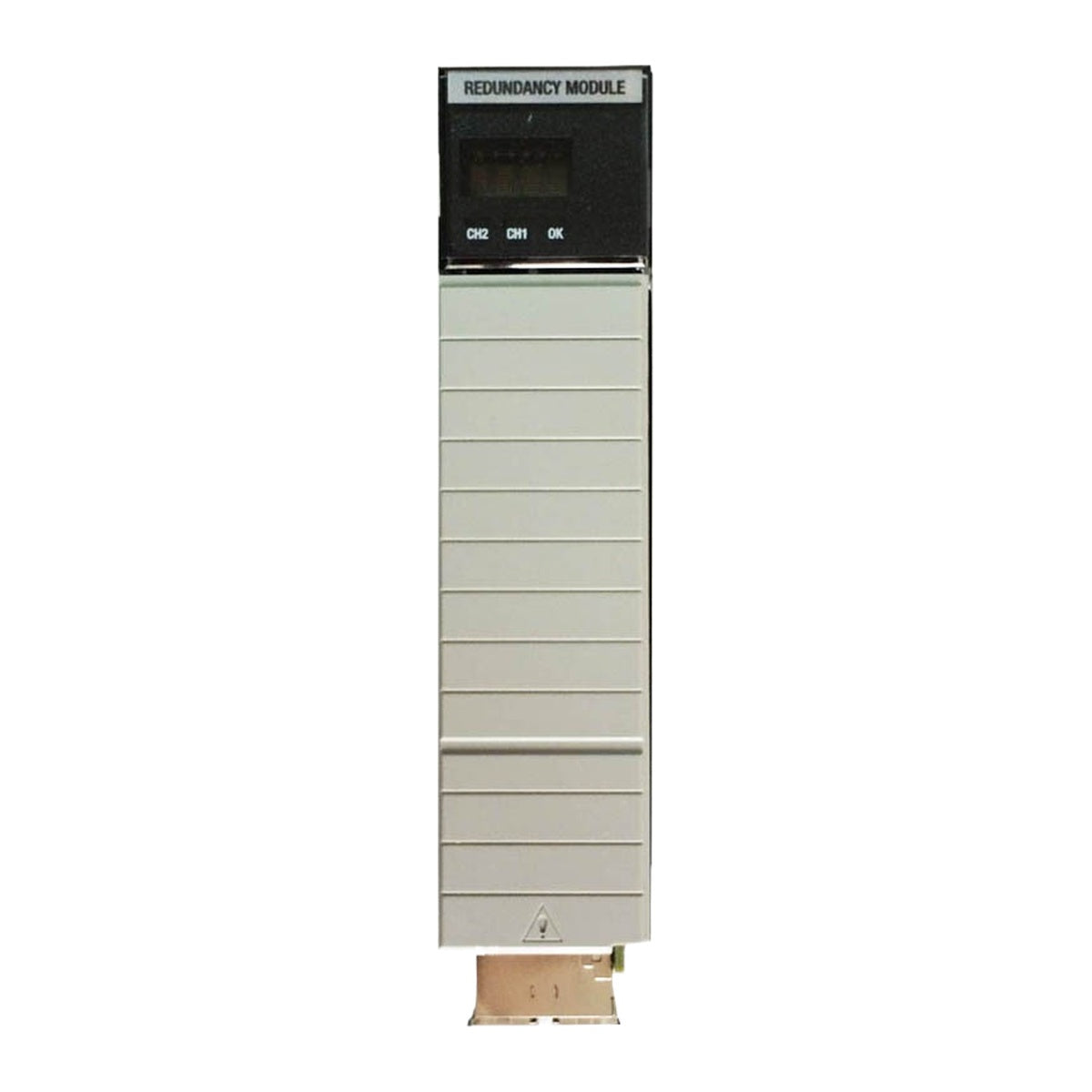

The 1756-RM2 is a ControlLogix redundancy enhanced module designed to provide high-availability control and uninterrupted process operation across industrial applications. Operating within a redundant chassis pair, the device supervises system operating states, continuously monitors chassis events, and facilitates crossloading and data synchronization between controllers. Equipped with dual fiber-optic communication ports, the 1756-RM2 enables high-speed data transfer up to 1000 Mbps with zero single point of failure on the fiber links. The module executes automatic, bumpless switchovers in response to system faults—such as power loss, controller faults, or communication link interruptions—in as fast as 20 ms, maintaining system integrity and continuous process execution.

Features

• High-speed redundancy communication up to 1000 Mbps using dual fiber-optic channels.
• Plug-and-play-style commissioning and setup with no complex user programming required.
• Dual fiber-optic ports providing cable redundancy for continuous crossloading and monitoring.
• Rapid switchover execution in as fast as 20 ms upon detection of primary chassis faults.
• Direct support for ControlNet and EtherNet/IP communication networks in redundant configurations.
• Full compatibility with CIP Sync technology over EtherNet/IP networks for coordinated time synchronization.
• Integrated alphanumeric status display and LED diagnostic indicators for real-time channel and module status monitoring.
• Interference-free operation suitable for use in ControlLogix SIL2 safety applications.

Applications

• Continuous process control systems requiring high system availability.
• Critical oil and gas, chemical, and petrochemical processing plants.
• Power generation and energy distribution facilities.
• Pharmaceutical and food & beverage manufacturing facilities.
• Water and wastewater treatment automation infrastructure.

Technical Specifications

Installation Guidelines

• Module Placement: Install one module in the same slot location of each chassis within the redundant pair. Position the redundancy module as close as possible to the primary controller for optimal crossload performance.
• Fiber Routing: Connect matching fiber-optic channels between chassis (CH1 to CH1, CH2 to CH2). Route redundant fiber cables along separate pathways to prevent simultaneous physical damage to both channels.
• Bend Radius & Care: Avoid sharp bends or pulling tension on single-mode optical fibers during installation. Keep dust caps on unused optical ports and connectors at all times.
• Handling Precautions: Always observe electrostatic discharge (ESD) safety practices when handling the module board and connectors.
• System Pairing: Ensure both primary and secondary chassis contain identical chassis sizes, slot layouts, module series, and firmware revisions prior to qualification.
