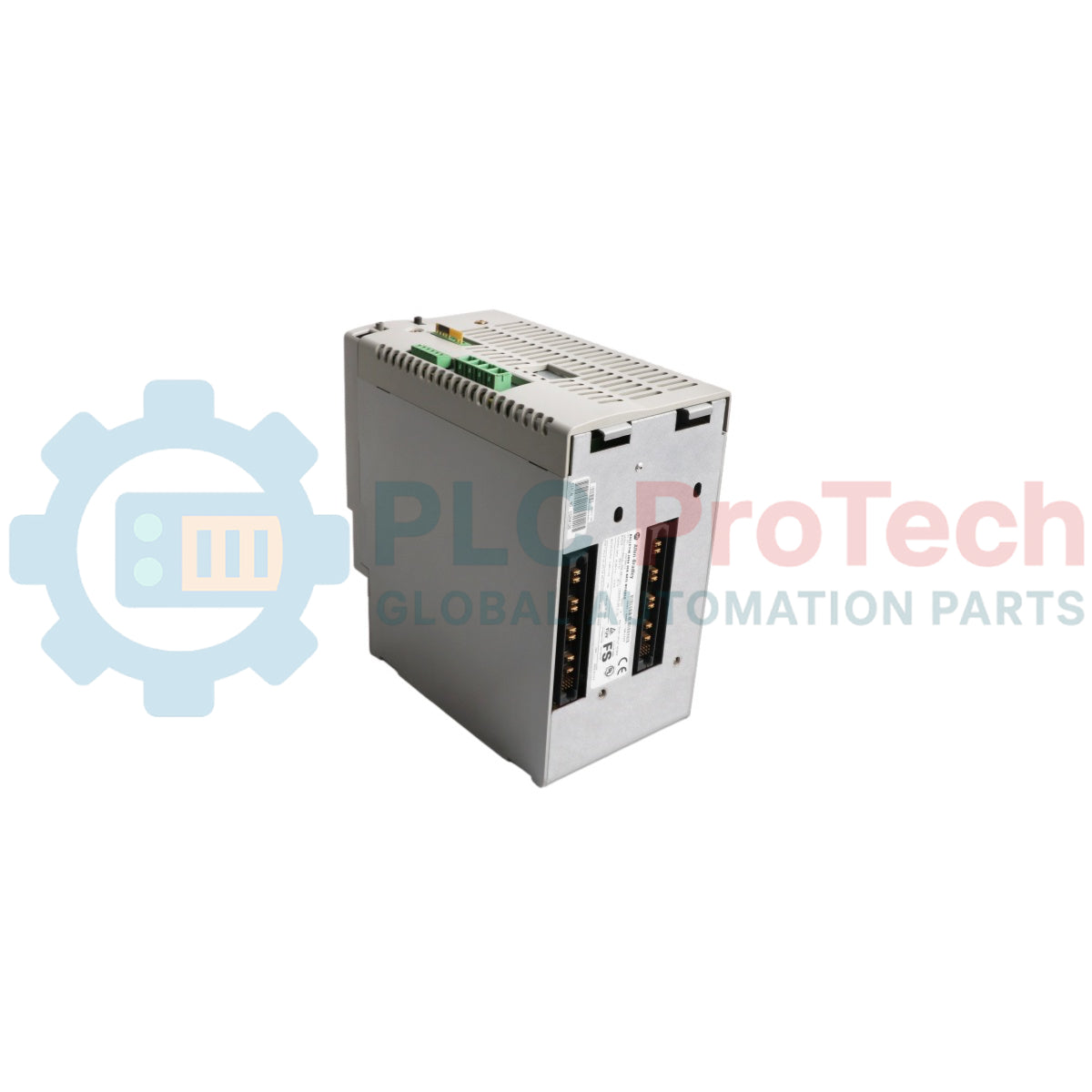

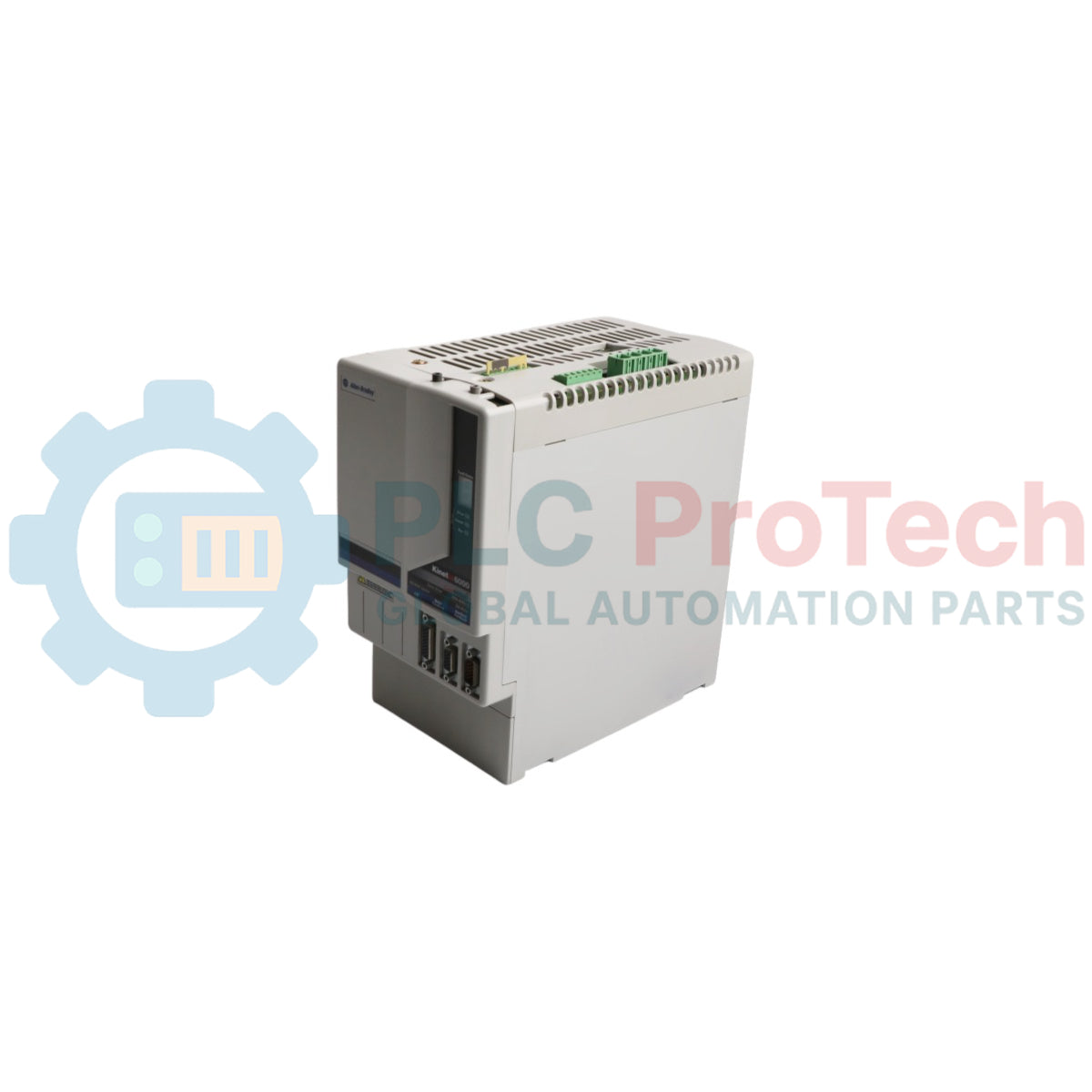

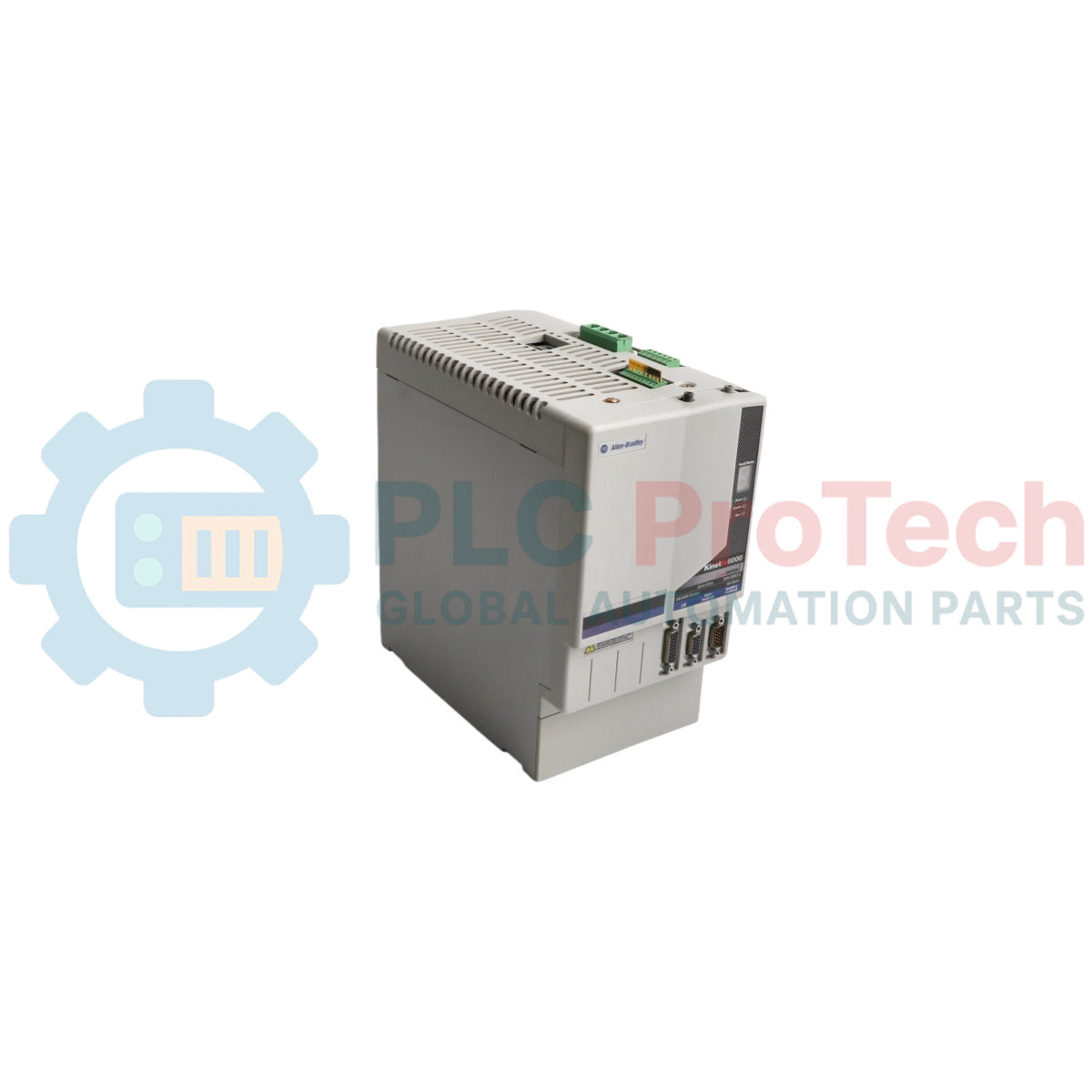

2094-BM03-S is a 460V Kinetix 6000 Multi-axis Servo Drive axis module designed for use within the Allen-Bradley Kinetix 6000 multi-axis servo drive system. The module operates as an AM (Axis Module), receiving a common DC bus supply from a compatible Integrated Axis Module (IAM) and providing servo motor control for coordinated multi-axis motion applications.
The 2094-BM03-S supports servo motion control with a 650V DC nominal input voltage, 21.2 A continuous output current (rms), and 13.5 kW nominal continuous output power. It provides 500 Hz velocity loop bandwidth and 1300 Hz current loop bandwidth, supporting responsive motion performance in industrial automation systems.
Designed for installation on the Bulletin 2094 power rail, the module occupies two inverter slots and is compatible with Kinetix 6000 drive architectures that utilize common DC bus distribution. The module is intended for applications requiring coordinated multi-axis motion control with compatible Kinetix motors and feedback systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Number | 2094-BM03-S |
| Product Type | Kinetix 6000 Multi-axis Servo Drive |
| Module Type | AM (Axis Module) |
| Nominal Input Voltage | 650V DC |
| PWM Frequency | 4 kHz |
| Velocity Loop Bandwidth | 500 Hz |
| Current Loop Bandwidth | 1300 Hz |
| Continuous Current (rms) | 21.2 A |
| Continuous Current (0-pk sine) | 30.0 A |
| Peak Current (rms) | 31.8 A |
| Peak Current (0-pk) | 45.0 A |
| Continuous Power Output | 13.5 kW |
| Internal Shunt Continuous Power | 200 W |
| Internal Shunt Peak Power | 22.5 kW |
| Internal Shunt Resistor | 28.75 Ohm |
| Shunt On Voltage | 805V DC |
| Shunt Off Voltage | 755V DC |
| Efficiency | 98% |
| Capacitance | 840 uF |
| Capacitive Energy Absorption | 108 J |
| Short Circuit Current Rating | 200,000 A rms symmetrical |
| Weight | 4.58 kg |
