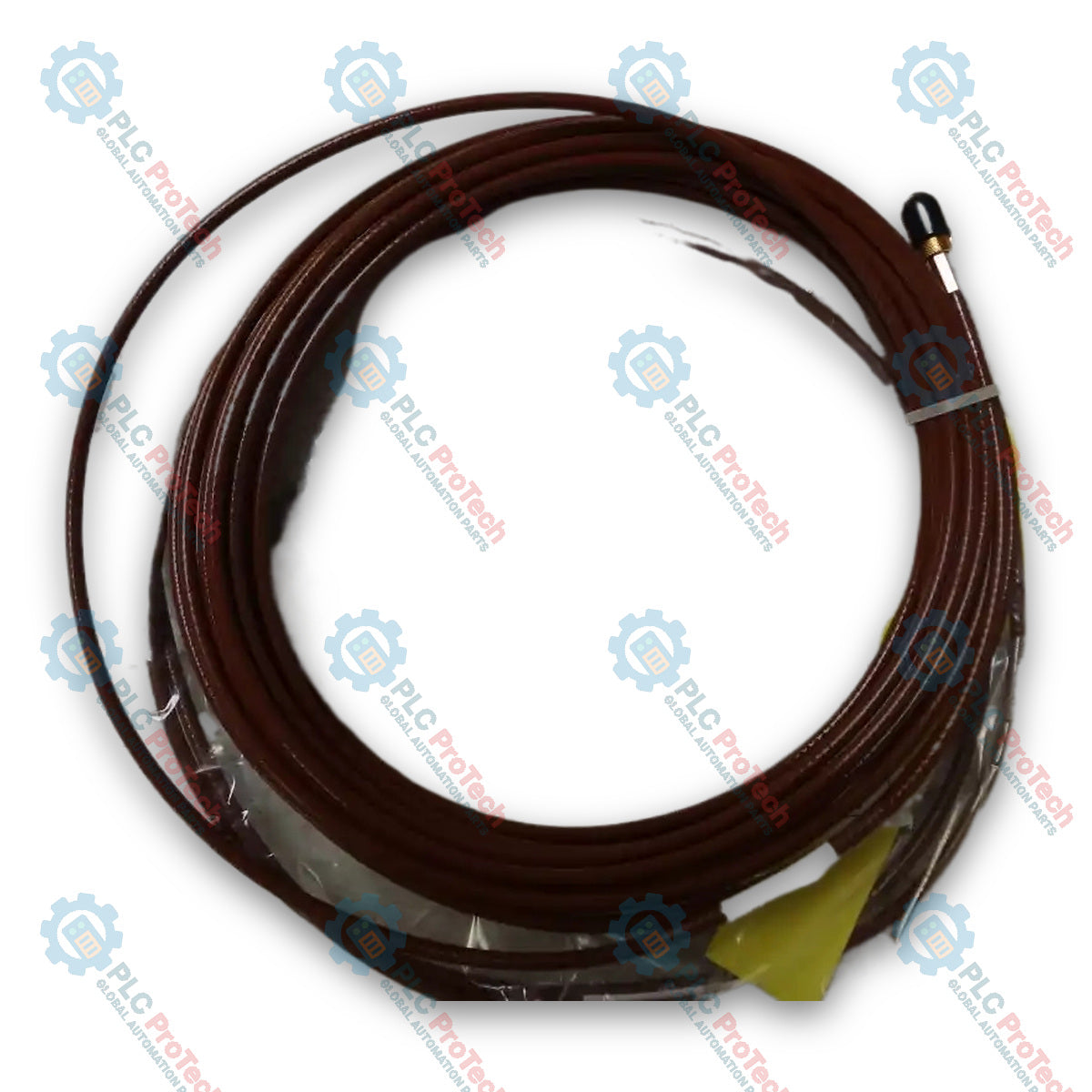

The Allen-Bradley EK-2110-30-05-1-10 is an 8 mm (0.31 in.) tip diameter reverse mount non-contact pick-up probe belonging to the 2100 Series Eddy Current Probe Systems. This probe introduces eddy currents into a target material to read relative position by measuring energy loss changes as the target surface moves, supplying a modulated voltage output proportional to the gap between the probe tip and the target. Designed for non-contact measurement in speed and acceleration monitoring applications, the device features an M10x1 threaded body with a 30 mm (1.18 in.) body length and 5 mm (0.20 in.) unthreaded length, equipped with a 1.0 m (3.28 ft) standard Teflon-insulated sensor cable and a stainless steel, gold-plated SMA connector. Operating within a 2100 series system, the probe connects through an extension cable to a case-isolated, panel-mounted driver that conditions the radio frequency signal and maintains linearity over its operating range.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | EK-2110-30-05-1-10 |
| Product Series | 2100 Series |
| Product Type | Non-contact Eddy Current Pick-up Probe |
| Mounting Type | Reverse Mount |
| Tip Diameter | 8 mm (0.31 in.) |
| Thread Size | M10x1 |
| Body Length | 30 mm (1.18 in.) |
| Unthreaded Length | 5 mm (0.20 in.) |
| Cable Type | Standard Cable (Unarmored Teflon) |
| Sensor Cable Length | 1.0 m (3.28 ft) |
| Linear Range (Approx.) | 8 to 188 mils (0.2 to 4.7 mm) |
| Sensitivity | 200 mV/mil (787 mV/100 µm) (at 25 degC with -24V DC supply, 10 kΩ load, AISI 4140 steel target) |
| Linearity | ±0.8 mils of 200 mV/mil (if calibrated as a system) |
| Frequency Response | DC to 10 kHz (-3 dB) |
| Connector Type | Stainless steel, gold-plated SMA connector |
| Connector Tip Diameter (Max) | 9.5 mm (0.37 in.) |
| Sensor Operating Temperature | -40 to 177 degC (-40 to 350 degF) |
| Operating Humidity | 30 to 95% RH (noncondensing, nonsubmerged) |
