Product Overview

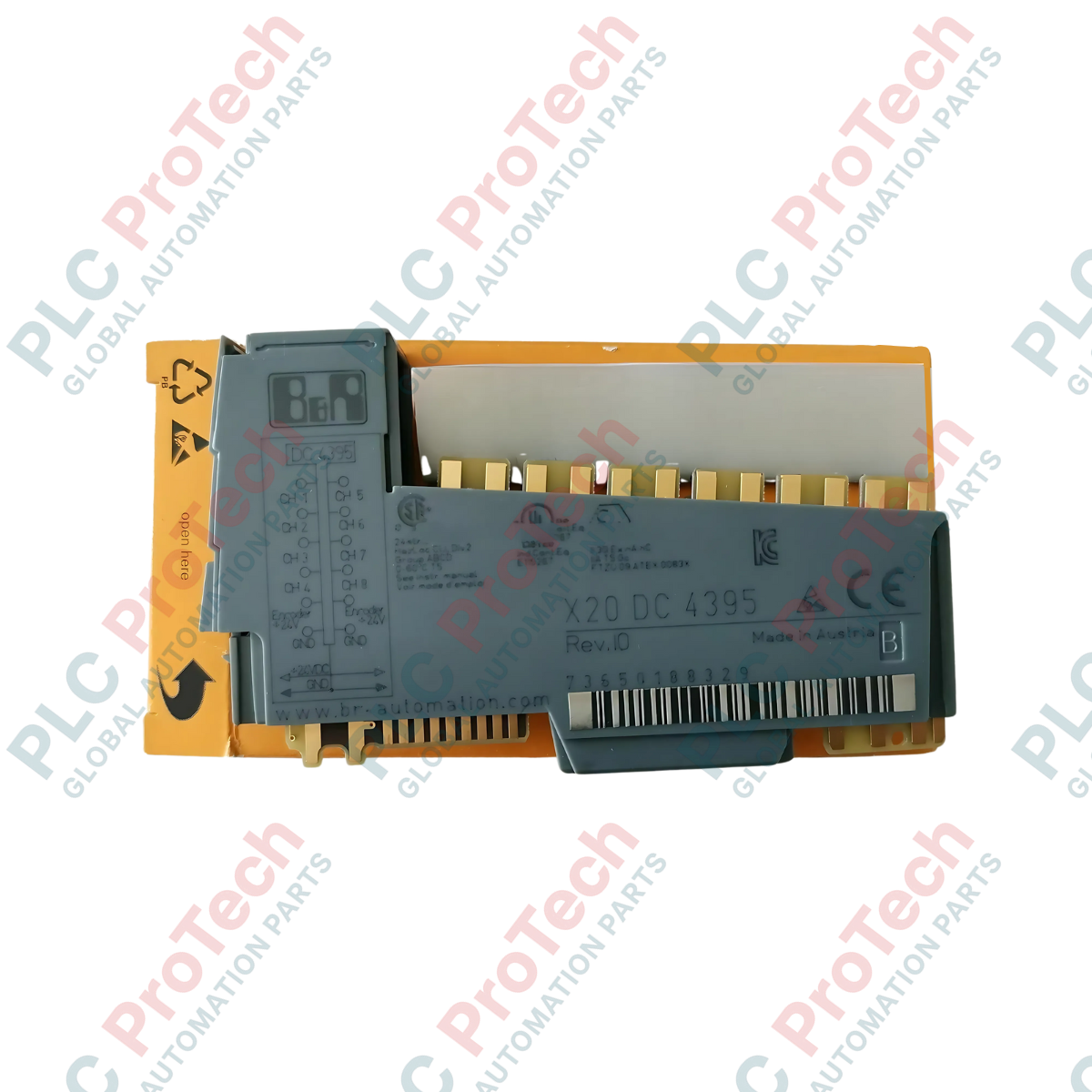

The X20DC4395 (X20DC4395) is a highly versatile digital counter and encoder interface module within the B&R X20 automation series. Engineered for complex motion control and high-speed signal acquisition, this module supports multiple operational modes, including SSI (Synchronous Serial Interface) absolute encoders, incremental AB encoders, event counters, and Pulse Width Modulation (PWM) signal generation. By consolidating these high-precision functions into a single slice, the X20DC4395 allows machine builders to optimize cabinet space while maintaining the nanosecond-level synchronization required for demanding industrial applications such as robotics, CNC machining, and automated assembly lines.

Technical Configuration

The module features a high degree of configuration flexibility, allowing users to define the hardware behavior through the software environment to suit specific application needs:

• Encoder Interfaces: Supports up to 2 SSI absolute encoders (24 V), 2 AB incremental encoders (24 V), or 4 AB incremental encoders (24 V).
• Counter/PWM Modes: Configurable for up to 8 independent event counters or 4 PWM output channels.
• Time Measurement: Includes specialized local time measurement functions, facilitating high-precision event stamping and interval monitoring independent of the main CPU cycle time.
• Signal Compatibility: Fully compatible with 24 V signal levels, ensuring robust noise immunity in electrically noisy industrial environments.

Technical Specifications

FAQs

Can I use the PWM function and the encoder inputs simultaneously?

The operational modes of the X20DC4395 are mutually exclusive based on the configuration profile selected in the B&R software. You must select the specific mode (e.g., SSI vs. PWM) during the initial project configuration.

What is the advantage of using local time measurement functions?

Local time measurement allows the module to capture events or signal transitions with a time resolution higher than the PLC scan cycle, providing superior accuracy for applications like high-speed sorting or precision position latching.

Does this module require external signal conditioning for SSI encoders?

No, the X20DC4395 is designed to interface directly with 24 V SSI absolute encoders, eliminating the need for intermediary signal conditioners or level shifters.

Installation and Operational Guidelines

• Shielding Requirements: Because encoder signals are sensitive to electromagnetic interference (EMI), always use shielded twisted-pair cabling. Ensure the shield is connected to the designated ground rail at the cabinet entry point using 360-degree contact EMC cable glands.
• Cable Lengths: For high-frequency AB incremental encoder signals, limit cable lengths to under 20 meters. If longer runs are required, ensure the signaling voltage drop remains within the module's specified tolerance.
• Grounding and Noise: To maintain the precision of the counter functions, ensure a low-impedance ground path between the encoder housing and the machine chassis. Avoid routing encoder signal cables in parallel with high-voltage motor power leads or VFD output cables.
