Product Overview

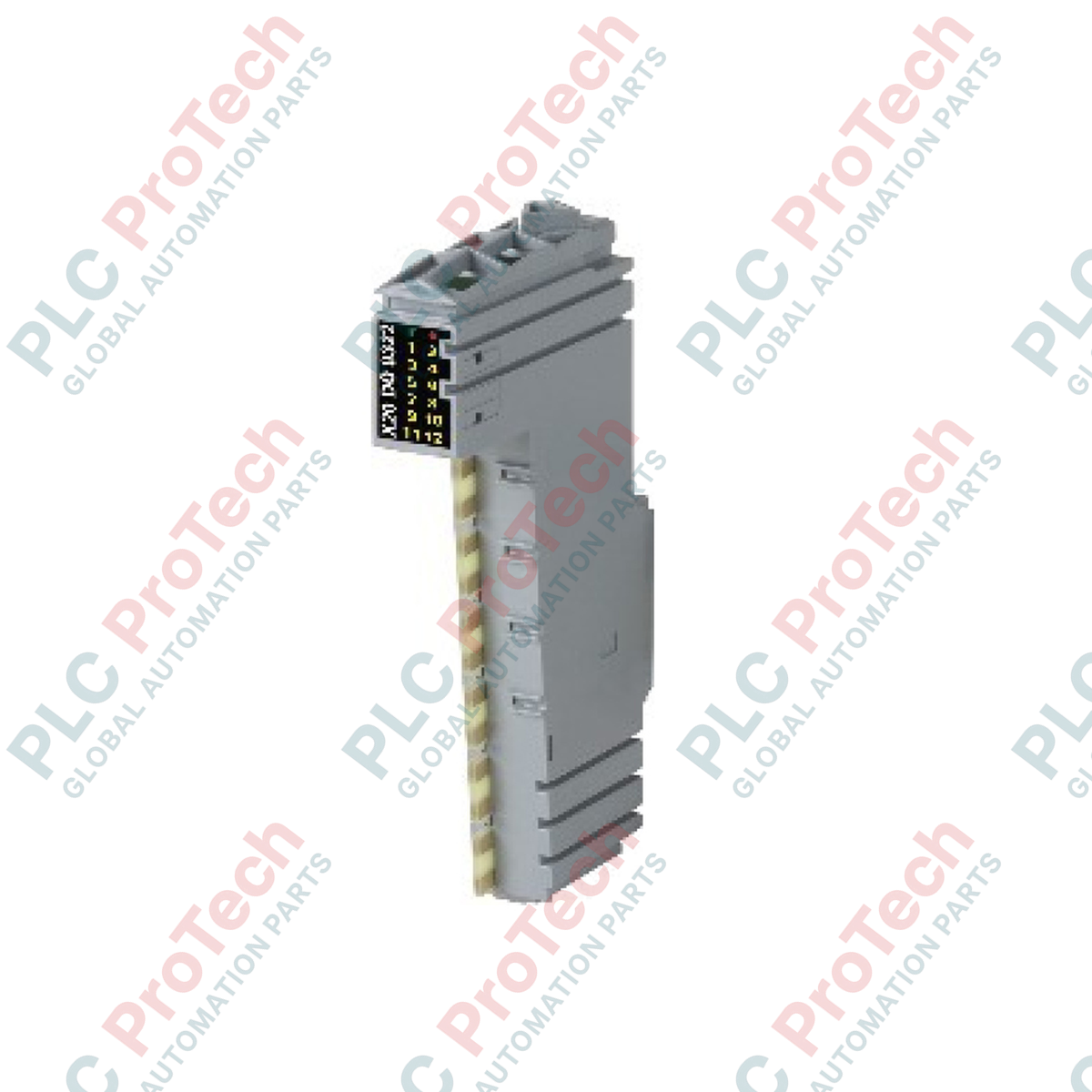

The X20DO9322 (X20DO9322) is a high-density digital output module engineered for the B&R X20 System, providing 12 discrete channels for 24 VDC 1-wire connections. This module is a core component for controlling actuators, solenoid valves, and indicator lights in synchronized industrial environments. Built on the compact X20 12.5 mm slice architecture, the X20DO9322 offers a significant output density with a total nominal current capacity of 6 A. It is widely utilized in modular machine construction, assembly lines, and high-speed packaging systems where reliable switching and integrated diagnostics are essential for maintaining peak operational efficiency and minimizing downtime.

Technical Configuration

The module's hardware design focuses on high current delivery and comprehensive status monitoring within a slim footprint.

• 12-Channel Density: Provides a large number of control points in a single 12.5 mm slice, optimized for 1-wire wiring schemes where the common return is handled by a separate potential distribution module.

• High Current Output: Each channel supports a nominal current of 0.5 A, with a total module capacity of 6 A, allowing for the simultaneous operation of multiple high-draw industrial loads.

• Diagnostic Monitoring: Features individual LEDs for I/O functions per channel, along with status indicators for module health and operating state, enabling rapid local troubleshooting.

• Low Bus Overhead: Efficient internal power management with a bus consumption of only 0.26 W, ensuring minimal load on the X2X Link power budget.

Technical Specifications

FAQs

What is the "1-wire connection" requirement for the X20DO9322?

The 1-wire design means the module provides the 24 VDC output signal for each channel, but does not provide a dedicated 0 VDC terminal for each individual load. The 0 VDC return path must be managed externally, typically via an X20PD potential distribution module.

How does the total nominal current of 6 A affect my system design?

While each channel can handle 0.5 A, the sum of all channels must not exceed 6 A. If you are using all 12 channels at full 0.5 A load simultaneously, the module is at its limit. For applications with high duty cycles, ensure the power supply feeding the module can sustain this current.

What diagnostic information is available through the LEDs?

The module provides visual feedback for each of the 12 outputs. A steady green LED indicates that the output is active. The "Module Status" LED will indicate if there is a communication error with the bus controller or a configuration mismatch.

Engineering Installation and Implementation Guide

• Potential Feed and Protection: Ensure that the external 24 VDC supply feeding the X20 station is appropriately fused. Since the module can switch up to 6 A, the supply wiring must be sized correctly to prevent voltage drops that could affect the logic levels of sensitive sensors on the same bus.

• Inductive Load Suppression: When switching inductive components such as large contactors or solenoid valves, always use flyback diodes or RC suppressors at the load. This prevents high-voltage back-EMF transients from causing premature wear on the transistor outputs or inducing noise into the X2X Link.

• Thermal Consideration: When running at the maximum total current of 6 A, the module will generate internal heat. Maintain the specified vertical clearance (typically 30 mm) above and below the X20 rack to facilitate convective airflow. Horizontal mounting is preferred for maximum heat dissipation.

• Terminal Block Selection: The X20DO9322 requires a 12-pin terminal block (e.g., X20TB12). Ensure the terminal block is fully engaged with the module and the locking levers are secured to prevent intermittent contact in high-vibration environments.
