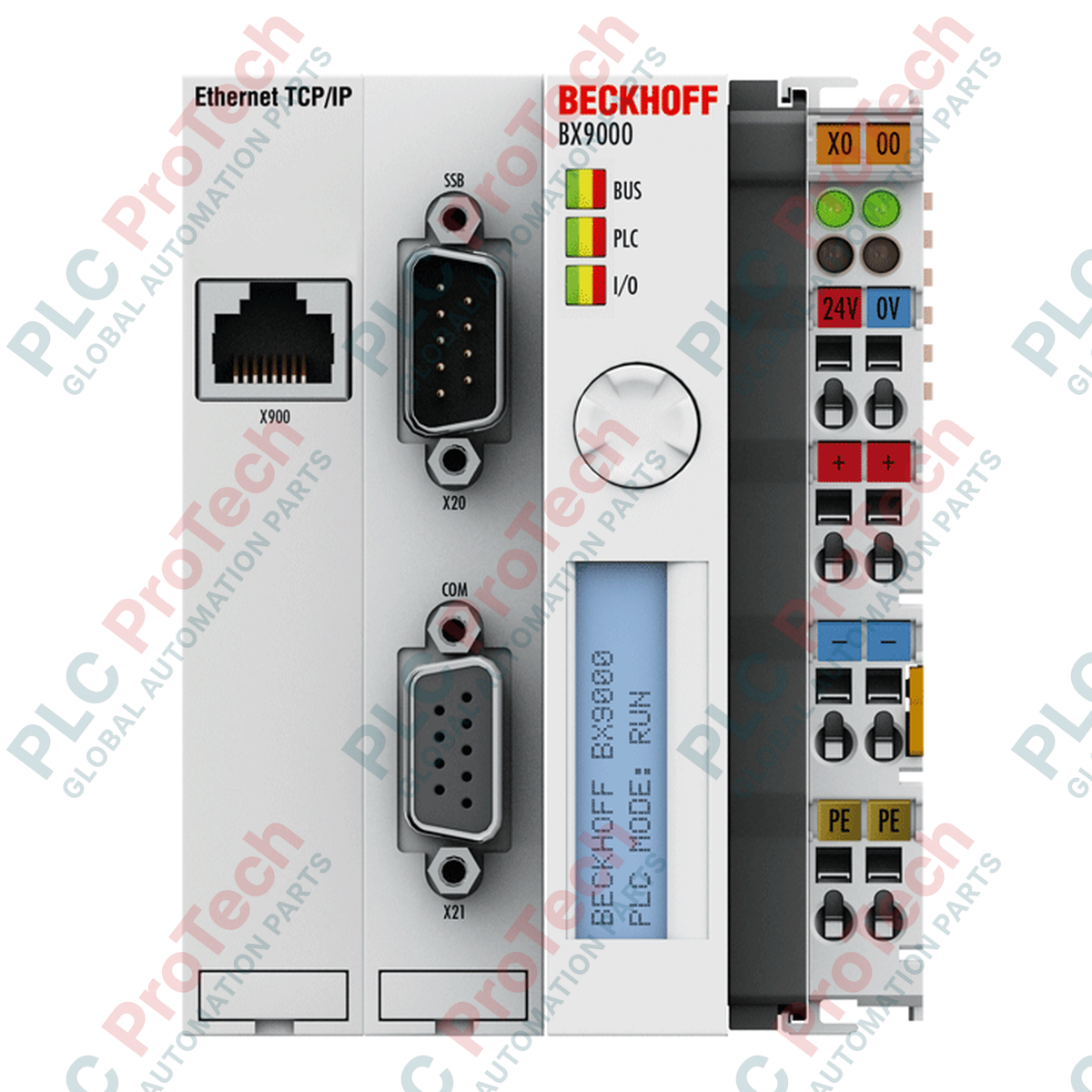

Designed as an autonomous, high-performance PLC with an integrated Ethernet port, the Beckhoff BX9000 Bus Terminal Controller bridges decentralized I/O systems and higher-level networks. This compact controller executes complex control programs locally while processing communication tasks independently. Programmed using the standardized TwinCAT system in accordance with IEC 61131-3, the module ensures flexible, modular architecture for a broad range of industrial Automation setups.
The unit features extensive local memory capacities, including 256 kB of program memory and 256 kB of data memory, with additional remanent and persistent data allocation. Up to 64 local Bus Terminals connect directly to the system block, with expansion up to 255 terminals possible via the integrated K-bus extension. For diagnostic operations, it provides an illuminated FSTN display, status LEDs, and a mechanical joystick switch for localized menu navigation and system diagnostics.
| Manufacturer | Beckhoff |
| Part Number / Model | BX9000 |
| Program Memory | 256 kbytes |
| Data Memory | 256 kbytes |
| Remanent / Persistent Data | 2 kbytes / 1 kbyte |
| Cycle Time | Approx. 1 ms for 1,000 instructions (excluding I/O cycle) |
| Bus Terminals Supported | 64 (up to 255 with K-bus extension) |
| Data Transfer Rates | 10/100 Mbit/s with automatic recognition |
| Bus Interface | RJ45 |
| Serial Interfaces | COM1: 1 x RS232, COM2: 1 x RS232 or RS485 |
| Sub-bus System | SSB (CANopen-based subsidiary bus) |
| Power Supply Voltage | 24 V DC (-15 % / +20 %) |
| Input Current | 140 mA + (total K-bus current)/4, max. 500 mA |
| Starting Current | 2.5 x continuous current |
| K-bus Current Supply | 1450 mA |
| Power Contacts Capacity | Max. 24 V DC / max. 10 A |
| Electrical Isolation | 500 V (power contact / supply voltage) |
| Diagnostics / Display | Illuminated 2 x 16 character FSTN display, 2 x Power LEDs, 2 x K-bus LEDs |
| Operating Temperature | 0 to +55 Celsius |
| Storage Temperature | -25 to +85 Celsius |
| Relative Humidity | 95 %, non-condensing |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 81 mm x 100 mm x 90 mm |
| Weight | Approx. 250 g |
| Interface Type | Specification / Compatibility |
|---|---|
| Ethernet Port | RJ45 connection, 10/100 Base-T |
| COM1 Interface | RS232 serial connection for programming and diagnostic data |
| COM2 Interface | RS232 or RS485 configuration for peripheral device attachment |
| K-Bus | Direct connection backplane interface for local Bus Terminals |
| Wiring Type | Solid wire (s), stranded wire (st), or ferrule (f) connection using spring actuation |
| Solid Wire Cross-Section (s) | 0.08 to 2.5 mm² |
| Stranded Wire Cross-Section (st) | 0.08 to 2.5 mm² |
| Ferrule Cross-Section (f) | 0.14 to 1.5 mm² |
| Stripping Length | 8 to 9 mm |
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: BX9000
Country of origin:Germany
Product Type: Bus Terminal Controllers
Payment: T/T, Western Union
Weight: 250g
Dimensions: 81 mm x 100 mm x 90 mm
Shipping port: Xiamen
Warranty: 12 months
