Description

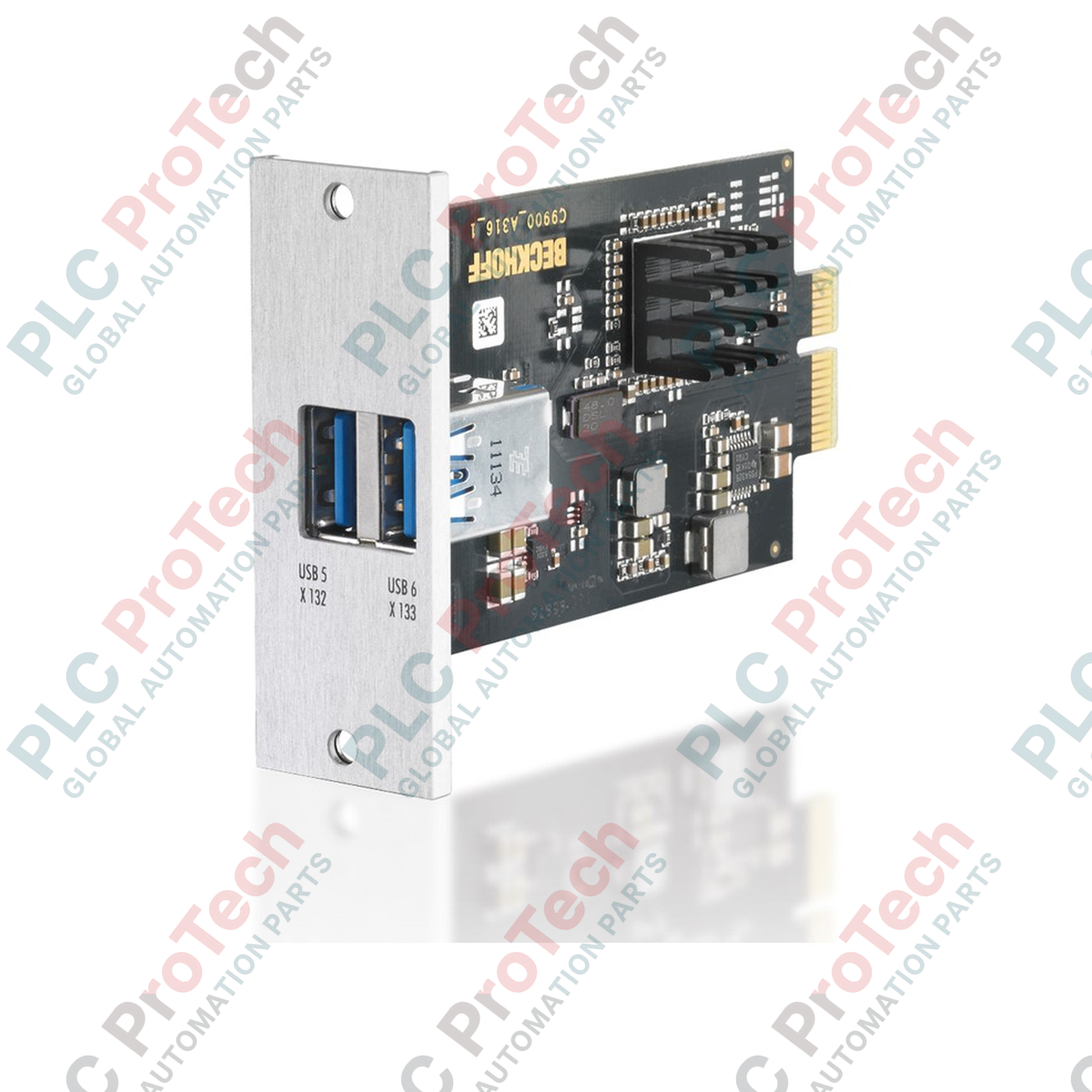

The C9900-E277 is a high-speed USB 3.0 PCIe module designed by Beckhoff to expand the connectivity capabilities of industrial PC systems. This interface card provides 2-port USB 3.0 interfaces, enabling fast data transfer rates of up to 5 Gbit/s, which is ideal for high-bandwidth industrial applications such as machine vision, high-speed data logging, and external storage connectivity. Each USB port on the C9900-E277 is capable of delivering up to 1 A of power, ensuring reliable operation for peripheral devices without the need for additional external power supplies. The module maintains full backward compatibility with all previous USB standards, ensuring seamless integration with existing industrial hardware.

Features

• PCIe module form factor for internal integration
• 2-port USB 3.0 interfaces for multi-device connectivity
• High-speed data transfer up to 5 Gbit/s
• Power delivery of up to 1 A per USB port
• Compatible with all USB standards (USB 2.0/1.1 backward compatibility)
• Robust design for integration into industrial environments

Applications

• Machine vision systems requiring high-speed camera data transfer
• High-speed external data acquisition and storage
• Connection of industrial handheld devices
• Peripheral expansion for Beckhoff industrial PCs

Technical Specifications

Installation Guidelines

• Integration: Install the C9900-E277 into an available PCIe slot on the host industrial PC motherboard. Ensure the system is powered down before installation to prevent electrical damage.
• Securing: Use the provided mounting bracket to screw the card into the PC chassis, ensuring the USB ports are accessible from the exterior.
• Driver Requirements: Ensure the operating system (e.g., Windows or TwinCAT/BSD) has the appropriate USB 3.0 host controller drivers installed to utilize the full 5 Gbit/s bandwidth.
• Cable Management: Use high-quality, shielded USB 3.0 cables to maintain signal integrity, especially in environments with high electromagnetic noise.
