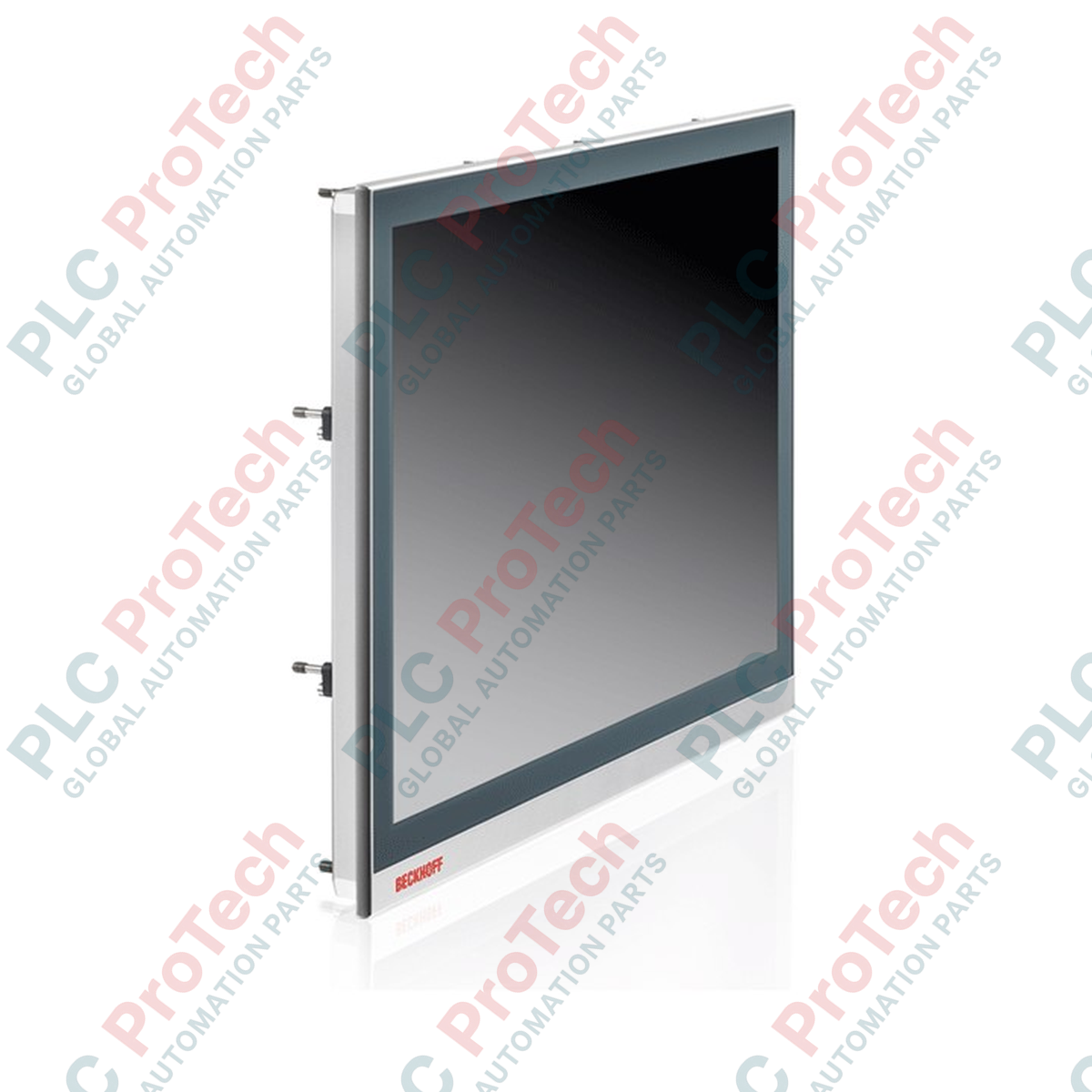

Beckhoff CP2916-0000 CP29xx Multi-touch Built-in Control Panel

SKU CP2916-0000

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CP2916-0000
Origin Germany
Product Type: Control Panels
Payment: T/T, Western Union
Weight: 5.0 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed for demanding industrial HMI applications, the Beckhoff CP2916-0000 Control Panel combines multi-touch functionality with high-performance video and USB signal transmission. This built-in unit features a 15.6-inch widescreen display and utilizes DVI-E and USB-E 2.0 technology, allowing the control interface to operate up to 50 meters away from the industrial PC. The physical architecture includes a robust, scratch-resistant glass front with an aluminum housing built to withstand harsh factory floors and complex control system environments.

The integrated multi-finger touch screen supports modern, intuitive operator interfaces with gesture control, providing operators with precise control capabilities. Front-side protection rated at IP65 ensures reliable operation in areas exposed to liquids, dust, and continuous mechanical stress. Through the remote DVI-E and USB-E 2.0 ports, standard PC signals are transmitted over cost-effective CAT6A cables without sacrificing display resolution or peripheral response speed.

Features

High-Resolution Widescreen Display: Equipped with a 15.6-inch TFT screen supporting 1366 x 768 resolution and 16:9 aspect ratio.
Extended Installation Range: DVI-E and USB-E 2.0 connection technology allows physical separation between the PC and panel at distances up to 50 meters.
Industrial Ingress Protection: Offers IP65 ingress protection on the front face and IP20 protection on the rear side.
Efficient Mechanical Mounting: Built-in installation using pull-out clamping levers eliminates loose mounting parts and speeds up integration.
Industrial-Grade Multi-Touch: Capacitive touch screen technology supports multi-finger operations and is shielded by robust glass.

Applications

Automotive assembly lines and heavy machinery control
Power generation and industrial boiler monitoring
Chemical processing and water/wastewater treatment plants
Material handling systems and distribution logistics centers

Technical Specifications

Manufacturer	Beckhoff Automation
Part Number / Model	CP2916-0000
Device Type	Multi-touch built-in Control Panel
Display Size	15.6-inch
Display Resolution	1366 x 768 (16:9 aspect ratio)
Touch Technology	Projected Capacitive Multi-touch (PCT)
Housing Material	Aluminum front housing with glass front, sheet steel rear cover
Protection Rating	Front side IP65, rear side IP20
Connection Technology	DVI-E and USB-E 2.0 (via RJ45)
Operating Distance	Up to 50 m (DVI-E/USB-E 2.0); up to 5 m (standard DVI/USB)
Power Supply	24 V DC (limits: -15% / +20%)
Operating Temperature	0 to 55 degC
Mounting Method	Pull-out clamping levers
Weight	5.0 kg

Connections and Interfaces

Interface Type	Function Description
DVI-E Input	Connects to standard PC DVI output for display signals up to 50 meters
RJ45 Port (USB-E 2.0)	Extends USB 2.0 signals (480 Mbit/s) from the host PC up to 50 meters
USB 3.0 Input (Type B)	Enables direct local USB connection for distances up to 5 meters
2 x USB 3.0 (Type A)	Rear panel peripheral ports (limited to USB 2.0 speed at distances over 3 meters)
Power Connector	3-pin power supply terminal block for 24 V DC connection

Installation Guidelines

Ensure the panel cutout dimensions match the precise manufacturer specification sheet for the 15.6-inch housing variant.
To achieve IP65 rating on the front panel, confirm that the sealing gasket is correctly seated and the mounting surface is smooth and flat.
Insert the integrated pull-out clamping levers and tighten them to secure the housing firmly to the mounting wall or cabinet.
Connect a heavy-gauge PE (Protective Earth) wire to the grounding lug on the back cover of the device to assure protection against electromagnetic interference.
Maintain a minimum of 50 mm clearance above and below the rear housing to facilitate natural convection cooling.

Compliance and Certifications

CE
UL (Listed for Industrial Control Equipment)

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the maximum distance the Beckhoff CP2916-0000 can be installed from the industrial PC?

Using the integrated DVI-E and USB-E 2.0 interface technology via CAT6A cabling, the CP2916-0000 can operate at a distance of up to 50 meters from the industrial PC. For standard local connections, the direct USB 3.0 limit is 5 meters.

What is the protection rating of this Control Panel?

The front side of the CP2916-0000 is rated at IP65, providing protection against water jets and dust, while the rear side is rated at IP20.

What power supply is required for the CP2916-0000?

The module requires a stable 24 V DC power supply (-15% / +20% tolerance range).

Does the CP2916-0000 support multi-touch inputs?

Yes, it is equipped with a projective capacitive multi-finger touch screen with a highly durable, scratch-resistant glass front.

What are the operating temperature limits for this control panel?

The CP2916-0000 is rated to operate reliably within a temperature range of 0 to 55 degC.
