Description

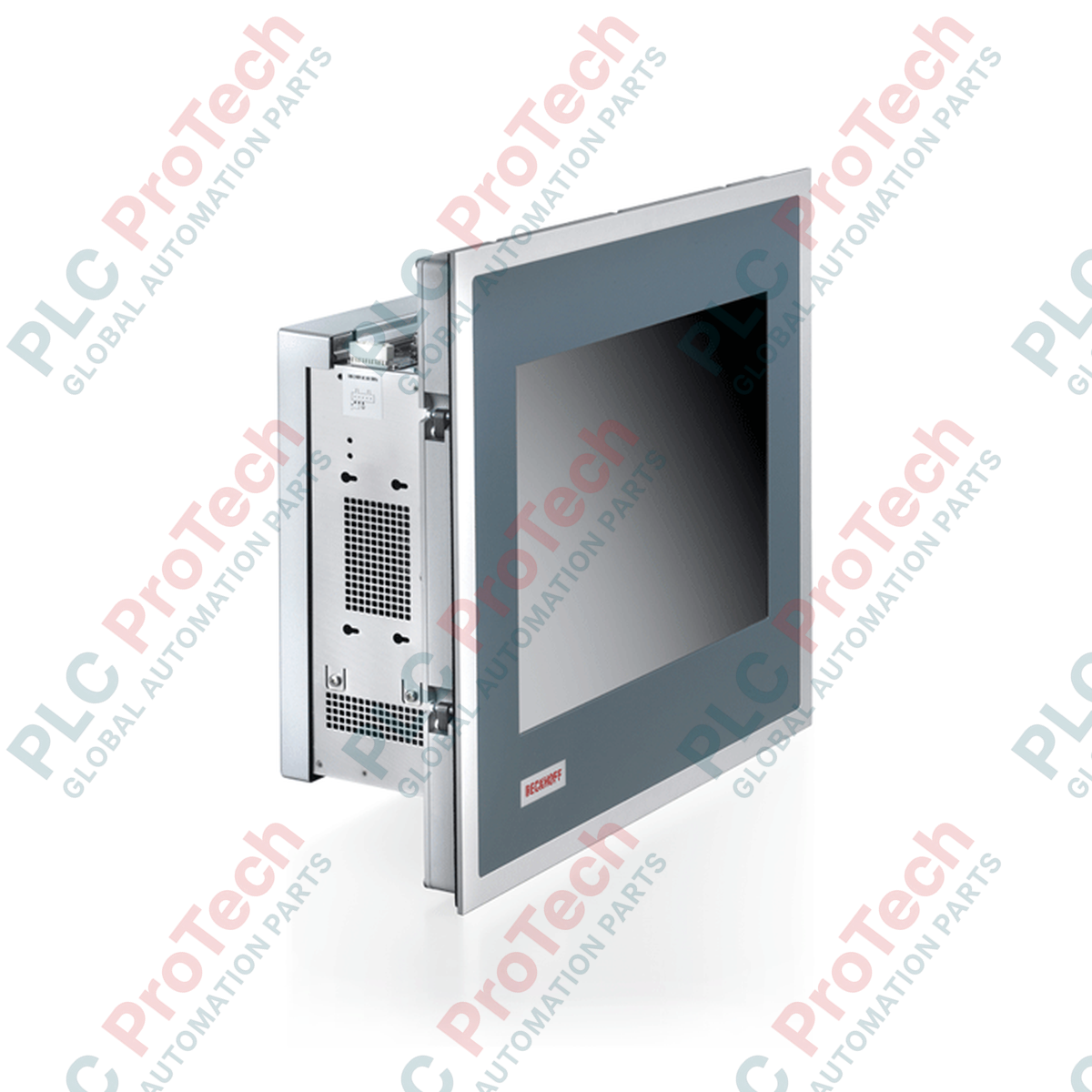

Designed to meet the stringent visualization and processing requirements of modern industrial environments, the Beckhoff CP6523-0002-0080 functions as a high-performance built-in Panel PC. This robust unit integrates a 19-inch active matrix TFT display within a industrial-grade ATX housing. Designed for seamless control cabinet installation, it combines the utility of an operator interface with the processing power required for real-time automation control. Its rugged mechanical design features front-side protection alongside toolless clamping installations, making it an optimal selection for complex machinery and process visual systems.

Features

• High-Resolution Display: 19-inch TFT screen with a 1280 x 1024 pixel display resolution for clear interface visualization.
• Rugged Front Construction: IP65-rated front panel protects the internal components from dust ingress and direct water contact.
• Efficient Mounting Design: Pull-out clamping levers ensure swift, secure installation into control cabinets without loose parts.
• Expandable Architecture: Built on a standard ATX motherboard configuration supporting multiple PCIe and PCI slots for network and communication cards.
• Versatile Connectivity: Includes high-speed USB 3.0, dual DVI, DisplayPort, and RS232 interfaces for industrial peripheral integration.

Applications

• Automotive Assembly Lines: Serves as the primary control and visual monitoring interface for complex robotic cells.
• Chemical Processing Plants: Ideal for visual control panel deployment where high front-side dust and splash protection is mandatory.
• Heavy Machinery Control: Integrates directly into machine frames to provide operators with processing statistics and diagnostics.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The CP6523 series features backward compatibility in mounting dimensions compared to legacy CP65xx-0001 configurations. However, transition plans must account for specific software platform updates. Due to the newer chipset on the -0080 suffix ATX motherboard, older Windows Embedded installations or TwinCAT 2 runtime systems may require driver updates or migration to TwinCAT 3 to function efficiently without peripheral communication delays.

Application Pitfalls & Engineering Notes

While the front display maintains an IP65 rating, the rear ATX housing is open-vented with an IP20 rating. If deploying this unit in environments with airborne particulates or high moisture, ensure the mounting cabinet has a dedicated cooling system or air-conditioning unit. Dust accumulation inside the 7-slot ATX chassis will impede CPU heat sink efficiency and may lead to protective thermal throttling at cabinet temperatures above 50 degC.

Commissioning & Wiring Tips

Always establish a dedicated low-impedance ground connection directly from the PE grounding bolt on the panel chassis to the cabinet backplate. When connecting high-resolution communication cables, route external DisplayPort or high-speed USB lines away from AC servo motor cables. This prevents high-frequency electromagnetic interference from corrupting the local display matrix or causing unexpected communication dropouts on the main bus.

Installation Guidelines

1. 1 Verify the cabinet cutout dimensions match the specifications for a 19-inch CP65xx series housing prior to insertion.
2. 2 Ensure the circumferential rubber sealing gasket on the rear of the front panel is correctly seated and free of tears.
3. 3 Insert the unit into the cutout and secure it in place by extending the integrated pull-out clamping levers. Tighten the levers evenly to compress the front gasket.
4. 4 Connect the functional ground screw to the central cabinet earth bar. Secure all signal cables, power terminal blocks, and peripheral connections before energizing the circuit.
