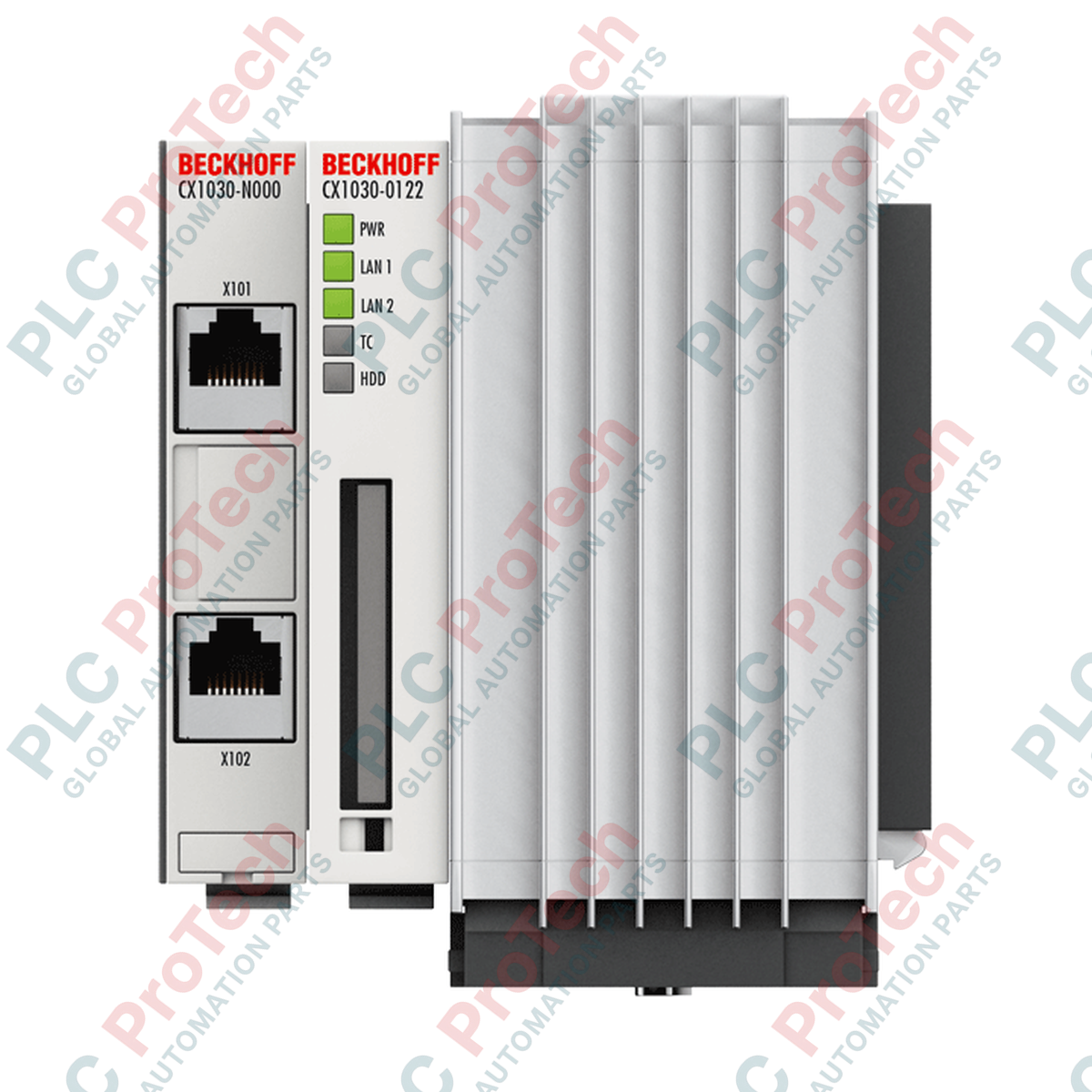

Beckhoff CX1030-0123 CX Series CPU Module

SKU CX1030-0123

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CX1030-0123
Origin Germany
Product Type: CPU Modules
Payment: T/T, Western Union
Weight: 0.58 kg
Dimensions: 96 mm x 112 mm x 99 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Engineered for high-performance industrial control tasks, the CX1030-0123 CPU module serves as the central processing unit within the Beckhoff CX series embedded PC architecture. This module integrates an Intel Pentium M processor running at 1.8 GHz, providing robust computational power for demanding PLC, NC PTP, and NC I applications. It interfaces seamlessly with various I/O systems, including E-bus and K-bus, when connected to a compatible CX1100 power supply module.

The CX1030-0123 features dual RJ45 Ethernet ports connected via an internal switch, facilitating easy line-topology networking without additional external switches. System expansion is supported through a 16-bit ISA (PC/104) system bus, allowing the integration of further CX-series components. For reliable operation in harsh industrial environments, the unit is equipped with an active, speed-controlled cooling module and an easily replaceable fan cartridge.

Features

High-performance Intel Pentium M single-core processor with a 1.8 GHz clock frequency.
Integrated 2-port RJ45 Ethernet switch supporting 10/100 Mbit/s communication.
Compact Flash slot (Type I and II) with an eject mechanism, pre-equipped with a 128 MB CF card.
256 MB DDR RAM main memory, expandable ex factory up to 1 GB.
Active cooling system with a speed-controlled, double ball bearing fan cartridge for extended service life.
Internal battery-backed real-time clock for precise time and date maintenance.
Comprehensive diagnostic LEDs for power, LAN link/activity, TwinCAT status, and flash access.

Applications

High-speed PLC and motion control systems in machine building.
Industrial manufacturing lines requiring TwinCAT 2 PLC, NC PTP, or NC I runtimes.
Decentralized control architectures utilizing EtherCAT (E-bus) or Bus Terminals (K-bus).
Process automation and data acquisition systems.

Technical Specifications

Manufacturer	Beckhoff
Part Number/Model	CX1030-0123
Processor	Intel Pentium M, 1.8 GHz (1 Core)
Main Memory	256 MB DDR RAM (expandable to 1 GB ex factory)
Flash Memory	Compact Flash slot (Type I+II), 128 MB card included
Interfaces	2 x RJ45 10/100 Mbit/s (internal switch)
System Bus	16-bit ISA (PC/104)
I/O Connection	Via power supply module (E-bus, K-bus, K-bus/IP-Link)
Power Supply	Via system bus (requires CX1100-0012, CX1100-0013, or CX1100-014)
Max. Power Consumption	32 W
Cooling	Cooling module + replaceable speed-controlled fan cartridge
Diagnostics	1 x Power, 2 x LAN Link/Activity, 1 x TC Status, 1 x Flash Access
Operating System	Windows Embedded CE 6, Windows Embedded Standard 2009
Control Software	TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime
Dimensions (W x H x D)	96 mm x 112 mm x 99 mm
Weight	Approx. 580 g
Operating Temperature	0 to +50 degC
Storage Temperature	-25 to +85 degC
Relative Humidity	95%, non-condensing
Protection Rating	IP20
Vibration/Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity/Emission	Conforms to EN 61000-6-2 / EN 61000-6-4

Connections and Interfaces

Interface / Slot	Function / Description
RJ45 (2 Ports)	10/100 Mbit/s Ethernet switch connection for network integration
Compact Flash Slot	Type I/II slot with eject mechanism for system storage
PC/104 Bus	16-bit ISA system bus interface for modular CX expansion

Installation Guidelines

Mounting: Mount the module on a standard 35 mm DIN rail (EN 60715) in a horizontal position.
Power Connection: Ensure the module is properly coupled with a compatible CX1100 power supply module (CX1100-0012, CX1100-0013, or CX1100-014) to receive system power.
Cooling Clearance: Maintain adequate clearance above and below the module to ensure unrestricted airflow through the cooling module and fan cartridge.
Grounding: Ensure the DIN rail is properly grounded to the control cabinet's common ground reference to maintain EMC compliance.

Compliance and Certifications

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What processor is used in the Beckhoff CX1030-0123?

The CX1030-0123 is equipped with an Intel Pentium M single-core processor with a clock frequency of 1.8 GHz.

Which power supply modules are compatible with this CPU module?

It requires connection via the system bus to a CX1100 series power supply module, such as the CX1100-0012 (K-bus), CX1100-0013 (K-bus, IP-Link), or CX1100-014 (E-bus).

Does the CX1030-0123 support TwinCAT software?

Yes, it supports TwinCAT 2 PLC runtime, NC PTP runtime, and NC I runtime control software.

What is the cooling mechanism for the CX1030-0123?

The module uses an active cooling module combined with an easily replaceable, speed-controlled fan cartridge featuring double ball bearing fans.

What operating systems are compatible with this module?

It is compatible with Windows Embedded CE 6 and Windows Embedded Standard 2009.
