BECKHOFF CX1100-0004 CX Series Power Supply Unit

SKU CX1100-0004

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CX1100-0004
Origin Germany
Product Type: Power Supply Units
Payment: T/T, Western Union
Weight: 1.2 kg
Dimensions: 1.2 Kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

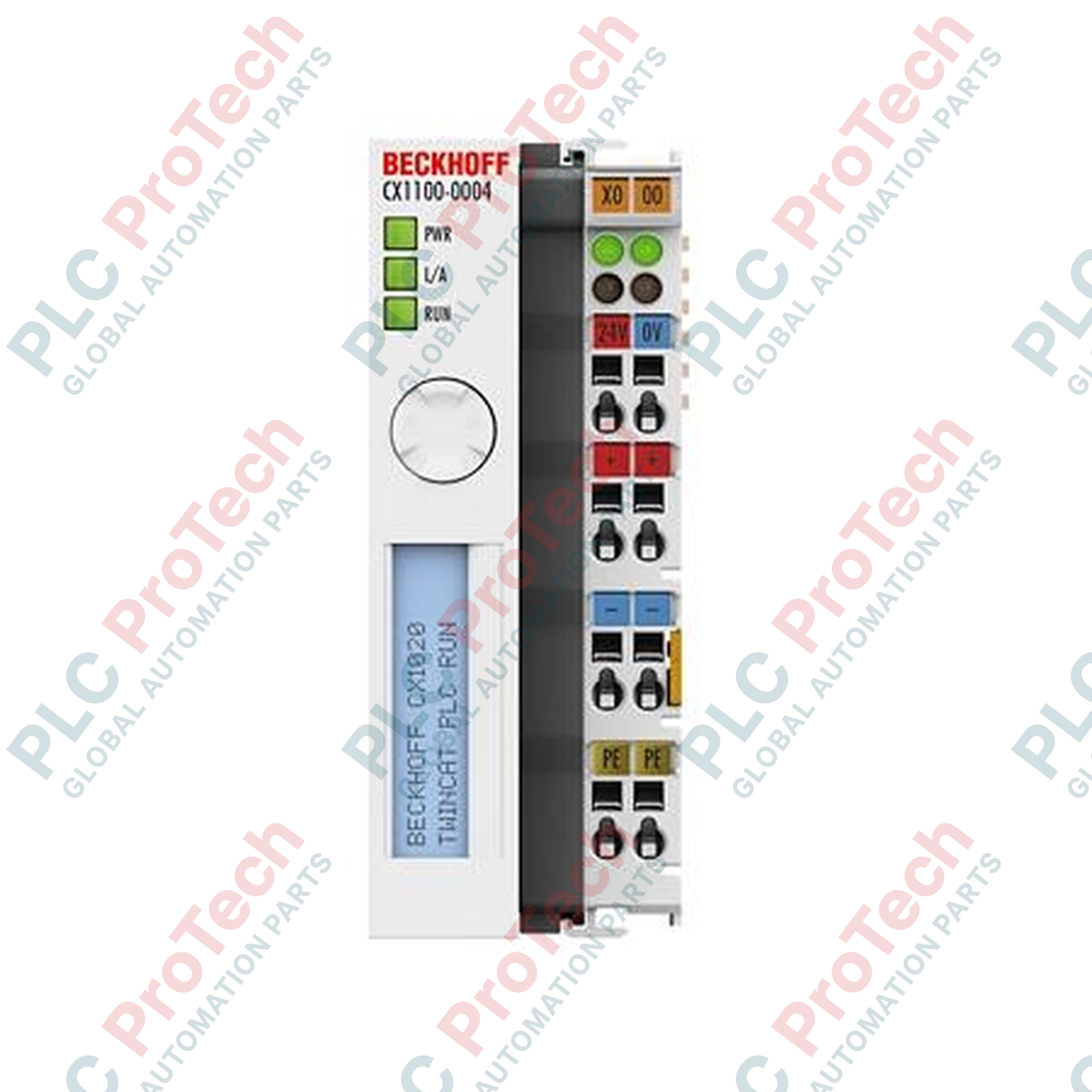

The BECKHOFF CX1100-0004 is a dedicated power supply and connection module designed to support the CX1010 and CX1020 Embedded PC systems. This module serves as the critical hardware and communication link between the Embedded PC CPU module and the high-performance E-bus (EtherCAT Terminal) I/O system, enabling reliable distributed control architectures.

In addition to distributing 24 V DC power to the system components and connected EtherCAT Terminals, the BECKHOFF CX1100-0004 features integrated non-volatile memory (NOVRAM) for secure, retentive storage of critical system states and variables in the event of a power failure. The integrated, backlit LC display and integrated navigation keys provide essential diagnostic monitoring and status indications directly on the unit.

Features

Direct E-bus (EtherCAT Terminal) connection capability
Supports E-bus power supply up to 2 A current
8 kbyte integrated NOVRAM for reliable non-volatile data storage
Illuminated FSTN liquid crystal display with 2 lines of 16 characters for local diagnostic readouts
Integrated 4+1-way navigation switch (Up, Down, Left, Right, Enter) for local user interaction
LED status indicators for visual diagnostic verification
Compact IP 20 rated design optimized for space-efficient DIN rail mounting

Applications

Industrial control and automation systems utilizing CX1010 or CX1020 Embedded PCs
Local visualization of machine status parameters and diagnostic alarms without external human-machine interfaces
EtherCAT Terminal I/O network connection and power delivery
Applications requiring retentive parameter storage for machine state retention

Technical Specifications

General and Environmental
Manufacturer	BECKHOFF
Model	CX1100-0004
Compatible CPU Modules	CX1010, CX1020
Protection Class	IP 20
Operating Temperature Range	0 degC to +55 degC
Storage Temperature Range	-25 degC to +85 degC

Electrical and Interfaces
Nominal Input Voltage	24 V DC (-15% / +20%)
I/O Connection System	E-bus (EtherCAT Terminal adapter)
Max. E-bus Current Supply	2 A
Integrated Non-Volatile Memory	8 kbytes NOVRAM
Display Technology	FSTN display, illuminated, 2 lines x 16 characters
Navigation Switch	4+1 keys
Diagnostic Status LEDs	1 x PWR, 1 x L/A, 1 x RUN

Mechanical Dimensions
Width	39 mm
Height	100 mm
Depth	91 mm

Installation Guidelines

Verify that the model number matches the BECKHOFF CX1100-0004 specification label before mounting.
De-energize the entire control cabinet and isolate all voltage sources prior to starting installation or wiring.
Mount the unit securely onto a standard 35 mm DIN rail, ensuring a tight connection with the adjacent Embedded PC module.
Connect the 24 V DC power supply lines to the verified terminal points, paying strict attention to correct voltage polarity.
Ensure that all E-bus connections and terminal end-caps are fully seated and locked in position before applying power.
Restore power to the system and verify that the power LED illuminates, and the LC display initializes correctly.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the BECKHOFF CX1100-0004?

The BECKHOFF CX1100-0004 is a dedicated power supply and interface module that provides 24 V DC power to CX1010 and CX1020 Embedded PCs while acting as the physical connection point to an E-bus (EtherCAT Terminal) network.

Does the CX1100-0004 include integrated data storage?

Yes, the BECKHOFF CX1100-0004 contains 8 kbytes of integrated NOVRAM, which provides non-volatile data storage for retentive TwinCAT variables in the event of a power failure.

What kind of diagnostic display is built into the module?

The BECKHOFF CX1100-0004 is equipped with an illuminated, 2-line by 16-character FSTN LC display and an integrated 4+1-way navigation switch for manual configuration and diagnostic status readouts.

What is the maximum current capacity for the E-bus connection?

The BECKHOFF CX1100-0004 supports an E-bus power supply current of up to 2 A for connected EtherCAT Terminal modules.
