Product Overview

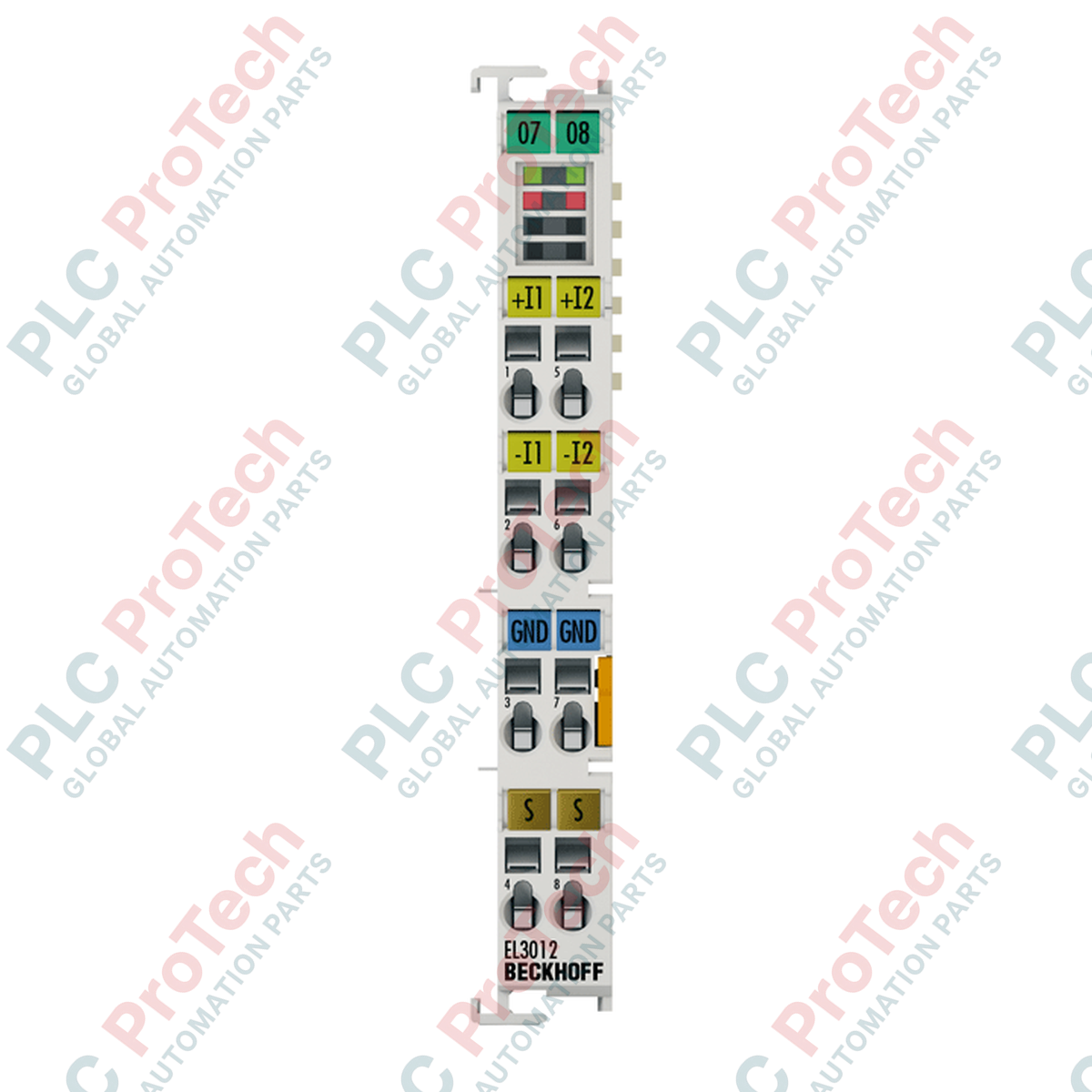

The EL3012 (EL3012) is a high-precision 2-channel analog input terminal from the Beckhoff EtherCAT series, specifically designed for industrial process signal acquisition. This module handles 0 to 20 mA current signals with 12-bit resolution, utilizing differential input technology to ensure signal integrity in electrically noisy environments. The EL3012 is essential for critical control loops in sectors such as chemical processing, factory automation, and heavy manufacturing. By providing robust electrical isolation between the field signals and the EtherCAT E-bus, it protects the controller from voltage surges and ground loops, significantly enhancing system reliability and minimizing unplanned downtime.

Technical Configuration

The EL3012 is engineered for versatility and advanced signal processing, supporting seamless integration into any EtherCAT-based control architecture.

• Differential Input Technology: The use of differential inputs allows for effective rejection of common-mode noise, which is vital when sensors are located long distances from the control cabinet.
• Signal Conditioning: The module includes internal software-configurable FIR/IIR filters, allowing users to suppress high-frequency interference without requiring external analog filters.
• Performance: With a default conversion time of 0.625 ms and a 1 kHz filter limit, the terminal provides the high-speed data acquisition necessary for real-time control.
• Diagnostics: Features limit value monitoring, allowing the PLC to automatically detect out-of-range sensor values, which is critical for proactive process safety.

Technical Specifications

FAQs

What is the advantage of using a differential input on the EL3012?

Differential inputs measure the difference between two signals rather than referencing a single ground. This significantly reduces the impact of ground potential differences and induced electromagnetic noise on the measurement accuracy.

Can the input filter settings be modified during operation?

Yes, the FIR/IIR filters are configurable via the EtherCAT object dictionary, allowing you to tune the response time and noise suppression characteristics to suit your specific application requirements.

Does the terminal require external power for the analog sensors?

The EL3012 powers its internal electronics via the E-bus. Depending on the sensor type, you may need an external 24 VDC power supply to provide loop power to the field devices.

Installation and Operational Guidelines

• Shielding and Grounding: Always use shielded twisted-pair cables for analog signals. Connect the cable shield to the cabinet’s central grounding point using EMC-compliant cable glands to provide a low-impedance path for high-frequency interference.
• Wiring Practice: Avoid routing analog signal cables parallel to high-current power cables or VFD motor leads. A minimum separation distance of 200 mm is recommended to mitigate the risk of crosstalk.
• Terminal Installation: When mounting the EL3012 on a DIN rail, ensure the double slot and key connection is fully engaged with the adjacent terminals. This ensures proper mechanical stability and electrical contact across the EtherCAT backplane.
