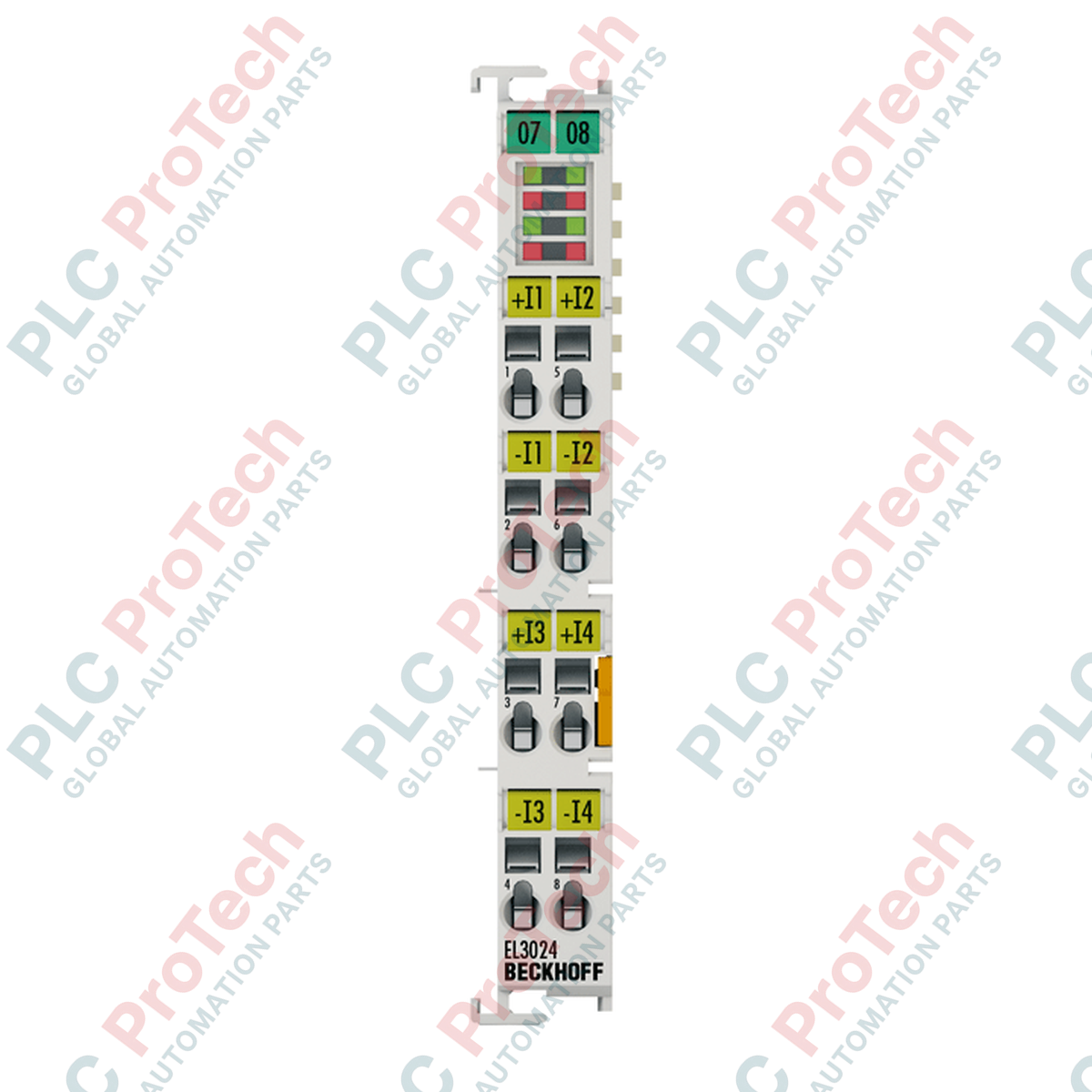

BECKHOFF EL3024 EtherCAT Terminal

SKU EL3024

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EL3024
Origin Germany
Product Type: EtherCAT Terminal
Payment: T/T, Western Union
Weight: 2.0 kg
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

The EL3024 is a 4-channel analog input terminal engineered by BECKHOFF for the acquisition of standard 4…20 mA industrial process signals. As an EtherCAT Terminal, it features differential inputs that ensure reliable signal transmission even in environments prone to electrical noise. With a 12-bit resolution and configurable filter settings, the EL3024 provides high-precision data acquisition suitable for process control, pressure monitoring, and flow measurement applications.

Features

4-channel analog input for 4…20 mA signals
Differential input technology for enhanced signal integrity
12-bit resolution (presented as 16-bit)
Fast conversion time of 0.625 ms
Integrated diagnostics: limit value monitoring and activatable FIR/IIR filters
Compact 12 mm housing for space-efficient DIN rail mounting
Electrical isolation of 500 V between E-bus and signal voltage

Applications

Process automation for current-based sensors (pressure, temperature, flow)
Industrial monitoring systems
Variable frequency drive feedback loops
Data acquisition in EtherCAT-based control architectures

Technical Specifications

Category	Specification
Manufacturer	BECKHOFF
Model	EL3024
Number of Inputs	4 (differential)
Signal Current	4 to 20 mA
Resolution	12 bit (16 bit presentation)
Conversion Time	0.625 ms (configurable)
Measuring Error	< ±0.3 % (relative to full scale)
Internal Resistance	typ. 85 Ω + diode voltage
Common-mode Voltage	max. 10 V
Current Consumption (E-bus)	typ. 130 mA
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC
Protection Rating	IP20
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Weight	approx. 60 g

Connections/Interfaces

Interface Type	Function
EtherCAT	Internal communication and data transfer
Spring-loaded terminal	4-channel differential current input

Installation Guidelines

Install the terminal onto a 35 mm DIN rail (EN 60715) and secure it using the integrated locking mechanism.
Use the double slot and key connection for reliable side-by-side assembly with other EtherCAT terminals.
Connect sensors using solid or flexible conductors; utilize spring-actuated terminals for secure contact (stripping length 8–9 mm).
Ensure wiring practices adhere to EMC standards EN 61000-6-2/EN 61000-6-4 to maintain signal accuracy.
Operate within the ambient temperature range of -25 to +60 degC to ensure the specified measuring performance.

Compliance and Certifications

CE
UL
ATEX: II 3 G Ex nA IIC T4 Gc

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the resolution of the EL3024?

The terminal has a 12-bit resolution, which is presented as 16-bit data including the sign.

How are the inputs on the EL3024 structured?

The terminal features 4 differential inputs to provide robust signal acquisition against common-mode noise.

What is the default conversion time for this terminal?

The default conversion time is 0.625 ms, though it is user-configurable.

Does this module support additional filtering?

Yes, it features activatable FIR and IIR filters for signal conditioning.
