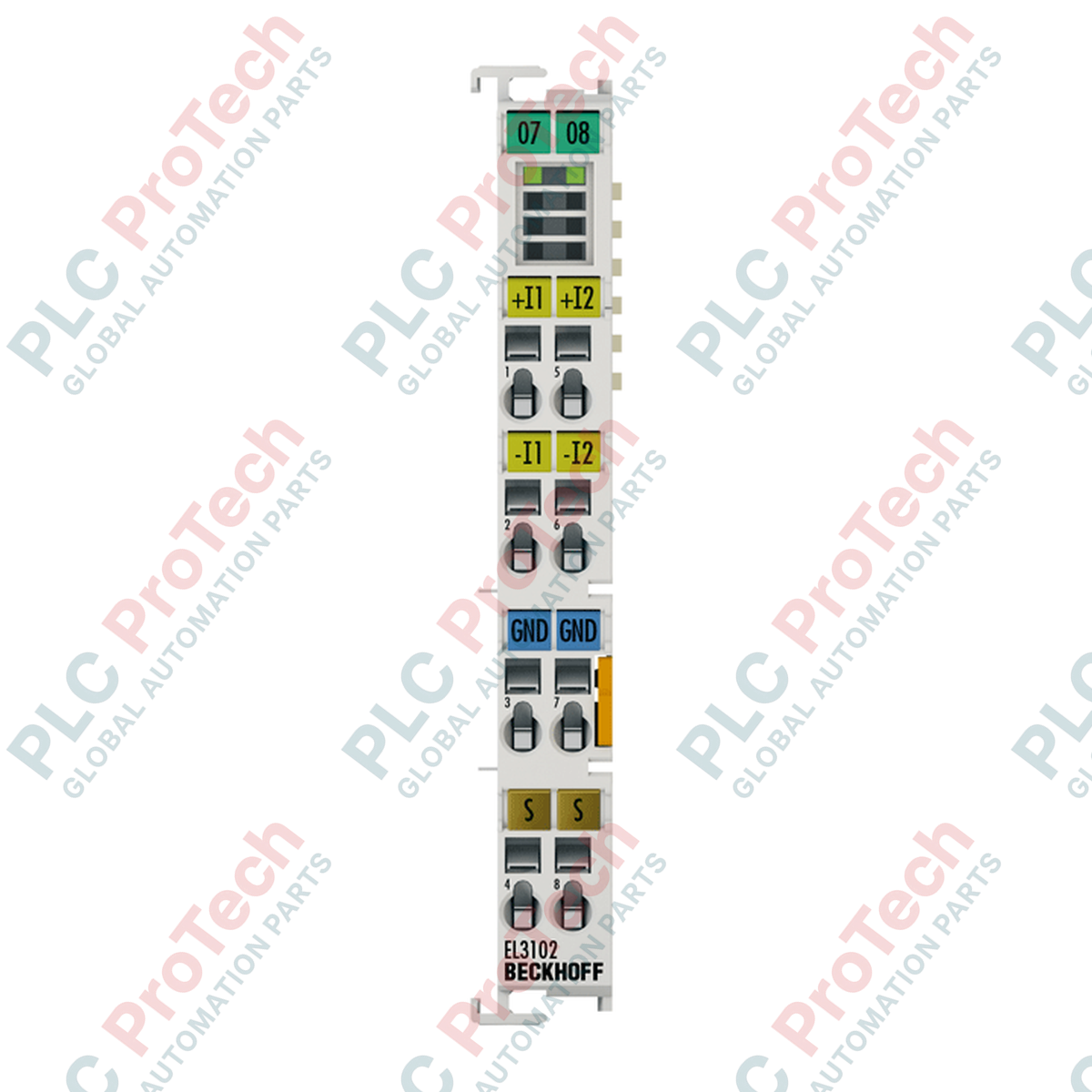

Beckhoff EL3102 EtherCAT 2-Channel Analog input Terminal

SKU EL3102

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EL3102
Origin Germany
Product Type: Analog Input Terminal
Payment: T/T, Western Union
Weight: 0.06 kg
Dimensions: 68 mm x 12 mm x 100 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Beckhoff EL3102 is a 2-channel analog input terminal designed to process differential voltage signals in the range of -10 V to +10 V with a 16-bit resolution. Operating on the EtherCAT system protocol, this device digitizes analog measurement signals and transmits them electrically isolated to the higher-level automation system via the E-bus. It features integrated Distributed Clocks to enable precise, synchronous signal acquisition with high time accuracy across the network. Built-in processing options include standard and compact process images, switchable measuring data representation, activatable FIR/IIR digital filters, and limit value monitoring.

Features

Two differential analog voltage input channels (-10 V to +10 V)
16-bit resolution including sign for high-precision measurement
Distributed Clocks support with precision significantly under 1 us
Switchable measuring data representation and activatable FIR/IIR digital filters
Hardware-level limit value monitoring and standard/compact process image options
Galvanic isolation of 500 V between the E-bus and signal voltage

Applications

Multi-axis motion control requiring precise synchronous voltage feedback
High-accuracy sensor signal acquisition in industrial automation
High-speed test benches and signal monitoring systems
Process control systems using standardized -10 V to +10 V interfaces

Ordering Information

Ordering Code	Description
EL3102	EtherCAT Terminal, 2-channel analog input, voltage, +-10 V, 16 bit, differential
ES3102	EtherCAT Terminal, 2-channel analog input, voltage, +-10 V, 16 bit, differential, pluggable wiring

Technical Specifications

Parameter	Value
Manufacturer	Beckhoff
Number of Inputs	2 (differential)
Signal Voltage	-10...+10 V
Technology / Signal Type	Differential input / Differential signal
Resolution	16 bit (incl. sign)
Conversion Time	~ 60 us (fast mode ~ 40 us)
Input Filter Limit Frequency	5 kHz
Internal Resistance	> 200 kOhm
Common-Mode Voltage UCM	Max. 35 V (relative to internal GND)
Measuring Error	< +-0.3 % (relative to full scale value)
Distributed Clocks	Yes (precision << 1 us)
Power Supply	Via the E-bus
Current Consumption E-bus	Typ. 170 mA
Electrical Isolation	500 V (E-bus/signal voltage)
Bit Width in Process Image	Inputs: 8 byte
Special Features	Standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring
Housing Data / Design Form	EL-12-8pin / Compact terminal housing with signal LEDs
Housing Material	Polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Weight	Approx. 60 g
Installation	On 35 mm DIN rail (EN 60715) with lock
Wiring Connection	Spring actuation by screwdriver
Cross-Section (Solid / Stranded)	0.08...2.5 mm2 / 0.08...2.5 mm2
Cross-Section (Flexible)	0.14...1.5 mm2
Cross-Section (AWG)	AWG 28...14 (solid/stranded), AWG 26...16 (flexible)
Stripping Length	8...9 mm
Operating Temperature	-25... +60 degC
Storage Temperature	-40... +85 degC
Relative Humidity	95 %, no condensation
Protection Class	IP 20

Installation Guidelines

DIN Rail Mounting: Install on a 35 mm DIN rail according to EN 60715. Engage the locking mechanism securely.
Side-by-Side Mounting: Join adjacent terminals using the integrated double slot and key connection system.
Wiring: Insert solid, stranded, or ferruled conductors into the spring-clamp terminals by actuating the mechanism with a screwdriver. Maintain a stripping length of 8 mm to 9 mm.
Environmental Considerations: Ensure the installation environment maintains protection class IP 20 standards and remains within operating limits (-25 degC to +60 degC, non-condensing).

Compliance and Certifications

CE
UL
ATEX: II 3 G Ex nA IIC T4 Gc
Vibration/Shock Resistance: Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity/Emission: Conforms to EN 61000-6-2 / EN 61000-6-4

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the resolution and input signal range of this module?

The device features a 16-bit resolution (including sign) and processes differential voltage signals in the range of -10 V to +10 V.

Does the device support Distributed Clocks functionality?

Yes, the module supports Distributed Clocks with a precision of significantly under 1 microsecond.

What is the conversion time for analog-to-digital signal processing?

The conversion time is approximately 60 microseconds under standard operation and approximately 40 microseconds in fast mode.

What is the operating temperature range for the terminal?

The device is designed to operate in ambient temperatures ranging from -25 degC to +60 degC.
