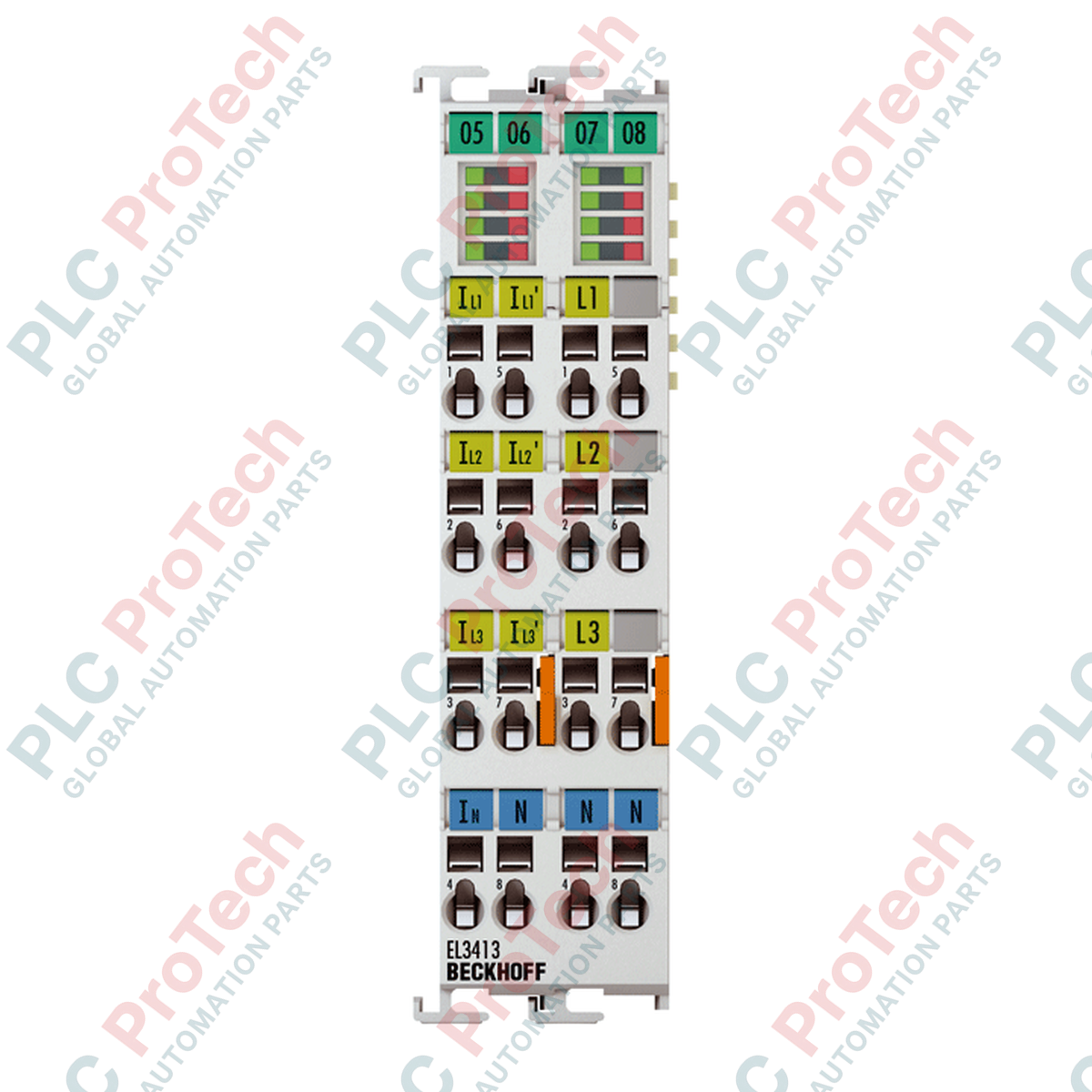

BECKHOFF EL3413 EtherCAT Terminal: 3-Phase Power Measurement

SKU EL3413

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EL3413
Origin Germany
Product Type: EtherCAT Terminal
Payment: T/T, Western Union
Weight: 2.0 kg
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

The EL3413 is a high-precision, 3-phase EtherCAT Terminal designed for comprehensive power measurement of alternating voltages up to 690 V AC. It is engineered to monitor energy consumption and power quality directly within the EtherCAT system. With its ability to perform harmonic analysis and measure effective, reactive, and apparent power, the EL3413 is an essential component for energy management and grid monitoring applications.

Features

3-Phase Power Measurement: Capable of monitoring 3-phase systems, with optional single-phase operation.
Extensive Measured Values: Provides data for current (I1, I2, I3, In), voltage, effective/reactive/apparent power, energy, cos φ, frequency, and harmonic analysis.
Galvanic Isolation: High electrical isolation (4500 V) and galvanically isolated current inputs ensure safety and measurement accuracy.
Flexible Current Input: Adjustable range for current measurement: 100 mA, 1 A (default), and 5 A.
Compact Design: 12 mm wide housing for high-density DIN rail mounting in control cabinets.

Applications

Industrial energy monitoring and cost optimization
Power quality analysis in electrical grids
Monitoring of machinery energy efficiency
Preventive maintenance for motor-driven systems

Technical Specifications

Category	Specification
Manufacturer	BECKHOFF
Model	EL3413
Measuring Voltage	Max. 690 V AC (3-phase)
Measuring Current	Adjustable (100 mA, 1 A, 5 A)
Electrical Isolation	4500 V
Resolution	1 μA, 0.1 mV, 10 mW
Measuring Error	0.5 % (U/I), 1 % (calculated values)
Current Consumption (E-bus)	typ. 160 mA
Operating Temperature	-25 to +60 degC
Protection Rating	IP20
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm

Installation Guidelines

Mount on a 35 mm DIN rail (EN 60715) using the integrated lock mechanism.
Ensure proper wiring for 3-phase voltage and current inputs, utilizing the spring-actuated terminals for solid or flexible conductors (stripping length 8–9 mm).
Adhere to all local electrical safety regulations when connecting high-voltage (up to 690 V AC) circuits.
Follow EMC immunity standards (EN 61000-6-2/EN 61000-6-4) for cabinet wiring to prevent electromagnetic interference with power data.
Ensure consistent ambient conditions between -25 and +60 degC.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the maximum measuring voltage for the EL3413?

It can measure up to 690 V AC in a 3-phase system.

Does the EL3413 perform harmonic analysis?

Yes, it features integrated harmonic analysis as part of its power monitoring capabilities.

What is the adjustable range for the current inputs?

The current measurement range can be adjusted to 100 mA, 1 A (default), or 5 A.

Is the EL3413 suitable for single-phase operation?

Yes, it supports optional single-phase operation in addition to 3-phase measurement.
