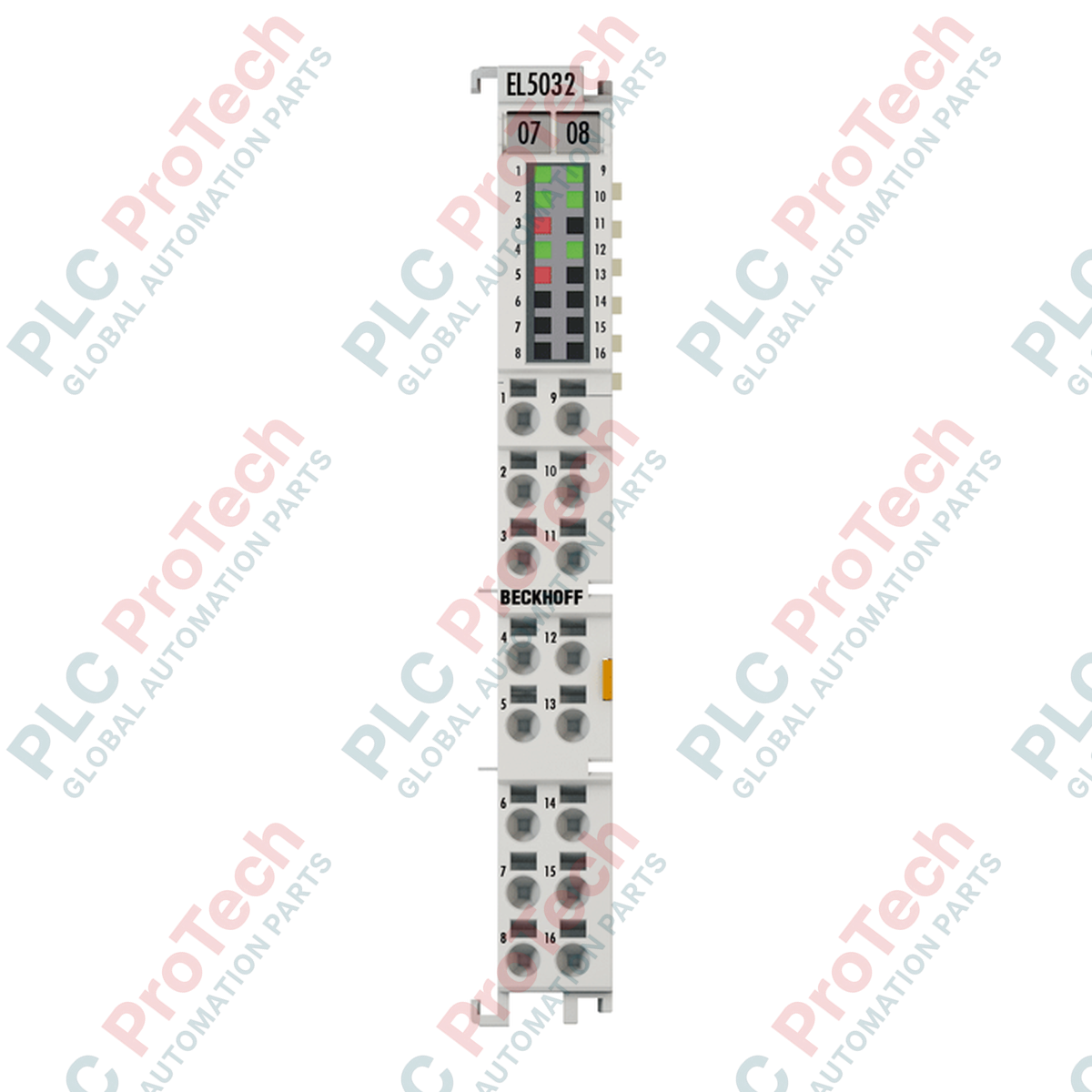

Designed for high-precision motion control applications, the Beckhoff EL5032 is a 2-channel encoder interface that enables the direct connection of EnDat 2.2 encoders to the EtherCAT Terminal system. This high-density (HD) terminal allows bidirectional transmission of position values, parameters, and diagnostic data between the controller and the feedback system. By utilizing the EnDat 2.2 interface, the module supports high-resolution position tracking up to 48 bits, alongside integrated cable length compensation up to 100 meters.
The EL5032 features selectable encoder operating voltages and advanced diagnostic functions, including the ability to read encoder temperature values and store zero offset shifts. Its compact 12 mm housing integrates signal LEDs for clear status monitoring, making it an efficient choice for space-constrained control cabinets requiring synchronized multi-axis feedback.
| Parameter | Specification |
|---|---|
| Manufacturer | Beckhoff |
| Part Number/Model | EL5032 |
| Technology | EnDat 2.2 interface (ordering designation Endat22) |
| Number of Channels | 2 |
| Encoder Connection | D+, D-, C+, C- |
| Encoder Operating Voltage | Optionally 5 V DC or 9 V DC, 0.5 A total current (generated from the 24 V DC power contacts) |
| Supply Voltage Electronics | 24 V DC (via power contacts) |
| Resolution | Max. 48 bit position |
| Current Consumption Power Contacts | Typ. 150 mA + load |
| Current Consumption E-Bus | Typ. 120 mA |
| Distributed Clocks | Yes |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Relative Humidity | 95 %, no condensation |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating | IP20 |
| Installation Position | Variable |
| Housing Material | Polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | Approx. 50 g |
| Connection Parameter | Specification |
|---|---|
| Solid Conductor (e) | 0.08 to 1.5 mm² (AWG 28 to 16) |
| Stranded Conductor (st) | 0.25 to 1.5 mm² (AWG 22 to 16) |
| Flexible Conductor with Ferrule (f) | 0.14 to 0.75 mm² (AWG 26 to 19) |
| Stripping Length | 8 to 9 mm |
| Connection Method | Spring actuation by screwdriver |
| Current Load Power Contacts | Max. 10 A |
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: EL5032
Country of origin:Germany
Product Type: EtherCAT Terminals
Payment: T/T, Western Union
Weight: 50g
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months
