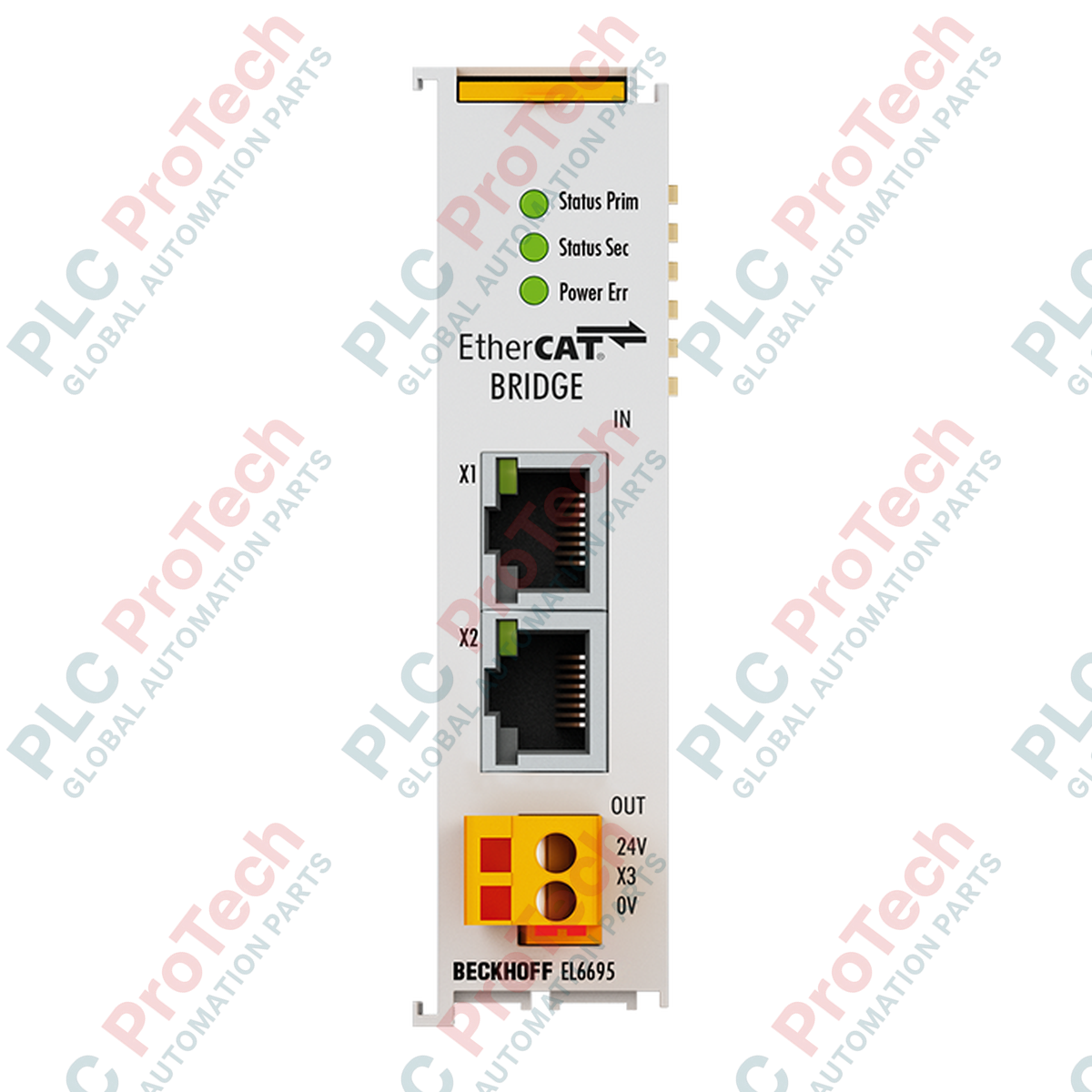

Beckhoff EL6695 EtherCAT Bridge Terminal

SKU EL6695

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EL6695
Origin Germany
Product Type: EtherCAT Terminals
Payment: T/T, Western Union
Weight: 0.075 kg
Dimensions: 24 mm x 100 mm x 52 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Integrating separate EtherCAT control networks requires reliable, real-time data synchronization. The Beckhoff EL6695 serves as a high-performance EtherCAT bridge terminal, enabling bidirectional data exchange between two independent EtherCAT masters. Operating with a primary interface powered via the internal E-bus and a secondary interface utilizing a dedicated 100 Mbit/s RJ45 physical layer, this terminal bridges process data across separate networks without compromising deterministic system performance.

This bridge module is equipped with advanced Distributed Clocks (DC) support, allowing synchronization of subordinate clocks across network boundaries to a common reference clock. System engineers can configure process image sizes of up to 3 kbytes in each direction, depending on the master capability. The terminal also acts as a network gateway for mailbox protocols, supporting AoE (ADS over EtherCAT), EoE (Ethernet over EtherCAT), FoE (File over EtherCAT), and VoE (Vendor-specific over EtherCAT) transmissions.

Features

Dual-sided communication interface linking primary E-bus and secondary 100 Mbit/s RJ45 Ethernet ports.
Supports high-accuracy Distributed Clock (DC) synchronization across independent EtherCAT master segments.
Flexible PDO mapping supporting process image sizes up to 3 kbytes per direction (TwinCAT systems support up to 1400 bytes).
Comprehensive mailbox protocol support including AoE, EoE, FoE, and VoE.
Galvanic electrical isolation up to 500 V between the primary E-bus and the secondary side.
Integrated status LEDs for hardware diagnostics and network status monitoring.
Compact 24 mm terminal housing designed for standard 35 mm DIN rail mounting with double slot and key connection.

Applications

Synchronized multi-master systems in automotive assembly and advanced manufacturing lines.
Linking independent safety-rated and standard EtherCAT segments.
Process integration between packaging machines, test benches, and main supervisory PLCs.
Modular production cell networking requiring distributed clock consistency.

Technical Specifications

Manufacturer	Beckhoff
Part Number / Model	EL6695
Primary Interface	E-bus (terminal strand)
Secondary Interface	2 x 100 Mbit/s Ethernet (RJ45, In/Out)
Cable Length	Max. 100 m (100BASE-TX, secondary port)
Distributed Clocks	Yes (usable as reference clock in TwinCAT)
Electrical Isolation	500 V (E-bus/secondary side)
Power Supply (Primary)	Via E-bus
Power Supply (Secondary)	24 V DC via external connector
Current Consumption (Primary)	400 mA from E-bus
Current Consumption (Secondary)	70 mA at 24 V DC
Process Image Bit Width	Max. 3 kbyte per direction (TwinCAT max. 1400 bytes)
Housing Material	Polycarbonate
Dimensions (W x H x D)	24 mm x 100 mm x 52 mm
Weight	approx. 75 g
Operating Temperature	0 to +55 degC
Storage Temperature	-25 to +85 degC
Relative Humidity	95%, non-condensing
Vibration / Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity / Emission	Conforms to EN 61000-6-2 / EN 61000-6-4
Protection Rating	IP20
Installation	35 mm DIN rail (EN 60715) with locking tab

Connections and Interfaces

Interface Type	Function
Primary E-Bus Connection	Data routing and power supply for primary internal logic (via terminal block side contacts).
Secondary RJ45 Ports (In/Out)	EtherCAT interface for connection to the secondary master network. Supports 100BASE-TX Ethernet lines.
External Power Terminal	Push-in terminal connection for 24 V DC secondary power supply.

Installation Guidelines

Mount the unit on a standard 35 mm DIN rail conforming to EN 60715, ensuring the lock is securely engaged.
Utilize the integrated double slot and key connection for stable side-by-side terminal mounting.
Ensure proper grounding path through the DIN rail to guarantee correct EMC performance.
Maintain sufficient clear ventilation space around the module when operating near the upper temperature limit of +55 degC.
Do not exceed the specified 500 V electrical isolation limit between the primary E-bus and secondary circuits during wiring.

Compliance and Certifications

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the Beckhoff EL6695?

The EL6695 is an EtherCAT bridge terminal designed to facilitate synchronous and bidirectional data exchange between two independent EtherCAT master systems.

How is the EL6695 bridge module powered?

The primary side of the EL6695 is powered directly via the E-bus with a 400 mA current consumption, while the secondary side requires an external 24 V DC power supply connection consuming 70 mA.

What is the maximum process data size supported by the EL6695?

It supports a maximum process image of up to 3 kbytes per direction, depending on the master. When used within TwinCAT, the configuration limit is currently up to 1400 bytes.
