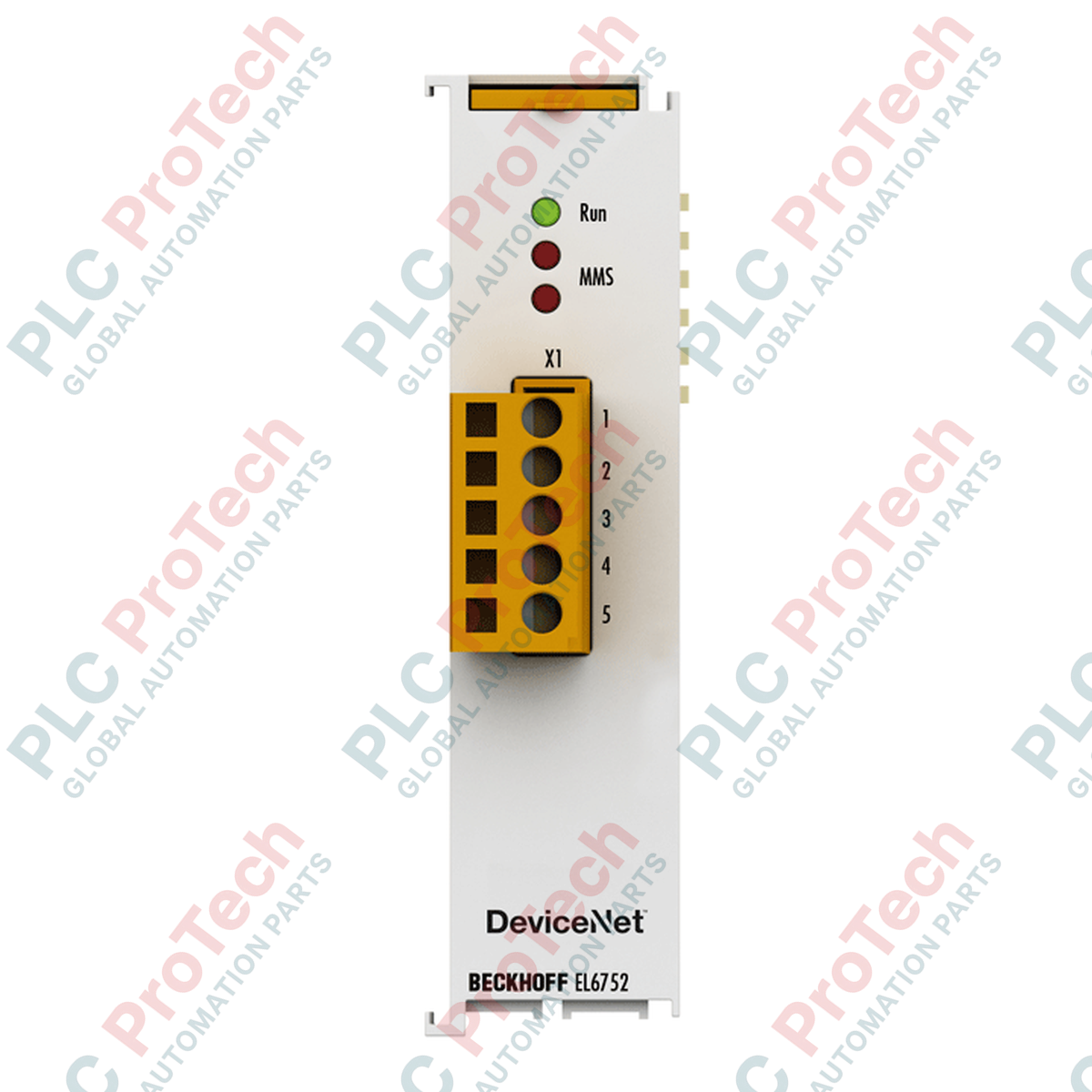

To integrate modern control environments with existing network standards, the EL6752-0010 functions as a high-performance DeviceNet slave gateway designed for the EtherCAT Terminal system. This 1-channel communication interface enables high-speed data transfer and process image synchronization between an EtherCAT master and a primary DeviceNet master. Configured specifically as a DeviceNet slave, it allows seamless data exchange while keeping the networks galvanically isolated to prevent industrial noise and electrical interference from damaging sensitive controller electronics.
Housed in a compact 24 mm housing with standard signal LEDs for real-time status diagnostics, this module provides a reliable physical interface via a 5-pin open style connector. Integrating natively within the TwinCAT engineering environment, the terminal is engineered for rugged deployment in automated process environments requiring mixed-protocol network layouts.
| Manufacturer | BECKHOFF |
| Part Number / Model | EL6752-0010 |
| Technology | DeviceNet slave terminal |
| Fieldbus | DeviceNet |
| Number of Channels | 1 |
| Data Transfer Rates | 125, 250, 500 kbaud |
| Interface | 5-pin open style connector (galvanically decoupled) |
| Current Consumption E-bus | typ. 260 mA |
| Operating Temperature | -25 to +60 degC |
| Storage Temperature | -40 to +85 degC |
| Relative Humidity | 95 %, no condensation |
| Vibration / Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity / Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating | IP20 |
| Installation Position | Variable |
| Housing Material | Polycarbonate |
| Dimensions (W x H x D) | 24 mm x 100 mm x 52 mm |
| Weight | approx. 70 g |
| Wiring Connection | Push-in connection |
| Connector Pin | Function |
|---|---|
| Pin 1 | V- (Power supply ground) |
| Pin 2 | CAN_L (CAN low signal) |
| Pin 3 | Shield (Drain/Shield wire) |
| Pin 4 | CAN_H (CAN high signal) |
| Pin 5 | V+ (DeviceNet network power) |
