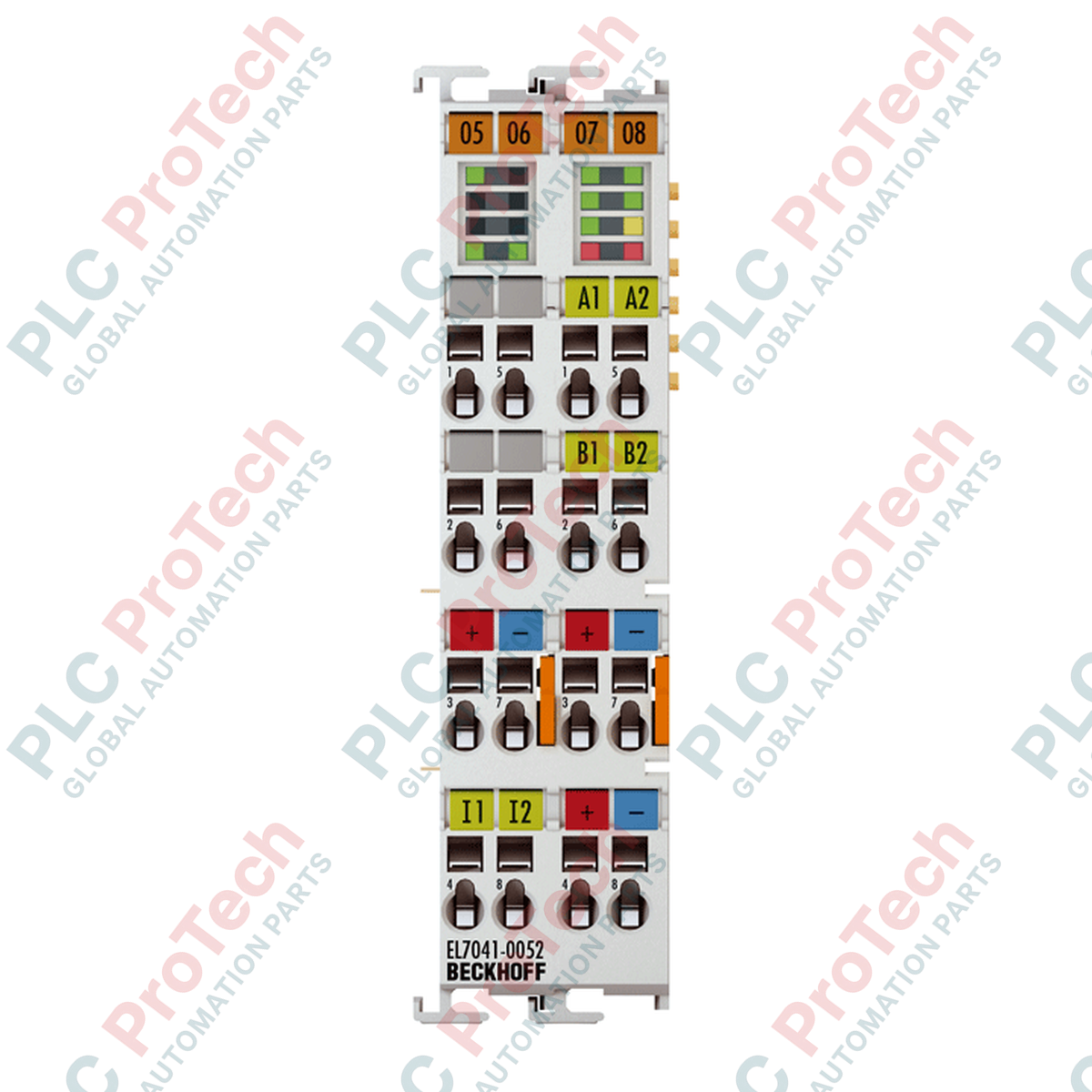

BECKHOFF EL7041-0052 EtherCAT Terminal 1-Channel Stepper Motor Motion Interface

SKU EL7041-0052

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EL7041-0052
Origin Germany
Product Type: Stepper Motor Terminals
Payment: T/T, Western Union
Weight: 0.09 kg
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Direct motor connection and high-performance compact drive control are integrated into the EL7041-0052 stepper motor terminal. Designed for the EtherCAT I/O system, this motion interface enables the direct operation of 2-phase stepper motors up to 48 V DC at a maximum output current of 5 A. The unit features 64-fold microstepping capabilities to ensure smooth, precise rotational operation with minimized resonance and quiet running performance.

Equipped with two digital inputs for limit switch integration, this terminal facilitates decentralized positioning tasks by supporting integrated travel distance control directly through the Beckhoff TwinCAT environment. This module utilizes Distributed Clocks (DC) to synchronize motion commands precisely across multi-axis setups, making it suitable for distributed automation systems requiring exact path control and compact form factors.

Features

Compact drive technology optimized for direct 2-phase stepper motor connection (unipolar/bipolar).
64-fold microstepping pattern for highly precise positioning and minimized structural vibration.
Built-in travel distance control functionality for autonomous positioning.
Two integrated digital inputs for hardware end position/limit switch monitoring.
Supports EtherCAT Distributed Clocks (DC) for microsecond-level synchronization.
Configurable step frequency reaching up to 8000 full steps per second.
Electrical isolation of 500 V between the E-bus and the field potential for system protection.

Applications

Point-to-point positioning drives in packaging and labeling machinery.
Feed-axis adjustment in semiconductor manufacturing and electronic assembly equipment.
Decentralized auxiliary axes in machine tools and automated assembly lines.
Conveyor and material sorting system speed and position adjustment.

Technical Specifications

Manufacturer	Beckhoff
Part Number / Model	EL7041-0052
Product Type	EtherCAT Terminal / Motion Interface
Number of Channels	1
Load Type	2-phase stepper motor (unipolar / bipolar)
Number of Inputs	2 x end position (limit switches)
Number of Outputs	1 x stepper motor
Supply Voltage (Electronics)	24 V DC (via power contacts)
Supply Voltage (Power)	8 to 48 V DC (external)
Output Current	Max. 5.0 A
Step Frequency	Configurable up to 8000 full steps/s
Step Pattern	64-fold microstepping
Current Controller Frequency	Approx. 30 kHz
Resolution	Approx. 5000 positions in typical applications (per revolution)
Current Consumption (E-bus)	Typ. 140 mA
Current Consumption (Power Contacts)	Typ. 50 mA
Current Load Power Contacts	Max. 10 A
Electrical Isolation	500 V (E-bus / field potential)
Distributed Clocks (DC)	Yes
Operating Temperature	0 degC to +55 degC
Storage Temperature	-25 degC to +85 degC
Relative Humidity	95%, no condensation
Protection Rating	IP20
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Weight	Approx. 90 g

Wiring and Connection Specifications

Parameter	Solid Conductor (e) / Stranded Wire (st)	Flexible Conductor with Ferrule (f)
Connection Cross-Section	0.08 to 2.5 mm²	0.14 to 1.5 mm²
Connection Cross-Section AWG	AWG 28 to 14	AWG 26 to 16
Stripping Length	8 to 9 mm	8 to 9 mm
Wiring Mechanism	Spring actuation by screwdriver	Spring actuation by screwdriver

Installation Guidelines

Mounting: Mount on a standard 35 mm DIN rail conforming to EN 60715 using the integrated double slot and key lock connection.
Grounding and Shielding: Ensure the DIN rail is securely connected to a low-impedance functional ground. Motor cables must be properly shielded to minimize electromagnetic interference (EMI) and maintain compliance with EN 61000-6-2 and EN 61000-6-4.
Thermal Management: Maintain the correct side-by-side mounting orientation to allow passive cooling. Verify that the ambient operating temperature does not exceed +55 degC.

Compliance and Certifications

CE: Conforms to European Union standards.
EMC Immunity: Conforms to EN 61000-6-2.
EMC Emission: Conforms to EN 61000-6-4.
Vibration Resistance: Conforms to EN 60068-2-6.
Shock Resistance: Conforms to EN 60068-2-27.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What motor types are compatible with the Beckhoff EL7041-0052 terminal?

The EL7041-0052 is designed for the direct connection and control of 2-phase stepper motors (both unipolar and bipolar configurations) operating up to 48 V DC with a maximum current of 5.0 A.

Does the EL7041-0052 support microstepping?

Yes, it supports up to 64-fold microstepping, which minimizes resonance, reduces noise, and provides high-precision positioning.

How are limit switches connected to this module?

The module features two built-in digital inputs specifically designated for hardware end positions or limit switches, enabling direct physical stop monitoring.

Does this terminal support Distributed Clocks (DC)?

Yes, the EL7041-0052 supports EtherCAT Distributed Clocks, allowing highly precise synchronization with other motion axes in the system.

What is the IP protection rating of this module?

The module has an IP20 protection rating and must be installed inside a suitable control cabinet or enclosure to protect it from dust and moisture.
