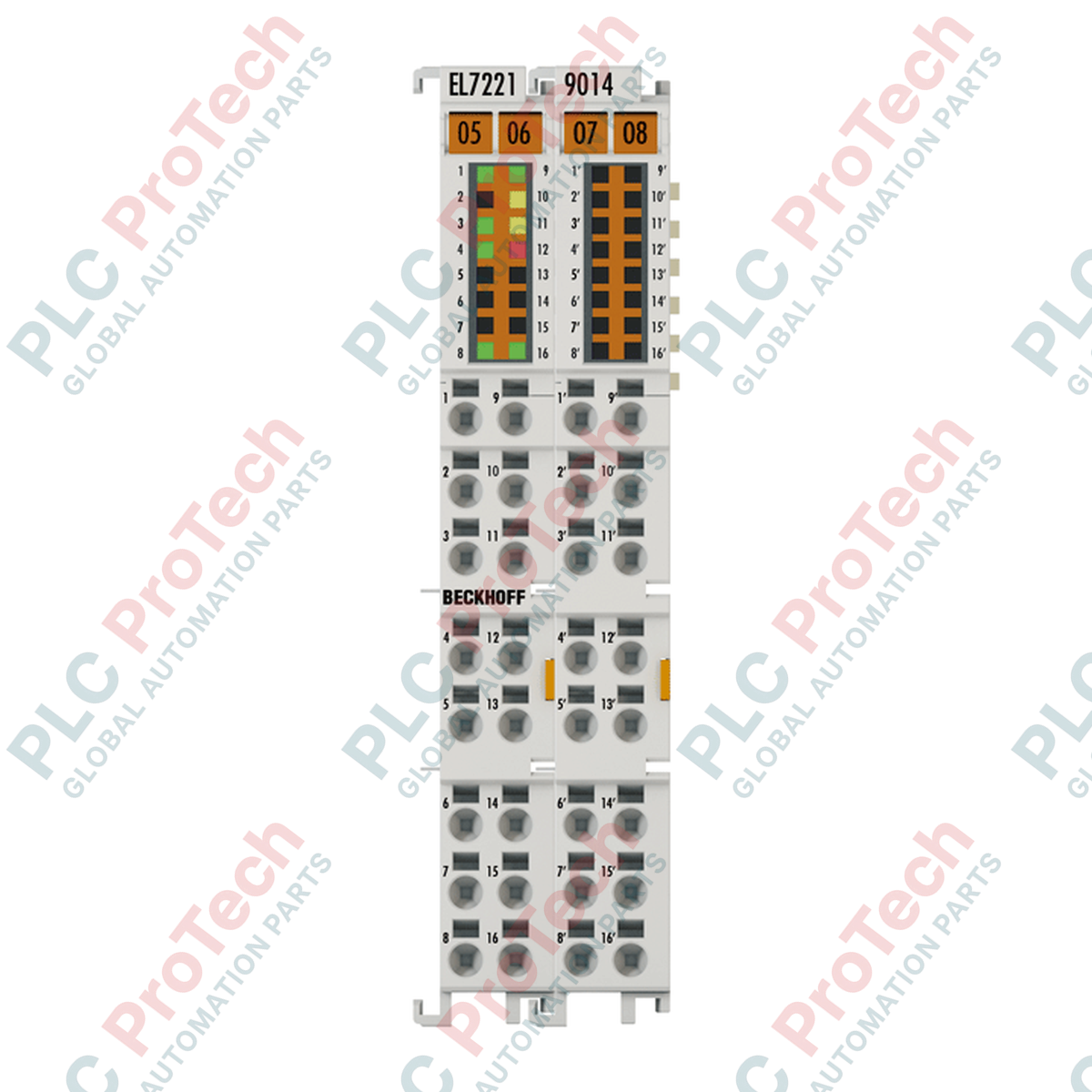

Designed for compact motion applications, the EL7221-9014 servomotor terminal integrates high-performance drive technology into a standard 12 mm EtherCAT Terminal format. This motion interface is engineered for the direct control of permanent magnet-excited three-phase synchronous motors (brushless AC servomotors) operating up to 48 V DC and up to 8 A. Featuring One Cable Technology (OCT), it combines motor power and feedback signals into a single cable, reducing wiring complexity and overall installation footprint. The terminal incorporates a hard-wired Safe Torque Off (STO) safety function, offering safe-stop capability matching standard industrial safety regulations.
| Manufacturer | BECKHOFF |
| Part Number / Model | EL7221-9014 |
| Protocol | EtherCAT |
| Number of Channels | 1 |
| Supply Voltage (Electronics) | 24 V DC (via power contacts) |
| Supply Voltage (Power) | 8 to 48 V DC (external) |
| Output Current (rms) | 7.0 A up to 55 degC, 8.0 A up to 45 degC (with ZB8610) |
| Peak Current (rms) | max. 16.0 A for 1 s up to 55 degC (with ZB8610) |
| PWM Clock Frequency | 16 kHz |
| Current Controller Frequency | 32 kHz |
| Speed Controller Frequency | 16 kHz |
| Output Voltage (Motor Brake) | 24 V DC |
| Output Current (Motor Brake) | max. 0.5 A |
| Current Consumption E-bus | typ. 120 mA |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Distributed Clocks | Yes |
| Safe Stop Functions | Safe Torque Off (STO) |
| Material | Polycarbonate |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 95 g |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Relative Humidity | 95 %, non-condensing |
| Connection Type | Compatible Wire Section | AWG Range |
|---|---|---|
| Solid Conductor (s) | 0.08 to 1.5 mm² | AWG 28 to 16 |
| Stranded Conductor (st) | 0.25 to 1.5 mm² | AWG 22 to 16 |
| Flexible Conductor with Ferrule (f) | 0.14 to 0.75 mm² | AWG 26 to 19 |
| Stripping Length | 8 to 9 mm | - |
