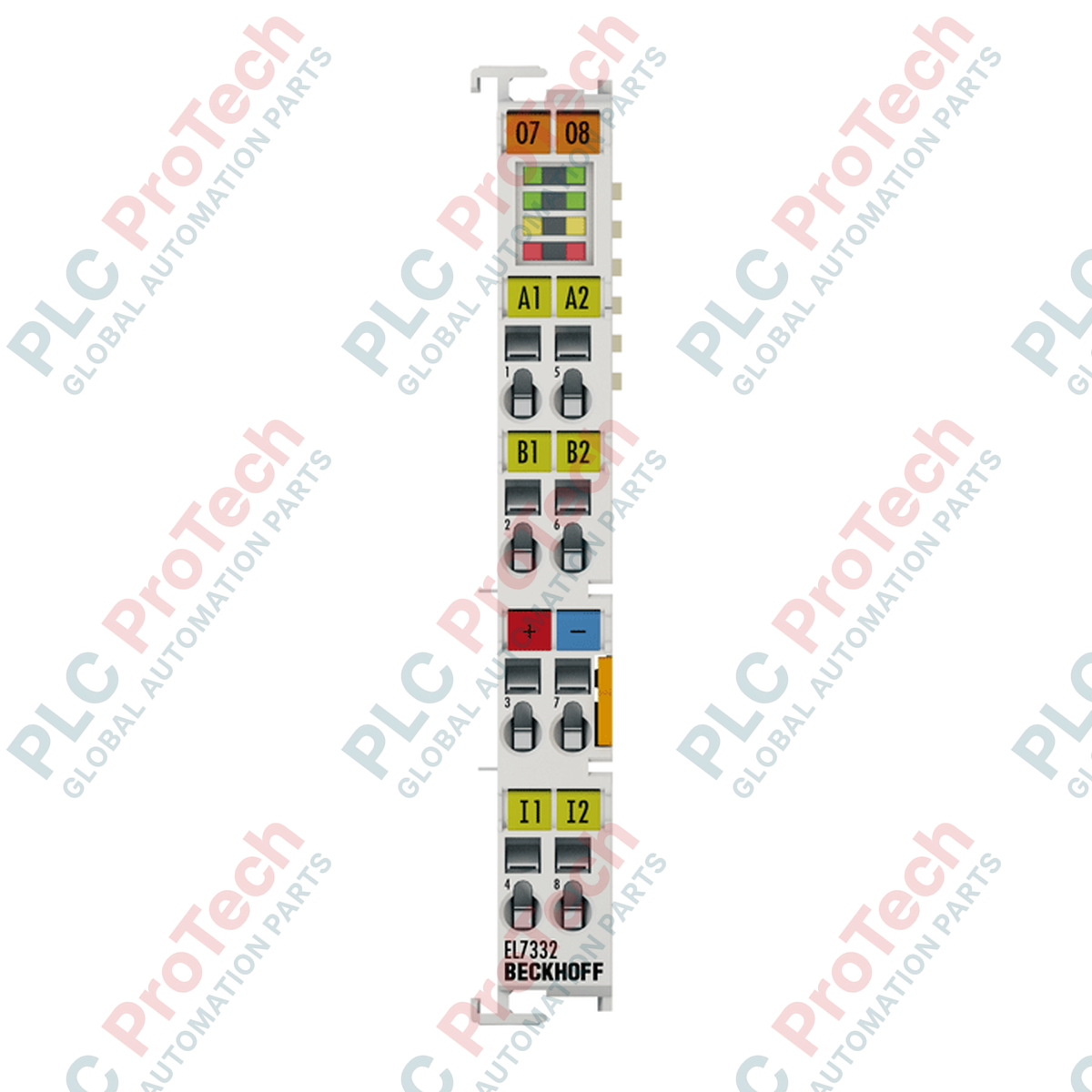

Direct drive control is integrated directly into the EtherCAT I/O system via the EL7332 motion interface terminal. This compact 12 mm module provides high-performance, two-channel control for small DC brush motors operating at 24 V DC. Capable of delivering up to 1 A continuous current per channel, it features integrated travel distance control and supports performance scaling up to 3.0 A when utilizing the ZB8610 fan cartridge. The device interfaces seamlessly within standard Beckhoff EtherCAT networks, employing Distributed Clocks (DC) for precise microsecond-level synchronization across the control architecture.
| Manufacturer | BECKHOFF |
| Part Number/Model | EL7332 |
| Number of Channels | 2 |
| Load Type | DC brush motor, inductive |
| Supply Voltage Electronics | 24 V DC (via power contacts) |
| Supply Voltage Power | 24 V DC (internally via power contacts) |
| Output Current | Max. 1 A per channel (up to 3.0 A with ZB8610 fan cartridge) |
| PWM Clock Frequency | 32 kHz with 180 deg phase shift each |
| Duty Factor | 0 to 100% (voltage-controlled) |
| Resolution | Max. 10 bit current, 16 bit speed |
| Current Consumption (E-bus) | Typ. 140 mA |
| Current Consumption (Power Contacts) | Typ. 40 mA + motor current |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Power Contacts Current Load | Max. 10 A |
| Material | Polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | Approx. 50 g |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Relative Humidity | 95%, non-condensing |
| EMC Immunity/Emission | Conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection Rating | IP20 |
| Connection Type | Solid Conductor (e) | Flexible Conductor (f) | Ferrule (a) |
|---|---|---|---|
| Connection Cross-Section | 0.08 to 2.5 mm² | 0.08 to 2.5 mm² | 0.14 to 1.5 mm² |
| Connection Cross-Section (AWG) | AWG 28 to 14 | AWG 28 to 14 | AWG 26 to 16 |
| Stripping Length | 8 to 9 mm | ||
| Actuation Method | Spring-cage clamp actuation via screwdriver | ||
