Product Overview

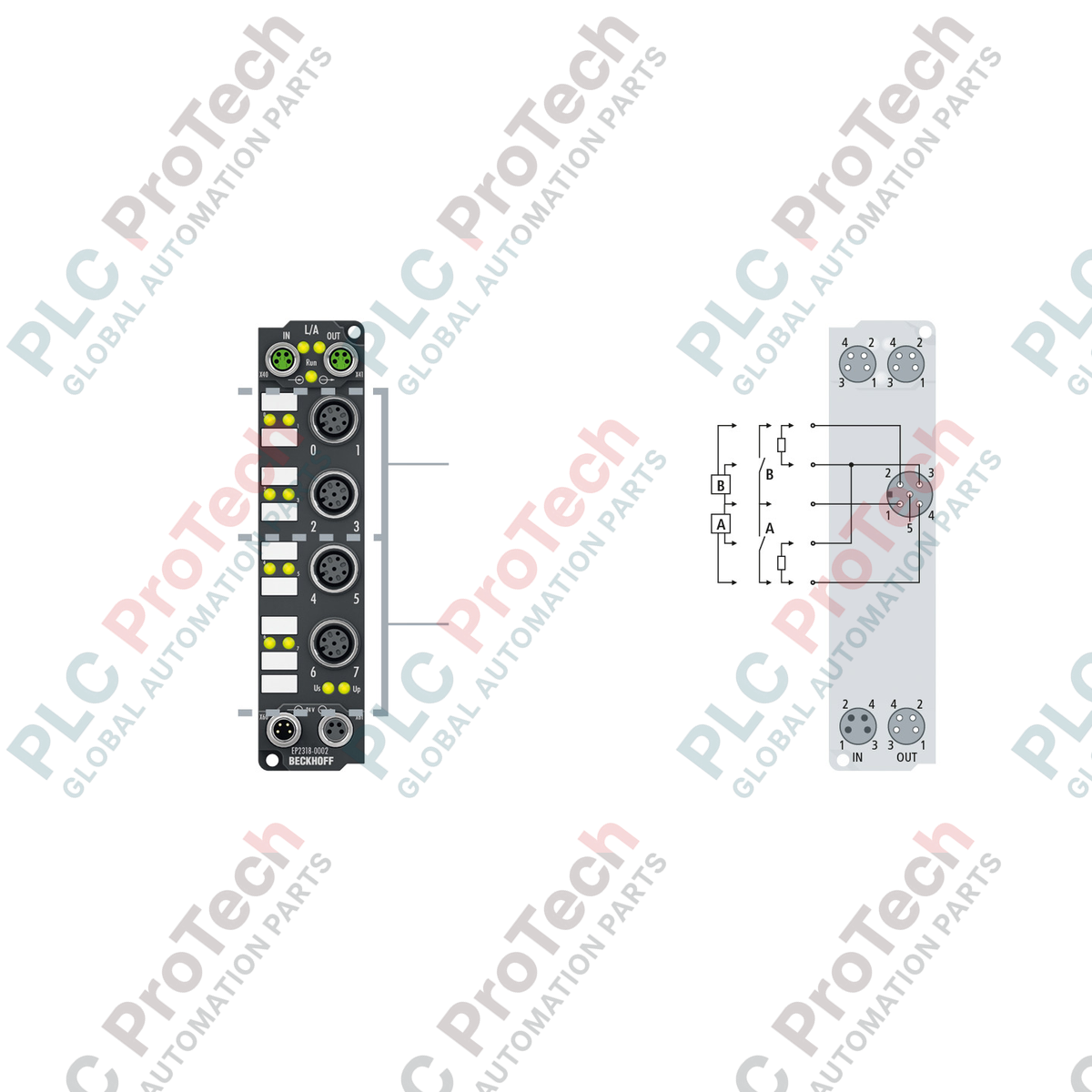

The Beckhoff EP2318-0002 is a compact, robust digital I/O module from the EtherCAT Box series, featuring 4 digital inputs and 4 digital outputs. Designed for decentralized automation, this module is housed in a high-quality, IP65/66/67-rated polyamide (PA6) enclosure, making it ideal for direct installation on machine frames in demanding industrial environments. By leveraging the EtherCAT protocol, it ensures real-time, deterministic communication for high-speed sensor and actuator tasks. The use of M12 connections for I/O and M8 connections for bus/power provides a secure, reliable interface that is both industry-standard and easy to maintain.

Technical Configuration

The EP2318-0002 is engineered to balance performance with ease of installation in decentralized layouts.

• High-Speed Processing: With an input filter of 10 µs and fast switching times (50 µs TON / 100 µs TOFF), this module is optimized for applications requiring rapid response times.
• M12 I/O Connectivity: Unlike modules using smaller M8 connectors, the M12 x 1, 5-pin, A-coded connections offer superior mechanical stability and are better suited for environments subject to high vibration.
• EtherCAT Performance: As an EtherCAT slave, it seamlessly integrates into the Beckhoff TwinCAT environment, supporting advanced features like Distributed Clocks and comprehensive diagnostic data.
• ATEX Certification: With an II 3 G Ex nA IIC T4 Gc rating, this unit is authorized for use in hazardous areas (Zone 2), provided the installation complies with relevant safety standards.

Technical Specifications

Frequently Asked Questions

How does the M12 connector benefit my installation?

M12 connectors are the industry standard for field-level industrial connectivity. They provide a more robust, vibration-resistant connection compared to M8 connectors and are often easier to secure and maintain in machinery subjected to constant motion or environmental stress.

Is this module compatible with standard EtherCAT cables?

Yes, it uses standard EtherCAT communication via M8 ports. However, since the I/O uses M12 connectors, you will need to ensure you have the appropriate M12 cable assemblies for your sensors and actuators.

Does "individually short-circuit proof" mean the whole module shuts down on a fault?

No. If a short circuit occurs on one output channel, only that channel will be disabled. The rest of the module will continue to operate normally, and the fault will be reported to the EtherCAT master, allowing you to troubleshoot the specific channel without causing total system downtime.

Engineering Integration and Operational Best Practices

• Power Supply Logic: The module requires a 24 V DC load voltage via the M8 power interface. Ensure your power supply is sized to handle the cumulative load of all 4 outputs (up to 0.5 A each) plus the current consumption of the electronics.
• EMC Shielding: While the enclosure provides excellent protection, ensure the EtherCAT cables are shielded and that the shield is properly grounded at the control cabinet entry point to suppress high-frequency noise.
• Environmental Sealing: The IP67 rating depends on the correct seating of M12 and M8 connectors. Always ensure cables are tightened to the recommended torque specifications; use blind plugs for any unused M12/M8 ports to prevent moisture or dust ingress.
• Installation: The module uses two 3.5 mm mounting holes. When installing on a vibrating machine frame, use M3 screws with locking washers to prevent the module from loosening over time.
