Description

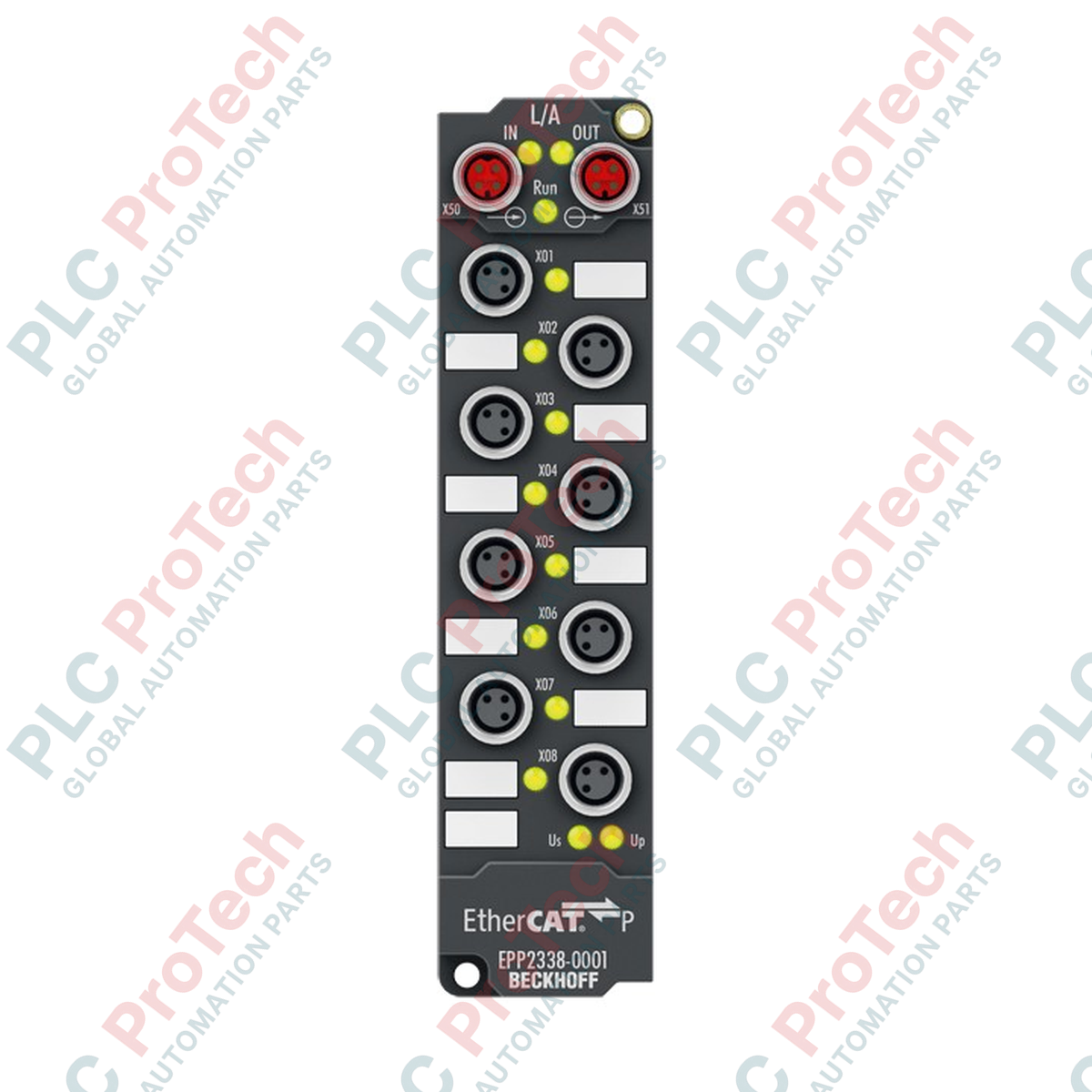

Designed for decentralized acquisition of binary signals directly on machinery, the BECKHOFF EPP2338-1001 integrates eight digital channels configurable as either inputs or outputs within a rugged, space-saving IP67 housing. Operating on the EtherCAT P protocol, this unit combines high-speed communication and 24 V DC power supplies (system/sensor supply Us and peripheral voltage Up for loads) onto a single, standardized M8 connection cable. The highly flexible configuration allows each channel to operate as either a 3.0 ms filtered digital input (conforming to EN 61131-2, type 1/3) or as a 0.5 A digital output, significantly reducing cable complexity and structural overhead in modern automation topologies.

Features

• Configurable I/O Architecture: Eight bidirectional channels, individually assignable as digital inputs or digital outputs.
• EtherCAT P Single-Cable Technology: Integrates fast EtherCAT communication, system power (Us), and peripheral load power (Up) in a single P-coded M8 connector.
• Exceptional Physical Resilience: Fully sealed IP65, IP66, and IP67 industrial enclosure designed for direct mounting without an electrical control cabinet.
• Individually Short-Circuit Proof Outputs: Each output channel provides up to 0.5 A of switching capacity, featuring independent short-circuit protection and diagnostics.
• Robust Signal Conditioning: Inputs feature a fixed 3.0 ms filter time to suppress physical contact bounce and electromagnetic interference.

Applications

• Decentralized robotics assembly cells and end-of-arm tooling.
• Conveyor systems and high-sorting logistics distribution hubs.
• Wet and harsh environments in food processing and packaging plants.
• Direct machine-mount sensor arrays and actuator manifolds.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The EPP2338-1001 utilizes EtherCAT P, meaning it is physically and electrically incompatible with standard EtherCAT boxes (EP series with A-coded network ports). When designing a system, ensure this unit is connected directly to an EtherCAT P junction or terminal, such as the EK1300 coupler or EP9224 power distribution box. It requires TwinCAT 3.1 (or later) for complete XML configuration and online-diagnostics handling.

Application Pitfalls & Engineering Notes

A common issue in field installations is voltage drop on long EtherCAT P daisy chains. Because the M8 P-coded connector carries system power (Us) and actuator load power (Up) simultaneously, total current through a single run must not exceed 3 A. If using inductive loads on multiple output channels, always calculate the cumulative peak current to avoid triggering an under-voltage error on the Up line, which will fault the box diagnostics.

Commissioning & Wiring Tips

To guarantee IP67 integrity, unused M8 ports must be sealed with IP67-rated protective caps. When terminating the M8 P-coded network connectors, use a calibrated torque wrench set to 0.4 Nm to prevent physical thread damage and ensure watertight gasket sealing. In high vibration settings (e.g., dynamic robotic arms), loop and secure the EtherCAT P network cable with a minimum bend radius of 10x the cable outer diameter to prevent continuous physical strain on the internal solder joints of the M8 socket.

Installation Guidelines
