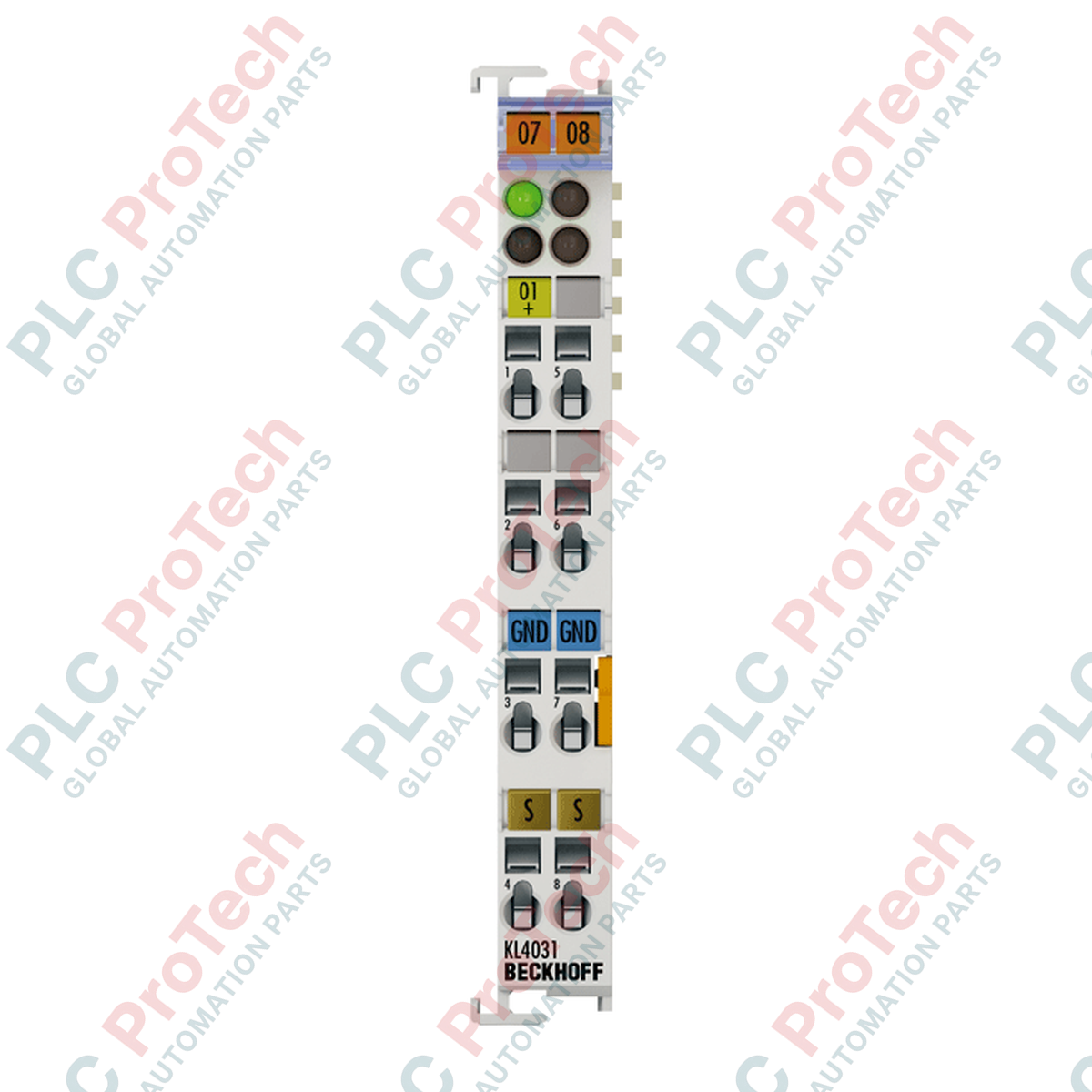

The KL4031 (KL 4031) is a precision 1-channel analog output terminal designed to generate signals in the range of -10 to +10 V. As a core component of the Beckhoff K-Bus system, this module converts 12 bit digital values from the automation device into an isolated analog control signal. In industrial sectors such as HVAC control, chemical processing, and specialized machinery, the KL4031 is vital for driving actuators, proportional valves, and frequency converters that require a bipolar voltage reference. By providing high-accuracy signal generation with an error margin of less than 0.1 percent, this terminal ensures stable process control and minimizes the risk of signal drift, effectively protecting downstream equipment and reducing maintenance requirements.
The KL4031 architecture is characterized by its "plug-and-play" integration, requiring no manual address or hardware configuration settings. The module draws its power directly from the K-Bus (typically 75 mA), eliminating the need for additional external power contacts for the internal electronics. It features a robust output stage that is short-circuit proof, capable of driving loads greater than 5 kOhm. Signal integrity is maintained through 500 V electrical isolation between the K-Bus and the output signal, preventing ground loops and protecting the higher-level PLC from field-side electrical surges. The 12 bit resolution provides a granular output scale, allowing for smooth ramps and precise setpoint adjustments in complex motion or temperature control loops.
| Feature | Specification |
| Model | KL4031 |
| Brand | Beckhoff |
| Number of Outputs | 1 |
| Output Signal Range | -10 V to +10 V |
| Resolution | 12 bit |
| Load Resistance | > 5 kOhm (short-circuit proof) |
| Output Error | < +/- 0.1 percent (relative to end value) |
| Conversion Time | ~ 1.5 ms |
| Electrical Isolation | 500 V (K-bus / signal voltage) |
| K-Bus Current Consumption | Typ. 75 mA |
| Process Image Bit Width | 1 x 16 bit data (8 bit control/status optional) |
| Operating Temperature | 0 to 55 deg C |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | Approx. 85 g (2 kg shipping weight) |
| Protection Rating | IP20 |
| Approvals | CE, UL, ATEX, IECEx, DNV GL |
Does the KL4031 require separate 24 VDC power through the power contacts?
No, the KL4031 is powered entirely via the K-Bus. It does not utilize the lateral power contacts, which simplifies wiring in a mixed-module terminal segment.
What happens if the output is accidentally shorted to ground?
The KL4031 is designed to be short-circuit proof. The internal circuitry will limit the current to prevent damage to the module, though prolonged short circuits should be avoided to prevent excessive heat buildup.
Is there a version of this terminal with removable wiring?
Yes, the KS4031 variant provides the same technical functionality as the KL4031 but features a pluggable wiring level for faster field replacement and maintenance.
Shielding for Signal Purity: Analog voltage signals (-10 V to +10 V) are highly susceptible to electromagnetic interference. Always use shielded cabling for the output signal and terminate the shield at the PE (Protective Earth) bar in the control cabinet to ensure a low-impedance path for noise.
Load Impedance Matching: Ensure the connected actuator or receiver has an input impedance of at least 5 kOhm. Connecting a load with lower impedance will result in voltage drops and potential inaccuracies in the output signal relative to the PLC setpoint.
Hazardous Area Compliance: For ATEX/IECEx applications (Ex nA IIC T4 Gc), the module must be installed in an enclosure providing at least IP54 protection. Ensure that the module is not plugged or unplugged while the power is active in potentially explosive atmospheres.
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: KL4031
Country of origin:Germany
Product Type: Bus Terminal
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
