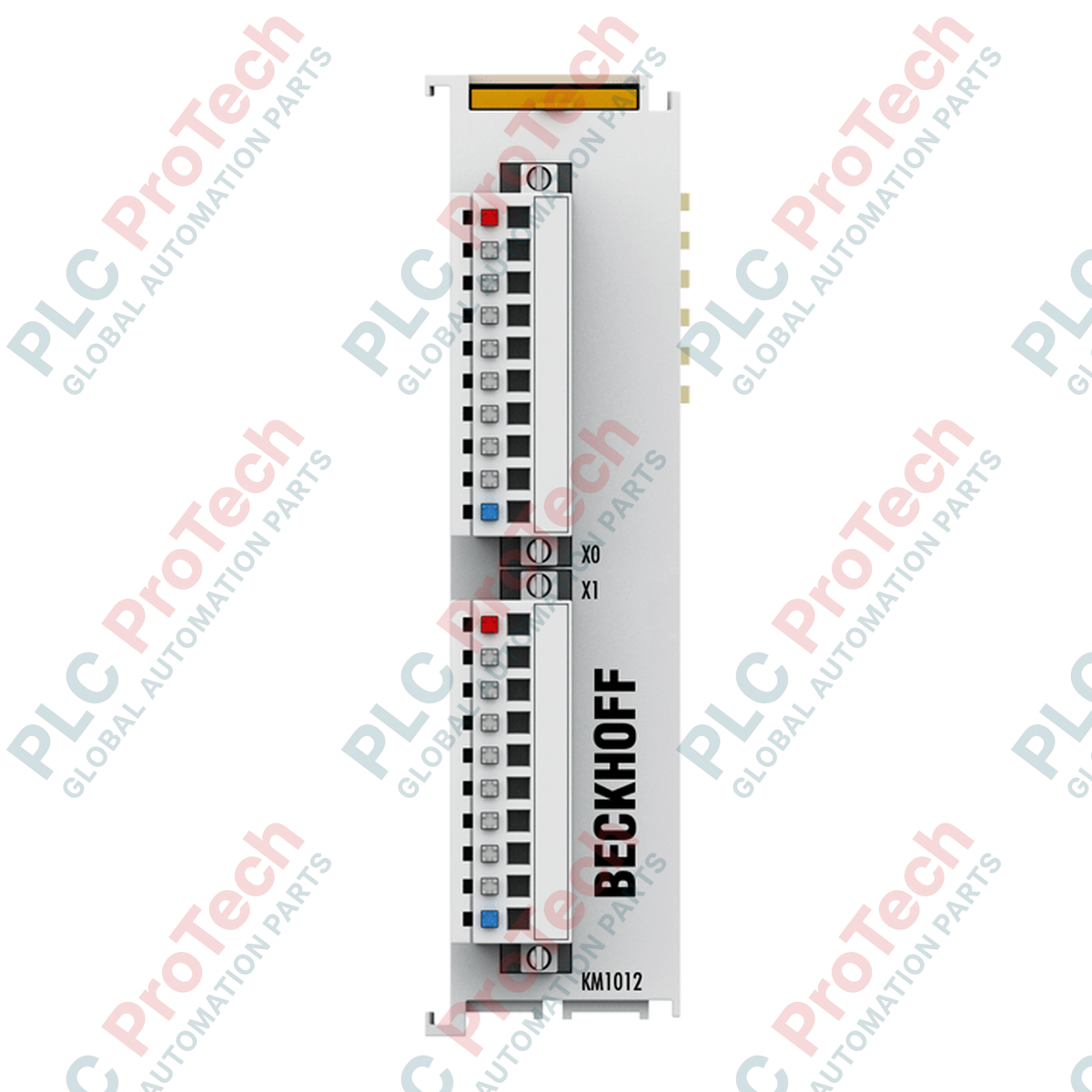

BECKHOFF KM1012-0002 Bus Terminal Module

SKU KM1012-0002

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: BECKHOFF
  • Product No.: KM1012-0002
  • Origin Germany
  • Product Type: Bus Terminal module
  • Payment: T/T, Western Union
  • Weight: 2.0 kg
  • Dimensions: 26.5 mm x 100 mm x 71 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Bus Terminals Digital Input Terminals
Quantità
Call sales Contact

Product Description

Description

The KM1012-0002 is a compact 16-channel digital input module designed for the Beckhoff I/O system. This Bus Terminal module efficiently consolidates 16 digital 24 V DC input signals into a high-density package, featuring two connectors with eight channels each. It utilizes pluggable connection technology and includes integrated LEDs for visual status indication of individual input channels. The module ensures reliable data transmission through electrical isolation between the K-bus and the field potential. Engineered for space-saving installations, it mounts directly onto standard 35 mm DIN rails and is fully integrated into the broader Beckhoff I/O ecosystem.

Features

  • 16-channel digital input in a compact terminal housing
  • High-speed signal processing with a typical 0.2 ms input filter
  • Integrated LEDs for status monitoring
  • Electrical isolation of 500 V between K-bus and field potential
  • Pluggable connection level for simplified wiring and maintenance
  • Variable installation position with IP20 protection rating
  • Standardized 24 V DC operating voltage (EN 61131-2, type 1)

Applications

  • High-density digital sensor signal acquisition
  • Space-constrained control cabinet designs
  • Distributed I/O nodes in PLC and industrial automation systems
  • Machine modules requiring efficient, modular signal wiring

Ordering Information

Part Number Description
KM1012-0000 Bus Terminal module, 16-channel digital input, 24VDC, 0.2ms, without connector
KM1012-0001 Bus Terminal module, 16-channel digital input, 24VDC, 0.2ms, 1-wire connector
KM1012-0002 Bus Terminal module, 16-channel digital input, 24VDC, 0.2ms, 1-wire connector with LEDs
KM1012-0004 Bus Terminal module, 16-channel digital input, 24VDC, 0.2ms, 3-wire connector with LEDs

Technical Specifications

Feature Specification
Manufacturer BECKHOFF
Part Number KM1012-0002
Number of Inputs 16 (2 x 8)
Nominal Voltage 24 V DC (-15 %/+20 %)
"0" Signal Voltage -3…+5 V
"1" Signal Voltage 15…30 V
Input Filter typ. 0.2 ms
Electrical Isolation 500 V (K-bus/field potential)
Dimensions (W x H x D) 26.5 mm x 100 mm x 71 mm
Operating Temperature 0 to +55 Celsius
Protection Rating IP20
Weight approx. 90–110 g
Shipping Weight 2 kg

Installation Guidelines

  • Mounting: Secure the module to a 35 mm DIN rail (EN 60715). Use the double slot and key connection for side-by-side mounting to ensure mechanical stability.
  • Wiring: Utilize the appropriate pluggable connector. Ensure the wire cross-section is between 0.08 and 1.5 mm². Strip the insulation to exactly 8 mm to ensure a proper connection in the terminal block.
  • Environment: Ensure the ambient temperature remains between 0 and +55 Celsius. While the unit is IP20 rated, ensure it is installed within an enclosure that prevents exposure to condensation and conductive dust.
  • Commissioning: The module requires no address or configuration settings; it is automatically detected by the K-bus controller.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary difference between the KM1012 variants?
The variants differ primarily in their connector configuration (1-wire vs 3-wire) and the inclusion of status LEDs.
Does the KM1012-0002 require manual address configuration?
No, this module requires no address or configuration settings as it is automatically recognized by the K-bus system.
What is the input filter time for this module?
The input filter time is typically 0.2 ms, allowing for fast signal detection.
Can the KM1012-0002 be mounted side-by-side?
Yes, it is designed for side-by-side mounting using the integrated double slot and key connection on the housing.
Reviews

More from this brand

ABB 1SAP131000R0278 PM5630-2ETH AC500 Processor Module
1SAP131000R0278 PM5630-2ETHABB 1SAP131000R0278 PM5630-2ETH AC500 Processor Module
ABB DSQC 351 3HNE 00006-1 DeviceNet/Interbus Gateway Module
DSQC351 3HNE00006-1ABB DSQC 351 3HNE 00006-1 DeviceNet/Interbus Gateway Module
ABB 3BSE008544R2 AI820-eA S800 I/O Analog Input Module
3BSE008544R2 AI820-eAABB 3BSE008544R2 AI820-eA S800 I/O Analog Input Module
ABB 8VZZ000167H1 DO05 16CH Digital Output w/Relay I/O Module
8VZZ000167H1 DO05ABB 8VZZ000167H1 DO05 16CH Digital Output w/Relay I/O Module

KM1012-0002

Stock & lead time on request

Call
  • KM1012-0002
1 1

BECKHOFF KM1012-0002 Bus Terminal Module

Only 10 item(s) left in stock

  • Manufacturer: BECKHOFF

  • Product No.: KM1012-0002

  • Country of origin:Germany

  • Product Type: Bus Terminal module

  • Payment: T/T, Western Union

  • Weight: 2000g

  • Dimensions: 26.5 mm x 100 mm x 71 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

The KM1012-0002 is a compact 16-channel digital input module designed for the Beckhoff I/O system. This Bus Terminal module efficiently consolidates 16 digital 24 V DC input signals into a high-density package, featuring two connectors with eight channels each. It utilizes pluggable connection technology and includes integrated LEDs for visual status indication of individual input channels. The module ensures reliable data transmission through electrical isolation between the K-bus and the field potential. Engineered for space-saving installations, it mounts directly onto standard 35 mm DIN rails and is fully integrated into the broader Beckhoff I/O ecosystem.

Features

  • 16-channel digital input in a compact terminal housing
  • High-speed signal processing with a typical 0.2 ms input filter
  • Integrated LEDs for status monitoring
  • Electrical isolation of 500 V between K-bus and field potential
  • Pluggable connection level for simplified wiring and maintenance
  • Variable installation position with IP20 protection rating
  • Standardized 24 V DC operating voltage (EN 61131-2, type 1)

Applications

  • High-density digital sensor signal acquisition
  • Space-constrained control cabinet designs
  • Distributed I/O nodes in PLC and industrial automation systems
  • Machine modules requiring efficient, modular signal wiring

Ordering Information

Part Number Description
KM1012-0000 Bus Terminal module, 16-channel digital input, 24VDC, 0.2ms, without connector
KM1012-0001 Bus Terminal module, 16-channel digital input, 24VDC, 0.2ms, 1-wire connector
KM1012-0002 Bus Terminal module, 16-channel digital input, 24VDC, 0.2ms, 1-wire connector with LEDs
KM1012-0004 Bus Terminal module, 16-channel digital input, 24VDC, 0.2ms, 3-wire connector with LEDs

Technical Specifications

Feature Specification
Manufacturer BECKHOFF
Part Number KM1012-0002
Number of Inputs 16 (2 x 8)
Nominal Voltage 24 V DC (-15 %/+20 %)
"0" Signal Voltage -3…+5 V
"1" Signal Voltage 15…30 V
Input Filter typ. 0.2 ms
Electrical Isolation 500 V (K-bus/field potential)
Dimensions (W x H x D) 26.5 mm x 100 mm x 71 mm
Operating Temperature 0 to +55 Celsius
Protection Rating IP20
Weight approx. 90–110 g
Shipping Weight 2 kg

Installation Guidelines

  • Mounting: Secure the module to a 35 mm DIN rail (EN 60715). Use the double slot and key connection for side-by-side mounting to ensure mechanical stability.
  • Wiring: Utilize the appropriate pluggable connector. Ensure the wire cross-section is between 0.08 and 1.5 mm². Strip the insulation to exactly 8 mm to ensure a proper connection in the terminal block.
  • Environment: Ensure the ambient temperature remains between 0 and +55 Celsius. While the unit is IP20 rated, ensure it is installed within an enclosure that prevents exposure to condensation and conductive dust.
  • Commissioning: The module requires no address or configuration settings; it is automatically detected by the K-bus controller.
Key Features:
#Bus Terminals #Digital Input Terminals

What is the primary difference between the KM1012 variants?
The variants differ primarily in their connector configuration (1-wire vs 3-wire) and the inclusion of status LEDs.

Does the KM1012-0002 require manual address configuration?
No, this module requires no address or configuration settings as it is automatically recognized by the K-bus system.

What is the input filter time for this module?
The input filter time is typically 0.2 ms, allowing for fast signal detection.

Can the KM1012-0002 be mounted side-by-side?
Yes, it is designed for side-by-side mounting using the integrated double slot and key connection on the housing.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
