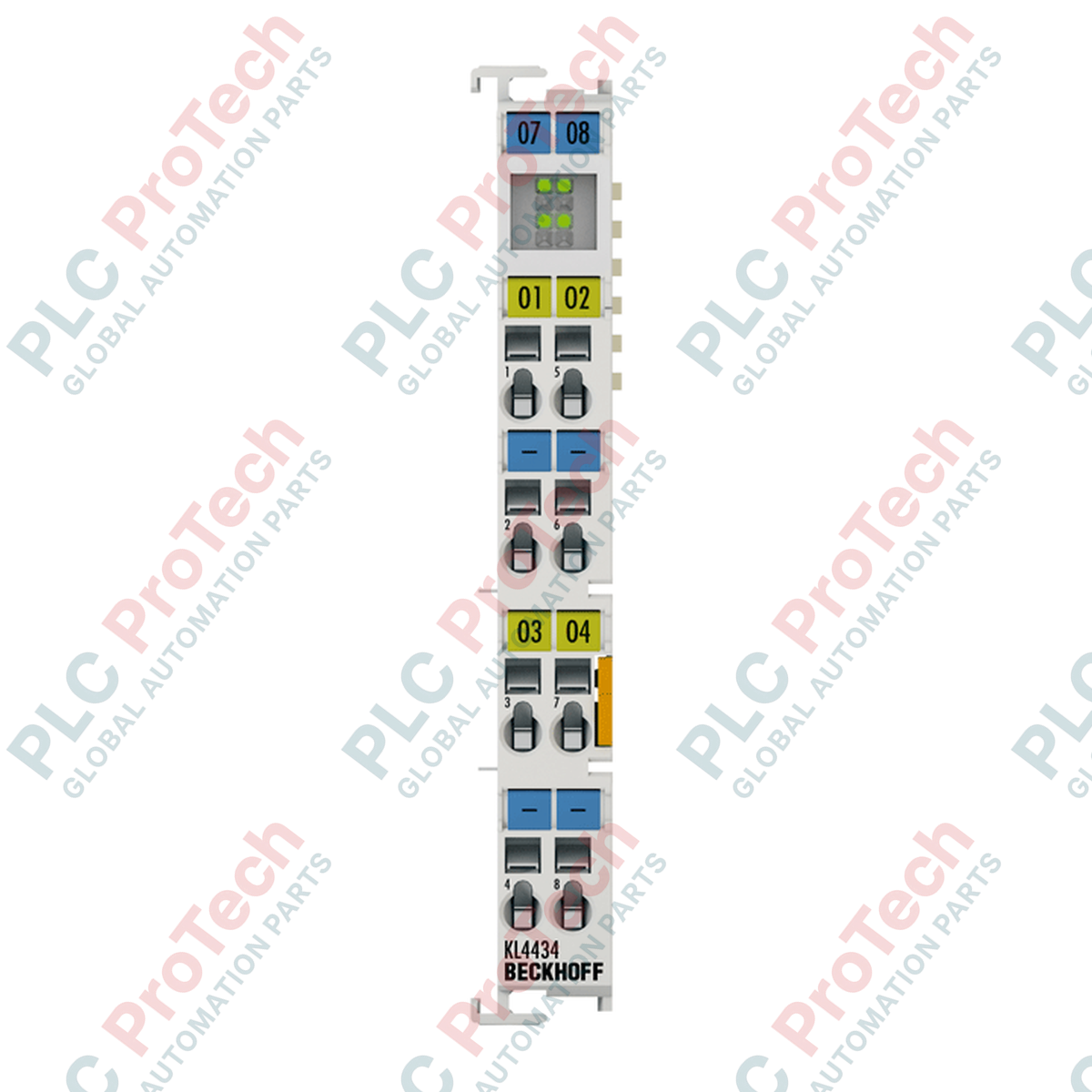

Engineered for precise analog automation control, the BECKHOFF KS4434 analog output terminal delivers four channels of high-resolution control signals. Operating within a standard range of -10 to +10 V, this bus terminal features single-ended circuitry designed to drive analog actuators, control valves, and speed-controlled motor drives with precision.
A defining feature of the KS series is its pluggable wiring level, enabling fast, tool-free module replacement without disrupting existing system wiring. Integrating seamlessly into the Beckhoff K-bus system, the module transmits electrically isolated signals back to the automation controller, maintaining process stability and protecting sensitive upstream components from electrical noise.
| System & Electrical Parameters | |
|---|---|
| Manufacturer | BECKHOFF |
| Part Number / Model | KS4434 |
| Number of Outputs | 4 |
| Signal Voltage Range | -10 to +10 V |
| Output Load | > 5 kOhm (short-circuit proof) |
| Output Error | < +/-0.1 % (relative to full-scale value) |
| Resolution | 12 bit |
| Conversion Time | ~ 4 ms |
| Electrical Isolation | 500 V (K-bus / signal voltage) |
| Current Consumption K-bus | Typ. 20 mA |
| Process Image Bit Width | Output: 4 x 16-bit data (optional 4 x 8-bit control/status) |
| Current Load Power Contacts | Max. 10 A |
| Mechanical & Environmental Data | |
|---|---|
| Connection Technology | Spring actuation (tension clamp) |
| Solid Wire Cross-Section | 0.08 to 1.5 mm² (AWG 28 to 16) |
| Fine-Strand Wire Cross-Section | 0.14 to 1.5 mm² (AWG 26 to 16) |
| Stripping Length | 9 to 10 mm |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | 0.075 kg |
| Housing Material | Polycarbonate |
| Mounting | 35 mm DIN rail (EN 60715) with lock |
| Operating Temperature | 0 to 55 degC |
| Storage Temperature | -25 to +85 degC |
| Relative Humidity | 95%, non-condensing |
| Protection Rating | IP20 |
