Description

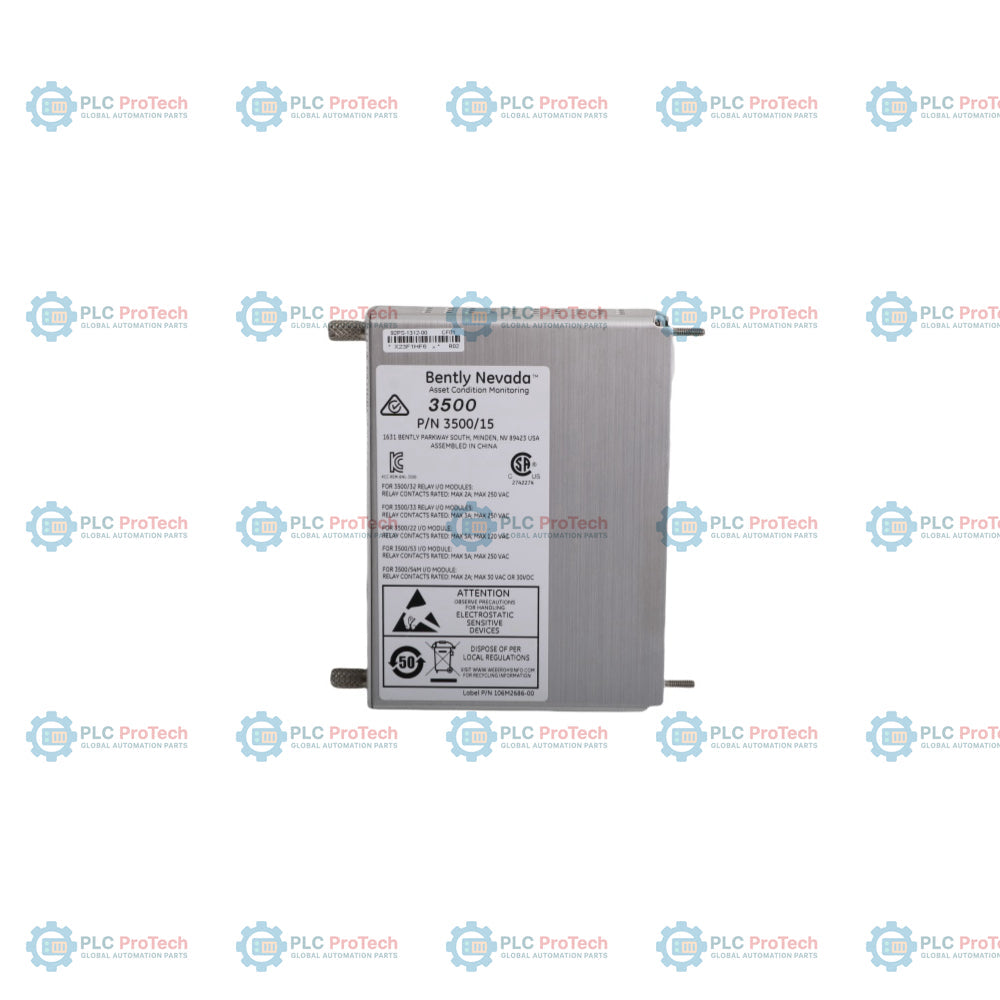

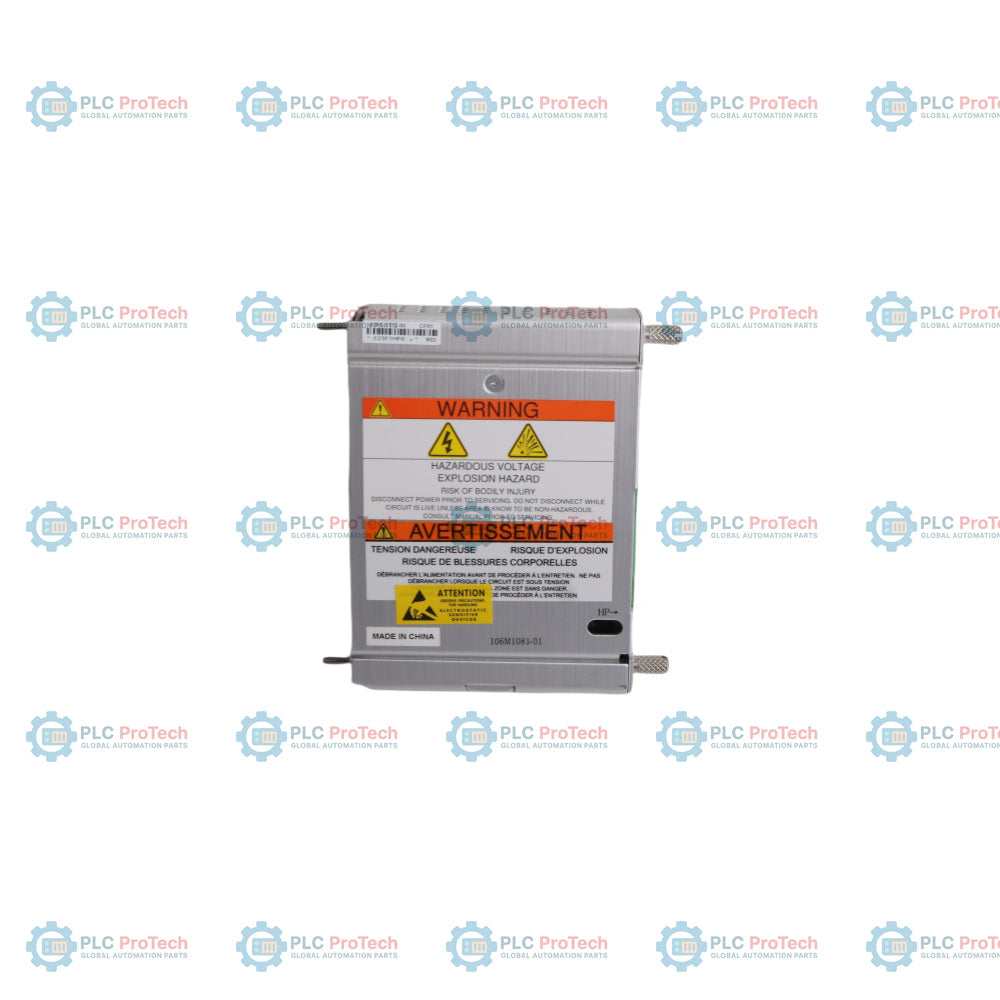

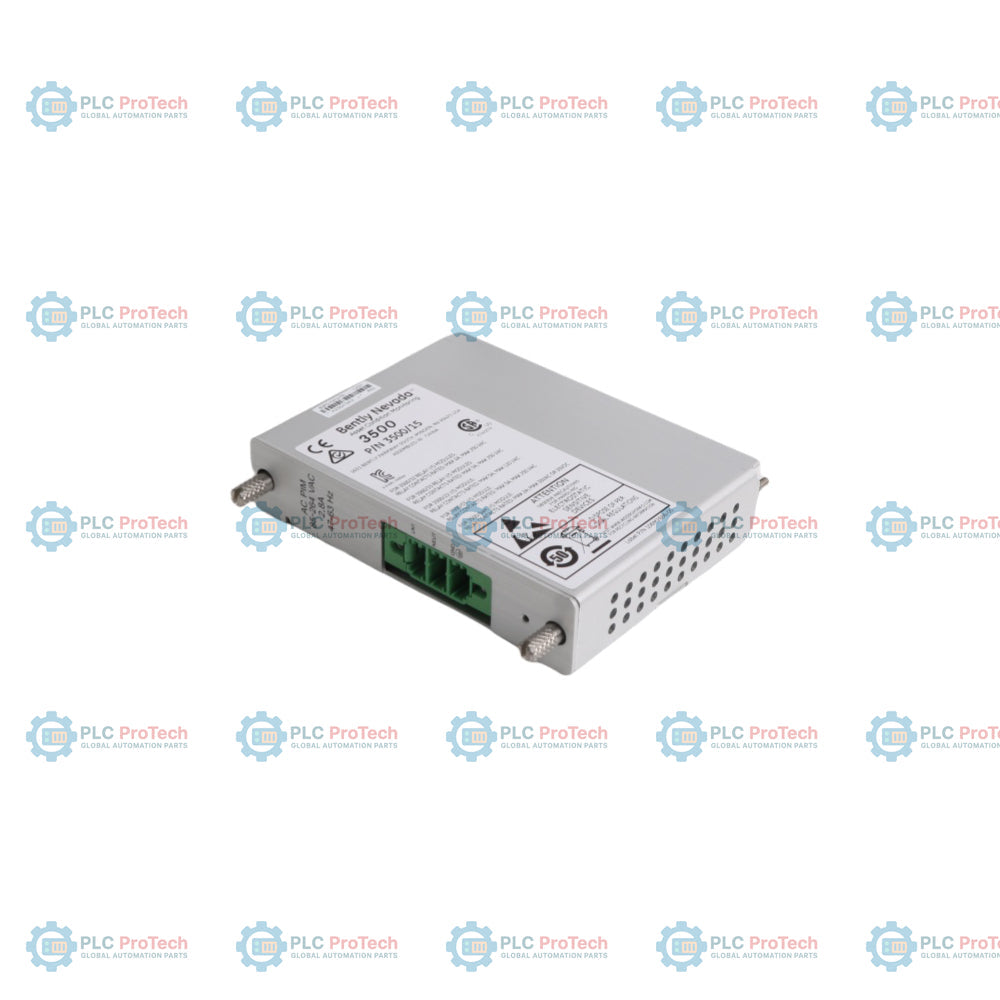

The 106M1081-01 Universal AC Power Input Module (PIM) is a rear-mount power interface module engineered for the Bently Nevada 3500/15 AC and DC Power Supplies system. Positioned in the rear slot directly behind its associated front-facing power supply module, the 106M1081-01 receives line AC power and routes it to the 106M1079-01 Universal AC Power Supply module. It converts incoming AC line voltage into acceptable operating levels for the 3500 Series Machinery Protection System rack. Note that the 106M1081-01 Universal AC PIM is not compatible with legacy 3500 AC power supplies or legacy AC power input modules.

Features

• Accepts nominal 110 to 220 Vac input with wide operating limits (85 to 264 Vac rms for non-hazardous areas, 85 to 250 Vac rms for hazardous areas).
• Dedicated half-height module design installed directly behind the matching front-facing power supply module.
• Operates in combination with the 3500/15 Universal AC Power Supply module (106M1079-01).
• Integrated over-voltage protection via fuse located on the power input module.
• Built-in protection ensuring under-voltage conditions cause no damage to the module or power supply.
• Supports seamless module insertion and removal without interrupting rack operation in dual-redundant power configurations.

Applications

• AC-powered 3500 Series Machinery Protection System racks.
• Turbomachinery vibration, axial position, and condition monitoring systems.
• Continuous critical machinery protection in power generation, oil and gas, and petrochemical facilities.

Technical Specifications

Installation Guidelines

• Rack Mounting Location: Mount the module in the special half-height rear slot located directly behind the associated 3500/15 Universal AC Power Supply module.
• Redundant Operations: In dual-supply rack setups, inserting or removing either power supply module will not interrupt rack operation as long as a secondary supply is active.
• Voltage and Wiring Security: Ensure AC supply lines adhere to specified input voltage limits (85 to 264 Vac rms non-hazardous / 85 to 250 Vac rms hazardous) and frequency range (47 to 63 Hz).
• Fuse Maintenance: If an over-voltage condition causes the module fuse to open, replace it using verified replacement fuse part number 120M3877.
• Compatibility Check: Verify that the front power supply module is the matching 106M1079-01 Universal AC Power Supply, as legacy AC modules are incompatible.

Compliance and Certifications

• FCC: Part 15 Class A
• EMC Directives: European Community Directive 2014/30/EU; EN 61000-6-2, EN 61000-6-4
• Electrical Safety: European Community Directive 2014/35/EU; EN 61010-1
• RoHS: European Community Directive 2011/65/EU
• Maritime Approvals: DNV GL rules for classification; ABS Rules for Condition of Classification
• Hazardous Area Approvals: Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc; Class I, Zone 2: AEx/Ex ec nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, and D (T4 @ Ta = -20 degC to +65 degC)
• ATEX / IECEx: Ex II 3 G; Ex nA nC ic IIC T4 Gc; Ex ec nC ic IIC T4 Gc (T4 @ Ta = -20 degC to +65 degC)
