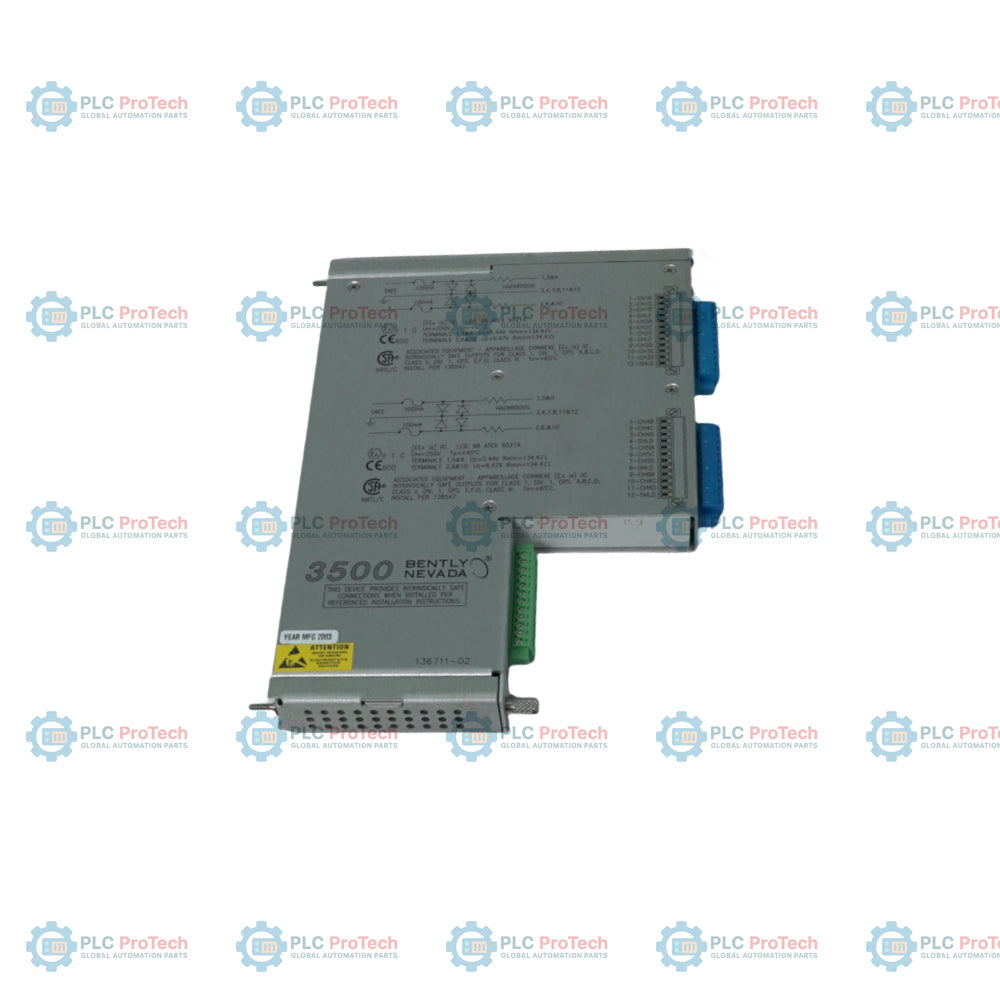

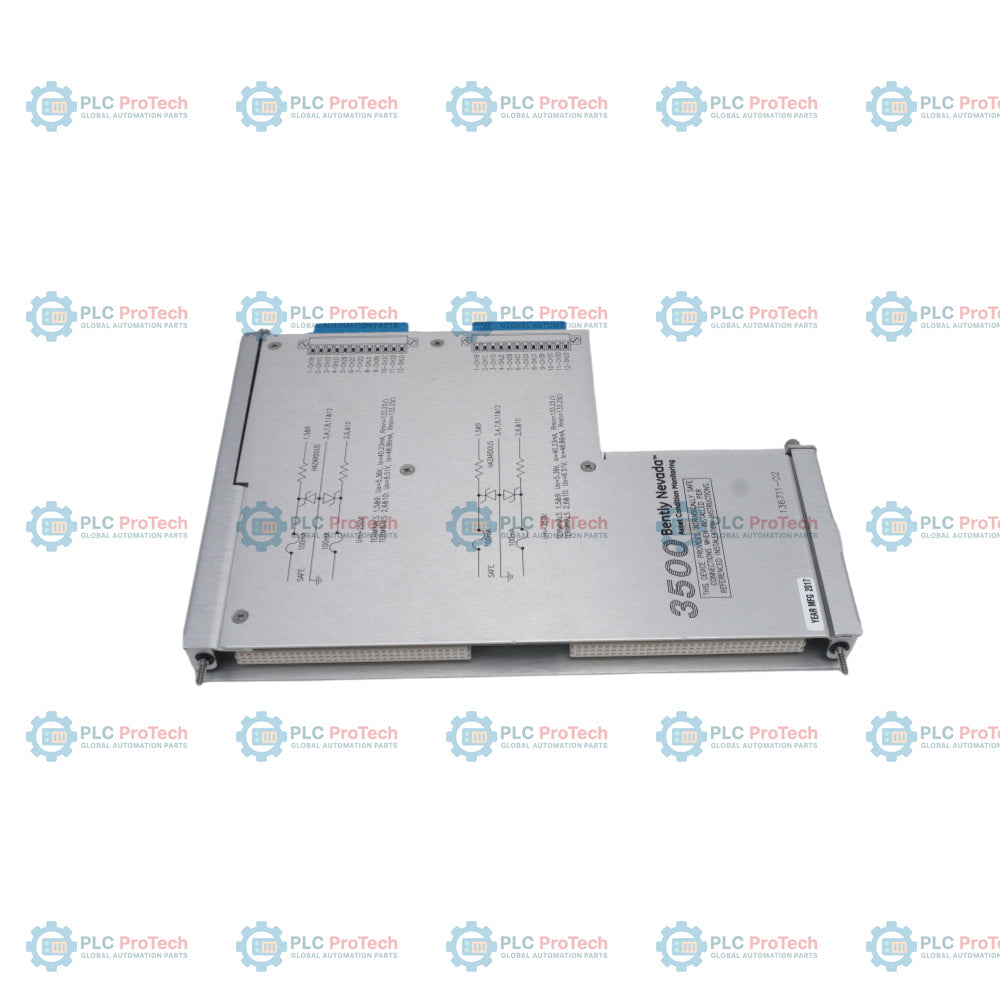

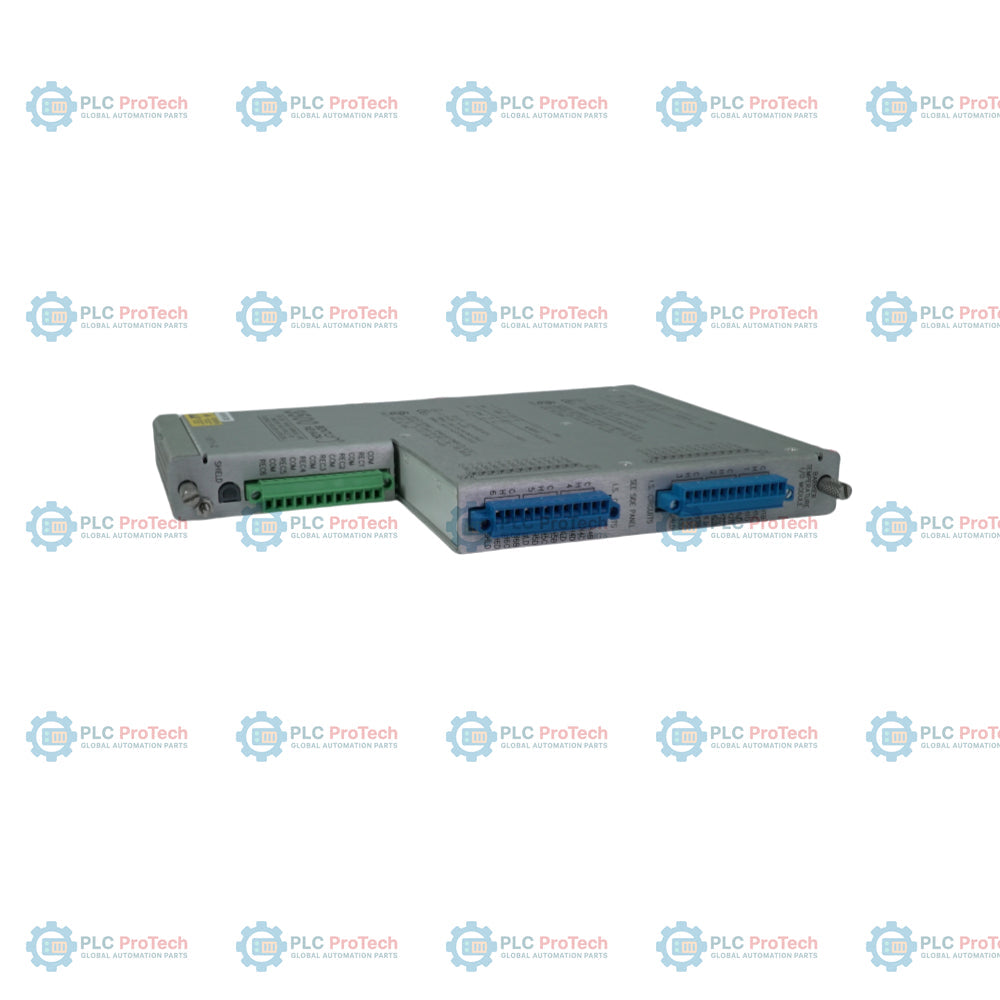

The Bently Nevada 136711-02 is a non-isolated RTD/TC I/O module with internal barriers and internal terminations designed for processing temperature transducer inputs within the 3500 Machinery Protection System. Installed in a full-height rear slot directly behind the 3500/61 Temperature Monitor main module, it accepts input signals from up to six Resistance Temperature Detector (RTD) or Thermocouple (TC) transducers. The 136711-02 channels conditioned signals and +4 to +20 mA proportional recorder outputs through integrated internal barriers to support intrinsically safe machinery monitoring applications in industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 136711-02 |
| Compatible Main Module | 3500/61 Temperature Monitor |
| Module Type | RTD/TC Non-Isolated I/O Module with Internal Barriers and Internal Terminations |
| Number of Channels | Accepts 1 to 6 RTD or TC transducer signals |
| Input Impedance | Greater than 10 Mohm for each lead input |
| Thermocouple Types | Type E (-100 degC to +1000 degC), Type J (0 degC to +760 degC), Type K (0 degC to +1370 degC), Type T (-160 degC to +400 degC) |
| RTD Types | 100 ohm 3-wire & 4-wire platinum (alpha = 0.00385 or 0.00392), 120 ohm 3-wire & 4-wire nickel, 10 ohm 3-wire & 4-wire copper |
| RTD Current Source Value | 925 +-15 uA at 25 degC per transducer |
| Recorder Outputs | +4 to +20 mA proportional to monitor full-scale (individual per channel) |
| Voltage Compliance (Current Output) | 0 to +12 Vdc range across load (0 to 600 ohm load resistance) |
| Recorder Output Resolution | 0.3662 uA per bit +-0.15% error at room temperature (+-0.4% error over temperature range) |
| Operating Temperature | 0 degC to +65 degC (32 degF to +150 degF) when used with Internal Barrier I/O Modules |
| Storage Temperature | -40 degC to +85 degC (-40 degF to +185 degF) |
| Rack Space Requirement | 1 full-height rear slot |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in) |
| Weight | 0.46 kg (1.01 lbs) |
| Certification / Standard | Standard / Details |
|---|---|
| EMC Directive | 2004/108/EC (EN 61000-6-2, EN 55011/CISPR 11, EN 61000-6-4) |
| Low Voltage Directive | 2006/95/EC (EN 61010-1) |
| North American Hazardous Area Approval | Ex nC [ia] IIC: Class I, Div 1; AEx nC [ia] IIC: Class 1, Zone 2/0 Groups A, B, C, D; T4 @ Ta = -20 degC to +65 degC |
| ATEX Approval | II 3/(1) G, Ex nC[ia Ga] IIC T4 Gc, T4 @ Ta = -20 degC to +65 degC |
| Brazil Approval (3500/61 only) | BR-Ex nC[nL] IIC T4, T4 @ Ta = -20 degC to +65 degC |
| South Africa Approval | Ex nCAL [ia] IIC T4, Ex nCAL [L] IIC T4, T4 @ Ta = -20 degC to +65 degC |
