Bently Nevada

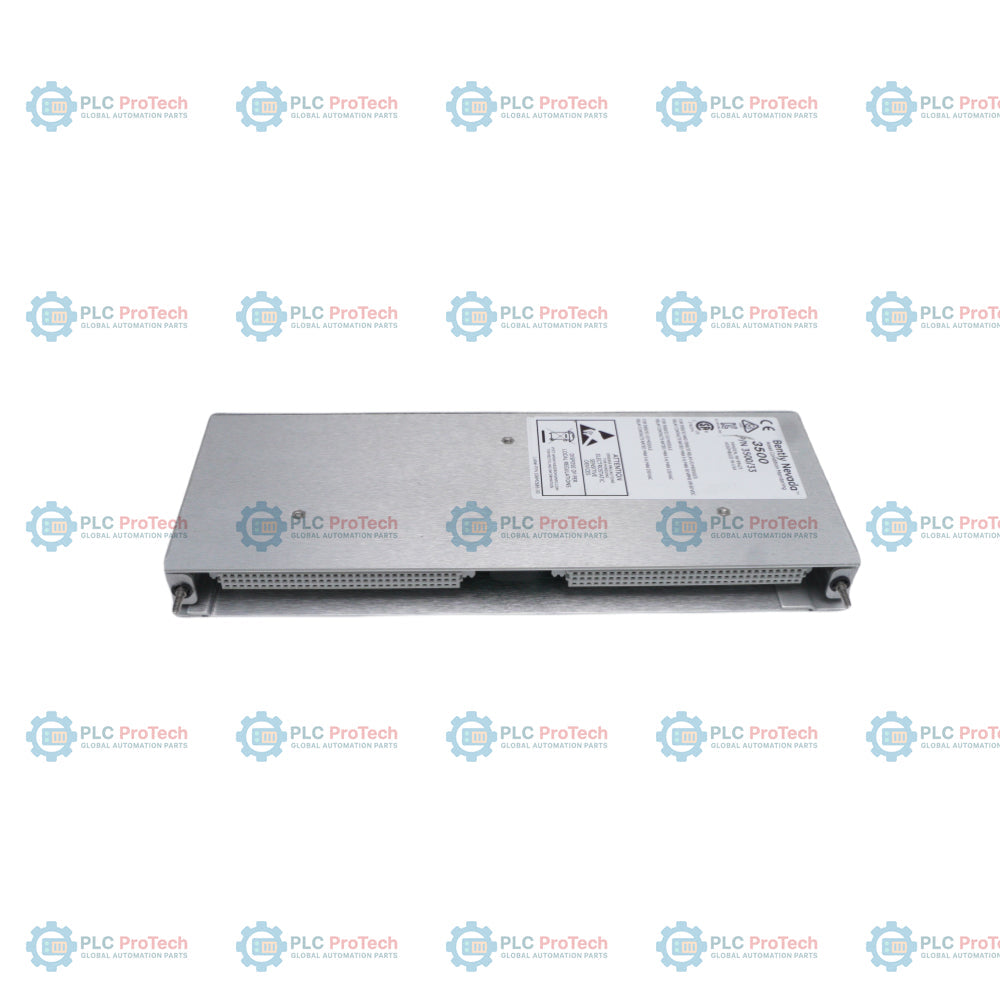

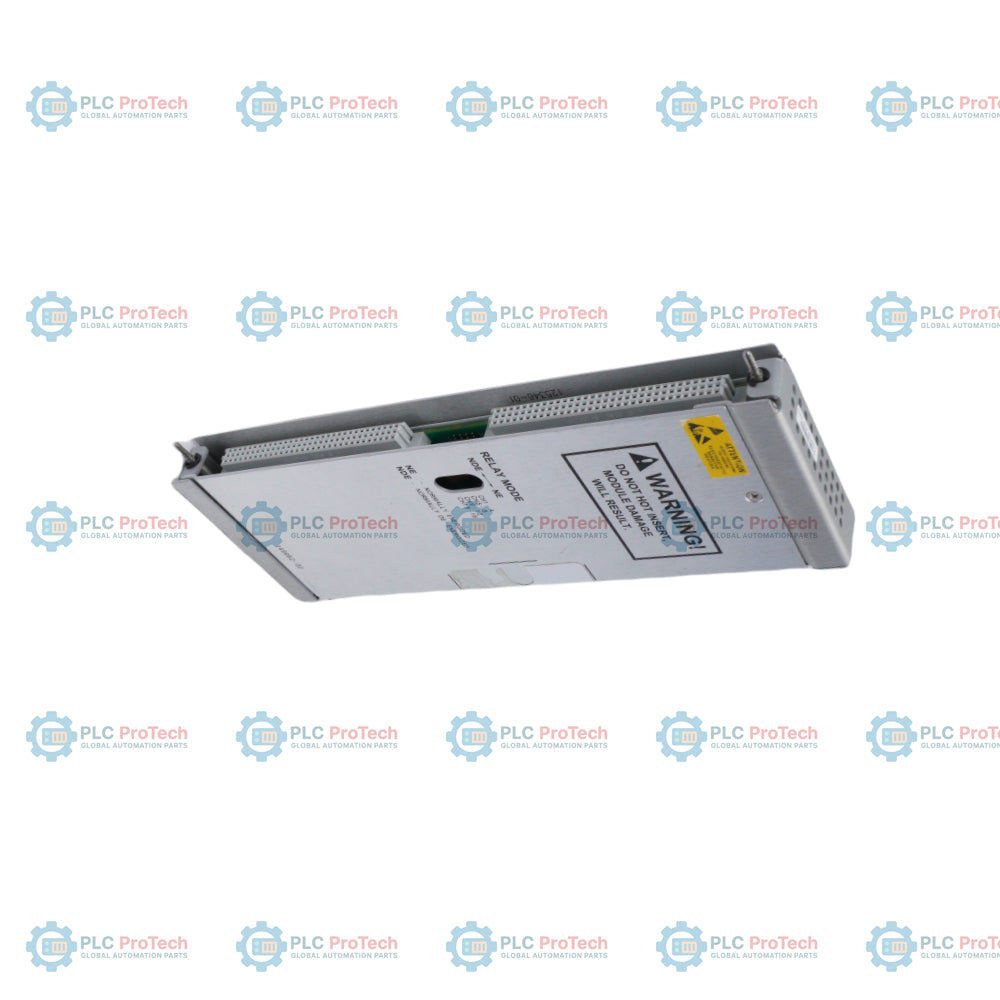

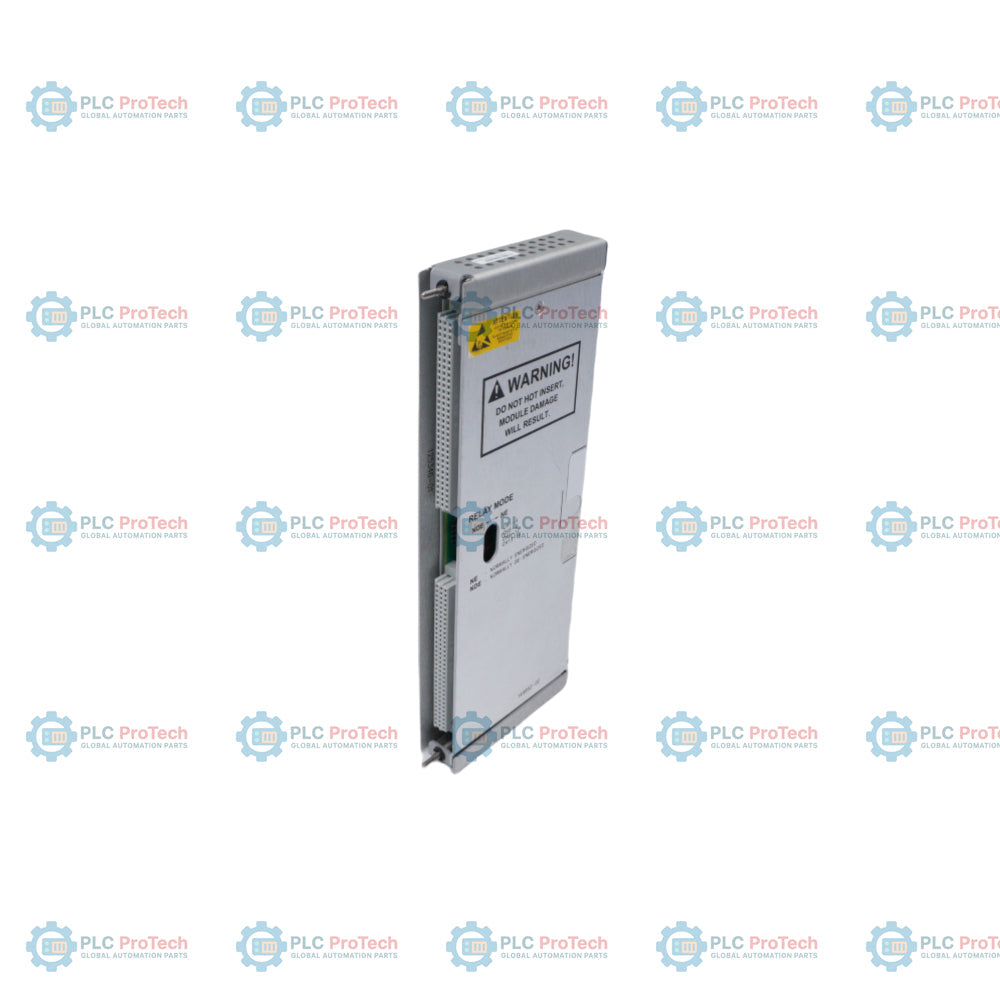

Bently Nevada 149992-02 Spare 16-Channel Failsafe Relay Output Module

SKU 149992-02

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 149992-02
  • Origin United States
  • Product Type: Failsafe Relay Output Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.4 kg
  • Dimensions: 2.44 cm x 24.1 cm x 9.91 cm (W x H x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 149992-02 Spare 16-Channel Failsafe Relay Output Module

Quantità

Product Description

Description

The Bently Nevada 149992-02 is a Spare 16-Channel Failsafe Relay Output Module designed for emergency shutdown logic and machinery protection within the Bently Nevada 3500 Machinery Protection System. Operating as the dedicated rear I/O component paired with the 3500/33 16-Channel Relay Control Module, the 149992-02 provides 16 single-pole double-throw (SPDT) relay output channels equipped with standard epoxy-sealed electromechanical contacts and 250 Vrms relay arc suppressors. The module receives programmed voting logic commands from the front main module via the 3500 rack backplane, supporting complex AND/OR Alarm Drive Logic based on alert/danger statuses, Not-OK conditions, and individual measured variables from monitoring channels.

Features

  • Provides 16 independent single-pole double-throw (SPDT) relay channels for machinery alarm and shutdown drive outputs.
  • Configured with standard silver relay contacts suitable for standard switching applications.
  • Integrated with standard 250 Vrms relay arc suppressors on each output contact.
  • Features DIP switch selectable operation for four groups of four channels to set Normally De-energized (ND) or Normally Energized (NE) modes.
  • Accepts direct field wiring via a 16-position green internal termination connector header.

Applications

  • Emergency machinery shutdown and protective tripping systems.
  • External alarm drive and annunciation signal routing.
  • Machinery protection interfacing within Bently Nevada 3500 system racks.

Ordering Information

Part Number Description
3500/33-AA-BB 16-Channel Relay Module
A: Output Module Option
01 16-Channel Relay Output Module
02 16-Channel Failsafe Relay Output Module
03 Low Current 16-Channel Relay Output Module
04 Low Current 16-Channel Failsafe Relay Output Module
B: Agency Approval Option
00 None
01 cNRTLus (Class 1, Division 2)
02 ATEX / IECEx / CSA (Class 1, Zone 2)
Spares
149986-01 Spare 16-Channel Relay Control Module
149992-01 Spare 16-Channel Relay Output Module
149992-02 Spare 16-Channel Failsafe Relay Output Module
149992-03 Spare 16-Channel Low Current Relay Output Module
149992-04 Spare 16-Channel Low Current Failsafe Relay Output Module
Accessories
00580453 Connector Header Internal Termination 16-position Green
166M2381 Connector Header Push-in-Spring Type (Alternative for PN 00580453)
04425545 Grounding Wrist Strap (single use)

Technical Specifications

Category Parameter Value
Basic Information Manufacturer Bently Nevada
  Module Type Spare 16-Channel Failsafe Relay Output Module
Physical Specifications Slot Requirement 1 full-height rear slot
  Dimensions (H x W x D) 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
  Weight 0.4 kg (1.0 lb)
Relay Specifications Relay Type Single-pole Double-throw (SPDT) Relay
  Relay Sealing Epoxy-sealed
  Relay Arc Suppressor 250 Vrms (installed as standard)
  Relay Contact Life 10,000 cycles
  Relay Operation 4 groups of 4 channels switch selectable for Normally De-energized (ND) or Normally Energized (NE)
Contact Ratings (Standard Relays) Minimum Switched Load 100 mA @ 5 Vdc
  Maximum Switched Current 5 A
  Maximum Switched Voltage (DC) 30 Vdc (Failsafe / Hazardous Area Systems)
  Maximum Switched Voltage (AC) 250 Vac
  Maximum Switched Power (AC) 1200 VA
  Maximum Switched Power (DC) 70 W @ 24 Vdc / 10 W @ 48 Vdc / 9 W @ 60 Vdc
Software Requirements Rack Configuration 3500 Rack Config, version 3.3 or later
  Data Acquisition 3500 Data Acquisition Software, version 2.40 or later
  Data Display 3500 Data Display Software, version 1.40 or later

Installation Guidelines

  • Install the module into a dedicated 1 full-height rear slot directly behind the corresponding 3500/33 main control module in the 3500 rack.
  • Do not hot insert the module to prevent electrical damage.
  • Select Normally De-energized (NDE) or Normally Energized (NE) modes for each 4-channel group using the RELAY MODE DIP switches on the side of the module prior to installation.
  • Connect field wiring to the 16-position green terminal block connector header (PN 00580453) or optional push-in spring header (PN 166M2381).
  • Ensure proper grounding procedures and wear a grounding wrist strap during installation and handling.

Compliance and Certifications

Standard / Directive Certification / Approval
FCC Part 15 Class A
EMC Directive 2014/30/EU; EN 61000-6-2, EN 61000-6-4
Electrical Safety LV Directive 2014/35/EU; EN 61010-1
RoHS Directive 2011/65/EU
Maritime DNV GL rules for classification; ABS Rules for Condition of Classification
Hazardous Area (cNRTLus) Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc; Class I, Zone 2: AEx/Ex ec nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, D; T4 @ Ta = -20 degC to +65 degC
Hazardous Area (ATEX/IECEx) II 3 G; Ex nA nC ic IIC T4 Gc; Ex ec nC ic IIC T4 Gc; T4 @ Ta = -20 degC to +65 degC
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Which chassis slot does the relay module occupy?
The module installs into one full-height rear slot directly behind the front control module.
What contact type is featured on the failsafe relay output module?
The device utilizes single-pole double-throw epoxy-sealed electromechanical contacts with built-in arc suppressors.
How are the relay activation modes configured on the module?
Onboard DIP switches select Normally De-energized or Normally Energized mode in four 4-channel groups.
