Description

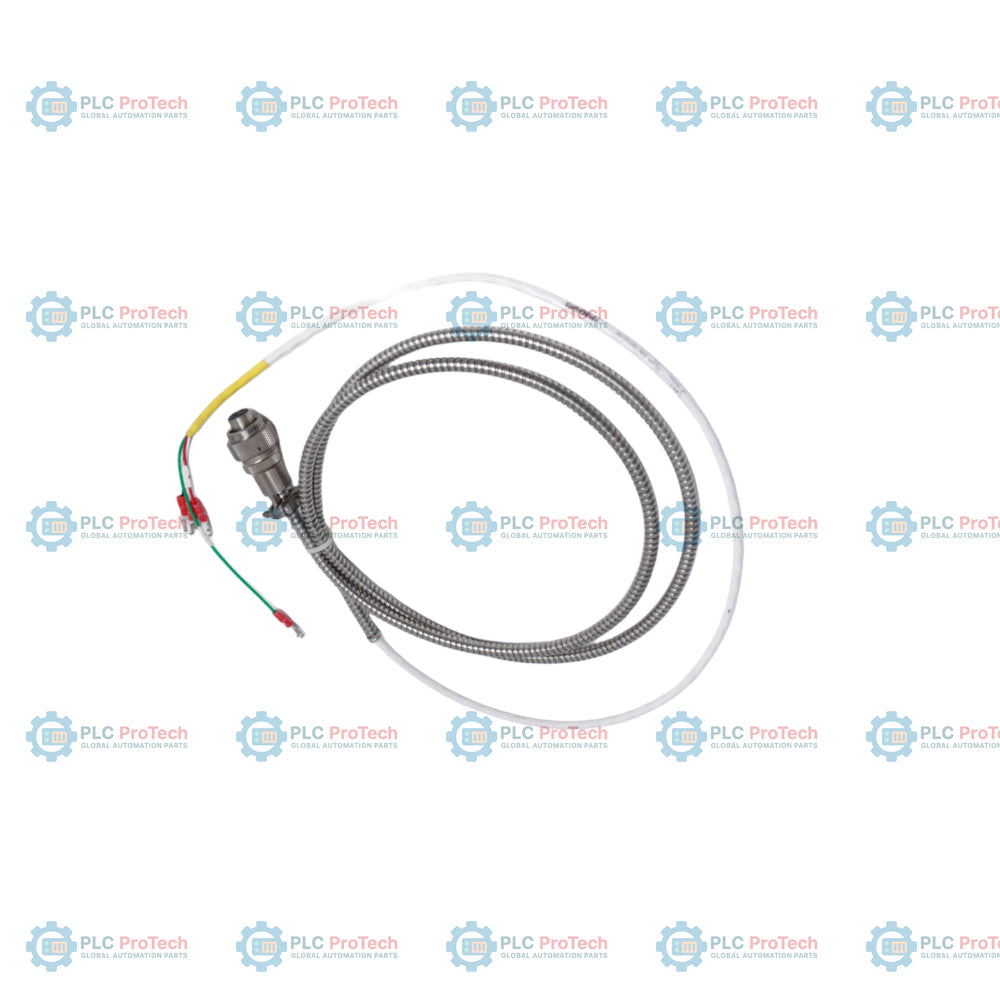

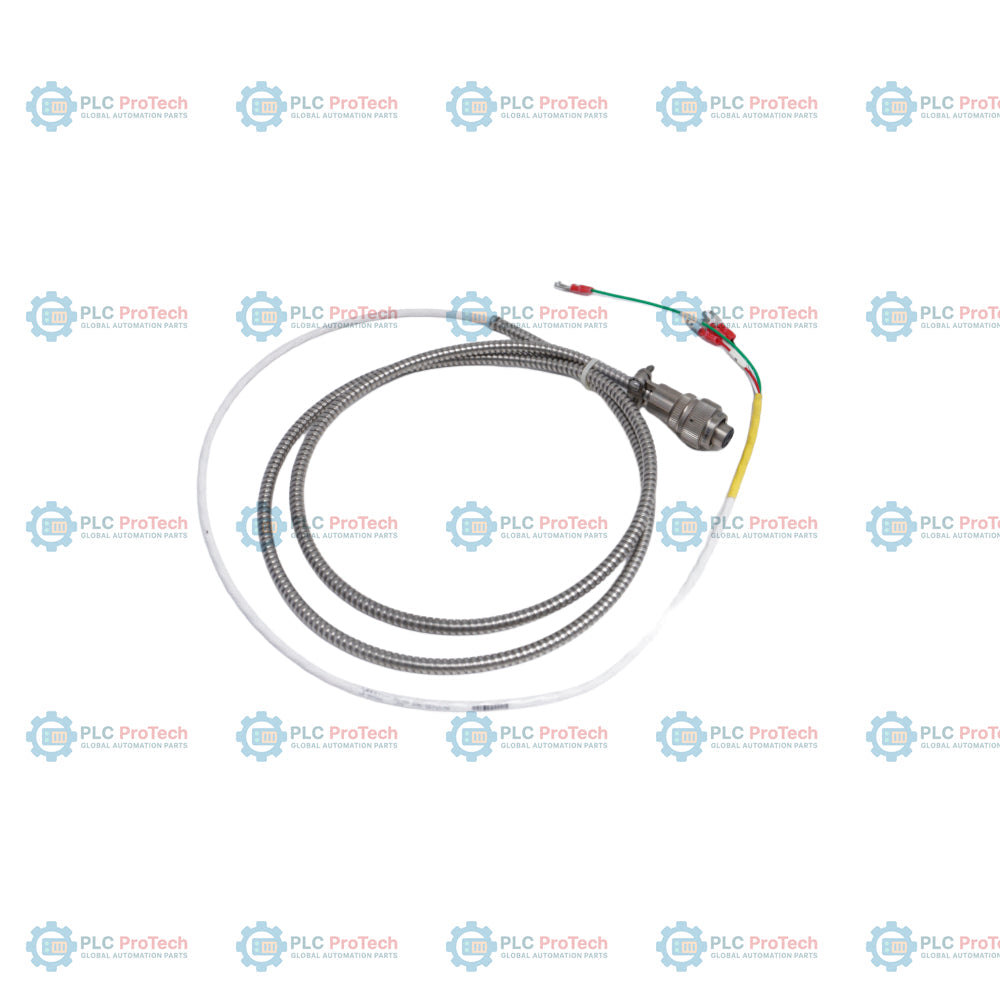

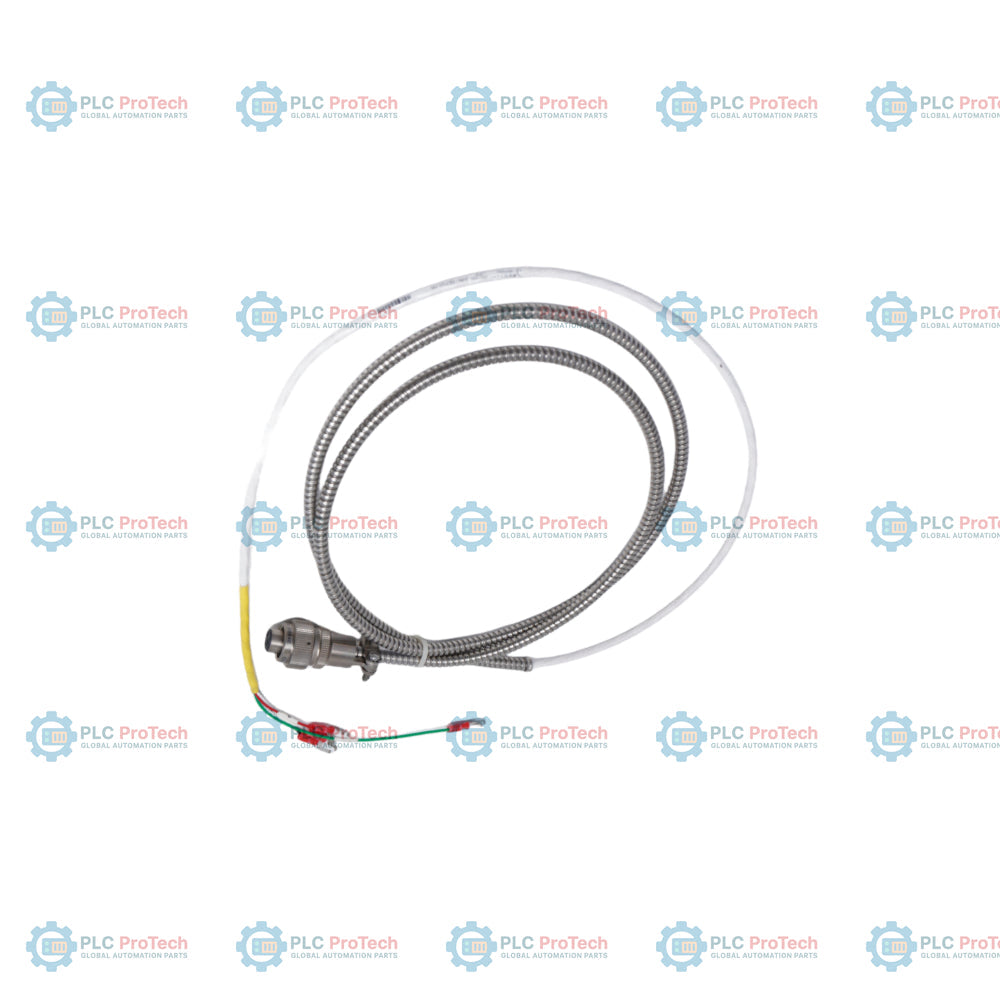

The 16710-06 is a high-quality interconnect cable designed specifically for use with Bently Nevada 330400 and 330425 accelerometers in critical machinery monitoring applications. This cable features a 6 ft (1.8 m) length, providing the necessary signal transmission path between the acceleration transducer and the monitoring system interface. As a 3-conductor shielded cable, the 16710-06 is engineered to minimize electromagnetic interference, ensuring accurate vibration data acquisition in industrial environments. It terminates in a 3-socket plug at the transducer end and utilizes terminal lugs for connection at the monitoring or junction box end, facilitating reliable installation in machinery protection systems.

Features

• 6 ft (1.8 m) cable length for standard machine casing installations
• 3-conductor shielded 22 AWG (0.5 mm2) construction for signal integrity
• 3-socket plug connector at the accelerometer end
• Terminal lug termination for robust system integration
• Compatible with Bently Nevada 330400 and 330425 acceleration transducers

Applications

• Critical machinery protection and monitoring
• Casing vibration measurement
• Gear mesh monitoring
• Rotating machinery diagnostics

Ordering Information

Orderable Part Number	16710-06	Interconnect Cable, 6 ft (1.8 m)
A - Cable Length	06	6.0 ft (1.8 m)

Technical Specifications

Manufacturer	Bently Nevada
Part Number	16710-06
Cable Type	3-conductor shielded, 22 AWG (0.5 mm2)
Length	6 ft (1.8 m)
Connector (Sensor End)	3-socket plug (MIL-C-5015 style)
Termination (Field End)	Terminal lugs
Shielding	Integrated shield

Installation Guidelines

• Ensure the cable is routed in conduit or protected raceways to prevent mechanical damage.
• Maintain proper segregation from high-voltage power lines to reduce potential noise injection.
• Verify that the 3-socket plug is securely seated on the accelerometer to ensure an IP68-rated seal.
• Use appropriate strain relief at the junction box to prevent tension on the terminal lugs.

Compliance and Certifications

• China RoHS (EFUP 15 years)
• Designed for use with equipment compliant with IEC 60079-0/7/15 standards
