Description

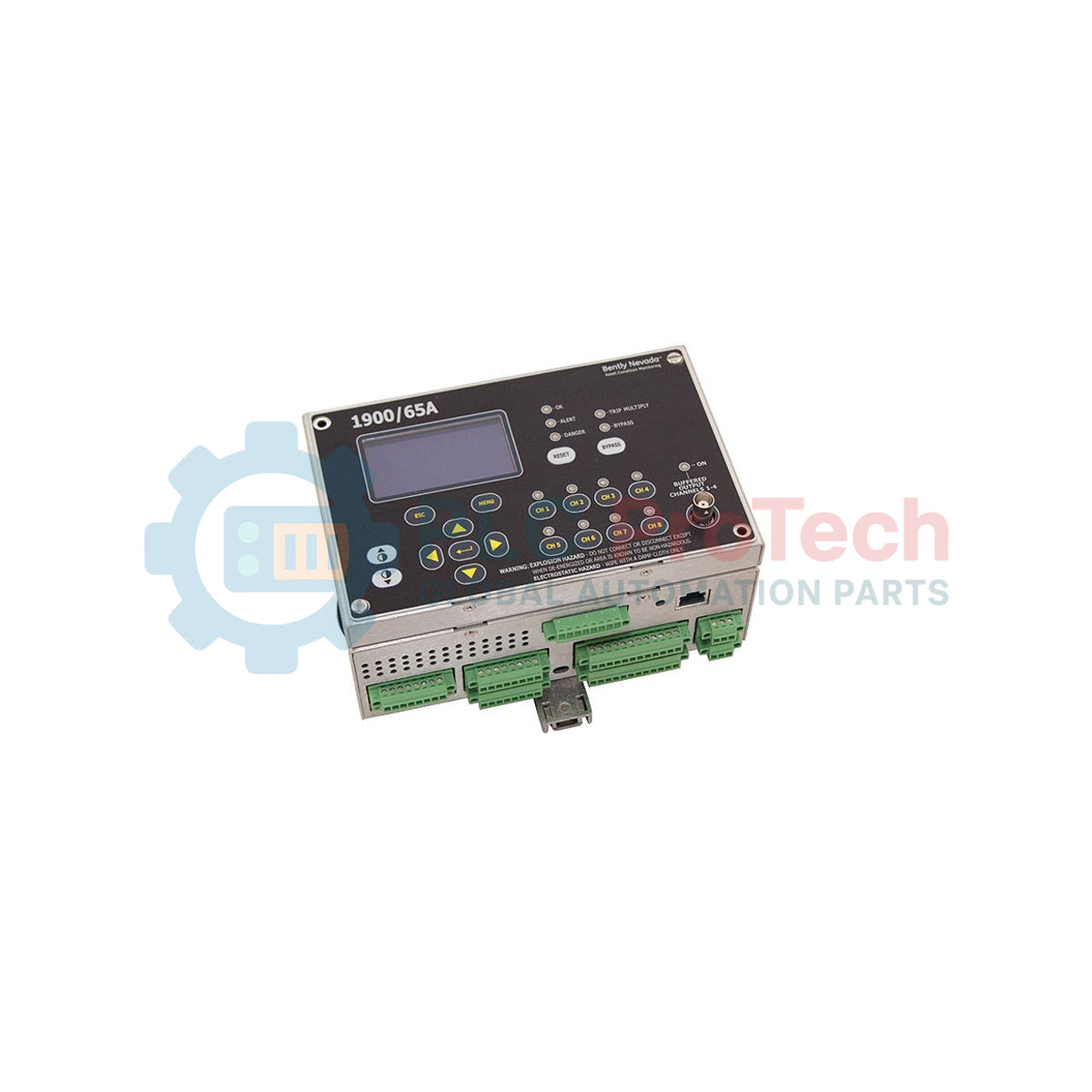

Designed for continuous machinery protection and critical parameter monitoring, the Bently Nevada 1900/65A-01-01-03-CN-00 provides comprehensive four-channel input capabilities for rotating and reciprocating equipment. This specialized monitor continuously acquires and processes signals from various transducer types, including radial vibration, thrust position, acceleration, velocity, and temperature sensors. By integrating high-accuracy analog monitoring with configurable relay logic, the 1900/65A serves as an independent safety system, executing protective actions to minimize machinery damage and optimize plant uptime.

Features

• Four-Channel Monitoring: Supports direct inputs from proximity probes, accelerometers, and velocity transducers for multi-point machinery analysis.
• Integrated Local Display: Features a directly attached display module for real-time local visualization of variable values, status, and system configurations.
• Configurable Relays: Equipped with onboard relay logic to trigger alarms and executive safety shutdowns based on custom parameters.
• Rugged Weatherproof Enclosure: Housed in a fiberglass NEMA 4X / IP66 rated enclosure equipped with a viewing window for protection in harsh industrial environments.
• Auxiliary Inputs: Includes two dedicated temperature or auxiliary inputs supporting RTDs and thermocouples for correlated thermal analysis.

Applications

• Continuous vibration tracking of industrial motors, pumps, and cooling tower fans.
• Critical protection for small steam turbines, gas turbines, and hydro-turbines.
• Thermal and physical expansion monitoring in reciprocating compressor systems.
• Local safety shutdown integration in oil and gas, power generation, and chemical processing facilities.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The "CN" suffix on this model designates specialized certifications conforming to localized regulatory standards. While functionally identical to standard global 1900/65A modules, field replacement of units in plants governed by specific local audits requires matching this exact suffix to maintain compliance. If you are retrofitting older, unhoused systems, ensure the cabinet depth accounts for the combined thickness of the NEMA housing and window clearances.

Application Pitfalls & Engineering Notes

When utilizing the fiberglass NEMA 4X housing (Option 03) in direct outdoor locations, internal solar gain can raise temperatures inside the enclosure above the rated +70 degC limit. In environments exceeding ambient temperatures of +40 degC, install a physical sunshield over the housing to mitigate thermal buildup and maintain long-term calibration accuracy of the sensitive input channels.

Commissioning & Wiring Tips

Since the "00" option indicates no digital communications, all alert structures rely on the local relays. Always configure the relays for fail-safe operation (normally energized), ensuring that a complete monitor power failure will initiate an alarm trip. Route all sensor input coaxial cables through isolated conduit, maintaining a minimum 30 cm distance from high-voltage motor feeds to prevent induction noise on the sensor readings.
