Description

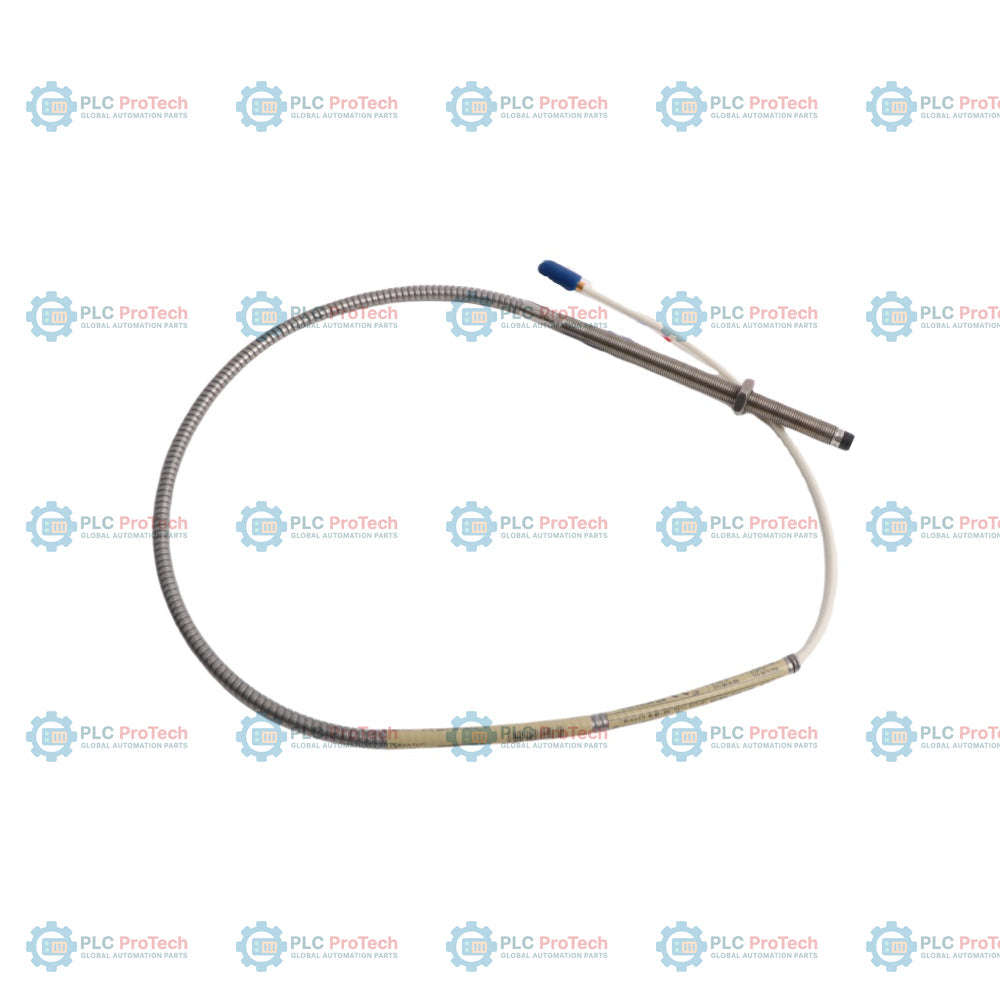

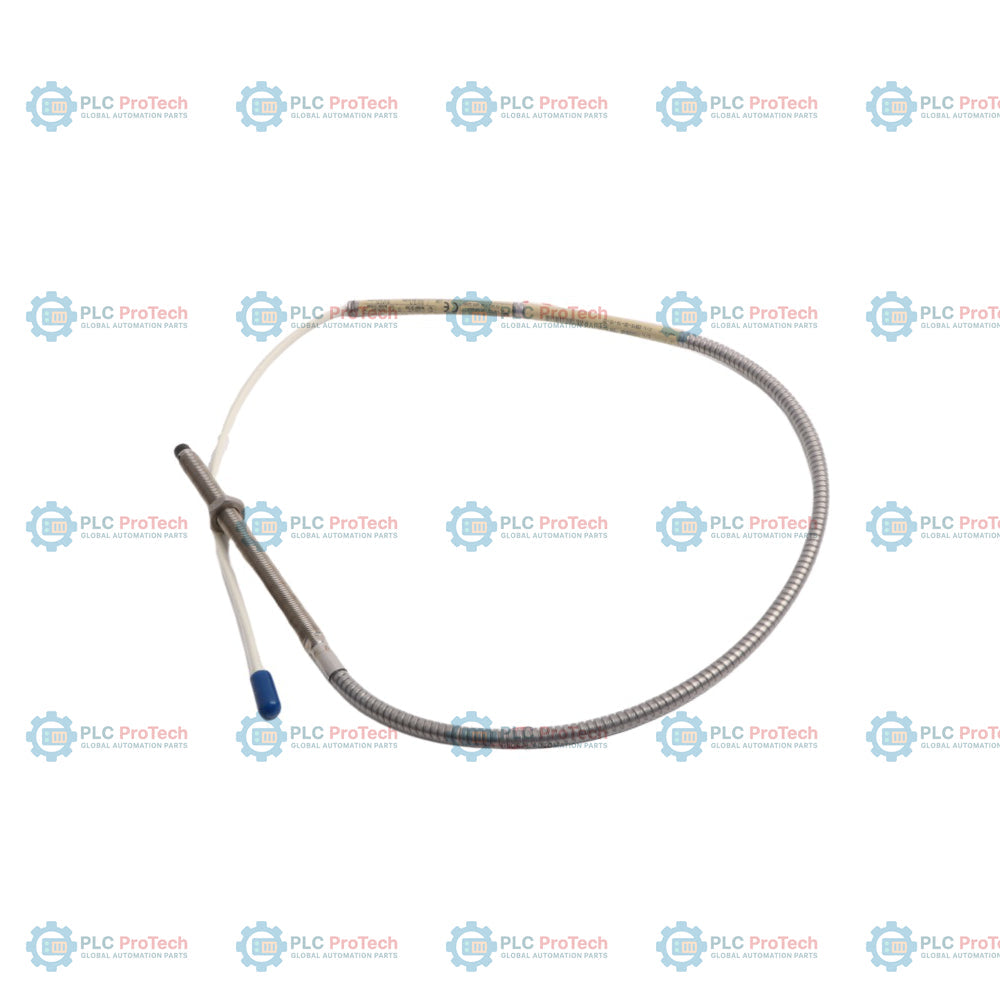

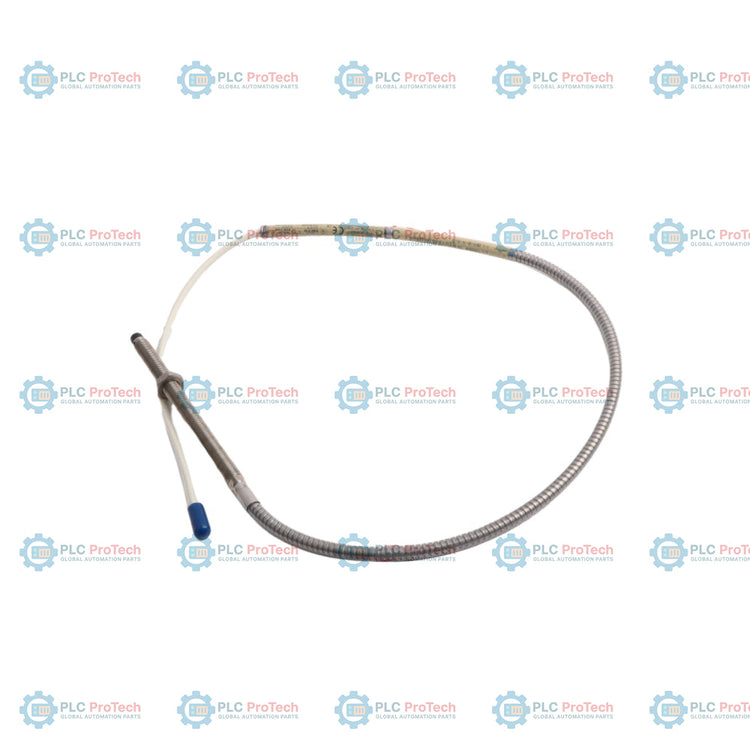

The 22810-00-06-10-02 is an 8 mm standard mount proximity probe belonging to the Bently Nevada 7200 series, featuring a 3/8-24 UNF thread configuration and a miniature male coaxial connector. This specific configuration includes 0.0 mm unthreaded length (Option 00), 0.6 inch case length (Option 06), and a 1.0 m total cable length (Option 10). It is designed for use in eddy-current transducer systems to measure static and dynamic distances between the probe tip and a target surface, commonly utilized for shaft vibration and axial position monitoring in rotating machinery such as turbines, compressors, and pumps. The 7200 series 8 mm probes are constructed from polyphenylene sulfide (PPS), a robust, high-performance plastic capable of withstanding harsh, wet, or chemically active industrial environments. This system provides a linear measuring range of 80 mils (2.0 mm) and is fully compatible with established Bently Nevada 3300 and 9000 monitoring systems. The integral coaxial cable design, paired with the specified connector option, ensures signal integrity for monitoring radial vibration, axial thrust, and rotor stability.

Features

• 8 mm probe diameter with PPS construction for chemical and moisture resistance
• 3/8-24 UNF standard mount thread configuration
• Option 00: 0.0 mm unthreaded length
• Option 06: 0.6 inch (15.2 mm) case length
• Option 10: 1.0 m (39 inch) total cable length
• Option 02: Miniature male coaxial connector
• Compatible with Bently Nevada 3300 and 9000 monitoring systems
• Linear measuring range of 80 mils (2.0 mm)

Applications

• Radial vibration measurement for monitoring bearing condition and rotor imbalance
• Axial thrust position measurement to detect bearing wear
• Shaft average radial position for rotor stability analysis
• Vibration amplitude and phase angle plotting for diagnostic reporting
• Eccentricity measurement to monitor rotor bow

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	22810-00-06-10-02	7200 8 mm Standard Mount Probe
A - Unthreaded Length	00	0.0 mm (0.0 in)
B - Case Length	06	0.6 in (15.2 mm)
C - Total Cable Length	10	1.0 m (39 in)
D - Connector	02	Miniature male coaxial connector

Technical Specifications

Manufacturer	Bently Nevada
Model	7200 Series (22810)
Probe Diameter	8 mm
Thread Configuration	3/8-24 UNF
Linear Range	80 mils (2.0 mm)
Scale Factor	200 mV/mil (7.87 V/mm)
Frequency Response	0 to 10 kHz
Operating Temperature	-34 degC to +177 degC (-30 degF to +350 degF)
Probe Material	Polyphenylene sulfide (PPS)
Cable Type	95 ohm coaxial cable

Installation Guidelines

Ensure the probe is mounted securely using the provided jam nut to maintain consistent gap settings. The proximity system operates on the eddy current principle; ensure the target surface is clean and free of excessive debris. When routing the coaxial cable, avoid sharp bends and maintain separation from high-voltage power lines to minimize electromagnetic interference. Calibrate the system as a complete loop (probe, extension cable, and Proximitor) to achieve the specified linear accuracy.
