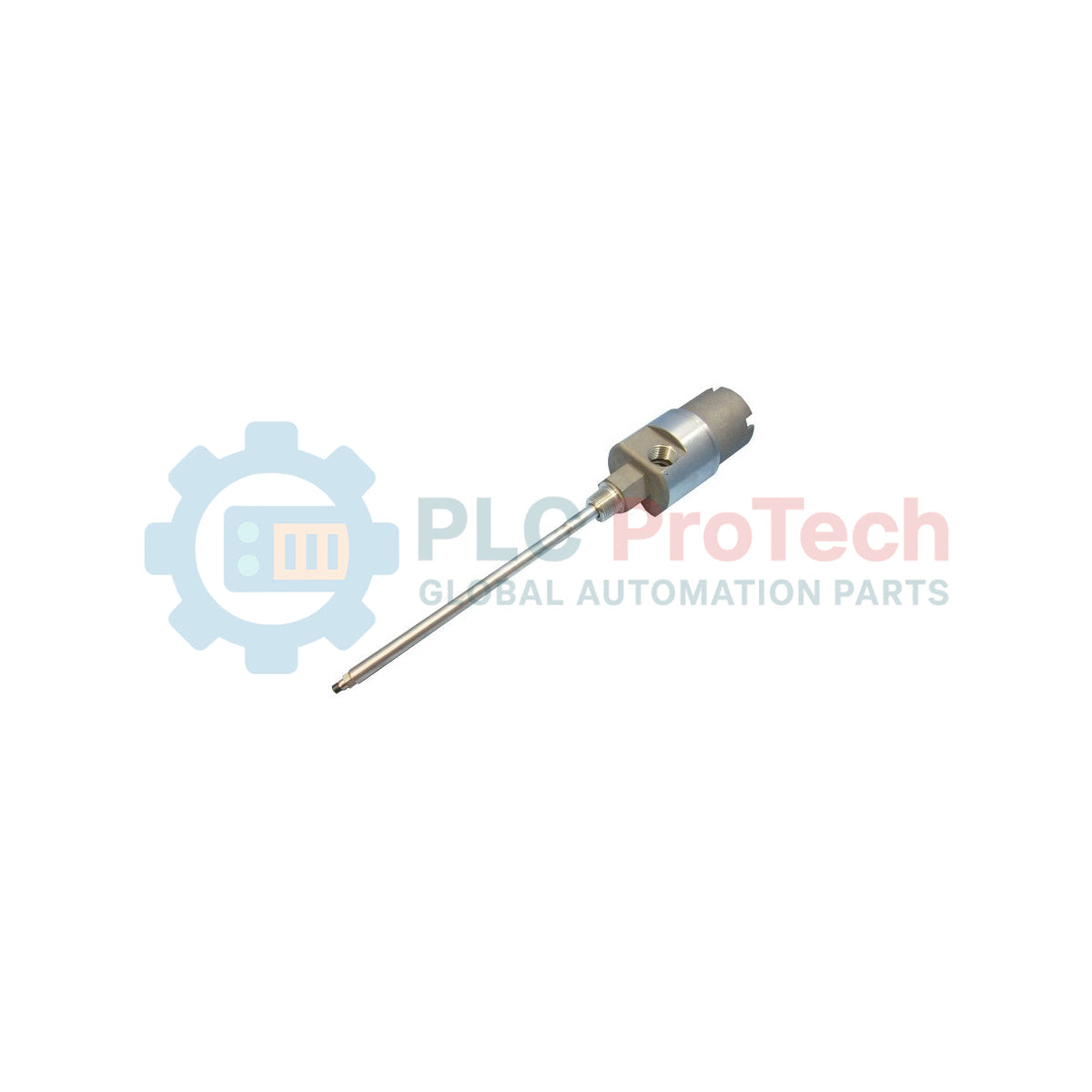

24701-16-10-00-090-03-02 is a stainless steel housing assembly for externally mounting a 3300 XL 8mm proximity probe.
The assembly provides a protected mounting arrangement between the reverse mount probe and the monitored machine surface. Its construction includes a threaded dome cover, conduit ports, a probe sleeve, O-rings, a thread seal, and conduit fittings.
This configuration includes a 3300 XL 8mm probe with a 1.0 m cable. It uses a 9.0 in probe penetration dimension and a 3/4-14 NPT mounting thread.
The E:03 fitting configuration includes a conduit plug, an NPT reducer, and a cable seal grip. The assembly is compatible with 3300 XL 8mm Proximity Transducer System installations.
| Ordering Position | Code | Configuration |
|---|---|---|
| Base Model | 24701 | Stainless steel proximity probe housing assembly |
| A: Probe with Connector | 16 | 3300 XL 8mm probe |
| B: Probe Cable Length | 10 | 39 in (1.0 m) |
| C: Standoff Adapter | 00 | No standoff adapter |
| D: Probe Penetration | 090 | 9.0 in (229 mm) |
| E: Fittings | 03 | One 3/4-14 NPT plug One 3/4-14 to 1/2-14 NPT reducer One cable seal grip with grommets for 1/8 to 3/16 in, 1/4 to 5/16 in, and 5/16 to 3/8 in cable sizes |
| F: Mounting Thread | 02 | 3/4-14 NPT |
| Manufacturer | Bently Nevada |
|---|---|
| Model | 24701-16-10-00-090-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Series | 24701 |
| Included Probe | 3300 XL 8mm reverse mount proximity probe |
| Probe Cable Length | 39 in (1.0 m) |
| Standoff Adapter | Not included |
| Probe Penetration | 9.0 in |
| Probe Penetration Adjustment Range | 13 mm (+/- 0.5 in) |
| Housing Material | 303 stainless steel |
| Probe Sleeve Material | 304 stainless steel |
| Housing Width | 78.2 mm (3.08 in) |
| Housing Height to Mounting Datum | 151.9 mm (5.97 in) |
| Lower Housing Section | 27.9 mm (1.10 in) |
| Probe Sleeve Diameter | 12.7 mm (0.50 in) |
| Mounting Thread | 3/4-14 NPT |
| Conduit Port Thread | 3/4 NPT |
| Cable Seal Grommet Range 1 | 1/8 to 3/16 in |
| Cable Seal Grommet Range 2 | 1/4 to 5/16 in |
| Cable Seal Grommet Range 3 | 5/16 to 3/8 in |
| Probe Operating and Storage Temperature | -51 degC to +177 degC (-60 degF to +351 degF) |
| Typical Housing Mass | 1.8 kg (4.1 lb), without fittings |
