Description

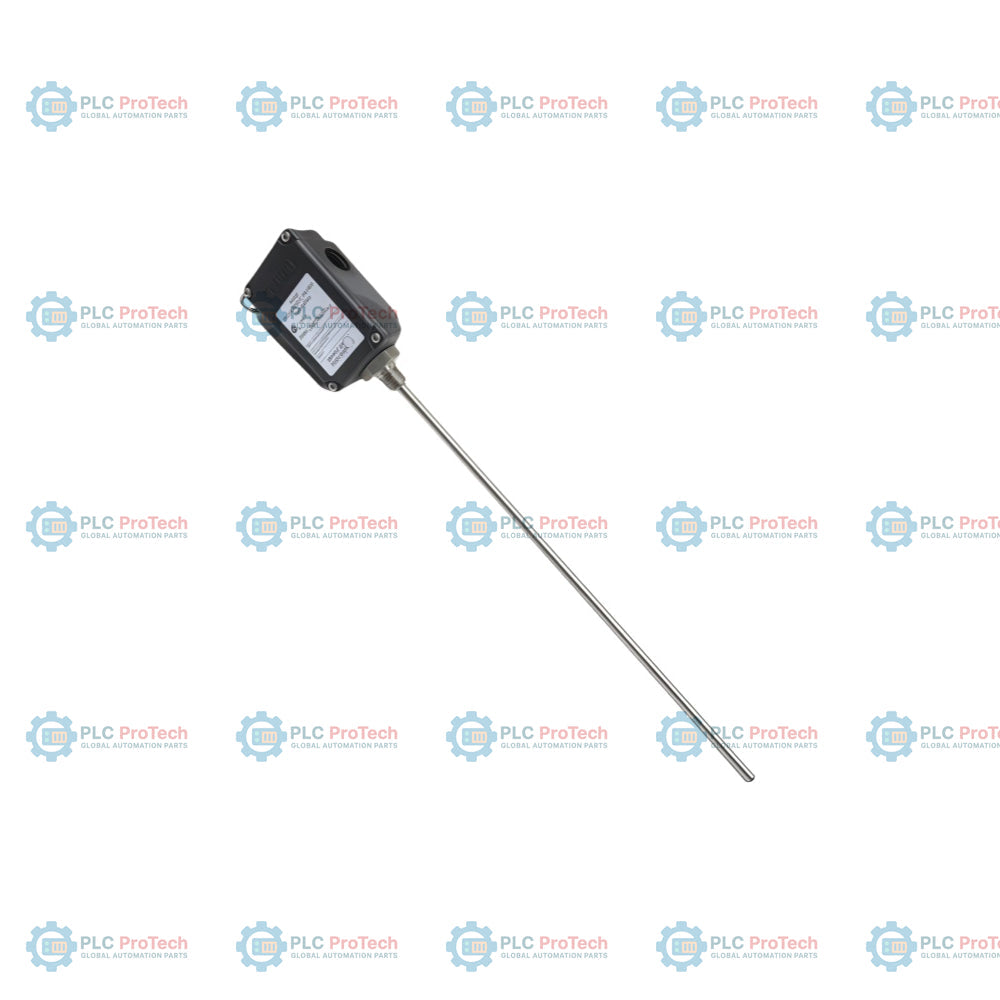

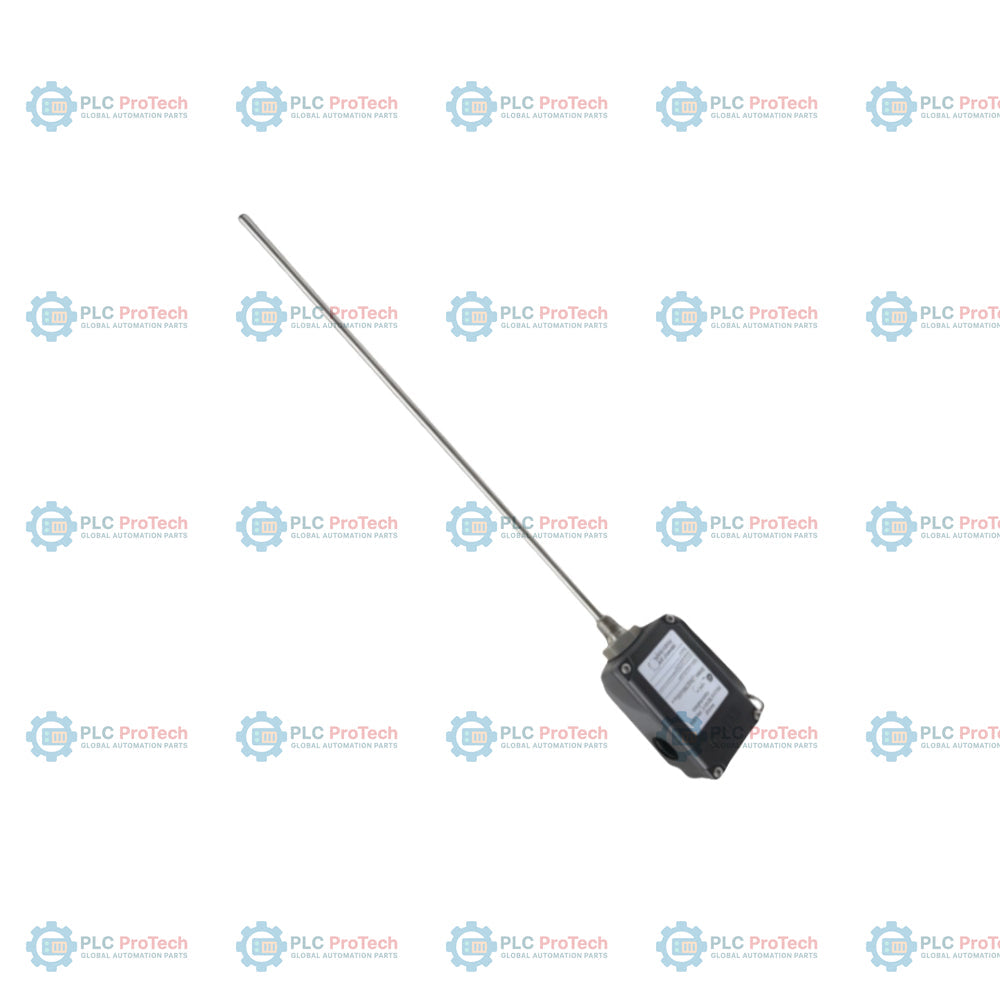

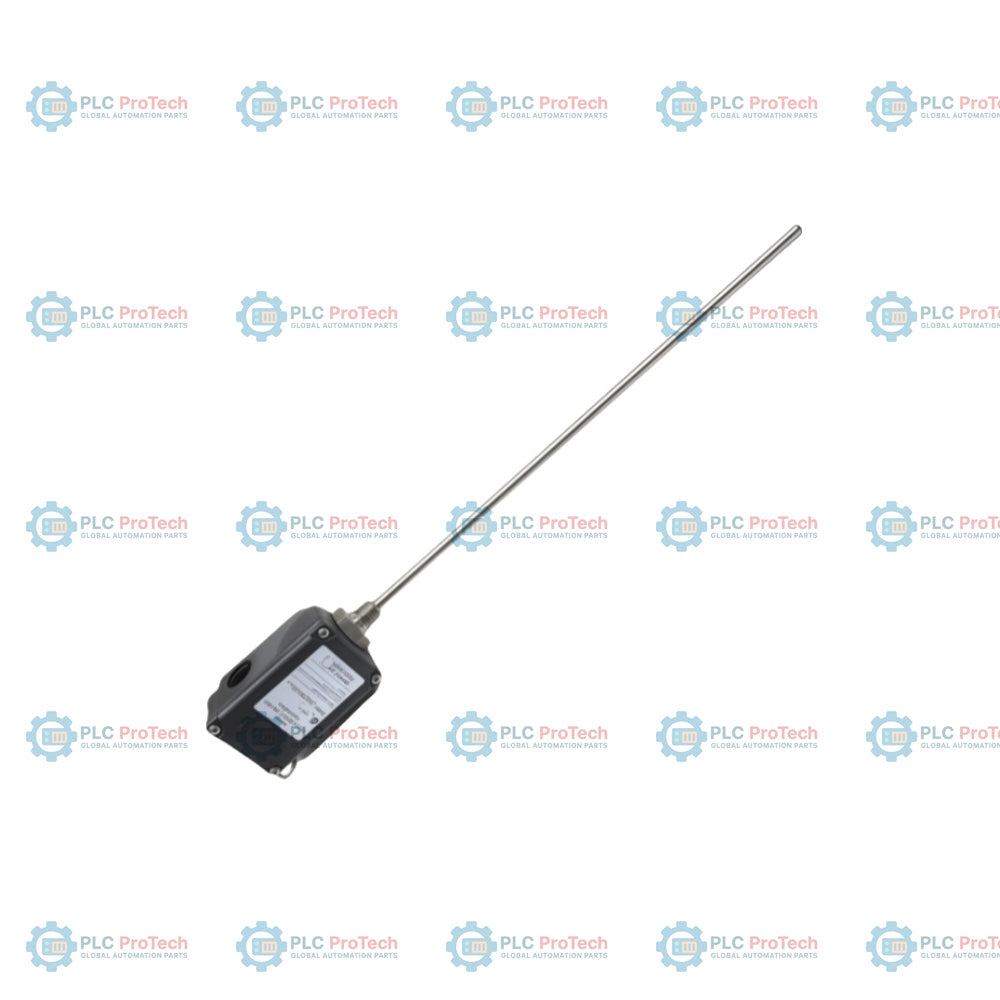

The 31000-16-10-15-030-03-02 is an English proximity probe housing assembly designed for robust machinery vibration and position monitoring. This configuration includes a 3300 XL 8 mm proximity probe (Option A: 16) with a 1.0 m cable (Option B: 10), integrated with a standoff adapter and probe penetration assembly for precise gap adjustment and external maintenance access. The housing is constructed from polyphenylene sulfide (PPS), a high-strength thermoplastic offering superior corrosion resistance, complemented by stainless steel components for long-term durability. This housing assembly serves as a protective enclosure for proximity probes, allowing for installation through the machine case for radial vibration or Keyphasor measurements. The design facilitates external probe access, enabling gap adjustments or replacement without requiring internal machine disassembly. It is fully compliant with the American Petroleum Institute (API) 670 standard for externally mounted proximity probe housings and is suitable for use in intrinsically safe hazardous area applications when paired with appropriate transducer systems and I.S. barriers.

Features

• Equipped with a 3300 XL 8 mm Proximity Probe for reliable eddy-current displacement measurement
• Constructed from polyphenylene sulfide (PPS) and corrosion-resistant stainless steel for harsh industrial environments
• Permits external probe gap adjustment and replacement, reducing maintenance downtime
• Features 3/4-14 NPT mounting thread for secure installation into machine casings
• Includes fittings (Option EE: 03) and mounting thread (Option FF: 02) configurations for flexible connection and routing
• API 670 compliant design ensures standardized mechanical and environmental protection

Applications

• Radial vibration monitoring for rotating machinery (turbines, compressors, pumps, motors)
• Keyphasor measurement for phase reference and speed monitoring
• External mounting in oil and gas, petrochemical, and power generation facilities
• Hazardous area applications (when used with approved I.S. barriers)

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	31000-16-10-15-030-03-02	English Proximity Probe Housing Assembly
A - Probe Type	16	3300 XL 8 mm proximity probe
B - Probe Cable Length	10	1.0 m (39 in)
C - Standoff Adapter Length	15	Standoff adapter dimension option
DDD - Probe Penetration	030	Probe penetration option
EE - Fittings	03	Two plugs, one M20 fitting
FF - Mounting Thread	02	3/4-14 NPT

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	31000-16-10-15-030-03-02
Housing Material	Polyphenylene sulfide (PPS)
Components	Stainless steel
Probe Type	3300 XL 8 mm
Cable Length	1.0 m
Mounting Thread	3/4-14 NPT
Operating Temperature	-51 degC to +177 degC
Weight	1.2 kg
Compliance	API 670 Standard

Installation Guidelines

• Install the outer sleeve into the machine case before mounting the housing assembly.
• Ensure the probe sleeve is properly positioned to allow for probe gap adjustment.
• Disconnect the probe cable before fitting the housing over the outer sleeve.
• Tighten the retaining nut securely after sliding the retainer in place.
• If hole plugs are used, tighten the hole plug nuts to 0.5 N-m (5 in-lbs) to maintain environmental protection.
• For applications with high vibration or moisture, ensure all conduit fittings are correctly sealed.

Compliance and Certifications

• API 670 Standard (Externally mounted proximity probe housings)
• Intrinsically safe capable (when used with approved barriers)
