Description

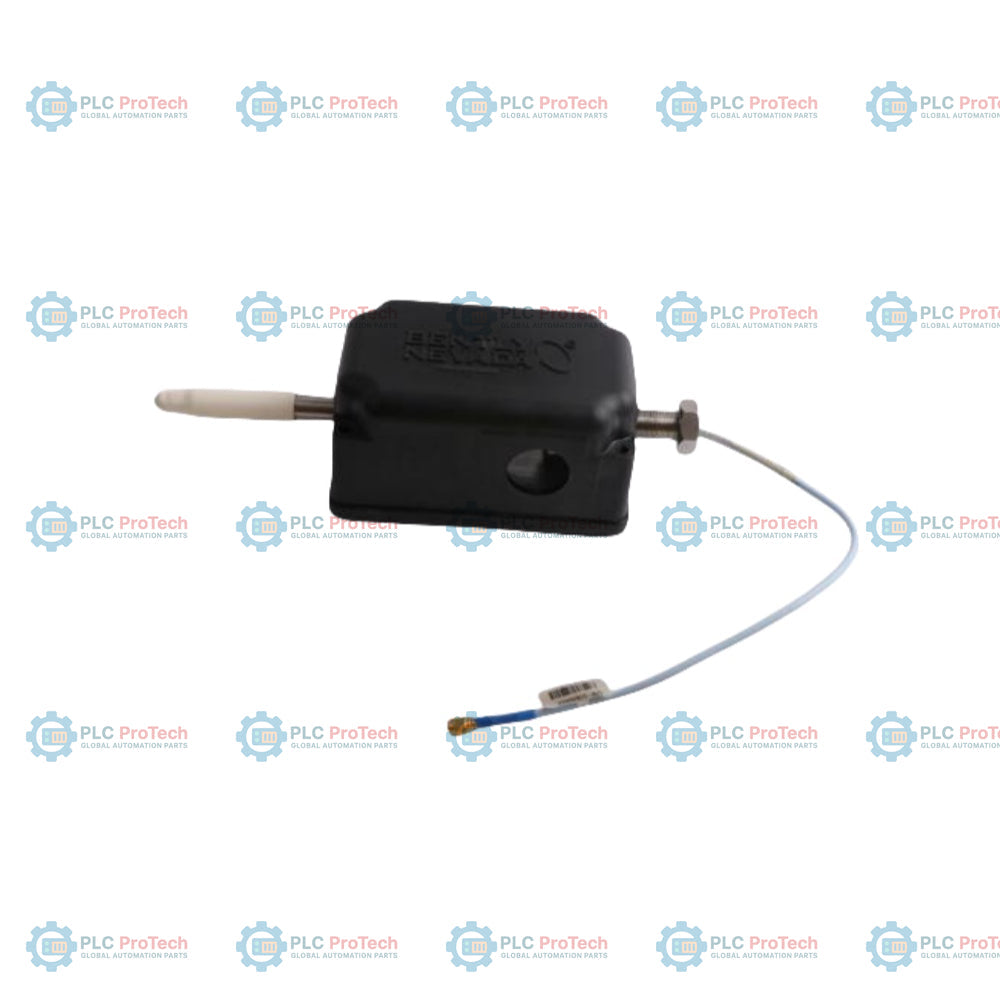

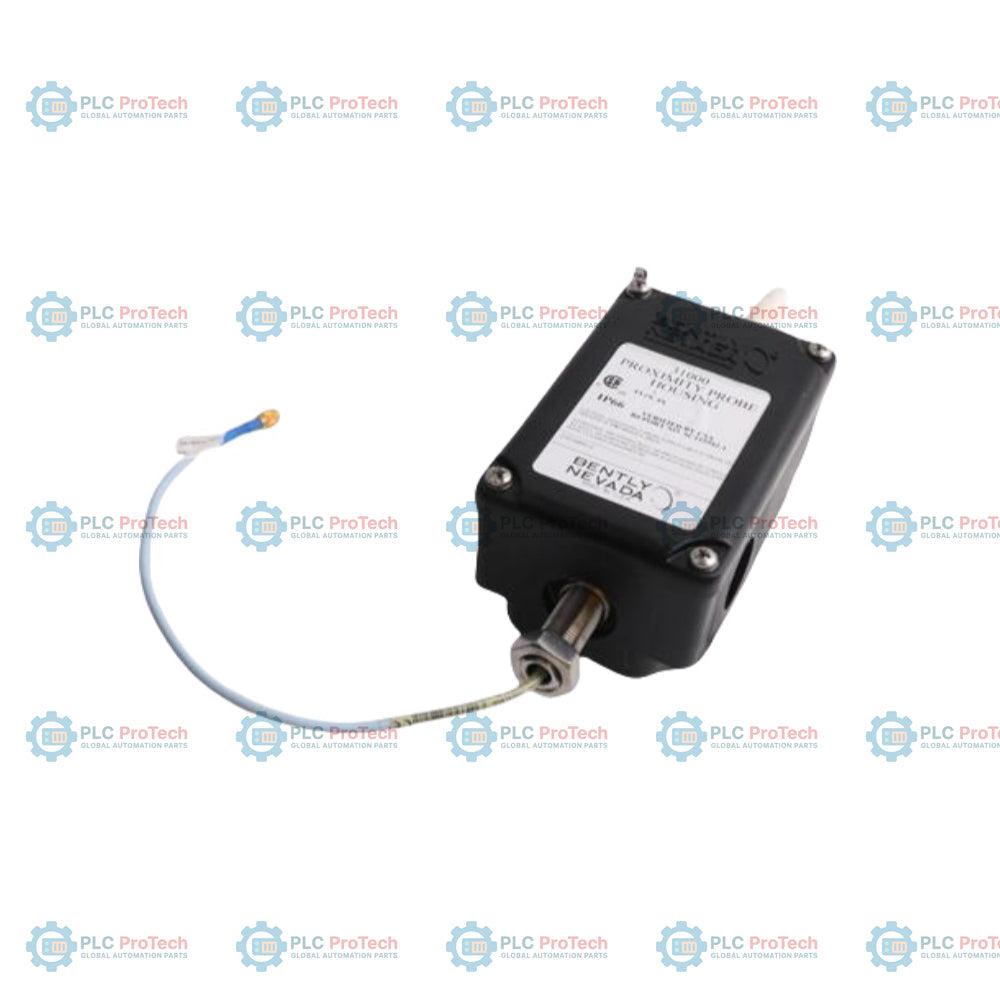

The 31000-28-05-35-032-03-02 is an English Proximity Probe Housing Assembly designed to provide robust mechanical and environmental protection for proximity transducer systems. This specific configuration features a 3300 XL 8 mm probe with multiple approvals (Option 28), a 0.5 m probe cable (Option 05), and a 35 mm standoff adapter (Option 35). The assembly is constructed from high-strength polyphenylene sulfide (PPS), offering excellent corrosion resistance for industrial machinery environments. Proximity probe housing assemblies are essential for mounting probes through machine cases, facilitating radial vibration and Keyphasor measurements while allowing for external access to the probe and its extension cable. This design permits gap adjustment or probe replacement without requiring machine disassembly. This unit is fully compliant with API 670 standards for externally mounted proximity probe housings and is suitable for use in intrinsically safe hazardous area applications when installed with appropriate I.S. barriers and transducer systems.

Features

• Option 28: Includes 3300 XL 8 mm probe with multiple approvals
• Option 05: 0.5 meter (20 in) probe cable length
• Option 35: 35 mm standoff adapter length
• Option 032: 32 mm probe penetration length
• Option 03: Two plugs, one M20 fitting
• Option 02: 3/4-14 NPT mounting thread
• Constructed from high-strength, corrosion-resistant polyphenylene sulfide (PPS)
• Fully compliant with API 670 standards
• Allows for probe gap adjustment and replacement without machine case disassembly

Applications

• Radial vibration monitoring on rotating machinery
• Keyphasor measurements
• Petrochemical and power generation facilities
• Oil and gas industrial equipment
• Environments requiring external access to transducer systems

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	31000-28-05-35-032-03-02	31000 Proximity Probe Housing Assembly
A - Probe with Connector	28	3300 XL 8 mm probe, multiple approvals
B - Probe Cable Length	05	0.5 m (20 in)
C - Standoff Adapter Length	35	35 mm length
D - Probe Penetration Option	032	32 mm length
E - Fittings	03	Two plugs, one M20 fitting
F - Mounting Thread Option	02	3/4-14 NPT

Technical Specifications

Manufacturer	Bently Nevada
Part Number	31000-28-05-35-032-03-02
Housing Material	Polyphenylene sulfide (PPS)
Standards Compliance	API 670
Operating Temperature	-51 Celsius to +177 Celsius (-60 Fahrenheit to +351 Fahrenheit)
Mounting Thread	3/4-14 NPT
Fitting Type	Two plugs, one M20 fitting

Installation Guidelines

• Install the outer sleeve into the machine case first.
• Insert the probe sleeve into the assembly and adjust the probe gap according to the transducer system manual.
• Ensure the housing cover is tightened securely with captive screws after installation.
• If hole plugs are utilized, tighten the hole plug nuts to 0.5 N-m (5 in-lbs).
• For penetration lengths between 25 mm and 50 mm, counter boring the machine case may be necessary to reduce signal interference.

Compliance and Certifications

• API 670 compliant
• Intrinsically safe (when installed with appropriate I.S. barriers)
